• Model NO.：GE160 DO-2RS
• Rod End：General
• Thickness：130mm
• Model：GE
• Application：Engineering Hydraulic Cylinder
• Dimension：160mm*230mm*105mm*80mm
• OEM Service：Workable
• Hardness：59-62
• Delivery Time：in Stock
• Gross Weight：14kgs
• Transport Package：Individual Box Package &OEM Package
• Specification：EUROPE STANDARD
• Trademark：demek&OEM, SKF, , NSK, NTN
• Origin：China
• HS Code：84833000
• Production Capacity：1000PCS ,Month

Basic Info.

Model NO. GE160 DO-2RS Rod End General Thickness 130mm Model GE Application Engineering Hydraulic Cylinder Dimension 160mm*230mm*105mm*80mm OEM Service Workable Hardness 59-62 Delivery Time in Stock Gross Weight 14kgs Transport Package Individual Box Package &OEM Package Specification EUROPE STANDARD Trademark demek&OEM, SKF, , NSK, NTN Origin China HS Code 84833000 Production Capacity 1000PCS /Month

Product Description

Radial Spherical Plain Bearing GE160 DO-2RS

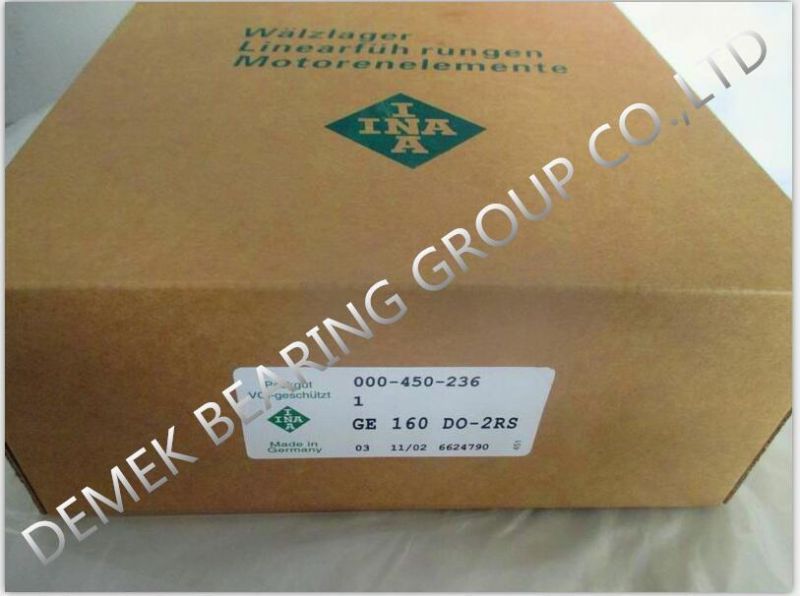

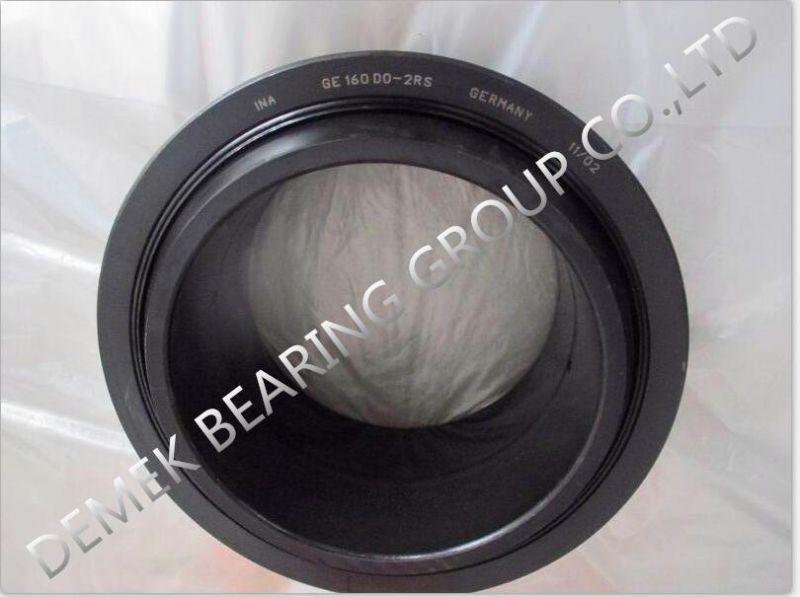

More pictures for Radial Spherical Plain Bearing GE160 DO-2RS




Feature of Spherical Plain Bearing:
Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds.


Specifications
1)Models:GE..E,GE..ES,GE..ES-2RS
2)Excellent load rating capacity
3)High quality,good service
1.Specification
1)Inner Race:Gcr15 Steel,hardness HRC 58-64,surface phosphated.
2)Outer Race:Gcr15 Steel,hardeness HRC 54-60,surface phosphated.
3)Bore size  bigger than 140mm:Inner and outer race are all Gcr15 SiMn.
4)Sliding contact surfaces:Steel/Steel or Steel/PTFE

More Part Number of Spherical Plain Bearing GE Series:


Type	d	D	B
GE15-DO-2RS	15	26	12
GE17-DO-2RS	17	30	14
GE20-DO-2RS	20	35	16
GE25-DO-2RS	25	42	20
GE30-DO-2RS	30	47	22
GE35-DO-2RS	35	55	25
GE40-DO-2RS	40	62	28
GE45-DO-2RS	45	68	32
GE50-DO-2RS	50	75	35
GE60-DO-2RS	60	90	44
GE70-DO-2RS	70	105	49
GE80-DO-2RS	80	120	55
GE90-DO-2RS	90	130	60
GE100-DO-2RS	100	150	70
GE110-DO-2RS	110	160	70
GE120-DO-2RS	120	180	85
GE140-DO-2RS	140	210	90
GE160-DO-2RS	160	230	105
GE180-DO-2RS	180	260	105
GE200-DO-2RS	200	290	130
GE220-DO-2RS	220	320	135
GE240-DO-2RS	240	340	140
GE260-DO-2RS	260	370	150
GE280-DO-2RS	280	400	155
GE300-DO-2RS	300	430	165

About US:

There are 500 workers in our factory, as the industry demands developed every year, last year we did invest 6 million USD to build expand our factory. As our Europe clients become more and more, most of our equipment and machine are import from Germany, and we did use the Germany Engineer to operate our team. So that we have the world leading technology to produce bearings.

Our main products are ball bearings and roller bearings, we can produce them from small size to big size such as deep groove ball bearing, angular contact ball bearings, spherical roller bearing, cylindrical roller bearing, taper roller bearing, needle bearing. Also we can produce the slide bearings such as pillow block, spherical plain bearing and bearing bush, linear bearing. We have a department special to develop the auto bearings such as wheel hub bearings and clutch bearings, as now the auto bearings have a big market in the worldwide.

Our clients are all over the world such as: Asia, Europe, south American, north American. Also Africa and Australia. Different area have different demands and market, as we have 10 years export experience, we are very familiar with the market in different area.

Also in recently, OEM service become very popular, we did help a lot of customer to do the OEM service. We have a workshop only produce the bearing box, we can produce the box if the customer send us their requirement. So if you want we OEM your brand bearings, we also can help you to design your brand box.

" Quality to win customer, and good after- sell service to win the regular customer" is our faith. So welcome to send us the inquiry, hope we can be your best bearings partner in China.

Please feel free to contact us if you have any demand for our bearings.
