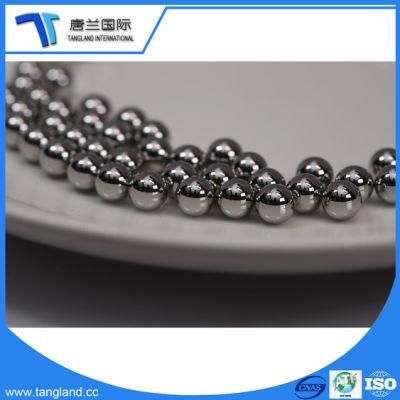

Carbon Steel Ball/Chrome Steel Ball for Bearing Steel Ballfor Sale
Tangland International Trading Co., Ltd.- Customized：Non-Customized
- Certification：ISO
- Standard Parts：Yes
- Universal：Yes
- Type：Bearing Roller
- Material：Carbon Steel
Base Info
- Model NO.：Carbon Steel Balls
- Grade：G20-G1000
- Hardness：HRC 58 to 63
- Certificate：ISO9001,ISO14004,Ts16949
- Payment：T,T,LC
- Delivery Time：20 Days
- Package：Box
- Transport Package：Plastic Bag+Box+Carton+Wooden Pallet
- Specification：2.381-25.4mm
- Trademark：Tangland
- Origin：China
- HS Code：8482910000
- Production Capacity：5000 Billion Pieces , Month
Description
μmG3 0.08 0.08 0.13 0.01 0.5 -5,...,0.5,0,+0.5,...,+5 0.1 -0.2,-0.1,0,+0.1,+0.2 G5 0.13 0.13 0.25 0.014 1 -5,...,-1,0,+1,...+5 0.2 -0.4,-0.2,0,+0.2,+0.4 G10 0.25 0.25 0.5 0.02 1 -9,...,-1,0,+1,...,+9 0.2 -0.4,-0.2,0,+0.2,+0.4 G16 0.4 0.4 0.8 0.025 2 -10,...,-2,0,+2,...,+10 0.4 -0.8,-0.4,0,+0.4,+0.8 G20 0.5 0.5 1 0.032 2 -10,...,-2,0,+2,...,+10 0.4 -0.8,-0.4,0,+0.4,+0.8 G24 0.6 0.6 1.2 0.04 2 -12,...,-2,0,+2,...,+12 0.4 -0.8,-0.4,0,+0.4,+0.8 G28 0.7 0.7 1.4 0.05 2 -12,...,-2,0,+2,...,+12 0.4 -0.8,-0.4,0,+0.4,+0.8 G40 1 1 2 0.06 4 -16,...,-4,0,+4,...,+16 0.8 -1.6,-0.8,0,+0.8,+1.6 G60 1.5 1.5 3 0.08 6 -18,...,-6,0,+6,...,+18 1.2 -2.4,-1.2,0,+1.2,+2.4 G100 2.5 2.5 5 0.1 10 -40,...,-10,0,+10,...,+40 2 -4,-2,0,+2,+4 G200 5 5 10 0.15 15 -60,...,-15,0,+15,...,+60 3 -6,-3,0,+3,+6
Chemical composition

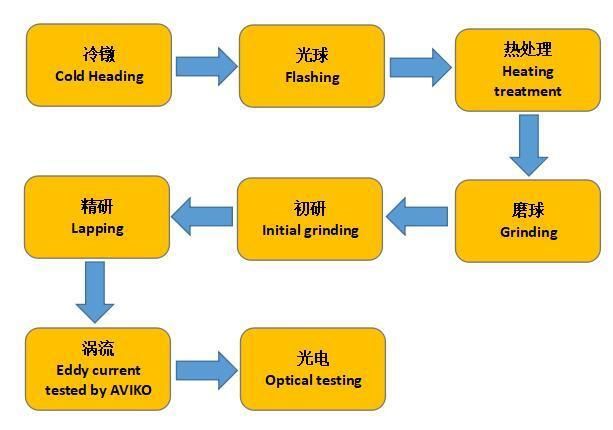

Production Process
1.Cold heading process
2.Flashing process
3.Heating treatment process
4.Grinding process
5.Initial grinding process
6.Lapping process
7.Eddy current tested by AVIKO
8.Optical testing
We produce
Production process
Packaging
1. Plastic bag+box+carton+wooden pallet
2. Plastic bag+carton+wooden pallet
3. Export cartons+steel drums+wooden pallets
Chemical composition
| Carbon steel ball | Steel Grade | C(%) | Si(%) | Mn(%) | P(%) | S(%) | Ni(%) | Cr(%) | Mo(%) |
| Low carbon steel ball | Q235B | 0.12~0.20 | 0.30max | 0.30~0.70 | 0.045max | 0.045 | ----- | ----- | ---- |
| High carbon steel ball | SWRH82B | 0.79~0.92 | 0.15~0.35 | 0.60~0.90 | 0.025 | 0.025 | ----- | ----- | ---- |
| High carbon steel ball | C86D | 0.083~0.88 | 0.10~0.30 | 0.50~0.80 | 0.035 | 0.035 | ----- | 0.15 | ---- |
Production Process
1.Cold heading process
2.Flashing process
3.Heating treatment process
4.Grinding process
5.Initial grinding process
6.Lapping process
7.Eddy current tested by AVIKO
8.Optical testing
We produce
| Item | Name | Material |
| 1 | Carbon steel ball (Low) | AISI1010,AISI1015,Q195,Q235 |
| 2 | Carbon steel ball (High) | C80,C82,C85 |
| 3 | Stainless steel ball(Austenitic) | AISI304/304L/316/316L/201/665 |
| 4 | Stainless steel ball(Martensitic) | AISI420/420C/440/440C |
| 5 | Chrome steel ball(Ferritic) | AISIE52100/100Cr6/Gcr15/SUJ-2 |
Production process
Packaging
1. Plastic bag+box+carton+wooden pallet
2. Plastic bag+carton+wooden pallet
3. Export cartons+steel drums+wooden pallets
