Bearing Autoparts Bearing Motorcycle Parts Bearing Ball Bearing 1203 Self Aligning Ball Bearing
Jinan RuiZhuo Machinery Technology Co., ltd- Contact Angle：60°
- Aligning：Aligning Bearing
- Separated：Unseparated
- Rows Number：Single
- Load Direction：Radial Bearing
- Material：Bearing Steel
Base Info
- Model NO.：1203
- Type：Ball Bearing
- Precision Rating：P0 P6 P5 P4 P2
- Structure：Self-Aligning
- Sample：Available
- Stock：Rich
- Feature：Long Life
- Transport Package：Carton Box + Veneer Case Package
- Specification：40mm-500mm
- Trademark：R&Z or customzied
- Origin：Shandong China
- HS Code：848220
- Production Capacity：100000,Year
Description
Dimensions(mm)Weight d D T kg d D T kg 2203 17 40 16 0.09 2303 17 47 19 0.158 2204 20 47 18 0.14 2304 20 52 21 0.209 2205 25 52 18 0.163 2305 25 62 24 0.335 2206 30 62 20 0.26 2306 30 72 27 0.5 2207 35 72 23 0.403 2307 35 80 31 0.675 2208 40 80 23 0.51 2308 40 90 33 0.925 2209 45 85 23 0.55 2309 45 100 36 1.23 2210 50 90 23 0.6 2310 50 110 40 1.64 2211 55 100 25 0.81 2311 55 120 43 2.1 2212 60 110 28 1.09 2312 60 130 46 2.6 2213 65 120 31 1.46 2313 65 140 48 3.23 2214 70 125 31 1.62 2314 70 150 51 4.23 2215 75 130 31 1.62 2315 75 160 55 5.13 2216 80 140 33 2.01 2316 80 170 58 6.1 2217 85 150 36 2.52 2317 85 180 60 7.05

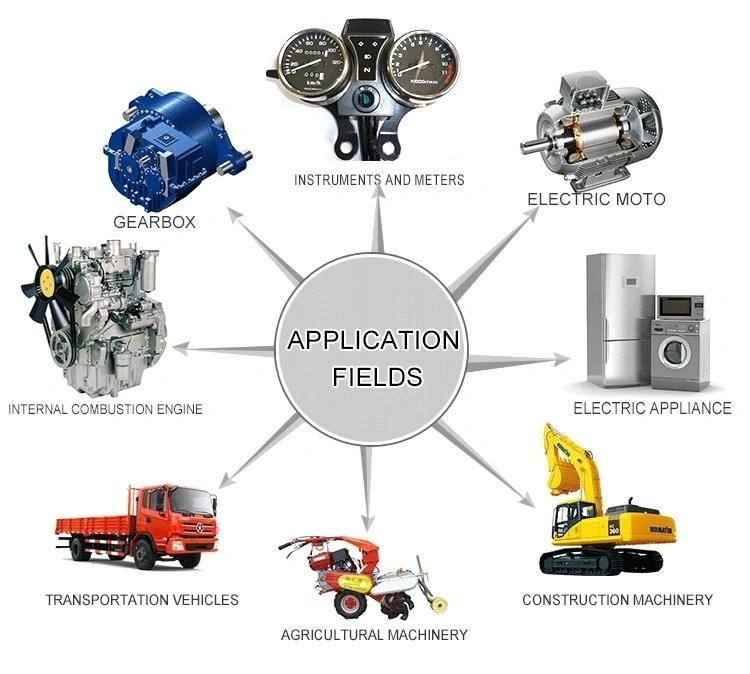

Application:
Precision Instruments, Low Noise Motors, Automobiles, Motorcycles, Metallurgy, Rolling Mills, Mines, Petroleum, Paper,
Cement...
Our package
* Industrial pakage+outer carton+pallets
* sigle box+outer carton+pallets
* Tube package+middle box+outer carton+pallets
* According to your requirments
FAQ:
SAMPLES
1.Samples quantity: 1-10 pcs are available.
2.Free samples: It depends on the model NO., material and quantity. Some of the bearings samples need client to pay
samples charge and shipping cost.
CUSTOMIZED
The customized LOGO or drawing is acceptable for us.
MOQ
1.MOQ: 10 pcs mix different standard bearings.
2.MOQ: 2000 pcs customized your brand bearings.
OEM POLICY
1.We can printing our brand (logo,artwork) on the shield or make your own brand on the shield.
2.We can custom your packaging according to your design

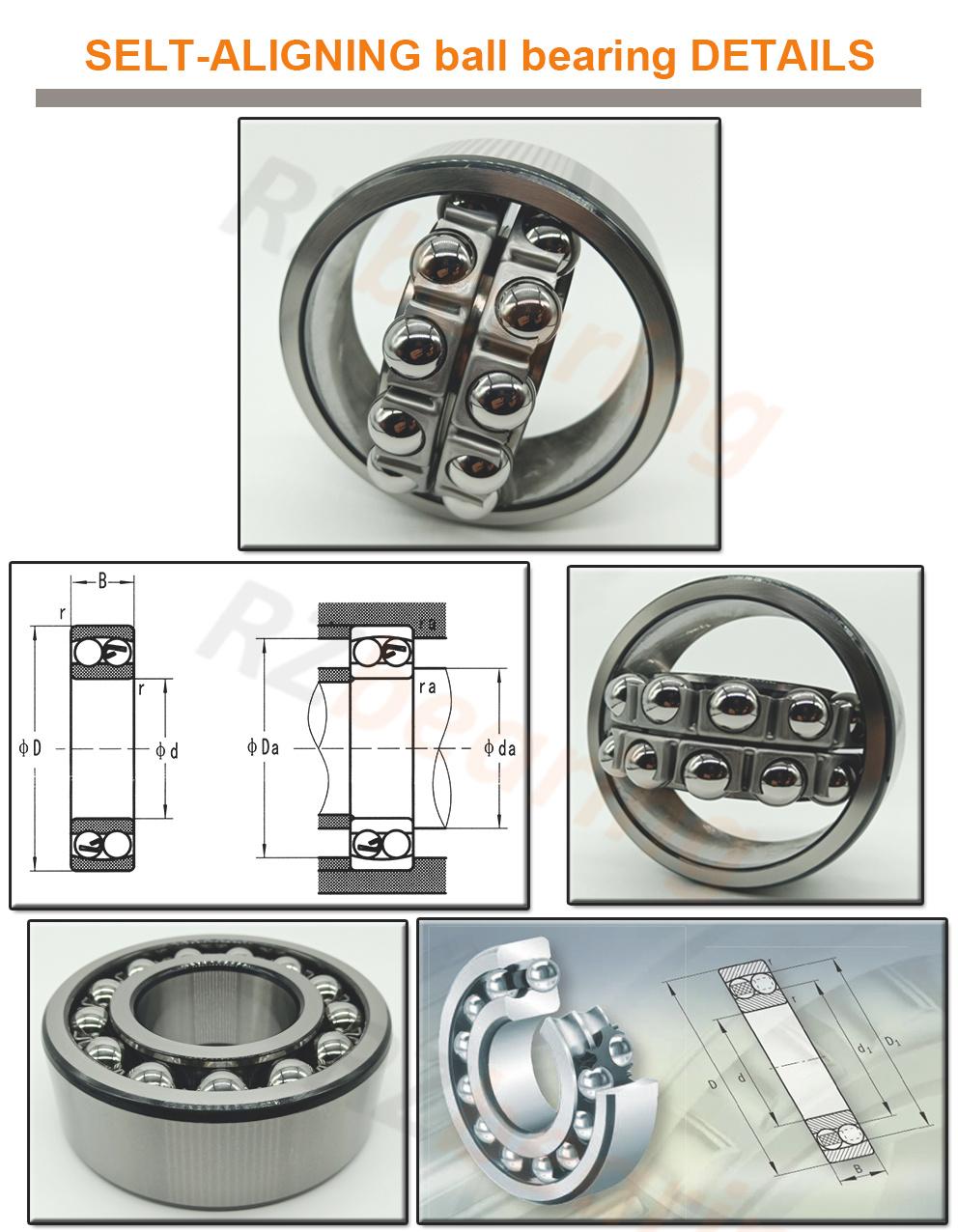

Features
- self-aligning ball bearing with two rows of balls
- pivoting inner ring, misalignments and shaft deflections can be compensated
- suitable for high radial loads and light axial loads in both directions
- cage material: sheet steel, high load-bearing capacity and high strength; suitable for continuous high temperatures
- seal: open (without seal); for higher speeds than with sealed ball bearings and easy relubrication
- good fixed bearing property, but can also be used as a floating bearing, each in both directions
Application:
Precision Instruments, Low Noise Motors, Automobiles, Motorcycles, Metallurgy, Rolling Mills, Mines, Petroleum, Paper,
Cement...
Our package
* Industrial pakage+outer carton+pallets
* sigle box+outer carton+pallets
* Tube package+middle box+outer carton+pallets
* According to your requirments
FAQ:
SAMPLES
1.Samples quantity: 1-10 pcs are available.
2.Free samples: It depends on the model NO., material and quantity. Some of the bearings samples need client to pay
samples charge and shipping cost.
CUSTOMIZED
The customized LOGO or drawing is acceptable for us.
MOQ
1.MOQ: 10 pcs mix different standard bearings.
2.MOQ: 2000 pcs customized your brand bearings.
OEM POLICY
1.We can printing our brand (logo,artwork) on the shield or make your own brand on the shield.
2.We can custom your packaging according to your design
