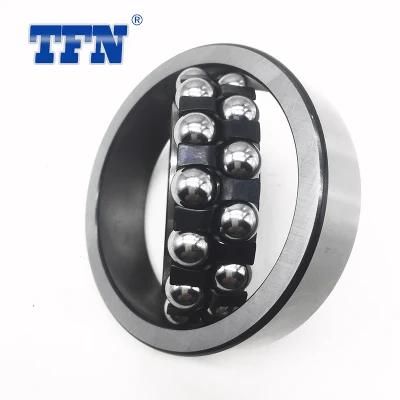

1208 Self-Aligning Ball Bearing Size 40*80*18 mm
Shandong TFN Bearing Industry Co., Ltd.- Contact Angle：0
- Aligning：Aligning Bearing
- Separated：Unseparated
- Rows Number：Double
- Load Direction：Radial Bearing
- Material：Bearing Steel
Base Info
- Model NO.：1208
- Product Name：1208 Self-Aligning Ball Bearing Size 40*80*18
- Size：40X80X18mm
- Weight：0.42kg
- Basic Dynamic Load Rating：19.9kn
- Basic Static Load Rating：6.95kn
- Fatigue Load Limit：0.36kn
- Reference Speed：18000r,Min
- Limiting Speed：11000r,Min
- Calculation Factor：0.04
- Vibration：Zv1, Zv2, Zv3, or as Requested
- Transport Package：Single Box Packaging,OEM
- Specification：40X80X18mm
- Trademark：TFN,OEM
- Origin：China
- HS Code：8482101000
- Production Capacity：10000,Month
Description
Quality Control Process 1.Assembly 2.Windage test2.Windage test 3.Cleaning 4.Rotary test 5.Greasing and gland 6.Noise inspection 7.Appearance inspection 8.Rust prevention 9.Product packaging Application low noise machine,automobile,motorcycle,and the general machinery and etc.
Limiting speeds(rpm)Mass(Kg) d D B rs min Cr Cor Grease Oil (Approx.) 12 Series 1200 10 30 9 0.6 5.5 1.19 21,000 24,000 0.033 1201 12 32 10 0.6 5.6 1.27 18,000 22,000 0.04 1202 15 35 11 0.6 7.45 1.75 16,000 19,000 0.049 1203 17 40 12 0.6 7.9 2.01 14,000 17,000 0.072 1204 20 47 14 1 9.9 2.61 13,000 15,000 0.116 1205 25 52 15 1 12.1 3.3 11,000 13,000 0.138 1206 30 62 16 1 15.6 4.65 9,200 11,000 0.217 1207 35 72 17 1.1 15.8 5.1 8,000 9,400 0.317 1208 40 80 18 1.1 19.3 6.55 7,100 8,400 0.414 1209 45 85 19 1.1 21.9 7.35 6,400 7,500 0.457 1210 50 90 20 1.1 22.7 8.1 5,800 6,800 0.515 1211 55 100 21 1.5 26.8 10 5,300 6,200 0.692 1212 60 110 22 1.5 30 11.5 4,900 5,800 0.879 1213 65 120 23 1.5 31 12.5 4,500 5,300 1.13 1214 70 125 24 1.5 34.5 13.8 4,200 4,900 1.24 1215 75 130 25 1.5 39 15.7 3,900 4,600 1.33 1216 80 140 26 2 40 17 3,700 4,300 1.65 1217 85 150 28 2 49 20.8 3,500 4,100 2.06 1218 90 160 30 2 57 23.5 3,300 3,800 2.51 1219 95 170 32 2.1 64 27.1 3,100 3,600 3.1 1220 100 180 34 2.1 69 29.7 2,900 3,400 3.7 1221 105 190 36 2.1 74.5 32.5 2,800 3,300 4.34 1222 110 200 38 2.1 80.5 35.5 2,600 3,100 5.15 12K Series 1203K 17 40 12 0.6 7.9 2.01 14,000 17,000 0.076 1204K 20 47 14 1 9.9 2.61 13,000 15,000 0.114 1205K 25 52 15 1 12.1 3.3 11,000 13,000 0.135 1206K 30 62 16 1 15.6 4.65 9,200 11,000 0.213 1207K 35 72 17 1.1 15.8 5.1 8,000 9,400 0.312 1208K 40 80 18 1.1 19.3 6.55 7,100 8,400 0.407 1209K 45 85 19 1.1 21.9 7.35 6,400 7,500 0.448 1210K 50 90 20 1.1 22.7 8.1 5,800 6,800 0.504 1211K 55 100 21 1.5 26.8 10 5,300 6,200 0.679 1212K 60 110 22 1.5 30 11.5 4,900 5,800 0.864 1213K 65 120 23 1.5 31 12.5 4,500 5,300 1.11 1215K 75 130 25 1.5 39 15.7 3,900 4,600 1.31 1216K 80 140 26 2 40 17 3,700 4,300 1.62 1217K 85 150 28 2 49 20.8 3,500 4,100 2.03 1218K 90 160 30 2 57 23.5 3,300 3,800 2.47 1219K 95 170 32 2.1 64 27.1 3,100 3,600 3.05 1220K 100 180 34 2.1 69 29.7 2,900 3,400 3.64 1222K 110 200 38 2.1 80.5 35.5 2,600 3,100 5.07 1224K 120 215 40 2.1 119.5 52.5 2,000 2,600 5.9
deep groove ball bearing packaging
FAQ of deep groove ball bearing
Limiting speeds(rpm) deep groove ball bearing packagingFAQ of deep groove ball bearing
1.Q:Are you a factory or trading company?
A:SEMRI Bearing is specialized in manufacturing and exporting bearings.
SEMRI Bearing have own factory and warehouse.
2.Q:Can I get some samples and do you offer the sample free?
A:Yes, sure, SEMRI Bearing are honored to offer you samples.Can you buy a ticket ?3.Q:What is the payment?
A: 30% T/T In Advance, 70% T/T Against Copy Of B/L
B: 100% L/C At Sight
4.Q:What is the MOQ for bearing?
A: SEMRI Bearing MOQ is 1 pc.
5.Q:What kind of service you can offer?
A:Technology support;Installation guidance;OE
