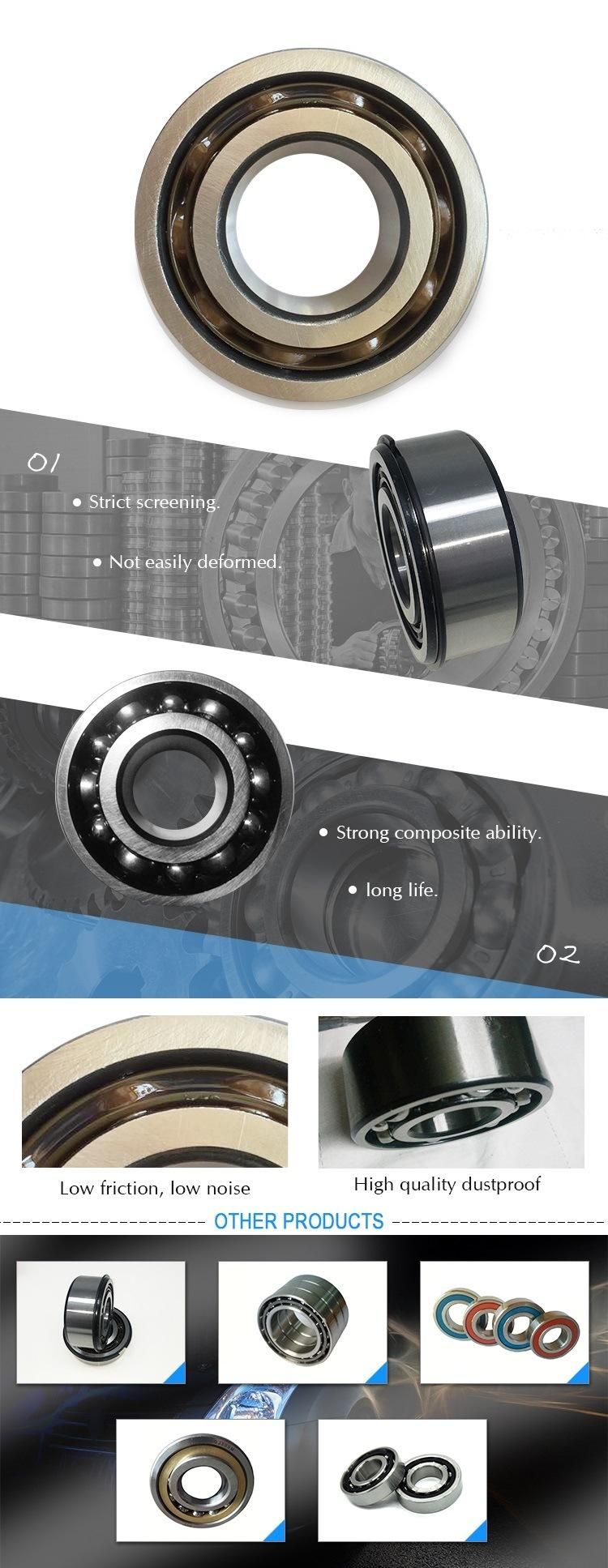

Angular Contact Ball Bearing, 70 Series, 72 Series, Spindle/Shaft/Motor Bearing
Luoyang Auto Bearing Co., Ltd.- Rolling Body：Ball Bearings
- The Number of Rows：Single
- Outer Dimension：Small (28-55mm)
- Material：Bearing Steel
- Spherical：Non-Aligning Bearings
- Load Direction：Radial Bearing
Base Info
- Model NO.：7201C,AC P4
- Separated：Unseparated
- Precision：P4
- Weight：0.038kgs
- Cr：7.9kn
- Cor：3.85kn
- Ng：50000,Min
- Transport Package：Single Box
- Specification：10-500MM
- Trademark：AUTO
- Origin：China
- HS Code：8482103000
- Production Capacity：100000PCS,Year
Description
α=25°(AC)7200 10 30 9 6.5 3.8 56000 85000 6.3 3.7 53000 80000 7201 12 32 10 7.2 4.5 53000 80000 6.9 4.3 48000 70000 7202 15 35 11 9.1 5.8 48000 70000 8.8 5.6 43000 63000 7203 17 40 12 11.3 7.4 40000 60000 10.9 7.1 38000 56000 7204 20 47 14 13.1 9.6 34000 50000 12.6 9.2 30000 45000 7205 25 52 15 16.8 13.1 30000 45000 16.1 12.5 26000 40000 7206 30 62 16 23.4 18.8 24000 38000 22.3 18 20000 34000 7207 35 72 17 25.8 22.9 18000 30000 24.5 21.9 17000 28000 7208 40 80 18 34.1 30.9 17000 28000 32.5 29.5 15000 24000 7209 45 85 19 35.5 33.8 16000 26000 33.8 32.3 14000 22000 7210 50 90 20 43.3 40.6 15000 24000 41.3 38.7 14000 22000 7211 55 100 21 53.6 51.1 14000 22000 51.1 48.8 13000 20000 7212 60 110 22 55.8 56.2 12000 19000 53 53.5 11000 18000 7213 65 120 23 67.5 69 11000 18000 64.2 65.8 9500 16000 7214 70 125 24 70.2 74.6 10000 17000 66.6 71.1 9000 15000 7215 75 130 25 72.7 80.2 9500 16000 68.9 76.3 8500 14000 7216 80 140 26 86.5 96.5 9000 15000 82.1 91.9 8000 13000 7217 85 150 28 97.4 107.5 8500 14000 92.5 102.4 7500 12000 7218 90 160 30 121.9 131.3 8000 13000 115.8 124.6 7000 11000 7219 95 170 32 128.9 145.1 7500 12000 122.5 138.3 6700 10000 7220 100 180 34 146.2 165.9 7000 11000 138.9 158.2 6700 10000 7221 105 190 36 164.3 188.2 7000 11000 156.3 179.5 6300 9500 7222 110 200 38 170.4 202.5 6700 10000 161.8 193 6000 9000 7224 120 215 40 175.4 218.4 6000 9000 166.3 207.9 5300 8000 7226 130 230 40 200.4 258.3 5600 8500 190.4 246.2 5000 7500 7228 140 250 42 223.6 306.6 5000 7500 212.3 292.2 4500 6700 7230 150 270 45 240.9 341.5 4500 6700 228.7 325.5 4000 6000 7232 160 290 48 248.6 365.8 4300 6300 236.1 348.6 3800 5600 7234 170 310 52 300.2 459.2 3800 5600 285 437.6 3600 5300 7236 180 320 52 311.2 490.8 3800 5600 295.5 467.7 3400 5000 7238 190 340 55 321.3 524.8 3400 5000 305.1 500.1 3200 4800 7240 200 360 58 330.9 558.6 3200 4800 314.2 532.3 3000 4500
Luoyang Auto Bearing Co., Ltd. is located in the industrial park of Luoyang,which is one of the four great ancient capitals of China.Our company is the member of China Bearing Industry Association,cooperating with State Quality Supervision and Testing Center for bearing.Our company is a professional bearing manufacturer which integrated with research ,development and marketing services.
Our major products include deep groove ball bearing, spherical roller bearing, slewing ring, crossed roller bearing and other all kinds of high precision bearings.Our products are widely applied to motor industry,mining metallurgy,wind power generation,petroleum drilling,automobile and motorcycle etc..

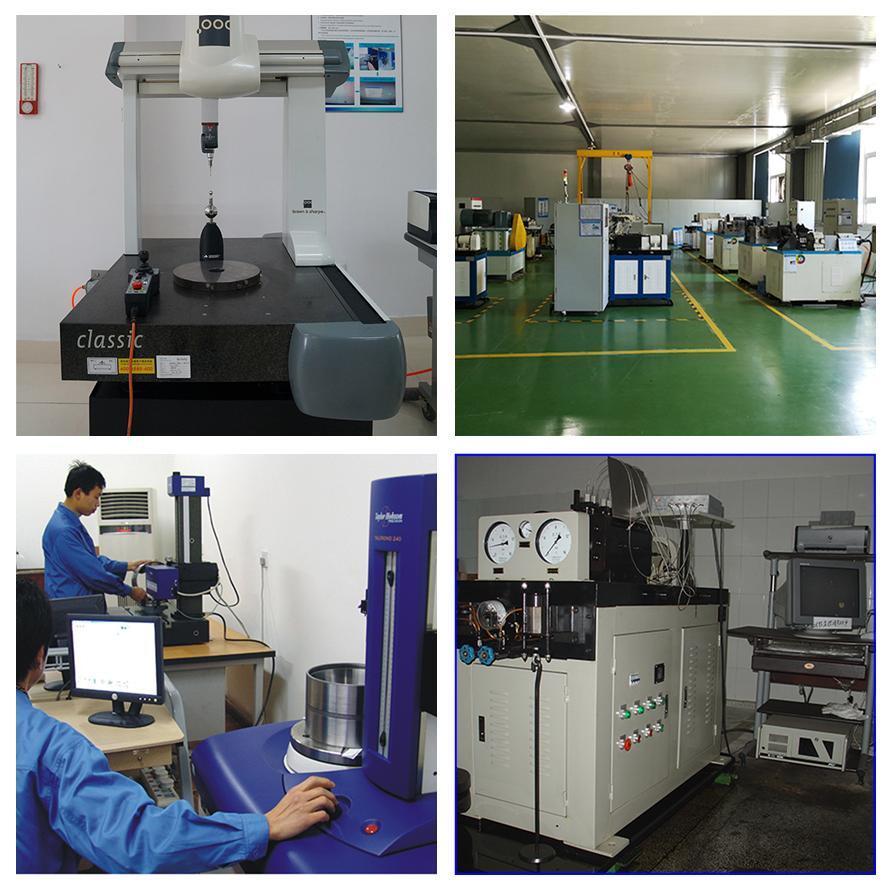

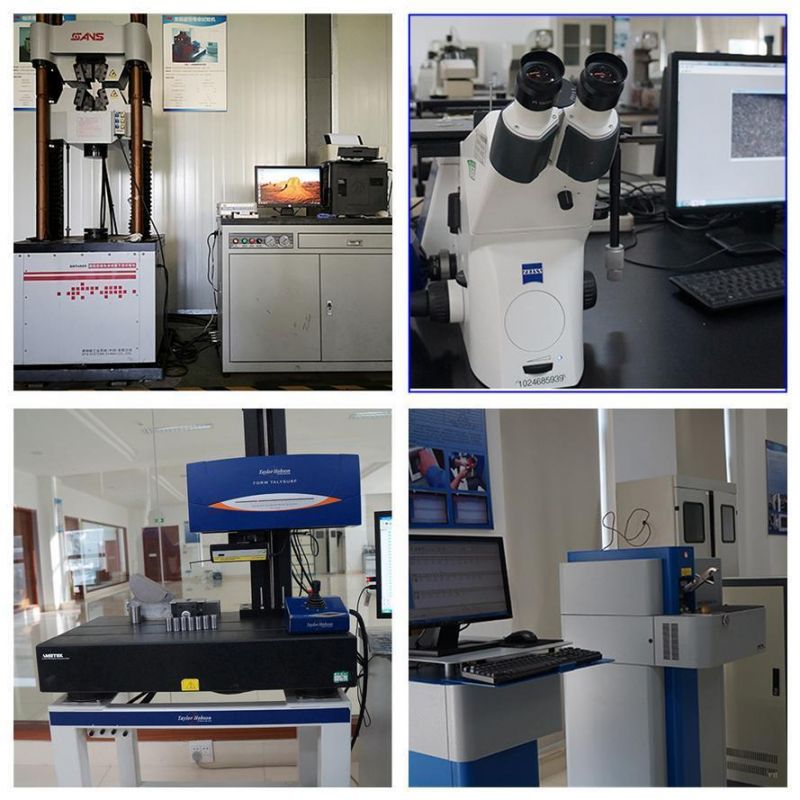

Our company not only possesses advanced bearing manufacturing equipments and international first-class measuring instruments, but also has strong strength of manufacturing, inspecting and testing the high precision and reliability bearings.Each process is in strict accordance with the ISO9001 quality management system,which effectively guarantees the precise of products and stability of the performance. AUTO bearings are mainly exported to the United states,South Korea,Europe,etc., which have reached the high level of foreign similar products.
The soul of our business culture is [Detail makes competitive, innovation makes first-class".We believe the production and management philosophy of [quality wins ,casting competitive products".The company adheres to the zero-defect quality management for meeting customer requirements.
Luoyang Auto Bearing Co., Ltd. is located in the industrial park of Luoyang,which is one of the four great ancient capitals of China.Our company is the member of China Bearing Industry Association,cooperating with State Quality Supervision and Testing Center for bearing.Our company is a professional bearing manufacturer which integrated with research ,development and marketing services.
Our major products include deep groove ball bearing, spherical roller bearing, slewing ring, crossed roller bearing and other all kinds of high precision bearings.Our products are widely applied to motor industry,mining metallurgy,wind power generation,petroleum drilling,automobile and motorcycle etc..
Our company not only possesses advanced bearing manufacturing equipments and international first-class measuring instruments, but also has strong strength of manufacturing, inspecting and testing the high precision and reliability bearings.Each process is in strict accordance with the ISO9001 quality management system,which effectively guarantees the precise of products and stability of the performance. AUTO bearings are mainly exported to the United states,South Korea,Europe,etc., which have reached the high level of foreign similar products.
The soul of our business culture is [Detail makes competitive, innovation makes first-class".We believe the production and management philosophy of [quality wins ,casting competitive products".The company adheres to the zero-defect quality management for meeting customer requirements.
Packing
A. plastic box & outer carton & pallets
B. plastic bag & box & carton & pallet
C. tube package & middle box & carton & pallet
D. Depends on your needs
Thank you very much for taking time to view our company's website. If you are interested in this product, please feel free to contact us. We are always here.
