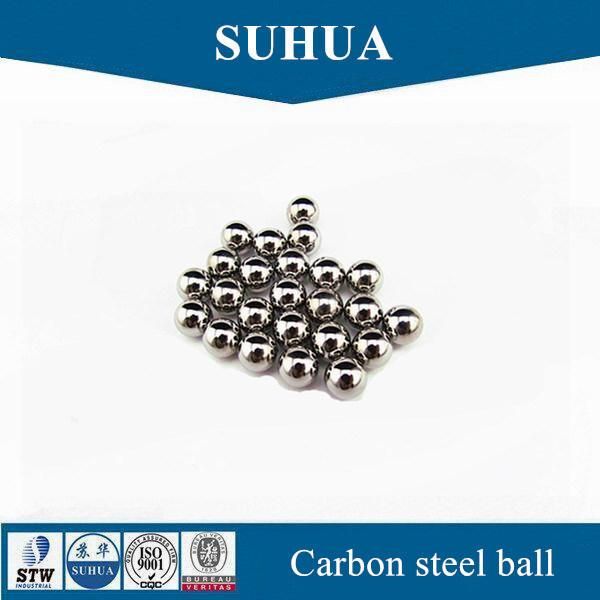

• Model NO.：aisi Carbon steel ball
• Size Range：1mm-180mm Carbon Steel Ball
• Hardness：60 Min. HRC (Surface-Hardend)
• Material Mark：AISI1010, AISI1015, C15, 1.0413, JIS Swrm 12, En32
• International Standard：1010, S10c, DC01, 1.0330, C10c, 1.0214
• Packing：Standarded or as Customer Required
• Characteristic：Superficial Hardness
• Conditioning：Dry or Oiled of Carbon Steel Ball
• Model No.：G10-1000 Carbon Steel Ball
• Application/Value：Valves, Finger Pumps
• Magnetic：Yes
• Transport Package：Box, Plastic Bag, Steel Drum
• Specification：G10-1000
• Trademark：SUHUA
• Origin：Jiangsu, China
• HS Code：8482910000
• Production Capacity：300 Ton,Month

Low carbon steel ball1. MaterialAISI1010/ AISI1015/ C15/ 1.0413/ JIS SWRM 12/ EN32 ASTM A/292. Size Range1mm-180mm3. GradeG40-10004. Hardness60 min. HRC (Surface-hardend)5. Characteristic(a)Casehardened surface balls and low hardness core
(b)superficial hardness
(c)Low resistance to corrosive attack6. MagneticYes7. ApplicationLow quality bearing, oiler, roller, sliding block…8. Chemical composition C%Si%Mn%Cr%Ni%Mo%P%S%Al%Cu%min.0.12---0.30---------------------max.0.170.300.600.200.250.050.0350.0350.010.309.PackingStandard: 10kg or 20kg per carton,1 ton per pallet or as customer required10.Conditioningdry or oiled11.Delivery timeStock within a short time or 35 days.CHANGZHOU HUARI STEEL BALL CO., LTD.Product information:
Casehardened surface balls and low hardness core. Good characteristics of superficial hardness, low resistance to corrosive attack, magnetic.





CERTIFICATE
ISO,BV,SGS,TS16949

Equipment&ProcessManufacture process of steel ballsStep 1 HeadingBalls blanks are cold headed from rolls of wire.Step 2 FlashingRolling balls between two hard alloy plates to removes the slight band
and small protrusions.Step 3 Heat treatHeating balls to a high temperature in furnace and quenching balls in a liquid bath.Step 4 Rough grindRolling balls between the face of a fixed iron plate and a very hard fire-grit grinding wheel. Then rolled the hardened ground balls between two cast iron plates.Step 5 CleaningThe final production operation cleans the finished balls and adds a shiny luster.Step 6 Final
          InspectionBalls are gauged, visually inspected and subjected to other quality tests to insure
every customer's specifications are achieved.Step 7 PackagingThe balls are packaged in accordance with customer specifications for shipping.
PACKAGING
Type 1 : Plastic bag + box + carton + wooden pallet
Type 2 : Plastic bag + carton + wooden pallet
Type 3 : Our package :export cartons, steel drums, wooden pallets

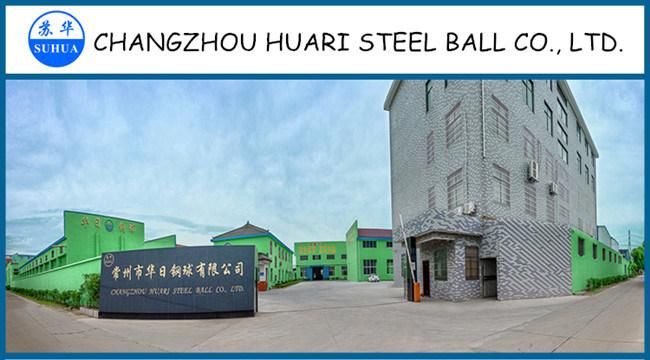

FACTORY

1. Established since year 1986, more than 27 years experience and specialized in steel balls manufacturer
and ball related products.
2. High precision instruments and technical staffs.
3. Offer the good quality service and product with short delivery times.


SEVERICE

1. All the inquiries will be reply within 24 hours
2. For the steel ball, please kindly let us know the size, material, grade and quantity.
3. For the bearing, please kindly let us know bearing type, material, Accuracy Grade/Class, and quantity.

FAQ
1.What kind of steel balls can supply by huari steel ball Co., Ltd.?

Material	Carbon, chrome, stainless, aluminium, copper, brass and so on.
Size range	0.8mm-150mm
Grade	G10-1000
Packing	Standard or as customer required
Delivery	Stock within a short time or 35 days

2.Some other question?

Q1.-- if 'I' want small quantity and fast delivery.Which way of shipping is advised ?
A1.-- by express.
Q2.-- how many quantity will be packed in one carton or one pallet ?
A2.-- 20 to 25kg per carton,1 ton per wooden pallet.
Q3.-- what's the lead time ?
A3.-- if in stocks,2-5days;Or ,it will take 20-35days,depend on the quantity.
Q4.--which kind of payment will be accepted ?
A4.-- T/T, west union, L/C, ...

Why choose us

1.100% guarantee for our quality.
2.Our products have BV and ISO certificate.
3.Professional manufacturer with 30years experience.
4.Our steel balls and bearings are sold all over the world.
5.Have advanced production equipment, to ensure that each step excelsior.
6.Tseting equipment to ensure that every steel ball is inspected under serious quality standard.
7.Strong packing ensure the goods delivered to customers in good condition.
8.Professional export sales and service team. To make sure that your purchase under comfortable way.
