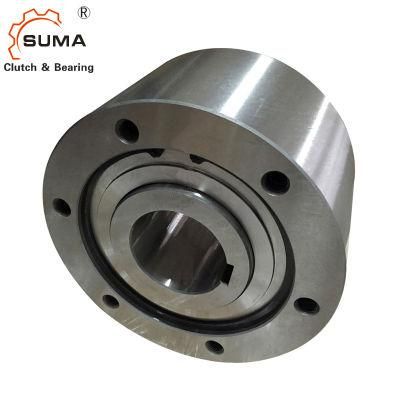

One Way Bearing Fso750-1027 Sprag Type Overrunning Clutch
Changzhou Suma Precision Machinery Co., Ltd.- Model：Fs0
- Type：Sprag Type
- Weight：38-113kgs
- Material：Gcr15
- Seals Type：Sealed
- Precision：P6
Base Info
- Model NO.：FS0 750-1027
- OEM：Accept
- Stock：Rich
- Delivery：10-15days
- Transport Package：Single Box or as Your Requirements
- Specification：P6
- Trademark：SUMA or OEM
- Origin：Changzhou, Jiangsu, China
- HS Code：84836000
- Production Capacity：5000PCS,Month
Description
Overrunning
speeds Weight torque
Drag
FSO
FSO-GR
HPI FSO d H7 -bxh A B C E F G K f T R T KN 1) n max 2) -0.05 [Nm] [min -1 ] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg] [Ncm] 300 379 3000/900 15-5x5 63.5 76.2 60.45 1.6 28.58 66.67 13 0.8 1.6 18 400 407 2800/850 18-6x6 69.85 88.9 68.07 1.6 30 73 13 0.8 2.7 27 500 1621 2500/800 30-8x7 88.9 107.95 85.73 1.6 45 92 16 1.5 4.8 31 40-12x8 600 3105 2200/750 45-14x9 95.25 136.525 92.2 1.6 63.5 120.6 16 1.6 8.6 62 50-14x6 50-14x9 700 6900 1600/450 60-18x11 127 180.975 123.85 1.6 90 158.75 20 1.6 19 156 65-18x11 70-20x12 101,6 5)
FSO/HPI750-1027
1) T max = 2 × T KN
2) Inner race/outer raceg
3) Inner race/outer race labyrinth seal
4) Inch bore available on request
5) Only for oversize bore
Size 600 > 50 mm
Size 700 > 75 mm
*) 6 holes equally spaced at 60° plus
2 extra-holes at 180°

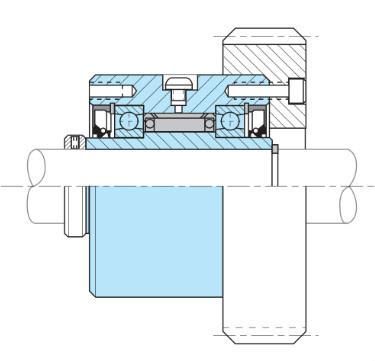

MOUNTING EXAMPLE
Package
speeds
Drag
FSO
FSO-GR
HPI
FSO/HPI750-1027
| Type | Torque capacity | Overrunning speed | dH7 | A | B | C | E | F | G | k | f | Wegiht | Drag Torque |
| 750 | 9660 | 1800/650 | 75-20x12 | 152.4 | 222.25 | 149.2 | 1.6 | 107.74 | 177.8 | 25 | 1.6 | 38 | 5.08 |
| 80-22x14 | |||||||||||||
| 85-22x14 | |||||||||||||
| 80-22x14 | |||||||||||||
| 800 | 17940 | 1500/525 | 90-25x14 | 152.4 | 254 | 149.2 | 1.6 | 139.7 | 227 | 25 | 1.6 | 46 | 7.12 |
| 100-28x16 | |||||||||||||
| 110-28x16 | |||||||||||||
| 100-28x16 | |||||||||||||
| 900 | 24408 | 1350/500 | 110-28x16 | 161.9 | 304.8 | 158.7 | 1.6 | 161.92 | 247.65 | 32 | 1.6 | 71 | 8.47 |
| 120-32x18 | |||||||||||||
| 130-32x18 | |||||||||||||
| 130-32x18 | |||||||||||||
| 1027 | 36612 | 700/375 | 150-36x20 | 168.3 | 381 | 165.1 | 3.2 | 228.6 | 298.45 | 32 | 3.2 | 113 | 13.56 |
| 175-45x25 |
2) Inner race/outer raceg
3) Inner race/outer race labyrinth seal
4) Inch bore available on request
5) Only for oversize bore
Size 600 > 50 mm
Size 700 > 75 mm
*) 6 holes equally spaced at 60° plus
2 extra-holes at 180°
MOUNTING EXAMPLE
