SKF Timken NSK NTN Koyo Spherical Roller Bearing 24032,23238,22218,24128,23148,21314,241/950,22208,23226,23230cak/W33,Ca,Cc,MB,Ma,E Self-Aligning Roller Bearing
SHANGHAI CORES INDUSTRIAL CO., LTD.- Rolling Body：Roller Bearings
- The Number of Rows：Single
- Outer Dimension：Small and Medium-Sized (60-115mm)
- Material：Bearing Steel
- Spherical：Non-Aligning Bearings
- Load Direction：Axial Bearing
Base Info

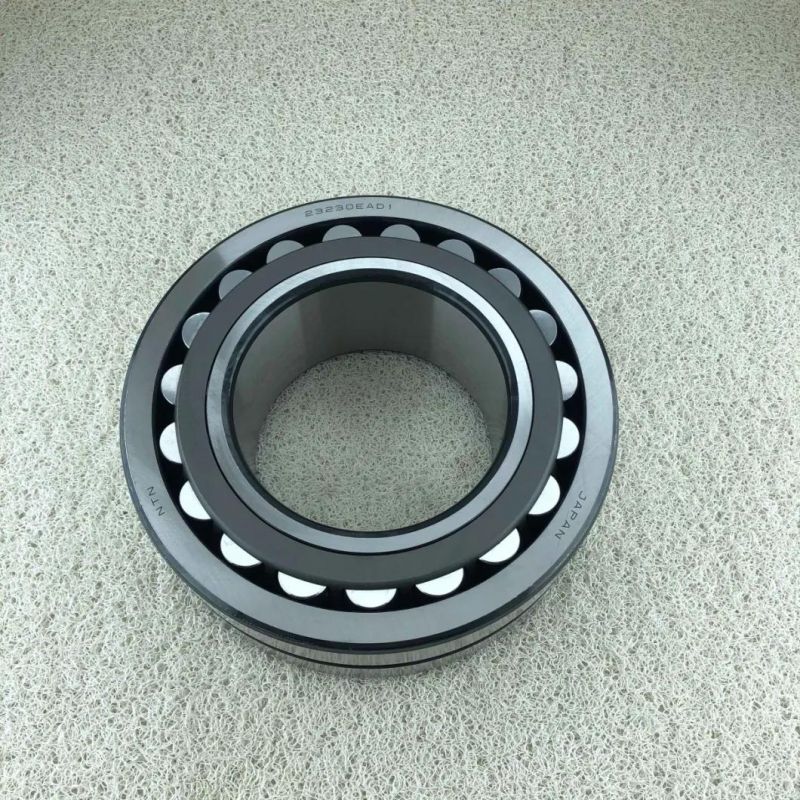

- Model NO.：23230 EAD1
- Separated：Separated
- Application：Transmission, Motor, Transportation Vehicles, Cons
- Clearance：C0 C2 C3
- Precision Rating：P0 P6 P5
- Service：OEM Customized Services
- Feature：Long Life High Speed
- Noise Level：Z2 Z3
- Transport Package：Exported Standard Industrial
- Specification：30mm*62mm*17.25mm
- Trademark：CVP or OEM
- Origin：Shandong
- HS Code：848220000
- Production Capacity：100000,Month
Description
6. The bearings shall be installed evenly
Spherical roller bearings have two rows of rollers with a common sphere raceway in the outer ring and two inner ring raceways inclined at an angle to the bearing axis.This gives them an attractive combination of design features making them irreplaceable .in many demanding applications. They are self-aligning and consequently insensitive to misalignment of the shaft relative to the housing and to shaft deflection or bending.
1.CA: Integral brass cage, double row symmetrical rollers,inner ring ride
2.MA: Integral brass cage, double row symmetrical rollers ,outer ring ride
3.MB: Two piece brass cage,double row asymmetrical rollers, inner ring ride
4.CC: Two piece steel cage, double row symmetrical rollers,inner ring ride
5.CTN1: Double row symmetrical rollers ,nylon cage
6.K: Tapered bore bearing, the taper is 1:12
7.K30: Tapered bore bearing,the taper is 1:3
Spherical roller bearings have two rows of rollers with a common sphere raceway in the outer ring and two inner ring raceways inclined at an angle to the bearing axis.This gives them an attractive combination of design features making them irreplaceable .in many demanding applications. They are self-aligning and consequently insensitive to misalignment of the shaft relative to the housing and to shaft deflection or bending.
1.CA: Integral brass cage, double row symmetrical rollers,inner ring ride
2.MA: Integral brass cage, double row symmetrical rollers ,outer ring ride
3.MB: Two piece brass cage,double row asymmetrical rollers, inner ring ride
4.CC: Two piece steel cage, double row symmetrical rollers,inner ring ride
5.CTN1: Double row symmetrical rollers ,nylon cage
6.K: Tapered bore bearing, the taper is 1:12
7.K30: Tapered bore bearing,the taper is 1:3
| Type | d | D | limited speed | limited speed | weight.kg | |
| 22205CA/W33 | 25 | 52 | 18 | 7700 | 9600 | 0.2 |
| 21305CA/W33 | 25 | 62 | 17 | 7000 | 8700 | 0.3 |
| 22206CA/W33 | 30 | 62 | 20 | 6600 | 8100 | 0.3 |
| 21306CA/W33 | 30 | 72 | 19 | 6200 | 7600 | 0.4 |
| 22207CA/W33 | 35 | 72 | 23 | 5900 | 7200 | 0.5 |
| 21307CA/W33 | 35 | 80 | 21 | 5600 | 6900 | 0.5 |
| 22208CA/W33 | 40 | 80 | 23 | 5100 | 6300 | 0.6 |
| 22208CA/W33 | 40 | 80 | 23 | 5200 | 6400 | 0.6 |
| 21308CA/W33 | 40 | 90 | 23 | 5100 | 6200 | 0.7 |
| 22308CA/W33 | 40 | 90 | 33 | 4900 | 5800 | 1.1 |
| 22308CA/W33 | 40 | 90 | 33 | 4900 | 5800 | 1.1 |
| 22209CA/W33 | 45 | 85 | 23 | 4700 | 5700 | 0.6 |
| 22209CA/W33 | 45 | 85 | 23 | 4700 | 5800 | 0.6 |
| 21309CA/W33 | 45 | 100 | 25 | 4600 | 5700 | 0.9 |
| 22309CA/W33 | 45 | 100 | 36 | 4500 | 5300 | 1.4 |
| 22309CA/W33 | 45 | 100 | 36 | 4500 | 5300 | 1.4 |
| 22210CA/W33 | 50 | 90 | 23 | 4300 | 5200 | 0.6 |
| 22210CA/W33 | 50 | 90 | 23 | 4300 | 5300 | 0.6 |
| 22310CA/W33 | 50 | 110 | 40 | 4200 | 4900 | 1.9 |
| 22310CA/W33 | 50 | 110 | 40 | 4200 | 4900 | 1.9 |
| 22211CA/W33 | 55 | 100 | 25 | 4000 | 4800 | 0.9 |
| 22311CA/W33 | 55 | 120 | 43 | 3900 | 4700 | 2.4 |
| 22311CA/W33 | 55 | 120 | 43 | 3900 | 4700 | 2.4 |
| 21311CA/W33 | 55 | 120 | 29 | 4000 | 4800 | 1.5 |
| 22212CA/W33 | 60 | 110 | 28 | 3800 | 4600 | 1.2 |
| 22212CA/W33 | 60 | 110 | 28 | 3800 | 4700 | 1.2 |
| 22312CA/W33 | 60 | 130 | 46 | 3600 | 4300 | 3 |
| 22312CA/W33 | 60 | 130 | 46 | 3600 | 4300 | 3 |
| 21312CA/W33 | 60 | 130 | 31 | 3700 | 4600 | 1.9 |
| 22213CA/W33 | 65 | 120 | 31 | 3600 | 4400 | 1.6 |
| 22213CA/W33 | 65 | 120 | 31 | 3600 | 4400 | 1.6 |
| 21313CA/W33 | 65 | 140 | 33 | 3500 | 4300 | 2.4 |
| 22313CA/W33 | 65 | 140 | 48 | 3400 | 4100 | 3.6 |
| 22313CA/W33 | 65 | 140 | 48 | 3400 | 4100 | 3.6 |
| 22214CA/W33 | 70 | 125 | 31 | 3400 | 4100 | 1.6 |
| 22314CA/W33 | 70 | 150 | 51 | 3200 | 3800 | 4.4 |
| 21314CA/W33 | 70 | 150 | 35 | 3300 | 4100 | 2.9 |
| 22314CA/W33 | 70 | 150 | 51 | 3200 | 3800 | 4.4 |
| 22215CA/W33 | 75 | 130 | 31 | 3200 | 3900 | 1.7 |
| 22315CA/W33 | 75 | 160 | 55 | 3100 | 3600 | 5.4 |
| 21315CA/W33 | 75 | 160 | 37 | 3200 | 3800 | 3.5 |
| 22315CA/W33 | 75 | 160 | 55 | 3100 | 3600 | 5.4 |
| 22216CA/W33 | 80 | 140 | 33 | 3000 | 3700 | 2.2 |
| 22216CA/W33 | 80 | 140 | 33 | 3000 | 3700 | 2.2 |
| 21316CA/W33 | 80 | 170 | 39 | 3000 | 3700 | 4.1 |
| 22316CA/W33 | 80 | 170 | 58 | 2900 | 3500 | 6.4 |
| 22316CA/W33 | 80 | 170 | 58 | 2900 | 3500 | 6.4 |
| 22217CA/W33 | 85 | 150 | 36 | 2900 | 3500 | 2.7 |
| 22217CA/W33 | 85 | 150 | 36 | 2900 | 3600 | 2.7 |
| 21317CA/W33 | 85 | 180 | 41 | 2900 | 3500 | 5.2 |
| 22317CA/W33 | 85 | 180 | 60 | 2700 | 3200 | 7.5 |
| 22317CA/W33 | 85 | 180 | 60 | 2700 | 3200 | 7.5 |
| 22218CA/W33 | 90 | 160 | 40 | 2800 | 3400 | 3.5 |
| 22218CA/W33 | 90 | 160 | 40 | 2800 | 3400 | 3.5 |
| 23218CA/W33 | 90 | 160 | 52 | 2300 | 2700 | 4.5 |
| 23218CA/W33 | 90 | 160 | 52 | 2300 | 2700 | 4.5 |
| 22318CA/W33 | 90 | 190 | 64 | 2600 | 3000 | 8.8 |
| 22318CA/W33 | 90 | 190 | 64 | 2600 | 3000 | 8.8 |
| 21318CA/W33 | 90 | 190 | 43 | 2800 | 3300 | 6 |
| 22319CA/W33 | 90 | 190 | 64 | 2600 | 3000 | 8.8 |
| 23318CA/W33 | 90 | 190 | 73 | 1900 | 2200 | 10.1 |
| 22219CA/W33 | 95 | 170 | 43 | 2800 | 3400 | 4.2 |
| 22219CA/W33 | 95 | 170 | 43 | 2800 | 3400 | 4.2 |
