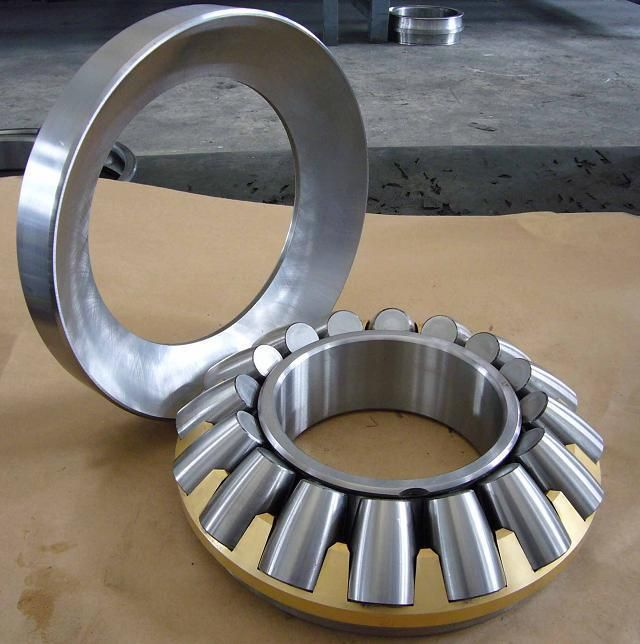

High Speed Roller Thrust Bearings 29414 29415 Thrust Roller Bearing
KORTON INDUSTRIAL LIMITED- Rolling Body：Roller Bearings
- The Number of Rows：Single
- Outer Dimension：Medium and Large(120-190mm)
- Material：Bearing Steel
- Spherical：Aligning Bearings
- Load Direction：Thrust Bearing
Base Info
- Model NO.：29415
- Separated：Separated
- Inner：75mm
- Outer：160mm
- Thickness：51mm
- Weight：4.27kg
- Hardness：HRC 59-64
- Lubrication：Oil
- Clearance：C0 C2 C3 C4 C5
- Vibration：Z1V1 Z2V2 Z3V3
- Precision：P0 P6 P5 P4 P2
- Raceway Super Finishing：Yes
- Transport Package：Single Box, Plastic Barrel, Carton, Tray
- Specification：CE, ISO9001
- Trademark：SFNB,OEM,customzied
- Origin：China
- HS Code：8482300000
- Production Capacity：50000PCS,Year
Description
Seals TypesOPENVibration LevelZ1V1,Z2V2,Z3V3ClearanceC2,C0,C3,C4,C5Tolerance CodesABEC-1,ABEC-3,ABEC-5MaterralGCr15-China/AISI52100-USA/Din100Cr6-GermanyMOQ1Set at leastDelivery Time5-15 days after contractPayment TermsTT/PAPAL/WESTERN UNIONPackageTube package+outer carton+pallets;Single box+outer carton+pallets;
Tube packge+middle box+outer carton+pallets;
According to your requirement
NO 5. Thrust Roller Bearing Models 292302939681164994569069415293/670292322941281168994609069416293/710292342941381172994649069417293/750292362941481176994689069418293/800292382941581180994769069419293/85029240294168118490692309069420294/50029244294178118890692329069422294/53029248294188119290692349069424294/56029252294198119690692369069426294/60029256294208122090692389069428294/63029260294228122290692409069430294/67029264294248122490692449069432294/71029268294268122690692489069434294/75029272294288122890692529069436294/80029276294308123090692569069438294/85029280294328123290692609069440811/132029284294348123490692649069444811/50029288294368123690692689069448811/53029292294388123890692729069452811/560 29296294408124090692769069456811/60029315294448124490692809069460811/63029316294488124890692849069464811/85029317294528125290692889069468812/50029318294568125690692929069472812/53029319294608126090692969069476812/56029320294648126490693249069480812/60029322294688126890693269069484812/63029324294728127290693289069488817/118029326294768127690693309069496817/6002932829480812809069332292/1060817/6502933029484812849069334292/1120822/7102933229488812889069336292/1620871/11802933429492812929069338292/500871/7102933629496812969069340292/530871/8502933881122873369069344292/560872/5302934081124994249069348292/600872/6702934481126994269069352292/630872/9002934881128994289069356292/670891/8002935281130994309069360292/71090694/5002935681132994309069364292/75090694/5302936081134994329069368292/800TTSV1752936481136994329069372292/850TTSV2032936881138994349069376292/900TTSV2652937281140994349069380292/950TTSV3202937681144994369069384293/500TTSX1752938081148994389069388293/530TTSX2032938481152994409069392293/560TTSX2652938881156994489069396293/600TTSX3202939281160994529069414293/630TTSX580
Why Choose Us
l Jinan TIANYUAN bearing company has 14 years manufacture experience and is one of the biggest adjustment center in north of China.
l We have large stock of original brand and our own brand bearing.
l Sample is available.
l We can accept OEM service.
l Jinan Tianyuan Bearing Co., Ltd. Was founded in March 2008. We were principally engaged in the research, development and manufacture of bearings in the early stage. Now we are mainly engaged in the sales of international-famous brand bearings. Our products are sold in Britain, America, Japan, Italy and Southeast Asia, well appreciated by their purchasers.
Tube packge+middle box+outer carton+pallets;
According to your requirement
NO 5. Thrust Roller Bearing Models 292302939681164994569069415293/670292322941281168994609069416293/710292342941381172994649069417293/750292362941481176994689069418293/800292382941581180994769069419293/85029240294168118490692309069420294/50029244294178118890692329069422294/53029248294188119290692349069424294/56029252294198119690692369069426294/60029256294208122090692389069428294/63029260294228122290692409069430294/67029264294248122490692449069432294/71029268294268122690692489069434294/75029272294288122890692529069436294/80029276294308123090692569069438294/85029280294328123290692609069440811/132029284294348123490692649069444811/50029288294368123690692689069448811/53029292294388123890692729069452811/560 29296294408124090692769069456811/60029315294448124490692809069460811/63029316294488124890692849069464811/85029317294528125290692889069468812/50029318294568125690692929069472812/53029319294608126090692969069476812/56029320294648126490693249069480812/60029322294688126890693269069484812/63029324294728127290693289069488817/118029326294768127690693309069496817/6002932829480812809069332292/1060817/6502933029484812849069334292/1120822/7102933229488812889069336292/1620871/11802933429492812929069338292/500871/7102933629496812969069340292/530871/8502933881122873369069344292/560872/5302934081124994249069348292/600872/6702934481126994269069352292/630872/9002934881128994289069356292/670891/8002935281130994309069360292/71090694/5002935681132994309069364292/75090694/5302936081134994329069368292/800TTSV1752936481136994329069372292/850TTSV2032936881138994349069376292/900TTSV2652937281140994349069380292/950TTSV3202937681144994369069384293/500TTSX1752938081148994389069388293/530TTSX2032938481152994409069392293/560TTSX2652938881156994489069396293/600TTSX3202939281160994529069414293/630TTSX580
| Type | Model No. | d (mm) | D (mm) | B (mm) | Cr (kN) | Cor (kN) | Speed oil (r/min) | weight (kg) |
| thrust roller bearing | 89320 | 100 | 170 | 42 | 380 | 1400 | 1700 | 4.19 |
| thrust roller bearing | 87420 | 100 | 210 | 50 | 680 | 2800 | 1500 | 9.02 |
| thrust roller bearing | 89420 | 100 | 210 | 67 | 850 | 2350 | 1500 | 11.9 |
| thrust roller bearing | 89322 | 110 | 190 | 48 | 500 | 1870 | 1600 | 6.03 |
| thrust roller bearing | 89324 | 120 | 210 | 54 | 640 | 2420 | 1400 | 8.52 |
| thrust roller bearing | 89326 | 130 | 225 | 58 | 710 | 2700 | 1300 | 10 |
| thrust roller bearing | 89426 | 130 | 270 | 85 | 1330 | 4600 | 1200 | 24 |
| thrust roller bearing | 89328 | 140 | 240 | 60 | 820 | 3200 | 1200 | 11.99 |
| thrust roller bearing | 89428 | 140 | 280 | 85 | 1380 | 4950 | 1100 | 27.2 |
| thrust roller bearing | 89330 | 150 | 250 | 60 | 840 | 3350 | 1200 | 12.63 |
| thrust roller bearing | 89430 | 150 | 300 | 90 | 1570 | 5700 | 1000 | 32.1 |
| thrust roller bearing | 89434 | 170 | 340 | 103 | 1990 | 7400 | 900 | 47.2 |
| thrust roller bearing | 89436 | 180 | 360 | 109 | 2210 | 8200 | 850 | 54.8 |
| thrust roller bearing | 89438 | 190 | 380 | 115 | 2450 | 9200 | 800 | 65.7 |
| thrust roller bearing | 81332 | 160 | 225 | 51 | 600 | 2030 | 1200 | 6.203 |
