• Model NO.：1306
• Application：Machinery
• Precision：Po P5
• Feature：Long Life High Speed Low Price
• Certification：SGS ISO9001
• Inner Diameter：3-360mm
• Outer Dimension：8-480mm
• Transport Package：Exported Standard Industrial
• Specification：Customed
• Trademark：CVP or OEM
• Origin：China
• HS Code：8482102000
• Production Capacity：100000,Month

Basic Info.

Model NO. 1306 Application Machinery Precision Po P5 Feature Long Life High Speed Low Price Certification SGS ISO9001 Inner Diameter 3-360mm Outer Dimension 8-480mm Transport Package Exported Standard Industrial Specification Customed Trademark CVP or OEM Origin China HS Code 8482102000 Production Capacity 100000/Month

Product Description

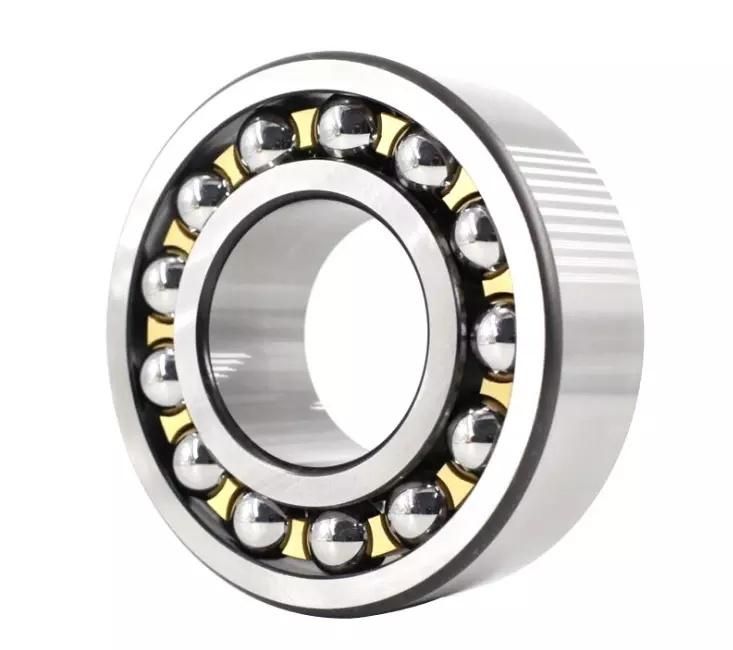

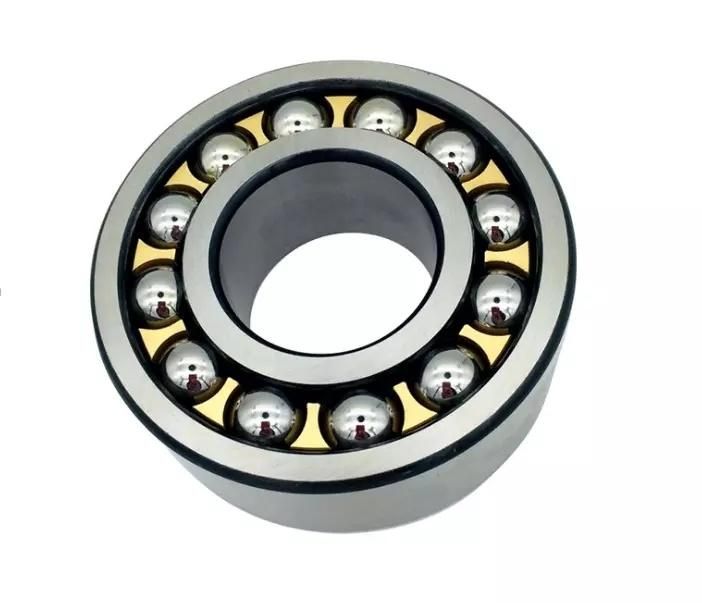

Self-aligning ball bearing show.

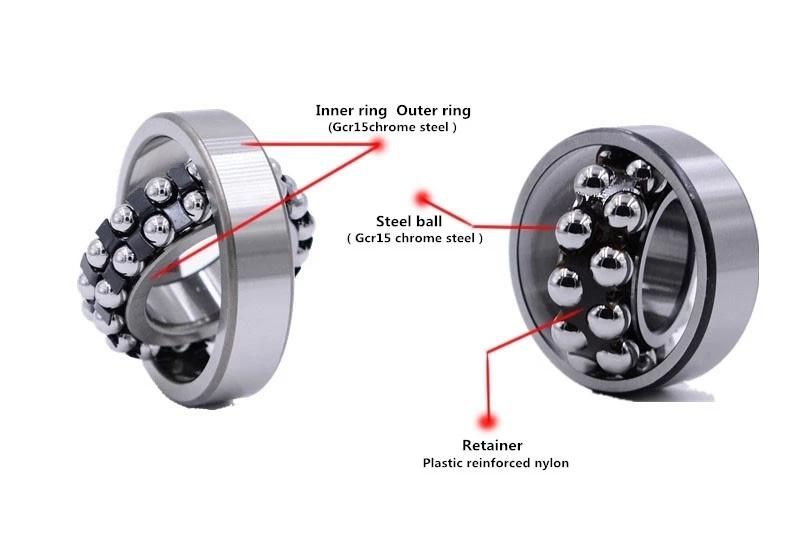

Self-aligning ball bearings can withstand a larger radial load, but also can withstand a certain axial load. This type of bearing outer ring raceway
Is a spherical shape, it has a self-aligning properties, when the axis bending or tilt the inner ring and the centerline of the outer ring inner ring relative tilt does not exceed 1 ° ~ 2.5 °, the bearings can work.
Self-aligning ball bearings bore cylindrical and conical two. Cone-shaped hole in the taper of 1: 1 2 or 1:30. In order to strengthen the bearing lubrication performance, in the bearing outer ring on the processing of annular oil tank and three oil holes are evenly distributed.


bearing code	d	D	B	C	C0	Pu	reference speed	limiting speed	mass
	mm	mm	mm	kn	kn	kn	r/min	r/min	kg
1214 ETN9	70	125	24	35,8	14,6	0,75	11000	7000	1,25
2214	70	125	31	44,2	17	0,88	10000	6700	1,50
2214 E-2RS1TN9	70	125	31	35,8	14,6	0,75	-	3400	1,45
1314	70	150	35	74,1	27,5	1,34	8500	6000	3,00
2314	70	150	51	111	37,5	1,86	8000	6000	3,90
2314 M	70	150	51	111	37,5	1,86	8000	6000	4,25
1215	75	130	25	39	15,6	0,8	10000	6700	1,35
1215 K	75	130	25	39	15,6	0,8	10000	6700	1,30
2215 EKTN9	75	130	31	58,5	22	1,12	9000	6300	1,50
2215 ETN9	75	130	31	58,5	22	1,12	9000	6300	1,60
1315	75	160	37	79,3	30	1,43	8000	5600	3,55
1315 K	75	160	37	79,3	30	1,43	8000	5600	3,40
1315 M	75	160	37	79,3	30	1,43	8000	5600	3,95
2315	75	160	55	124	43	2,04	7500	5600	4,70
2315 K	75	160	55	124	43	2,04	7500	5600	4,45
2315 KM	75	160	55	124	43	2,04	7500	5600	5,05
2315 M	75	160	55	124	43	2,04	7500	5600	5,30
1216	80	140	26	39,7	17	0,83	9500	6000	1,65
1216 K	80	140	26	39,7	17	0,83	9500	6000	1,60
2216 EKTN9	80	140	33	65	25,5	1,25	8500	6000	1,90
2216 ETN9	80	140	33	65	25,5	1,25	8500	6000	2,00
1316	80	170	39	88,4	33,5	1,5	7500	5300	4,20
1316 K	80	170	39	88,4	33,5	1,5	7500	5300	4,05
2316	80	170	58	135	49	2,24	7000	5300	6,10
2316 K	80	170	58	135	49	2,24	7000	5300	5,90
2316 KM	80	170	58	135	49	2,24	7000	5300	6,05
2316 M	80	170	58	135	49	2,24	7000	5300	6,25
1217	85	150	28	48,8	20,8	0,98	9000	5600	2,05
1217 K	85	150	28	48,8	20,8	0,98	9000	5600	2,00
2217	85	150	36	58,5	23,6	1,12	8000	5600	2,50
2217 K	85	150	36	58,5	23,6	1,12	8000	5600	2,40
1317	85	180	41	97,5	38	1,7	7000	4800	5,00
1317 K	85	180	41	97,5	38	1,7	7000	4800	4,90
2317 KM	85	180	60	140	51	2,28	6700	4800	6,80
2317 M	85	180	60	140	51	2,28	6700	4800	7,05
1218	90	160	30	57,2	23,6	1,08	8500	5300	2,50
1218 K	90	160	30	57,2	23,6	1,08	8500	5300	2,40
2218	90	160	40	70,2	28,5	1,32	7500	5300	3,40
2218 K	90	160	40	70,2	28,5	1,32	7500	5300	3,20
1318	90	190	43	117	44	1,93	6700	4500	5,80
1318 K	90	190	43	117	44	1,93	6700	4500	5,60
