Kd040aro Thin-Wall Bearing Equal Section Ultra-Thin Bearing Robot Bearing Kaydon Kd040ar0 Inch Non-Standard Bearing Kc180ar0 Thin-Walled Bearing Ultra-Thin
Tianjin Reet Bearing Co., Ltd.- Aligning：Non-Aligning Bearing
- Separated：Unseparated
Base Info
- Model NO.：KD040ARO
- Rows Number：Single
- Load Direction：Radial Bearing
- Material：Bearing Steel
- Radial Static Load：2500
- Radial Dynamic Load：3500
- Weight：0.354kg
- Precision Class：P0
- Transport Package：Wooden Case,Carton,Box
- Specification：101.6*127*12.7mm
- Trademark：RTB,Kaydon,OEM,ODM
- Origin：China
- HS Code：8482102000
- Production Capacity：100000pieces,Year
- Package size per unit product：105.00cm * 130.00cm * 13.00cm
- Gross weight per unit product：0.354kg
Description
Axial load(N)Weight Type d D B Static Dynamic static dynamic Kg Kaydon PK02520A 25 65 20 1134 1155 3272 2115 0.31 K02520A PK05020A 50 90 20 1889 1460 5454 2973 0.49 K05020A PK06020A 60 100 20 2141 1547 6181 3231 0.56 K06020A PK07020A 70 110 20 2393 1633 6908 3480 0.62 K07020A PK08020A 80 120 20 2645 1717 7635 3720 0.69 K08020A PK09020A 90 130 20 3023 1851 8726 4067 0.77 K09020A PK10020A 100 140 20 3275 1929 9453 4290 0.84 K10020A PK11020A 110 150 20 3527 2005 10181 4507 0.91 K11020A PK12020A 120 160 20 3778 2080 10908 4719 0.97 K12020A PK13020A 130 170 20 4030 2154 11635 4927 1.04 K13020A PK14020A 140 180 20 4282 2226 12362 5130 1.11 K14020A PK15020A 150 190 20 4660 2339 13453 5427 1.19 K15020A PK16020A 160 200 20 4912 2407 14180 5621 1.26 K16020A PK17020A 170 210 20 5146 2474 14907 5811 1.32 K17020A PK18020A 180 220 20 5416 2540 15634 5999 1.39 K18020A PK19020A 190 230 20 5668 2605 16361 6183 1.46 K19020A PK20020A 200 240 20 6045 2706 17452 6455 1.54 K20020A PK25020A 250 290 20 7431 3041 21452 7408 1.89 K25020A PK30020A 300 340 20 8691 3317 25088 8222 2.23 K30020A PK32020A 320 360 20 9321 3454 26906 8615 2.37 K32020A PK34020A 340 380 20 9824 3556 28360 8923 2.51 K34020A PK36020A 360 400 20 10454 3685 30178 9300 2.66 K36020A
Our company has an experienced rolling bearing research and development team, modern bearing production, bearing testing equipment and instruments, mature bearing production technology and strong independent research and development capabilities for non-standard, special and special bearings. The company will wholeheartedly provide high-quality bearing products for the equipment manufacturing industry.

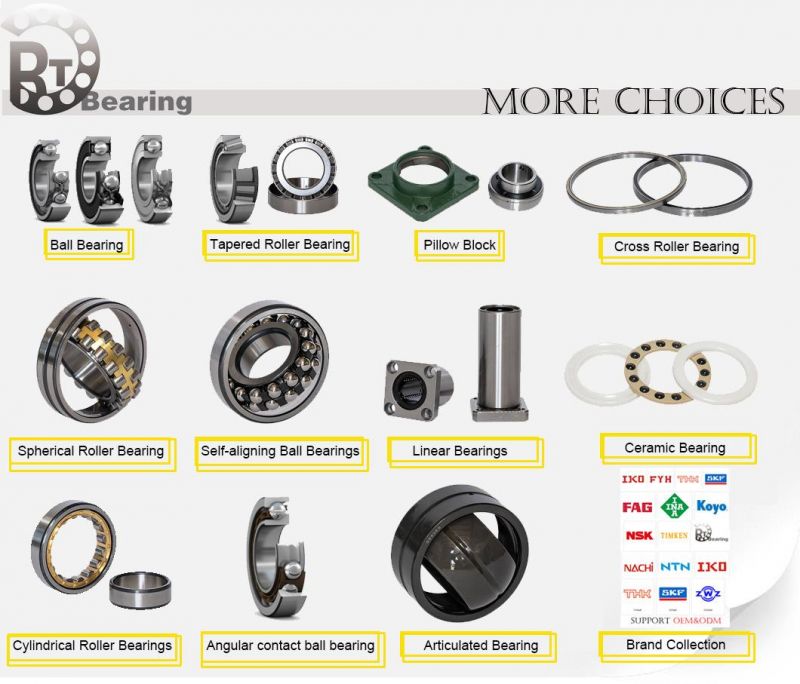

The inner diameter size of our bearing products is 3~5000mm, and the structural forms include: deep groove ball bearings, angular contact ball bearings, cylindrical roller bearings, crossed cylindrical roller bearings, tapered roller bearings, thrust ball bearings, thrust roller bearings, Various slewing bearings, one-way rotating bearings, combined bearings and roller bearings, etc.
The company's products are widely used in: precision machine tools, machining centers, industrial robots, harmonic reducers, precision spindles and turntables, CNC welding machines, automobiles and automobile production lines, electronic and electrical equipment lines, building materials machinery, high-voltage switches, high-speed wire mills, textiles Machinery, petroleum and natural gas industries, ports, mining and hoisting steel wire rope industries; automotive tire radial knitting machines; steel wire rope knitting machines; silicon wafer cutting machines; industrial (automobiles and household appliances) coating lines and other fields.
FAQ
1.Is the company a production factory or a trading company?TIANJIN REET BEARING CO.,LTD is a manufacturing enterprise focusing on bearings and integrating research, production and sales.
2.How many the MOQ of your company?
Depending on the size of the bearing, the MOQ is variable, if you are interested, you can contact me for a quote.
3.Does the company accept OEM or customized bearings?
In addition to standard products, we also supply non-standard and modified standard products for special application. Meanwhile, we provide OEM service.
4.Can the company provide free samples?
We can provide samples for free. You only need to provide shipping.
5.What are the company's delivery terms?
We can accept EXW,FOB,CFR,CIF,etc. You can choose the one which is the most convenient cost effective for you.
Our company has an experienced rolling bearing research and development team, modern bearing production, bearing testing equipment and instruments, mature bearing production technology and strong independent research and development capabilities for non-standard, special and special bearings. The company will wholeheartedly provide high-quality bearing products for the equipment manufacturing industry.The inner diameter size of our bearing products is 3~5000mm, and the structural forms include: deep groove ball bearings, angular contact ball bearings, cylindrical roller bearings, crossed cylindrical roller bearings, tapered roller bearings, thrust ball bearings, thrust roller bearings, Various slewing bearings, one-way rotating bearings, combined bearings and roller bearings, etc.
The company's products are widely used in: precision machine tools, machining centers, industrial robots, harmonic reducers, precision spindles and turntables, CNC welding machines, automobiles and automobile production lines, electronic and electrical equipment lines, building materials machinery, high-voltage switches, high-speed wire mills, textiles Machinery, petroleum and natural gas industries, ports, mining and hoisting steel wire rope industries; automotive tire radial knitting machines; steel wire rope knitting machines; silicon wafer cutting machines; industrial (automobiles and household appliances) coating lines and other fields.
FAQ1.Is the company a production factory or a trading company?TIANJIN REET BEARING CO.,LTD is a manufacturing enterprise focusing on bearings and integrating research, production and sales.
2.How many the MOQ of your company?
Depending on the size of the bearing, the MOQ is variable, if you are interested, you can contact me for a quote.
3.Does the company accept OEM or customized bearings?
In addition to standard products, we also supply non-standard and modified standard products for special application. Meanwhile, we provide OEM service.
4.Can the company provide free samples?
We can provide samples for free. You only need to provide shipping.
5.What are the company's delivery terms?
We can accept EXW,FOB,CFR,CIF,etc. You can choose the one which is the most convenient cost effective for you.
