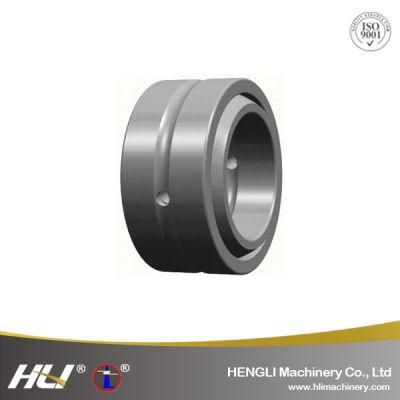

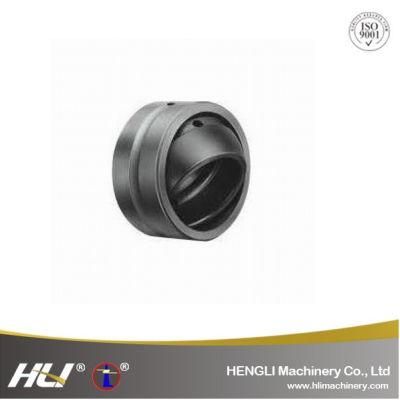

GEF15 ES Spherical Plain Bearing With Oil Groove And Oil Holes, With An Axial Split In Outer Race

HENGLI Machinery Co., Ltd.
  • Rolling Element:Single Row
  • Structure:To The Heart
  • Material:Bearing Steel
  • Load Direction:Radial Spherical Plain Bearing
  • Add Lubricant:Self-lubricating
  • Outer Structure:Whole Outer Ring

Base Info

  • Model NO.:GEF 15 ES
  • Rod End:General
  • Thickness:25mm
  • Model:GE
  • Application:Engineering Hydraulic Cylinder
  • Structure Type:Spherical Plain Bearing
  • Service:OEM ODM
  • Certification:ISO9001:2008
  • Dynamic Loads:79 Kn
  • Static Loads:399 Kn
  • Sliding Contact:Steel-on-Steel
  • Heat Treatment:Race Hardened
  • Features:High Precision, Long Life, Low Noise
  • Lubrication Type:Oil-Lubricated
  • Main Market:Europe, North America, East Asia
  • Transport Package:Neutral Packing Bearing
  • Specification:High Chrome Bearing Steel
  • Trademark:HENGLI, LZ
  • Origin:China
  • HS Code:8483300090
  • Production Capacity:150000 Pieces,Year

Description

Load Ratings (KN)MassdDBCdkr1
min
r2
min
αCC0kgGEF 12 ES1222119180.50.5713680.019GEF 15 ES15261311220.50.56201050.028GEF 20 ES20321614280.50.54331660.053GEF 22 ES22371916320.50.56432170.085GEF 25 ES25422118360.50.55552750.116GEF 30 ES30502723451.01.06874390.225GEF 35 ES35553026501.01.051105520.302GEF 40 ES40623328551.01.061306540.375GEF 45 ES45723631621.01.051638160.598GEF 50 ES50804236721.01.0522011000.869GEF 55 ES55904740801.01.0627213601.260GEF 60 ES601005345901.01.0634417201.720GEF 65 ES651055547941.01.0537518702.050GEF 70 ES7011058501001.01.0542521252.230GEF 75 ES7512064551101.01.0551025703.010GEF 80 ES8013070601201.01.0561030603.980GEF 85 ES8513574631251.01.0666933404.310GEF 90 ES9014076651301.01.0571835904.720GEF 95 ES9515082701401.01.0583341656.050GEF 100 ES10016088751501.51.5595647807.430GEF 110 ES11017093801601.51.55108054408.540GEF 115 ES11518098851651.51.551190596010.300GEF 120 ES120190105901751.51.561330669012.400
GEF15 ES Spherical Plain Bearing With Oil Groove And Oil Holes, With An Axial Split In Outer Race

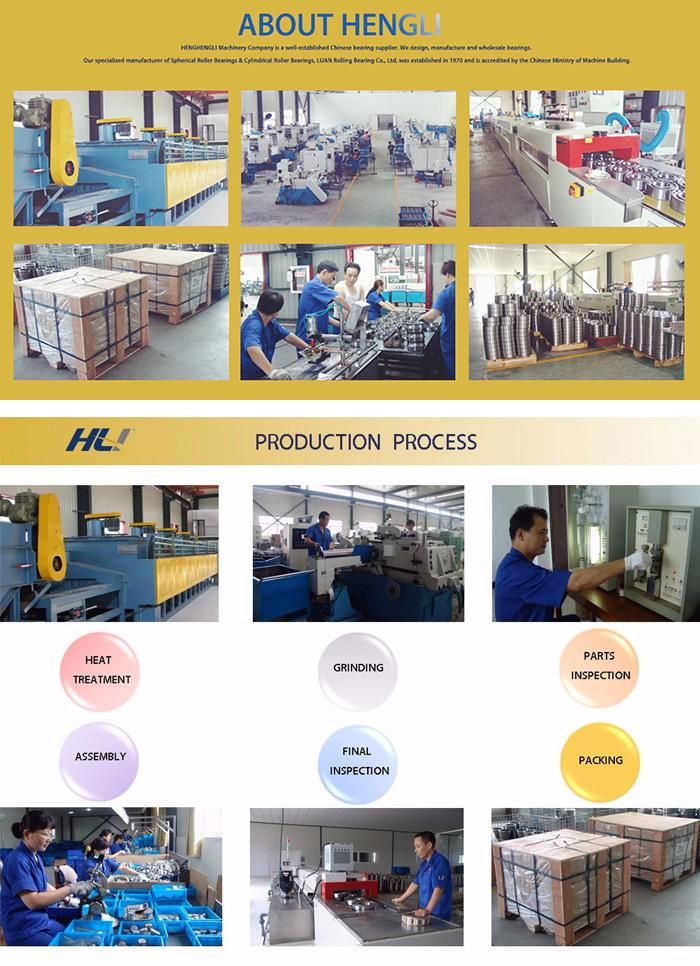

 About Us

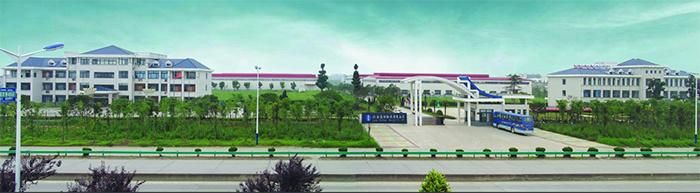

HENGLI Machinery Company is a well-established Chinese bearing supplier. We design, manufacture and wholesale bearings.
Our specialized manufacturer of Spherical Roller Bearing Cylindrical Roller Bearing, LUAN Rolling Bearing Co., Ltd was
established in 1970 and is accredited by the Chinese Ministry of Machine Building.


We invested in two additional specialized bearing factories, which allow us to provide our clients with top of the line products such as
Needle Roller Bearings, Spherical Plain Bearings, Rod Ends Bearings, Ball Joint Bearings, Tapered Roller Bearings,
Wheel
Hub Bearings
and
Non-Standard Bearings.

GEF15 ES Spherical Plain Bearing With Oil Groove And Oil Holes, With An Axial Split In Outer Race
GEF15 ES Spherical Plain Bearing With Oil Groove And Oil Holes, With An Axial Split In Outer Race

GEF15 ES Spherical Plain Bearing With Oil Groove And Oil Holes, With An Axial Split In Outer Race


FAQ
Q1 - What is our advantages?

     A    - Manufacturer - Do it only with the Best;

            -Your Choice make different.

Q2 - Our Products

 A   - Spherical Roller Bearing, Cylindrical Roller Bearing, Needle Roller Bearing, Cam Followers, Thrust Bearing

      - Spherical Plain Bearing, Rod End, Ball Joint, Wheel Hub, Tapered Roller Bearing

Q3 - Process of our production

 A - Heat Treatment - Grinding - Parts Inspection - Assembly - Final Inspection - Packing

Q4 - How to customize bearing(non-standard) from your company?

 A -We offer OEM,Customized(Non-standard) service and you need to provide drawing and detailed Technical Data.

Q5 -   What should I care before installation?

 A   - Normally, the preservative with which new bearings are coated before leaving the factory does not need to be

        removed; it is only necessary to wipe off the outside cylin­drical surface and bore, if the grease is not compatible

        with the preservative, it is necessary to wash and carefully dry the bearing.

      -Bearings should be installed in a dry, dust-free room away from metal working or other machines producing

        swarf and dust.

Q6 - How to stock and maintenance my bearings right?

 A   - Do not store bearings directly on concrete floors, where water can condense and collect on the bearing;

      -Store the bearings on a pallet or shelf, in an area where the bearings will not be subjected to high humidity

       or sudden and severe temperature changes that may result in condensation forming;

      -Always put oiled paper or, if not available, plastic sheets between rollers and cup races of tapered roller bearings.
