Lubricated Radial Spherical Plain Bearing (GEF...ES series)
Changzhou Suma Precision Machinery Co., Ltd.- Rolling Element：Double Row
- Structure：To The Heart
- Material：Bearing Steel
- Load Direction：Radial Spherical Plain Bearing
- Add Lubricant：Self-lubricating
- Outer Structure：Whole Outer Ring
Base Info
- Model NO.：GEF12ES-GEF120ES
- Rod End：General
- Thickness：11-105mm
- Model：GE
- Application：Construction Machinery
- Weight：0.019kg-12.4kg
- Seals Type：Non-Sealed
- Precision：P6
- Breadth (B)：11-105mm
- Inner Diameter：12-120mm
- Outer Diameter：22mm-190mm
- Product Name：Lubricated Radial Spherical Plain Bearing (Gef...E
- Port：Shanghai;Ningbo
- Stock：Rich
- Delivery：in Stocks
- Transport Package：Single Box or as Your Requirements
- Specification：P6
- Trademark：SUMA or OEM
- Origin：Changzhou, Jiangsu, China
- HS Code：84826000
- Production Capacity：10000PCS,Month
Description
No.Model Dimensions(mm) Load Ratings Weight(Kg) d D B C dk r1 min r2 min α Dynamic Static (KN) (KN) 1 GEF12ES 12 22 11 9 18 0.5 0.5 7 13 68 0.019 2 GEF15ES 15 26 13 11 22 0.5 0.5 6 20 105 0.028 3 GEF20ES 20 32 16 14 28 0.5 0.5 4 33 166 0.053 4 GEF22ES 22 37 19 16 32 0.5 0.5 6 43 217 0.085 5 GEF25ES 25 42 21 18 36 0.5 0.5 5 55 275 0.116 6 GEF30ES 30 50 27 23 45 1 1 6 87 439 0.225 7 GEF35ES 35 55 30 26 50 1 1 5 110 552 0.302 8 GEF40ES 40 62 33 28 55 1 1 6 130 654 0.375 9 GEF45ES 45 72 36 31 62 1 1 5 163 816 0.598 10 GEF50ES 50 80 42 36 72 1 1 5 220 1100 0.869 11 GEF55ES 55 90 47 40 80 1 1 6 272 1360 1.26 12 GEF60ES 60 100 53 45 90 1 1 6 344 1720 1.72 13 GEF65ES 65 105 55 47 94 1 1 5 375 1870 2.05 14 GEF70ES 70 110 58 50 100 1 1 5 425 2125 2.23 15 GEF75ES 75 120 64 55 110 1 1 5 510 2570 3.01 16 GEF80ES 80 130 70 60 120 1 1 5 610 3060 3.98 17 GEF85ES 85 135 74 63 125 1 1 6 669 3340 4.31 18 GEF90ES 90 140 76 65 130 1 1 5 718 3590 4.72 19 GEF95ES 95 150 82 70 140 1 1 5 833 4165 6.05 20 GEF100ES 100 160 88 75 150 1.5 1.5 5 956 4780 7.43 21 GEF110ES 110 170 93 80 160 1.5 1.5 5 1080 5440 8.54 22 GEF115ES 115 180 98 85 165 1.5 1.5 5 1190 5960 10.3 23 GEF120ES 120 190 105 90 175 1.5 1.5 6 1330 6690 12.4

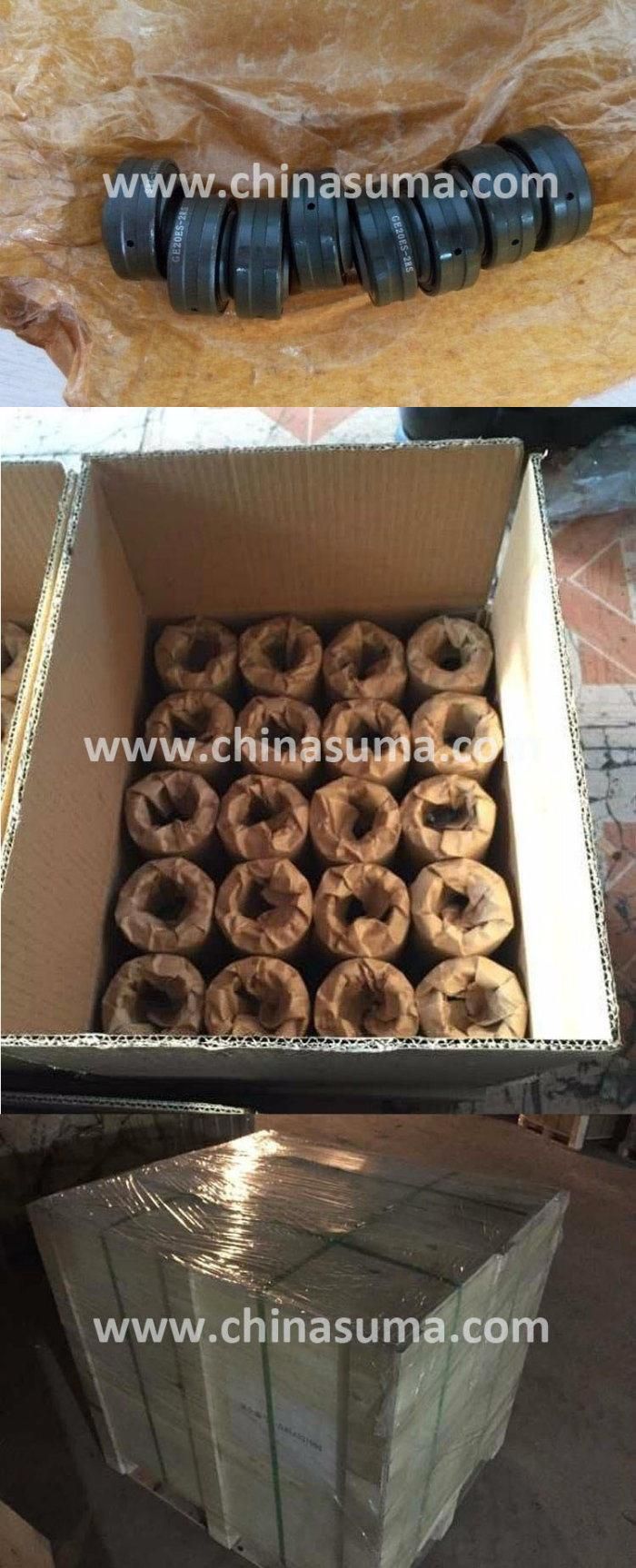

Package
