- Model NO.：8699761
- Separated：Separated
- Product Name：Japan Angular Contact Ball Bearings 8699761
- Width：26,32.5mm
- Bore Diameter：40.5mm
- Outside Diameter：88mm
- Weight：0.58kg
- Fatigue Load Limit：0.18kn
- Basic Static Load Rating：4000
- Basic Dynamic Load Rating：5000
- Transport Package：as Customer′s Requirements
- Specification：40.5x88x26,32.5mm
- Trademark：TFN
- Origin：Shangdong China
- HS Code：8482400000
- Production Capacity：5000000,Year
Product Name | Japan Angular Contact Ball Bearings 8699761 40.5x88x26/32.5mm
|
Brand | Kaydon/TFN/OEM |
Model Number | 8699761 |
Dimension | 40.5*88*26/32.5mm |
Ring Material | Chrome Steel |
| Basic dynamic load rating (Cr) | 4000 |
| Reference speed (Grease rpm) | 5000 |
| Weight | 0.58kg |
Cage Material | Brass,Nylon,Steel |
Precision | P0, P6, P5, or as requested |
Vibration | ZV1, ZV2, ZV3, or as requested |
Clearance | C0,C2,C3, or as requested |
Type | 12 series,12k series,22series,22k series,13 series,13k series,23 series,23k series |
Features | Accommodate static and dynamic misalignment ,Excellent high-speed performance ,Minimum maintenance ,Low friction ,Excellent light load performance ,Low noise. |
Quality standard | ISO9001:2000/ SGS |
Quality Control Process | 1.Assembly |
2.Windage test |
3.Cleaning |
4.Rotary test |
5.Greasing and gland |
6.Noise inspection |
7.Appearance inspection |
8.Rust prevention |
9.Product packaging |
Application | Self-aligning Ball Bearings Main applications: paper making machinery, speed reducer, railway rolling stock axle, gear box bearing seat of steel rolling mill, roller, crusher, vibrating screen, printing machinery, woodworking machinery, various industrial reducer, vertical belt centering bearing. |
Other Self-aligning ball bearings models :
| Bearing Number | Boundary dimensions(mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(Kg) |
| | d | D | B | rs min | Cr | Cor | Grease | Oil | (Approx.) |
| 1215 | 75 | 130 | 25 | 1.5 | 39 | 15.7 | 3,900 | 4,600 | 1.33 |
| 1216 | 80 | 140 | 26 | 2 | 40 | 17 | 3,700 | 4,300 | 1.65 |
| 1217 | 85 | 150 | 28 | 2 | 49 | 20.8 | 3,500 | 4,100 | 2.06 |
| 1218 | 90 | 160 | 30 | 2 | 57 | 23.5 | 3,300 | 3,800 | 2.51 |
| 1219 | 95 | 170 | 32 | 2.1 | 64 | 27.1 | 3,100 | 3,600 | 3.1 |
| 1220 | 100 | 180 | 34 | 2.1 | 69 | 29.7 | 2,900 | 3,400 | 3.7 |
| 1221 | 105 | 190 | 36 | 2.1 | 74.5 | 32.5 | 2,800 | 3,300 | 4.34 |
| 1222 | 110 | 200 | 38 | 2.1 | 80.5 | 35.5 | 2,600 | 3,100 | 5.15 |
| 1204K | 20 | 47 | 14 | 1 | 9.9 | 2.61 | 13,000 | 15,000 | 0.114 |
| 1205K | 25 | 52 | 15 | 1 | 12.1 | 3.3 | 11,000 | 13,000 | 0.135 |
| 1206K | 30 | 62 | 16 | 1 | 15.6 | 4.65 | 9,200 | 11,000 | 0.213 |
| 1207K | 35 | 72 | 17 | 1.1 | 15.8 | 5.1 | 8,000 | 9,400 | 0.312 |
| 1208K | 40 | 80 | 18 | 1.1 | 19.3 | 6.55 | 7,100 | 8,400 | 0.407 |
| 1209K | 45 | 85 | 19 | 1.1 | 21.9 | 7.35 | 6,400 | 7,500 | 0.448 |
| 1210K | 50 | 90 | 20 | 1.1 | 22.7 | 8.1 | 5,800 | 6,800 | 0.504 |
| 1211K | 55 | 100 | 21 | 1.5 | 26.8 | 10 | 5,300 | 6,200 | 0.679 |
| 1212K | 60 | 110 | 22 | 1.5 | 30 | 11.5 | 4,900 | 5,800 | 0.864 |
| 2211 | 55 | 100 | 25 | 1.5 | 26.5 | 9.9 | 5,000 | 5,800 | 0.787 |
| 2212 | 60 | 110 | 28 | 1.5 | 34 | 12.6 | 4,600 | 5,400 | 1.08 |
| 2213 | 65 | 120 | 31 | 1.5 | 43.5 | 16.4 | 4,200 | 5,000 | 1.44 |
| 2214 | 70 | 125 | 31 | 1.5 | 44 | 17.1 | 3,900 | 4,600 | 1.52 |
| 2215 | 75 | 130 | 31 | 1.5 | 44.5 | 17.8 | 3,700 | 4,300 | 1.58 |
| 2216 | 80 | 140 | 33 | 2 | 48.5 | 19.9 | 3,400 | 4,000 | 1.99 |
| 2217 | 85 | 150 | 36 | 2 | 58 | 23.6 | 3,200 | 3,800 | 2.54 |
| 2218 | 90 | 160 | 40 | 2 | 70 | 28.7 | 3,100 | 3,600 | 3.19 |
| 2219 | 95 | 170 | 43 | 2.1 | 83.5 | 34.5 | 2,900 | 3,400 | 3.89 |
| 2220 | 100 | 180 | 46 | 2.1 | 94 | 38.5 | 2,700 | 3,200 | 4.65 |
| 2221 | 105 | 190 | 50 | 2.1 | 109 | 45 | 2,600 | 3,100 | 6.07 |
| 2222 | 110 | 200 | 53 | 2.1 | 124 | 51.5 | 2,500 | 2,900 | 7.1 |
| 2204K | 20 | 47 | 18 | 1 | 12.6 | 3.3 | 12,000 | 14,000 | 0.137 |
| 2205K | 25 | 52 | 18 | 1 | 12.3 | 3.45 | 10,000 | 12,000 | 0.153 |
| 2206K | 30 | 62 | 20 | 1 | 15.2 | 4.5 | 8,600 | 10,000 | 0.25 |
| 2207K | 35 | 72 | 23 | 1.1 | 21.5 | 6.6 | 7,500 | 8,800 | 0.382 |
| 2208K | 40 | 80 | 23 | 1.1 | 22.3 | 7.35 | 6,700 | 7,900 | 0.482 |
| 2209K | 45 | 85 | 23 | 1.1 | 23.2 | 8.15 | 6,000 | 7,100 | 0.528 |
| 2210K | 50 | 90 | 23 | 1.1 | 23.2 | 8.45 | 5,500 | 6,400 | 0.569 |
| 2211K | 55 | 100 | 25 | 1.5 | 26.5 | 9.9 | 5,000 | 5,800 | 0.769 |
| 2212K | 60 | 110 | 28 | 1.5 | 34 | 12.6 | 4,600 | 5,400 | 1.06 |
| 2213K | 65 | 120 | 31 | 1.5 | 43.5 | 16.4 | 4,200 | 5,000 | 1.41 |
| 1315 | 75 | 160 | 37 | 2.1 | 79.5 | 30 | 3,300 | 3,900 | 3.55 |
| 1316 | 80 | 170 | 39 | 2.1 | 88.5 | 33 | 3,100 | 3,600 | 4.17 |
| 1317 | 85 | 180 | 41 | 3 | 97.5 | 38 | 2,900 | 3,400 | 4.96 |
| 1318 | 90 | 190 | 43 | 3 | 116 | 44.5 | 2,700 | 3,200 | 5.78 |
| 1319 | 95 | 200 | 45 | 3 | 132 | 51 | 2,600 | 3,000 | 6.69 |
| 1320 | 100 | 215 | 47 | 3 | 143 | 57.5 | 2,400 | 2,900 | 8.3 |
| 1321 | 105 | 225 | 49 | 3 | 156 | 64.5 | 2,300 | 2,700 | 10 |
| 1322 | 110 | 240 | 50 | 3 | 164 | 71.5 | 2,200 | 2,600 | 11.8 |
| 1304K | 20 | 52 | 15 | 1.1 | 12.4 | 3.35 | 11,000 | 13,000 | 0.158 |
| 1305K | 25 | 62 | 17 | 1.1 | 18 | 5 | 9,100 | 11,000 | 0.251 |
| 1306K | 30 | 72 | 19 | 1.1 | 21.3 | 6.3 | 7,700 | 9,100 | 0.377 |
| 1307K | 35 | 80 | 21 | 1.5 | 25.1 | 7.85 | 6,800 | 8,000 | 0.492 |
| 1308K | 40 | 90 | 23 | 1.5 | 29.6 | 9.7 | 6,000 | 7,000 | 0.698 |
| 1309K | 45 | 100 | 25 | 1.5 | 38 | 12.7 | 5,400 | 6,300 | 0.938 |
| 1310K | 50 | 110 | 27 | 2 | 43.5 | 14.1 | 4,900 | 5,800 | 1.18 |
| 1311K | 55 | 120 | 29 | 2 | 51.5 | 17.9 | 4,500 | 5,200 | 1.56 |
| 1312K | 60 | 130 | 31 | 2.1 | 57 | 20.8 | 4,100 | 4,800 | 1.93 |
| 1313K | 65 | 140 | 33 | 2.1 | 62 | 22.9 | 3,800 | 4,500 | 2.38 |
| 1315K | 75 | 160 | 37 | 2.1 | 79.5 | 30 | 3,300 | 3,900 | 3.5 |
| 1316K | 80 | 170 | 39 | 2.1 | 88.5 | 33 | 3,100 | 3,600 | 4.11 |
| 2312 | 60 | 130 | 46 | 2.1 | 87 | 28.2 | 3,800 | 4,500 | 2.59 |
| 2313 | 65 | 140 | 48 | 2.1 | 96 | 32.5 | 3,600 | 4,200 | 3.2 |
| 2314 | 70 | 150 | 51 | 2.1 | 109 | 37.5 | 3,300 | 3,900 | 3.92 |
| 2315 | 75 | 160 | 55 | 2.1 | 123 | 43 | 3,100 | 3,600 | 4.78 |
| 2316 | 80 | 170 | 58 | 2.1 | 128 | 45 | 2,900 | 3,400 | 5.65 |
| 2317 | 85 | 180 | 60 | 3 | 140 | 51.5 | 2,700 | 3,200 | 6.55 |
| 2318 | 90 | 190 | 64 | 3 | 152 | 57.5 | 2,600 | 3,000 | 7.75 |
| 2319 | 95 | 200 | 67 | 3 | 165 | 64.5 | 2,400 | 2,800 | 9.05 |
| 2320 | 100 | 215 | 73 | 3 | 192 | 79 | 2,300 | 2,700 | 11.5 |
| 2321 | 105 | 225 | 77 | 3 | 205 | 87 | 2,200 | 2,600 | 13.2 |
| 2322 | 110 | 240 | 80 | 3 | 217 | 94.5 | 2,100 | 2,400 | 15.8 |
| 2304K | 20 | 52 | 21 | 1.1 | 18.1 | 4.7 | 10,000 | 12,000 | 0.201 |
| 2305K | 25 | 62 | 24 | 1.1 | 24.4 | 6.6 | 8,500 | 10,000 | 0.326 |
| 2306K | 30 | 72 | 27 | 1.1 | 31.5 | 8.75 | 7,200 | 8,500 | 0.485 |
| 2307K | 35 | 80 | 31 | 1.5 | 39.5 | 11.3 | 6,300 | 7,400 | 0.653 |
| 2308K | 40 | 90 | 33 | 1.5 | 45 | 13.5 | 5,600 | 6,600 | 0.895 |
| 2309K | 45 | 100 | 36 | 1.5 | 54 | 16.7 | 5,000 | 5,900 | 1.2 |
| 2310K | 50 | 110 | 40 | 2 | 64.5 | 20.2 | 4,600 | 5,400 | 1.59 |
| 2311K | 55 | 120 | 43 | 2 | 75.5 | 24 | 4,200 | 4,900 | 2.05 |
| 2312K | 60 | 130 | 46 | 2.1 | 87 | 28.2 | 3,800 | 4,500 | 2.52 |
| 2313K | 65 | 140 | 48 | 2.1 | 96 | 32.5 | 3,600 | 4,200 | 3.12 |
| 2315K | 75 | 160 | 55 | 2.1 | 123 | 43 | 3,100 | 3,600 | 4.66 |
| 2316K | 80 | 170 | 58 | 2.1 | 128 | 45 | 2,900 | 3,400 | 5.5 |
Certificate
Packing
FAQ
Q:Why choose us?
A:1. We are professional,have factory in shandong for many years.
2. We are experienced for 10 years.
3. We can offer a various kind of bearing with high quality:Z1V1,Z2V2,Z3V3 and best price
Q:How is the quality of your products?
A:The same quality, we have lower price.The same price,we have better quality.

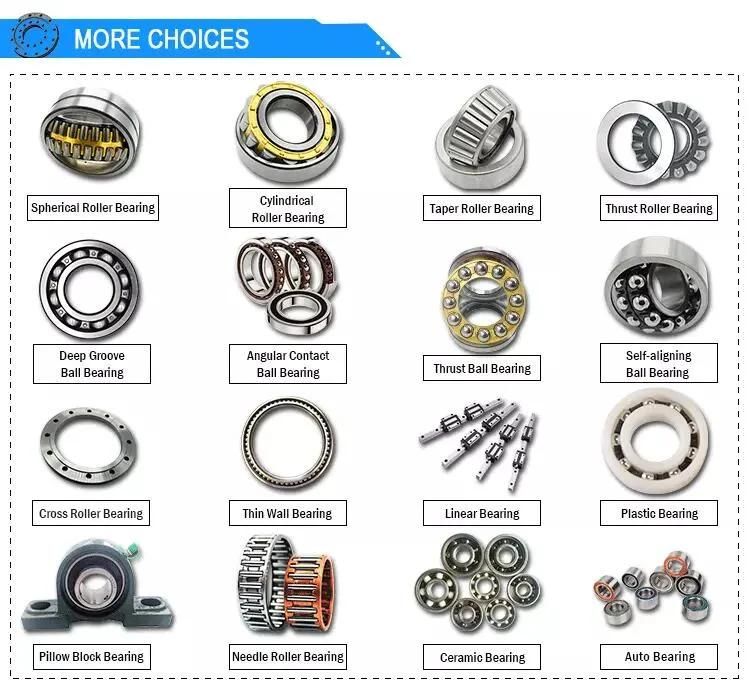

Q:Except self-aligning ball bearing,what other main bearing do you have?
A:Cylindrical roller bearing,Taper Roller Bearing,Thrust roller bearing,Spherical roller bearing,Deep groove ball bearing,Angular contact ball bearing etc.
Q:Can I get self-aligning ball bearing free samples?
A:We will charge a little sample fee for our regular designs or customized ones, These charges will be refunded to you when your mass production order is confirmed.
Q:Can you make the products as our requirement?
A:We have more than 10years' OEM experience. We supply products fo more than 300 automobile parts factories.
