Bk15 Factory Direct High Precision Bearing Housing for Ball Screw
ZCF PRECISION TECHNOLOGY (SUZHOU) CO., LTD.- Aligning：Aligning Bearing
- Separated：Separated
- Feature：Corrosion Resistant
- Rows Number：Single
- Raceway：Straight Raceway
- Material：Bearing Steel
Base Info
- Model NO.：BK15
- Bearing Block Model：Bf
- Model No.：Bk,Bf
- Running Mode：Moving
- Package：Seal,No Seal
- Color：Black,Customized
- Radial Clearance：-3um
- Transport Package：Wooden Box
- Specification：600*300*250
- Trademark：ZCF
- Origin：China
- HS Code：8483200000
- Production Capacity：10000000
Description
Nominal threadType d D B E F M S BK10 12/14/15 10 8 36 15 M10X1 12 BK12 14/15/16 12 10 36 15 M12X1 12 BK15 18/20 15 12 40 20 M15X1 12 BK17 20/25 17 15 53 23 M17X1 17 BK20 25/28 20 17 53 25 M20X1 15 BK25 32/36 25 20 66 30 M25X1.5 20 BK30 36/45 30 25 73 38 M30X1.5 25 BK35 45 35 30 82 45 M35X1.5 26 BK40 50 40 35 94 50 M40X1.5 30

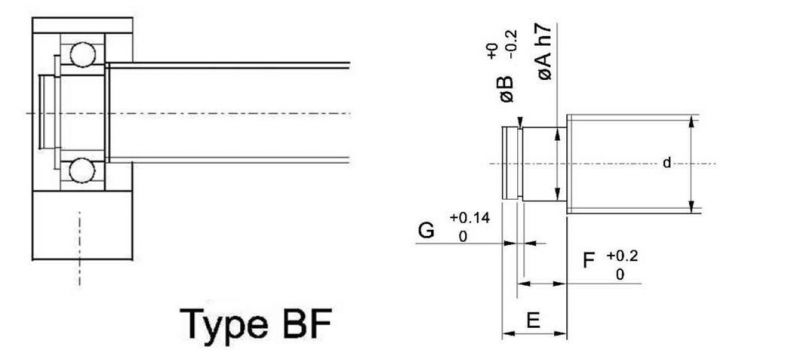

2. Suggested maching size for supporting end(BF):
Slot of snap ringType:BF d A E B F G BF10 12/14/15 8 10 7.6 7.9 0.9 BF12 14/15/16 10 11 9.6 9.15 1.15 BF15 18/20 15 13 14.3 10.15 1.15 BF17 20/25 17 16 16.2 13.15 1.15 BF20 25/28/30 20 19(16) 19 15.35(13.35) 1.35 BF25 30/32/36 25 20 23.9 16.35 1.35 BF30 36/40 30 21 28.6 17.75 1.75 BF35 40/45 35 22 33 18.75 1.75 BF40 50 40 23 38 19.95 1.95

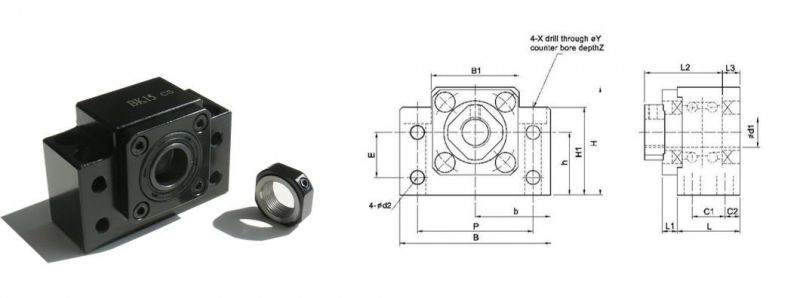

3. Parameter of BK series :

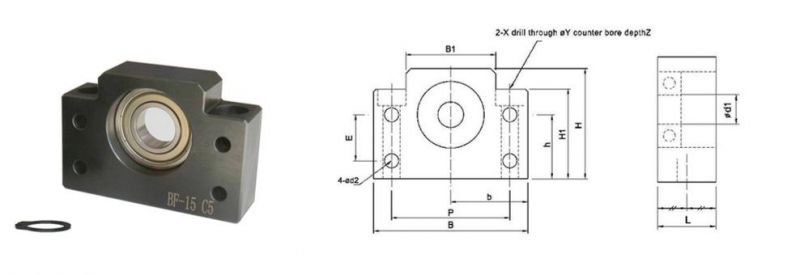

4. Parameter of BF series :
