• Model NO.：22224EMD1C3
• Separated：Unseparated
• Inner：120mm
• Outer：215mm
• Thickness：58mm
• Weight：8.95kg
• Transport Package：Single Box, Plastic Barrel, Carton, Tray
• Specification：CE, ISO9001
• Trademark：SFNB
• Origin：China,Japan
• HS Code：8482200000
• Production Capacity：100000PCS,Year

Seals TypesOPENVibration LevelZ1V1,Z2V2,Z3V3ClearanceC2,C0,C3,C4,C5Tolerance CodesABEC-1,ABEC-3,ABEC-5MaterralGCr15-China/AISI52100-USA/Din100Cr6-GermanyMOQ1Set at leastDelivery TimeStockPayment TermsTT/PAPAL/WESTERN UNIONPackageTube package+outer carton+pallets;Single box+outer carton+pallets;
Single box+middle box+outer carton+pallets;According to your requirement

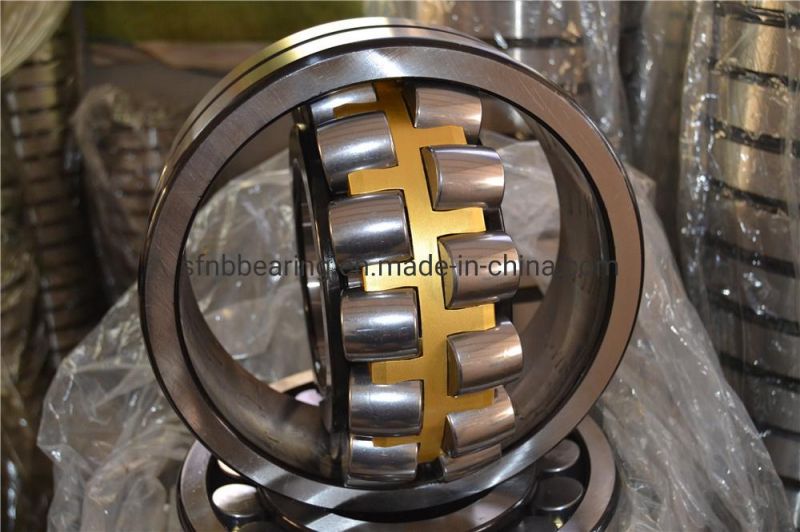

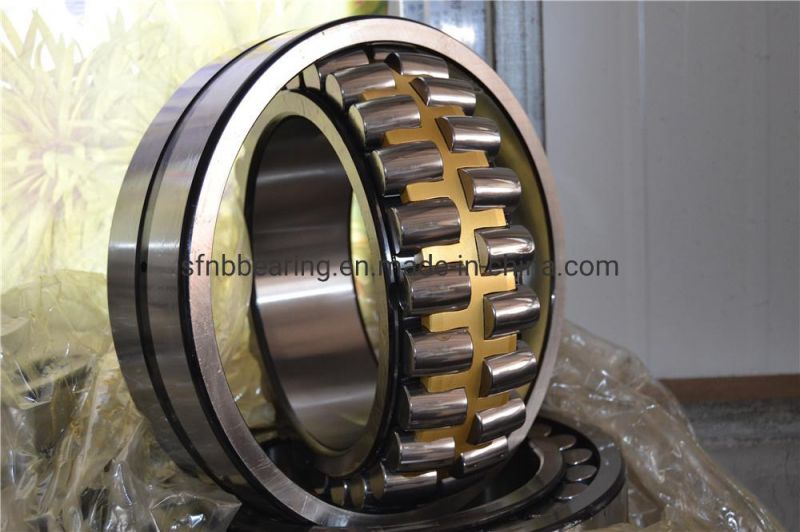

NO 5. Spherical roller bearing Models and Size:
Designation
Principal  Dimension(kN)
Basic Load Ratings(r/min)
Speed ratings
MassdDBr
min
Dynamic
Static
Grease
Oilkg23032160240602.13767301500190013.524032CA160240802.163611641100150012.924132CA1602701092.11010170070090025.42638190280672.55429781200150013.723038K190290752.162611001200150020.523038CA190290752.17657351300170016.924038CA1902901002.19801000950130022.823144CA220370120415701520900120054.723144K220370120413301330900120054.822244220400108412002100850120057.62324422040014441800282067085094.622344/W3322046014551700309067085012923948CA240320602.16357101300170014.9230482403609238201800900120037.623048K/W332403609238201800900120037.42314824040012841200256076099077.224148/W3324040016041200330043054081.6

Bearings NO.	d	D	B	C	C0	Weight
	mm	mm	mm	kN	kN	kg

21317 EK	85	180	41	325	375	5.15
22317 E	85	180	60	550	620	7.65
22317 E/VA405	85	180	60	550	620	7.65
22317 EK	85	180	60	550	620	7.5
22218 E	90	160	40	325	375	3.4
22218 EK	90	160	40	325	375	3.35
21318 E	90	190	43	380	450	6.1
21318 EK	90	190	43	380	450	6
22318 E	90	190	64	610	695	9.05
22318 E/VA405	90	190	64	610	695	9.05
22318 EK	90	190	64	610	695	8.85
22219 E	95	170	43	380	450	4.15
22219 EK	95	170	43	380	450	4.05
21319 E	95	200	45	425	490	7.05
21319 EK	95	200	45	425	490	6.95
22319 E	95	200	67	670	765	10.5
22319 E/VA405	95	200	67	670	765	10.5
22319 EK	95	200	67	670	765	10.5
22220 E	100	180	46	425	490	4.9
22220 EK	100	180	46	425	490	4.8
21320 E	100	215	47	425	490	8.6

.


Why Choose Us:

We are an industrial and manufacturer company.We have our own brand: SFNB .If you interested in our product,I can take you to visit our factory.
Our factory have advanced testing equipment,before the every product leave the factory,we will be testing.We can send samples to you,you can test the quality,and if you accept the sample quality,we can promise: the follow-up orders' quality will be the same as samples.
About ordinary standard type of bearing ,We have rich inventory,not have MOQ,if your need a product is Non-standard size,need customize,we will according the product size to determine the MOQ.
Our company can accept OEM,you can send sample to me,we can manufacturing products the same as sample.Meanwhile,we also can accept some well-known brands of OEM,
If the amount of money is less,you can pay it by Paypal.Of course you can payment by TT or Western Union etc.
