Zz6203 PP Internal Freewheels with Sprags and Bearing Support

Changzhou Suma Precision Machinery Co., Ltd.

Model：Zz6203 PP
Type：Sprag
Outer Diameter：40mm
Inner Diameter：17mm
Weight：0.07kg
Width：12mm

Base Info

Model NO.：ZZ6203 PP
Name：Zz6203 PP Internal Freewheels with Sprags
OEM：Accept
Delivery：10-15days
Transport Package：Single Box or as Your Requirements
Specification：P6
Trademark：SUMA or OEM
Origin：Changzhou, Jiangsu, China
HS Code：84836000
Production Capacity：10000PCS,Month

Description

Freewheel SizeNominal torqueMaximum speed min-1Load rating of bearing support
Bore dBDKNPWeightMNdynamicstaticmmmmmmmmmmmmkgNmCC0 NN ZZ 6202 PP178 4007 4003 40015*11354220,60,06ZZ 6203 PP307 3507 9003 80017*12405121,00,07ZZ 6204 PP506 0009 4004 50020*14475831,50,11ZZ 6205 PP855 20010 7005 50025*15526362,00,14ZZ 6206 PP1384 20011 7006 50030*16627362,00,21ZZ 6207 PP1753 60012 6007 30035*17728582,50,30ZZ 40 PP3253 00015 50012 30040228094103,00,50

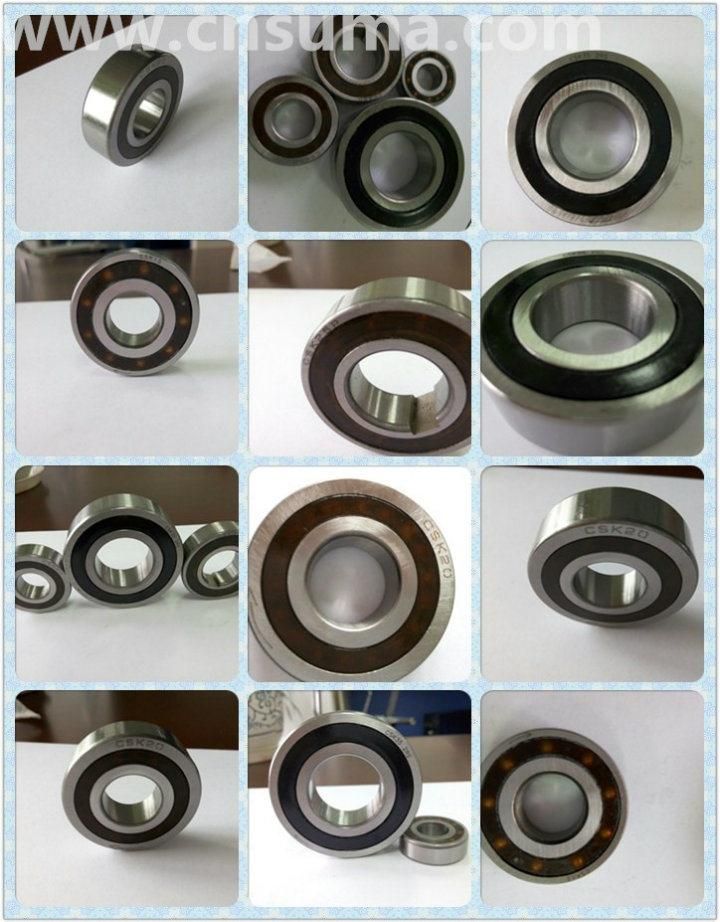

Images
Zz6203 PP Internal Freewheels with Sprags and Bearing Support

Package
