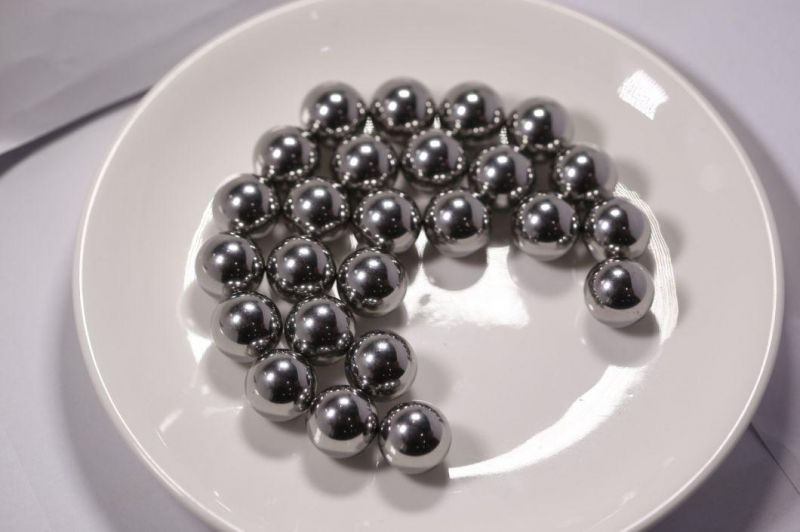

12mm High Hardness Chrome Steel Ball for Grinding
Tangland International Trading Co., Ltd.- Customized：Customized
- Certification：CE, ISO, Ts16949
- Standard Parts：Yes
- Universal：Yes
- Type：Bearing Ball
- Material：Chrome Steel
Base Info
- Model NO.：chrome steel ball
- Grade：G10-G1000
- Conditioning：Dry,Oiled
- Hardness：HRC 60 to 66
- Payment：T,T,LC
- Transport Package：Plastic Bag+Box+Carton+Wooden Pallet
- Specification：0.8-80mm
- Trademark：Tangland
- Origin：Shandong, China
- HS Code：8482910000
- Production Capacity：5000 Billion Tons,Month
Description
100Cr6&SUJ2&AISIE52100&GCr150.98-1.05 0.15-0.35 0.25-0.45 0.02max 0.006max 0.1 1.40-1.65 0.05max 0.13 Ti(%) AI(%) O(%) N(%) Pb(%) Sb(%) As(%) Sn(%) Ca(%) 0.002max 0.04max 0.0008max 0.004max 0.002max 0.005max 0.04max 0.03max 0.0008max
Steel ball gradeμmG3 0.08 0.08 0.13 0.01 0.5 -5,...,0.5,0,+0.5,...,+5 0.1 -0.2,-0.1,0,+0.1,+0.2 G5 0.13 0.13 0.25 0.014 1 -5,...,-1,0,+1,...+5 0.2 -0.4,-0.2,0,+0.2,+0.4 G10 0.25 0.25 0.5 0.02 1 -9,...,-1,0,+1,...,+9 0.2 -0.4,-0.2,0,+0.2,+0.4 G16 0.4 0.4 0.8 0.025 2 -10,...,-2,0,+2,...,+10 0.4 -0.8,-0.4,0,+0.4,+0.8 G20 0.5 0.5 1 0.032 2 -10,...,-2,0,+2,...,+10 0.4 -0.8,-0.4,0,+0.4,+0.8 G24 0.6 0.6 1.2 0.04 2 -12,...,-2,0,+2,...,+12 0.4 -0.8,-0.4,0,+0.4,+0.8 G28 0.7 0.7 1.4 0.05 2 -12,...,-2,0,+2,...,+12 0.4 -0.8,-0.4,0,+0.4,+0.8 G40 1 1 2 0.06 4 -16,...,-4,0,+4,...,+16 0.8 -1.6,-0.8,0,+0.8,+1.6 G60 1.5 1.5 3 0.08 6 -18,...,-6,0,+6,...,+18 1.2 -2.4,-1.2,0,+1.2,+2.4 G100 2.5 2.5 5 0.1 10 -40,...,-10,0,+10,...,+40 2 -4,-2,0,+2,+4 G200 5 5 10 0.15 15 -60,...,-15,0,+15,...,+60 3 -6,-3,0,+3,+6

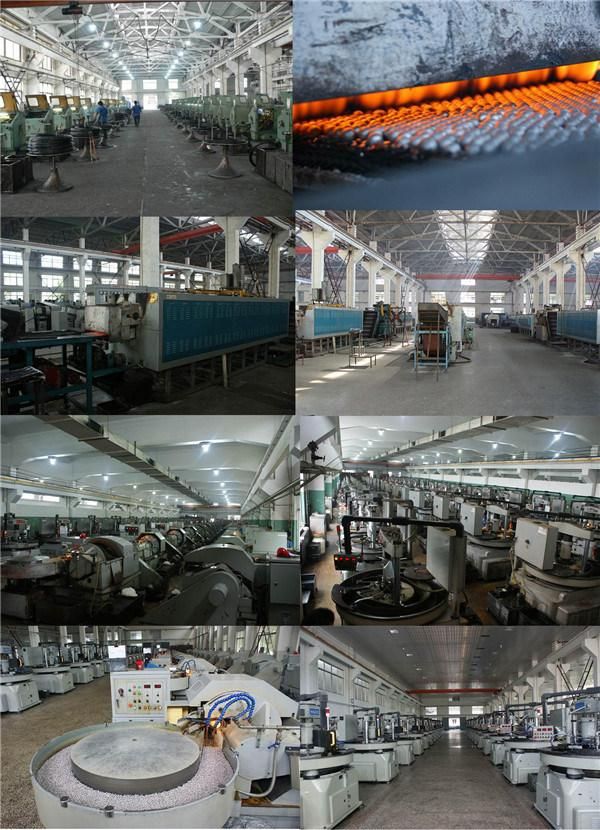

Production Process
1.Cold heading process
2.Flashing process
3.Heating treatment process
4.Grinding process
5.Initial grinding process
6.Lapping process
7.Eddy current tested by AVIKO
8.Optical testing

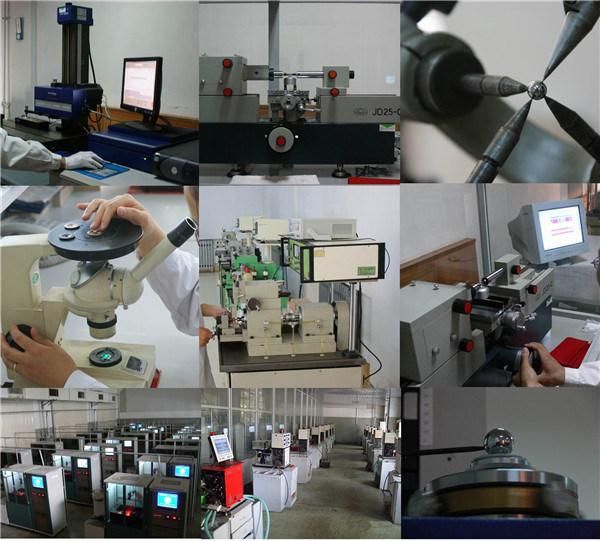

Inspection Machines
Profile roughness tester from England
Germany Zeiss cleanliness analysis system
Taylor roundness instrument from England
SKF waviness meter
Germany KB Vivtorinox hardness tester
Finland residual stress analysis
Oxygen nitrogen analyzer from USA
Germany Zeiss metallographic microscope
Steel ball single body vibration measuring instrument
NG Spectrometer spectrometer
Bearing life testing machine
Hydraulic universal testin machine
We produce

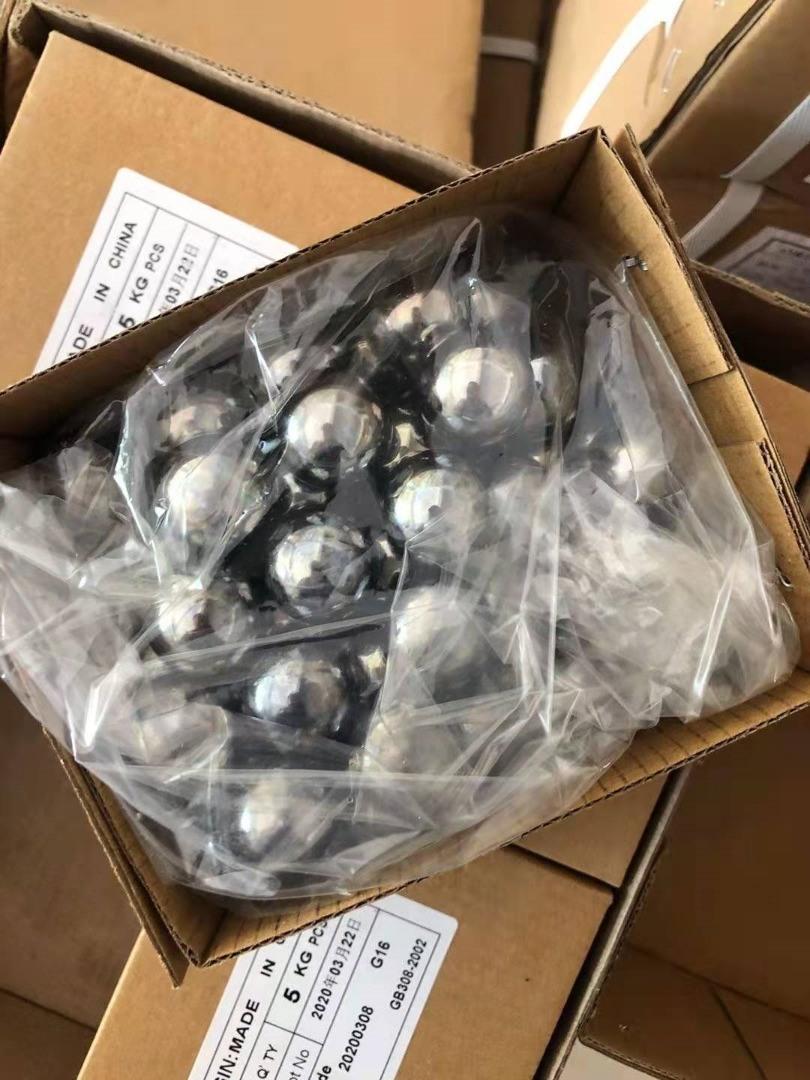

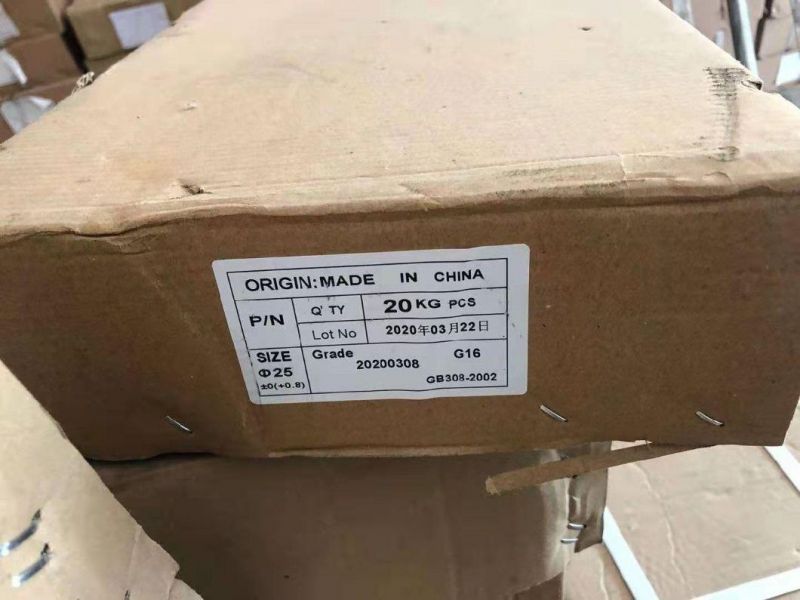

Packaging
1. Plastic bag+box+carton+wooden pallet
2. Plastic bag+carton+wooden pallet
3. Export cartons+steel drums+wooden pallets
FAQ
Q1: What is the advantage of your company?
A: We are a professional steel ball manufacturers, which have 20 years of production experience.We have a complete industrial base. We also have Hi-Tech and capable production line.
Q2. In which countries are your products sold?
A: Our products are exported to over 30 countries and regions including USA, Republic of Korea, Japan, Malaysia, Australia, Canada and South Africa, etc., well and universally received by clients.
Q3: How long is your delivery time?
A: Generally it is 5-15 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.
Q4: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q5: What is your terms of payment ?
A: 30% T/T in advance , balance before shippment.
Steel ball gradeμm
Production Process
1.Cold heading process
2.Flashing process
3.Heating treatment process
4.Grinding process
5.Initial grinding process
6.Lapping process
7.Eddy current tested by AVIKO
8.Optical testing
Inspection Machines
Profile roughness tester from England
Germany Zeiss cleanliness analysis system
Taylor roundness instrument from England
SKF waviness meter
Germany KB Vivtorinox hardness tester
Finland residual stress analysis
Oxygen nitrogen analyzer from USA
Germany Zeiss metallographic microscope
Steel ball single body vibration measuring instrument
NG Spectrometer spectrometer
Bearing life testing machine
Hydraulic universal testin machine
We produce
| Item | Name | Material |
| 1 | Carbon steel ball (Low) | AISI1010,AISI1015,Q195,Q235 |
| 2 | Carbon steel ball (High) | C80,C82,C85 |
| 3 | Stainless steel ball(Austenitic) | AISI304/304L/316/316L/201/665 |
| 4 | Stainless steel ball(Martensitic) | AISI420/420C/440/440C |
| 5 | Chrome steel ball(Ferritic) | AISIE52100/100Cr6/Gcr15/SUJ-2 |
Packaging
1. Plastic bag+box+carton+wooden pallet
2. Plastic bag+carton+wooden pallet
3. Export cartons+steel drums+wooden pallets
FAQ
Q1: What is the advantage of your company?
A: We are a professional steel ball manufacturers, which have 20 years of production experience.We have a complete industrial base. We also have Hi-Tech and capable production line.
Q2. In which countries are your products sold?
A: Our products are exported to over 30 countries and regions including USA, Republic of Korea, Japan, Malaysia, Australia, Canada and South Africa, etc., well and universally received by clients.
Q3: How long is your delivery time?
A: Generally it is 5-15 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.
Q4: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q5: What is your terms of payment ?
A: 30% T/T in advance , balance before shippment.
