• Model NO.：UCP209
• Bearing Block Model：F,Fs,FL,FC,etc
• Application：Agriculture and Forestry Equipment etc.
• OEM Servie：Yes
• Certification：ISO9001:2015
• Bearing Weight：1.6kg
• Telorance：Z1V1 Z2V2 Z3c3
• Clearance：C0 C1 C2 C3 C4
• Precision：P0 P6 P5 P4 P2
• Key Word：Motorcycle Bearings
• Transport Package：Single Box + Carton + Pallet
• Specification：45MM
• Trademark：PPB,SI
• Origin：Zhejiang
• HS Code：84822000
• Production Capacity：70000 PCS Per Year

ModelUCP209 pillow block bearing P209 Plummer block housing unit
Greese/Oil
As you require, such as SRL ,PS2, Alvania R12 and so on.
Vibration
Z1/V1,Z2/V2,Z3/V3
Hardness
HRC60~HRC63
Bearing type
GCR15 Material (Chrome Steel) self-aligning ball bearings
Quality level
Reach the same level as Japanes and European bearings, P0 P2 P4 P5 P6..
Feature
low voice, high speed, long life
Application
Pharmaceutical equipment, medical equipment, textile machinery

and accessories, knitting machines, weaving machines, spinning

equipment, textile accessories, non-woven fabric machinery,

textile equipment, machinery, metal, mold, automotive

electronics, electrical, instrumentation, aviation

aerospace, plastics and rubber industry, medical and other fields.
Package
1,barreled package+outer carton+pallets
2,single box+outer carton+pallets
3,tube package+middle box+outer carton+pallets
4,According to your's requirement
Details
We have a complete process for production and quality assurance to make sure our products can meet your requirement.
1. Assembly
2. Windage test
3. Cleaning
4. Rotary test
5. Greasing and gland
6. Noise inspection
7. Appearance inspection
8. Rust prevention
Shaft-Φ(mm)Dimension(mm) haebs2s1gwBindsweight(kg)UCP2011230,21279538191315623112,7M100,63UCP2021530,21279538191315623112,7M100,63UCP2031730,21279538191315623112,7M100,63UCP2042033,31279538191315653112,7M100,65UCP2052536,514010538191316703414,3M100,79UCP2063042,9165121482117188338,115,9M141,3UCP2073547,6167127482117199442,917,5M141,6UCP2084049,21841375421171910049,219M142UCP20945541901465421172010849,219M142,2UCP2105057,22061596025202211451,619M162,8UCP2115563,52191716025202212655,622,2M163,4UCP2126069,82411847025202513865,125,4M164,8UCP2136576,22652037029252715065,125,4M205,7UCP2147079,42662107231252715674,630,2M207UCP2157582,62752177431252816377,833,3M207,6UCP2168088,92922327831253017582,633,3M209UCP2178595,23102478331253218785,734,1M2011,5UCP21890101,6327262883327342009639,7M2214,3
Model List (Please contact us for more details)


UC201	UCP201	UCF201	UCFL201	UCT201	UCFC201	UCPA201
UC201-8	UCP201-8	UCF201-8	UCFL201-8	UCT201-8	UCFC201-8	UCPA201-8
UC202	UCP202	UCF202	UCFL202	UCT202	UCFC202	UCPA202
UC202-10	UCP202-10	UCF202-10	UCFL202-10	UCT202-10	UCFC202-10	UCPA202-10
UC203	UCP203	UCF203	UCFL203	UCT203	UCFC203	UCPA203
UC204	UCP204	UCF204	UCFL204	UCT204	UCFC204	UCPA204
UC204-12	UCP204-12	UCF204-12	UCFL204-12	UCT204-12	UCFC204-12	UCPA204-12
UC205	UCP205	UCF205	UCFL205	UCT205	UCFC205	UCPA205
UC205-14	UCP205-14	UCF205-14	UCFL205-14	UCT205-14	UCFC205-14	UCPA205-14
UC205-15	UCP205-15	UCF205-15	UCFL205-15	UCT205-15	UCFC205-15	UCPA205-15
UC205-16	UCP205-16	UCF205-16	UCFL205-16	UCT205-16	UCFC205-16	UCPA205-16
UC206	UCP206	UCF206	UCFL206	UCT206	UCFC206	UCPA206
UC206-18	UCP206-18	UCF206-18	UCFL206-18	UCT206-18	UCFC206-18	UCPA206-18
UC206-19	UCP206-19	UCF206-19	UCFL206-19	UCT206-19	UCFC206-19	UCPA206-19
UC206-20	UCP206-20	UCF206-20	UCFL206-20	UCT206-20	UCFC206-20	UCPA206-20
UC207	UCP207	UCF207	UCFL207	UCT207	UCFC207	UCPA207
UC207-20	UCP207-20	UCF207-20	UCFL207-20	UCT207-20	UCFC207-20	UCPA207-20
UC207-21	UCP207-21	UCF207-21	UCFL207-21	UCT207-21	UCFC207-21	UCPA207-21
UC207-22	UCP207-22	UCF207-22	UCFL207-22	UCT207-22	UCFC207-22	UCPA207-22
UC207-23	UCP207-23	UCF207-23	UCFL207-23	UCT207-23	UCFC207-23	UCPA207-23
UC208	UCP208	UCF208	UCFL208	UCT208	UCFC208	UCPA208
UC208-24	UCP208-24	UCF208-24	UCFL208-24	UCT208-24	UCFC208-24	UCPA208-24
UC209	UCP209	UCF209	UCFL209	UCT209	UCFC209	UCPA209
UC209-26	UCP209-26	UCF209-26	UCFL209-26	UCT209-26	UCFC209-26	UCPA209-26
UC209-27	UCP209-27	UCF209-27	UCFL209-27	UCT209-27	UCFC209-27	UCPA209-27
UC209-28	UCP209-28	UCF209-28	UCFL209-28	UCT209-28	UCFC209-28	UCPA209-28
UC210	UCP210	UCF210	UCFL210	UCT210	UCFC210	UCPA210
UC210-30	UCP210-30	UCF210-30	UCFL210-30	UCT210-30	UCFC210-30	UCPA210-30
UC210-31	UCP210-31	UCF210-31	UCFL210-31	UCT210-31	UCFC210-31	UCPA210-31
UC210-32	UCP210-32	UCF210-32	UCFL210-32	UCT210-32	UCFC210-32	UCPA210-32
UC211	UCP211	UCF211	UCFL211	UCT211	UCFC211	UCPA211
UC211-32	UCP211-32	UCF211-32	UCFL211-32	UCT211-32	UCFC211-32	UCPA211-32
UC211-34	UCP211-34	UCF211-34	UCFL211-34	UCT211-34	UCFC211-34	UCPA211-34
UC211-35	UCP211-35	UCF211-35	UCFL211-35	UCT211-35	UCFC211-35	UCPA211-35
UC212	UCP212	UCF212	UCFL212	UCT212	UCFC212	UCPA212
UC212-36	UCP212-36	UCF212-36	UCFL212-36	UCT212-36	UCFC212-36	UCPA212-36
UC212-38	UCP212-38	UCF212-38	UCFL212-38	UCT212-38	UCFC212-38	UCPA212-38
UC212-39	UCP212-39	UCF212-39	UCFL212-39	UCT212-39	UCFC212-39	UCPA212-39
UC213	UCP213	UCF213	UCFL213	UCT213	UCFC213
UC213-40	UCP213-40	UCF213-40	UCFL213-40	UCT213-40	UCFC213-40
UC214	UCP214	UCF214	UCFL214	UCT214	UCFC214
UC214-44	UCP214-44	UCF214-44	UCFL214-44	UCT214-44	UCFC214-44
UC215	UCP215	UCF215	UCFL215	UCT215	UCFC215
UC215-47	UCP215-47	UCF215-47	UCFL215-47	UCT215-47	UCFC215-47
UC215-48	UCP215-48	UCF215-48	UCFL215-48	UCT215-48	UCFC215-48
UC216	UCP216	UCF216	UCFL216	UCT216	UCFC216
UC217	UCP217	UCF217	UCFL217	UCT217	UCFC217
UC218	UCP218	UCF218	UCFL218	UCT218	UCFC218
UC218-56	UCP218-56	UCF218-56	UCFL218-56	UCT218-56	UCFC218-56
	UCP220	UCF220
UC305	UCP305	SA201	SB201	UK205	NA204	UKP205
UC306	UCP306	SA202	SB202	UK206	NA205	UKP206
UC307	UCP307	SA203	SB203	UK207	NA206	UKP207
UC308	UCP308	SA204	SB204	UK208	NA207	UKP208
UC309	UCP309	SA205	SB205	UK209	NA208	UKP209
UC310	UCP310	SA206	SB206	UK210	NA209	UKP210
UC311	UCP311	SA207	SB207	UK211	NA210	UKP211
UC312	UCP312	SA208	SB208	UK212		UKP212
UC313	UCP313	SA209	SB209	UK213		UKP213
UC314	UCP314	SA210	SB210	UK215		UKP215
UC315	UCP315			UK216		UKP216
UC316	UCP316			UK217		UKP217
UC317				UK218		UKP218
UC318
UC319
UC320



A wide range of applications:

• agriculture and forestry equipment
• automotive and industrial gearboxes
• automotive and truck electric components, such as alternators
• electric motors
• fluid machinery
• material handling
• power tools and household appliances
• textile machinery
• two Wheeler.


Our Bearing Advantage:

1. ISO Standard

2. Bearing Small order accepted

3. In Stock bearing

4. OEM bearing service

5. Professional:20 years manufacture bearing

6. Customized bearing, Customer's bearing drawing or samples accepted

7. Competitive price bearing

8. TT Payment or Western Union or PayPal

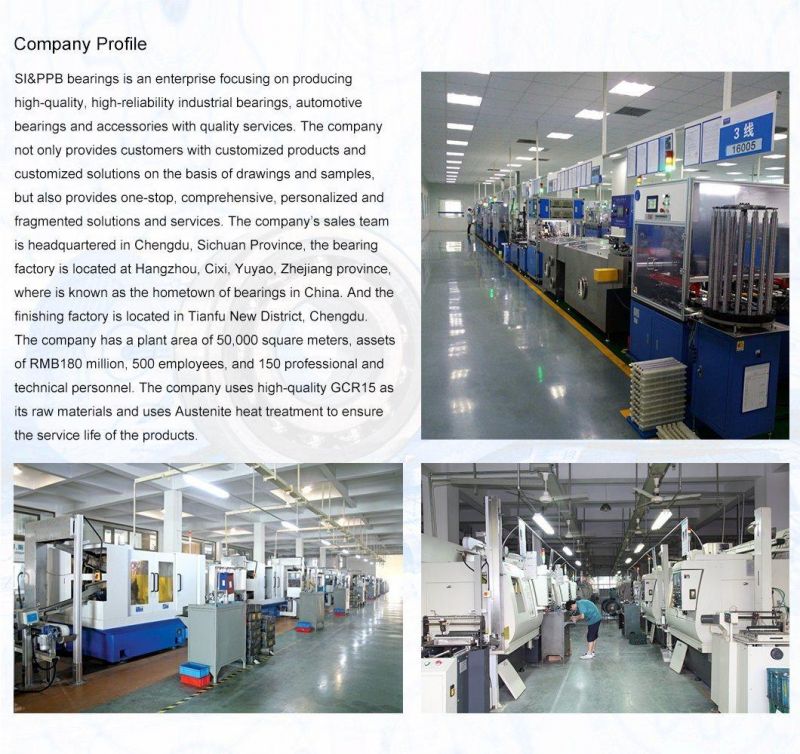

Our Company

Packaging Details	1 piece in a single box 50 boxes in a carton 20 cartons in a pallet
Nearest Port	Shanghai or Ningbo
Lead Time	For stock parts: 1-5 days. If no stock parts: <200 pcs: 15-30 days ≥200 pcs: to be negotiated.

FAQ1. How do you make our business long-term and good relationship?
- We keep good quality and competitive price to ensure our customers benefit ;
- We respect every customer as our friend and we sincerely do business and make friends with them,
  no matter where they come from. 2. Do you test all your goods before delivery?
- Yes, we have a 100% test before delivery 3. What products does your company supply?
- Auto Bearings (Wheel Bearings, Wheel Hub Bearings, Clutch Bearings, Belt Tensioners, and Water Pump Bearings, etc. )    -Industrial Bearings (Deep Groove Ball Bearings, Tapered Roller Bearings, and Pillow Block Bearings).
