• Model NO.：1205
• Application：Machinery
• Precision：Po P5
• Feature：Long Life High Speed Low Price
• Certification：SGS ISO9001
• Transport Package：Exported Standard Industrial
• Specification：1205
• Trademark：SKF
• Origin：Sweden
• HS Code：8482102000
• Production Capacity：100000,Month

Basic Info.

Model NO. 1205 Application Machinery Precision Po P5 Feature Long Life High Speed Low Price Certification SGS ISO9001 Transport Package Exported Standard Industrial Specification 1205 Trademark SKF Origin Sweden HS Code 8482102000 Production Capacity 100000/Month

Product Description

china   bearings price bearing  1205

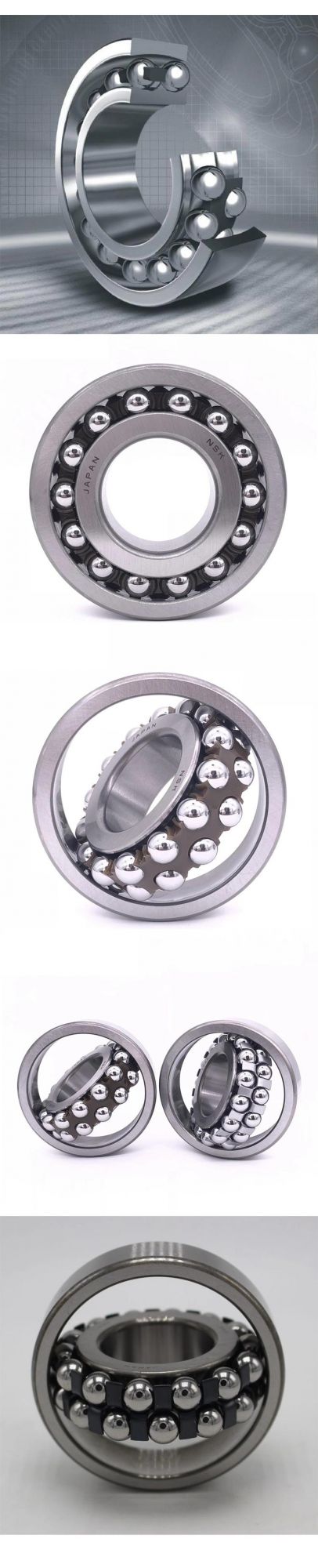

Self-Aligning ball bearings are two raceways in the inner and outer spherical roller between the road, equipped with a spherical ball bearings.
There are cylindrical and tapered bore two structures, cage made of steel sheet, synthetic resin. It features an outer ring raceway spherical shape, with auto-Mind, can compensate for misalignment and shaft deflection caused by the error, but the inner and outer rings relative inclination of not more than 3 degrees.









Bearing No	d/mm	D/mm	T/mm	Weight/kg	Bearing No	d/mm	D/mm	T/mm	Weight/kg
1018	8	22	7		1220K	100	180	34	3.69
1026	6	19	9	0.196	1222	110	200	38	5.2
1027	7	22	7	0.015	1300	10	35	11	0.06
1029	9	26	8	0.023	1301	12	37	12	0.07
1200	10	30	9	0.035	1302	15	42	13	0.099
1201	12	32	10	0.042	1303	17	47	14	0.138
1202	15	35	11	0.051	1304K	20	52	15	0.174
1203	17	40	12	0.076	1305K	25	62	17	0.258
1204K	20	47	14	0.119	1306K	30	72	19	0.389
1205K	25	52	15	0.144	1307K	35	80	21	0.537
1206K	30	62	16	0.226	1308K	40	90	23	0.706
1207K	35	72	17	0.318	1309K	45	100	25	0.962
1208K	40	80	18	0.411	1310K	10	110	27	1.21
1209K	45	85	19	0.489	1311K	55	120	29	1.58
1210K	50	90	20	0.545	1312K	60	130	31	1.96
1211K	55	100	21	0.722	1313K	65	140	33	2.34
1212K	60	110	22	0.896	1314K	70	150	35	2.98
1213K	65	120	23	0.915	1315K	75	160	37	3.55
1214K	70	125	24	1.29	1316K	80	170	39	4.19
1215K	75	130	25	1.35	1317K	85	180	41	4.95
1216K	80	140	26	1.6	1318K	90	190	43	5.99
1217K	85	150	28	2.1	1319K	95	200	45	6.98
1218K	90	160	30	2.44	1320K	100	215	47	8.64
1219K	95	170	32	3.06	1322K	110	240	50	11.9
