• Model NO.：22307 CC,CCK CA,CAK MBW33C3
• Separated：Unseparated
• Use 1：Casting Machine
• USA 2：Mechanical Fans
• Use 3：Blowers Bearing
• Precision：P0, P6, P5, P4, P2
• Noise：Z3, Z2, Z1
• Vibration：V1, V2, V3
• Grease：Oil Grease
• Machine Type：Gearbox Bearing
• ABEC：ABEC1, 3, 5, 7
• Company Type：Manufacture or Supplier
• Machine Type 2：Pumps Wind Turbines
• Machine Type 3：Mining and Construction Equipment
• Machine Type 4：Pulp and Paper Processing Equipment
• Machine Type 5：Paper Making Machine, Reducer
• Machine Type 6：Railway Vehicle Axle, Crusher
• Transport Package：Box+Carton+Pallet
• Specification：90x140x32.00mm
• Trademark：GREAT
• Origin：China
• HS Code：84825000
• Production Capacity：100000,Month

Basic Info.

Model NO. 22307 CC/CCK CA/CAK MBW33C3 Separated Unseparated Use 1 Casting Machine USA 2 Mechanical Fans Use 3 Blowers Bearing Precision P0, P6, P5, P4, P2 Noise Z3, Z2, Z1 Vibration V1, V2, V3 Grease Oil Grease Machine Type Gearbox Bearing ABEC ABEC1, 3, 5, 7 Company Type Manufacture or Supplier Machine Type 2 Pumps Wind Turbines Machine Type 3 Mining and Construction Equipment Machine Type 4 Pulp and Paper Processing Equipment Machine Type 5 Paper Making Machine, Reducer Machine Type 6 Railway Vehicle Axle, Crusher Transport Package Box+Carton+Pallet Specification 90x140x32.00mm Trademark GREAT Origin China HS Code 84825000 Production Capacity 100000/Month

Product Description

V22307 22308 22309 22310 22311 22312  Cc/Cck Ca/Cak Mbw33c3 Spherical Roller Bearing for Woodworking Machine
Product Description

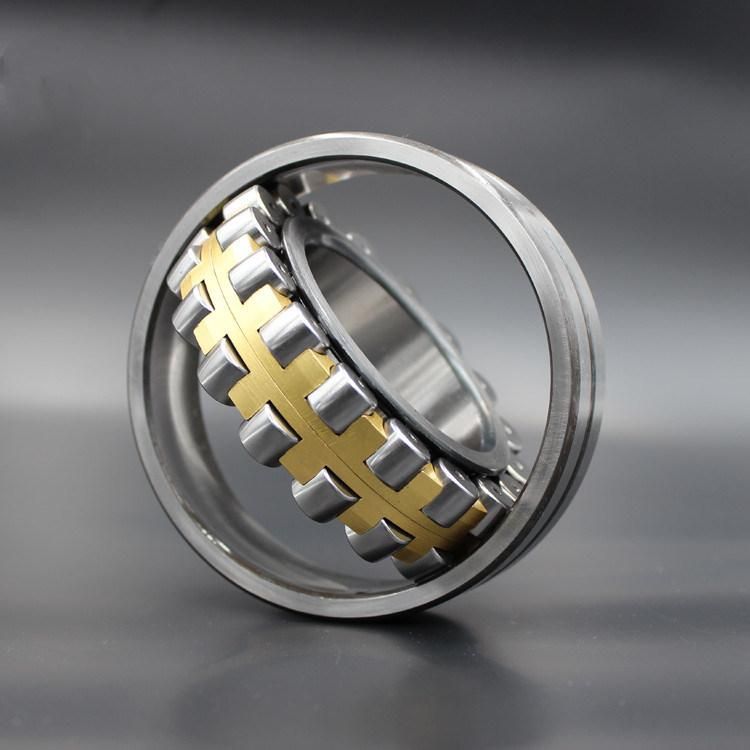

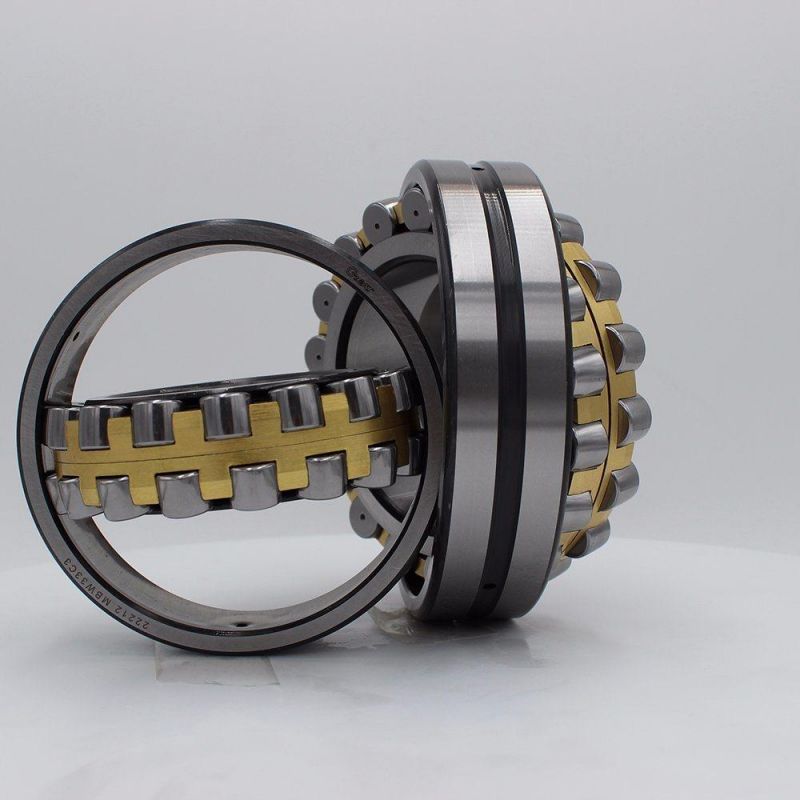

A spherical roller bearing is a rolling-element bearing that permits rotation with low friction, and permits angular misalignment.
Typically these bearings support a rotating shaft in the [bore] of the inner ring that may be misaligned in respect to the outer ring.
The misalignment is possible due to the spherical internal shape of the outer ring and spherical rollers.

Despite what their name may imply, Spherical roller bearings are not truly spherical in shape. The rolling elements of spherical
Roller bearings are mainly cylindrical in shape, But have a profile that makes them appear like cylinders that have been slightlyover-inflated.
Spherical roller bearing used in countless industrial applications, where there are heavy loads, moderate speedsand possiblymisalignment.

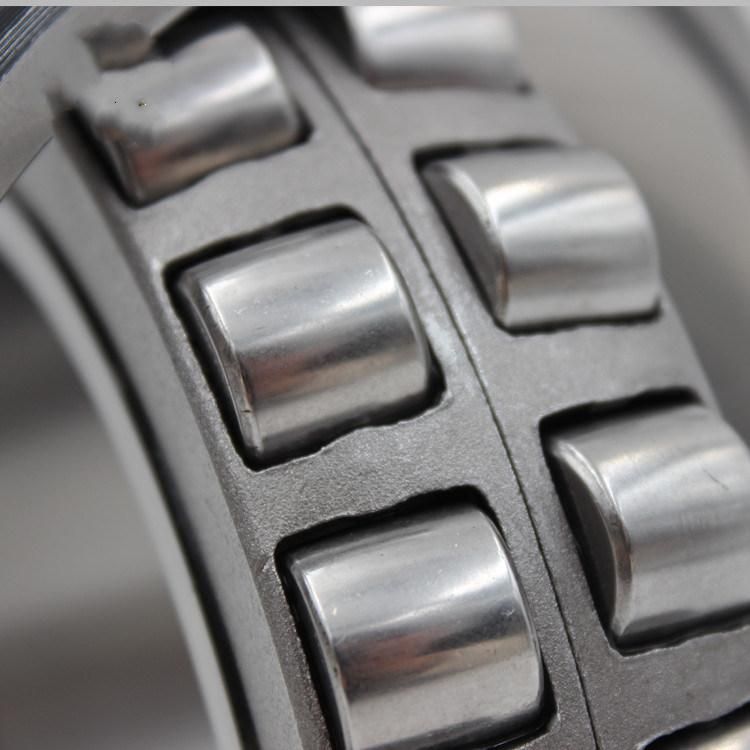

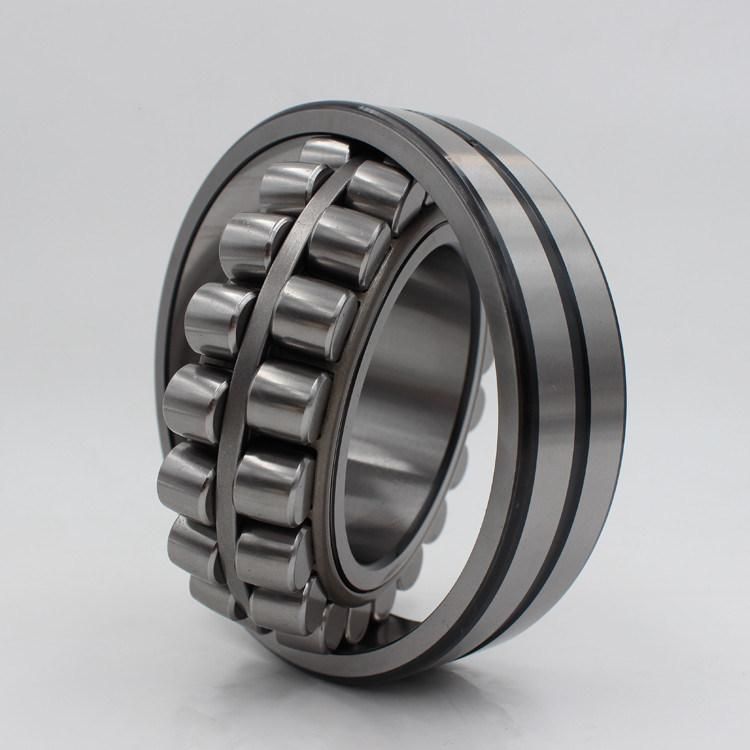

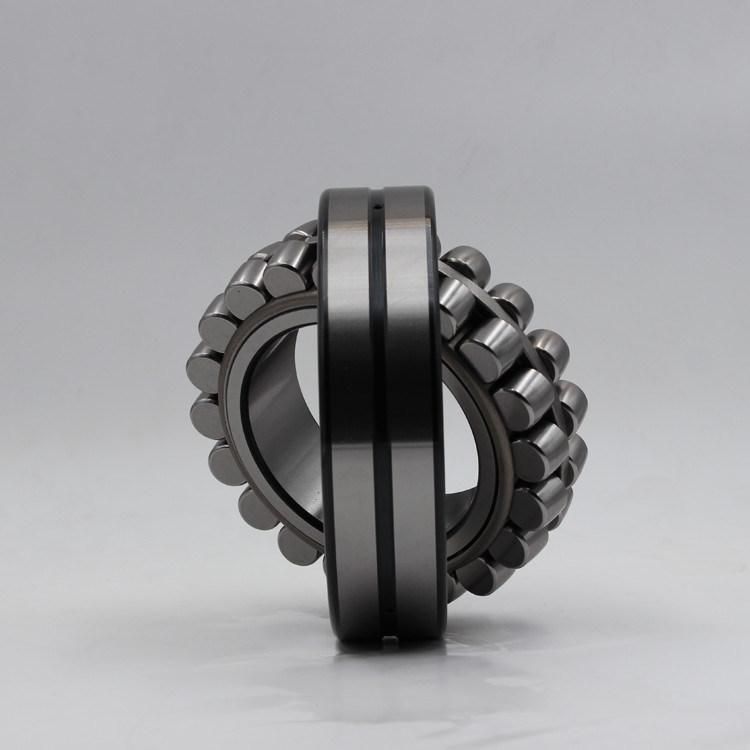

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.

Application
Papermaking machinery, reducer, railway vehicle axle, rolling mill gear box seat, rolling mill roller Road, crusher, shaker, printing machinery, woodworking machinery, various industrial reducer.
Continuous Casting Machines Mechanical Fans and Blowers
Gearbox and Pumps Wind Turbines
Material Handling Marine Propulsion and Offshore Drilling
Mining and Construction Equipment Pulp and Paper Processing Equipment





Spherical roller bearing

New Item	Old Item	Structure	Specifications(dxDxT)mm	Weight/kg
22207	3507	MB/CA/CC/EK/CK/CMW33	35x72x23	0.43
22208	3508	MB/CA/CC/E/K/CK/CMW33	40X80X23	0.55
22209	3509	MB/CA/CC/E/K/CK/CMW33	45X85X23	0.59
22210	3510	MB/CA/CC/E/K/CK/CMW33	50X90X23	0.64
22211	3511	MB/CA/CC/E/K/CK/CMW33	55X100X25	0.88
22212	3512	MB/CA/CC/E/K/CK/CMW33	60X110X28	1.19
22213	3513	MB/CA/CC/E/K/CK/CMW33	65X120X31	1.6
22214	3514	MB/CA/CC/E/K/CK/CMW33	70X125X31	1.68
22215	3515	MB/CA/CC/E/K/CK/CMW33	75X130X31	1.75
22216	3516	MB/CA/CC/E/K/CK/CMW33	80X140X33	2.12
22217	3517	MB/CA/CC/E/K/CK/CMW33	85X150X36	2.79
22218	3518	MB/CA/CC/E/K/CK/CMW33	90X160X40	3.78
22219	3519	MB/CA/CC/E/K/CK/CMW33	95X170X43	4.31
22220	3520	MB/CA/CC/E/K/CK/CMW33	100X180X46	5.06
22222	3522	MB/CA/CC/E/K/CK/CMW33	110X200X53	7.4
22224	3524	MB/CA/CC/E/K/CK/CMW33	120X215X58	9.267
22226	3526	MB/CA/CC/E/K/CK/CMW33	130X230X64	11.5
22228	3528	MB/CA/CC/E/K/CK/CMW33	140X250X68	14.5
22230	3530	MB/CA/CC/E/K/CK/CMW33	150X270X73	18.4
22232	3532	MB/CA/CC/E/K/CK/CMW33	160X260X80	22.3
22234	3534	MB/CA/CC/E/K/CK/CMW33	170X310X86	28.7
22236	3536	MB/CA/CC/E/K/CK/CMW33	180X320X86	30.5
22238	3538	MB/CA/CC/E/K/CK/CMW33	190X320X92	35.55
22240	3540	MB/CA/CC/E/K/CK/CMW33	200X360X98	44.7
22244	3544	MB/CA/CC/E/K/CK/CMW33	220X400X108	63
22248	3548	MB/CA/CC/E/K/CK/CMW33	240X440X120	83.2
22252	3552	MB/CA/CC/E/K/CK/CMW33	260X480X130	105
22256	3556	MB/CA/CC/E/K/CK/CMW33	280X500X130	126
22260	3560	MB/CA/CC/E/K/CK/CMW33	300X540X140	143
22306	3606	MB/CA/CC/E/K/CK/CMW33	30x70x22	0.37
22307	3607	MB/CA/CC/E/K/CK/CMW33	35x80x31	0.75
22308	3608	MB/CA/CC/E/K/CK/CMW33	40x90x33	1.07
22309	3609	MB/CA/CC/E/K/CK/CMW33	45x90x33	1.4
22310	3610	MB/CA/CC/E/K/CK/CMW33	50x110x40	1.83
22311	3611	MB/CA/CC/E/K/CK/CMW33	55x120x43	2.4
22312	3612	MB/CA/CC/E/K/CK/CMW33	60x130x46	2.88
22313	3613	MB/CA/CC/E/K/CK/CMW33	65x140x48	3.52
22314	3614	MB/CA/CC/E/K/CK/CMW33	70x150x51	4.21
22315	3615	MB/CA/CC/E/K/CK/CMW33	75x160x55	5.47
22316	3616	MB/CA/CC/E/K/CK/CMW33	80x170x58	6.19
22317	3617	MB/CA/CC/E/K/CK/CMW33	85x180x60	7.5
22318	3618	MB/CA/CC/E/K/CK/CMW33	90x190x64	8.96
22319	3619	MB/CA/CC/E/K/CK/CMW33	95x200x67	9.93
22320	3620	MB/CA/CC/E/K/CK/CMW33	100x215x73	13
22322	3622	MB/CA/CC/E/K/CK/CMW33	110x240x80	17.95
22324	3624	MB/CA/CC/E/K/CK/CMW33	120x246x80	22.4
22326	3626	MB/CA/CC/E/K/CK/CMW33	130x280x93	28.2
22328	3628	MB/CA/CC/E/K/CK/CMW33	140x300x102	35.12
22330	3630	MB/CA/CC/E/K/CK/CMW33	150x320x108	43.7
22332	3632	MB/CA/CC/E/K/CK/CMW33	160x340x114	52.2
22334	3634	MB/CA/CC/E/K/CK/CMW33	170x360x120	60.7

Our company:

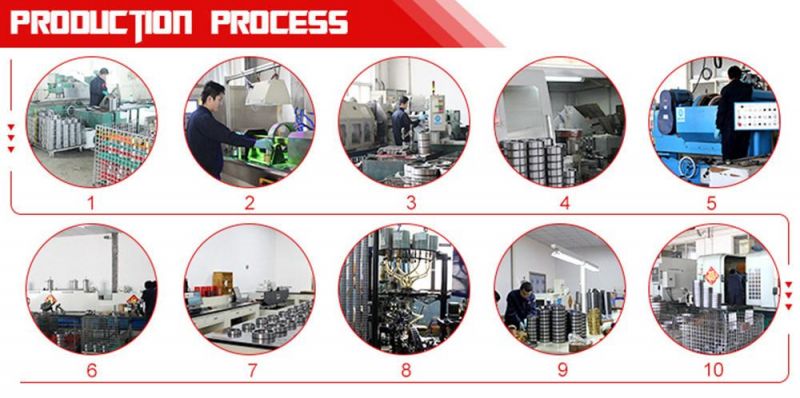

  we are professional bearing manufacture,and have more than thirty years experence in bearing production and exporting .Adopt advanced technology equipment ,can produce all sizes ball bearing and roller bearings.such as deep groove ball bearing,tapered roller bearing,spherical roller bearing,cylindrical roller bearing angular-contact ball bearing,self-anling ball bearing,pillow block bearing,thrust ball bearing,wheel hub bearing,etc .











Packing and delivery :
1.industrial packing+industrial cartons+pallets

2.single brand box+brand cartons+pallets

3.follow customer's requests

A.Plastic Tubes or Single Boxes ( Usually 10pcs in one plastic tube for steel bearings);

B.Cartons ( No more than 30kg for one carton );

C. Pallet ( Usually more than 400kg totally will use pallet )

D. Delivery time :7-35 days ( by sea or by air )
      Generally,We will choose the most suitable packing method for products. If you have any special requirements for packing, please contact us in advance.


SAMPLES:
1.Samples quantity: 10-100 sets available
2. free samples. it need client pay shipping cost
CUSTOMIZED
Can customized your brand bearings according to your request

SHIPPING:
1.Most orders will be shipped within 5-10 days of payment being received.
2.Samples, by courier as FedEx,UPS,DHL,etc
3.More than 3000 set bearings, it is recommended shipped by sea (sea transportation)

MOQ for custom style:
1.MOQ:300set bearing,Can mix different bearings.
2.MOQ:500set customized your brand bearings

OEM POLICY:
1.We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield
2.We can custom your packaging according to your design
3.All copyright own by clients and we promised don't disclose any information.

PAYMENT:
1 We accept 30% TT advance ,70% balance against the bill of lading copy. Also 100% IRR L/C ok
2 We accept:Paypal,Western union,Credit Cards,T/T etc.

FAQ:
Q.are you trading company or manufacture?
A:we are manufacture fom China,our brand is ANR .
Q:how long is your delivery time ?
A:We have enough stock for roller bearings and ball bearings. Delivery time within 7 days.  15-25 days for 1 container to OEM brand following your request
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge ,please you pay the cost of freight.
Q: What is your payment term?
A: We accept 30% TT advance ,70% balance against the bill lading copy. Also 100% IRR L/C ok.

If you have any question or need about bearing ,please feel free to contact with us !
