• Model NO.：6202,6203,6204,6205,6206,6207,6208,6209,6210,6211,
• Separated：Unseparated
• Precision：P0, P6, P5, P4, P2
• Transport Package：Single Box Packing+Cartons+Pallets
• Specification：17-140mm
• Trademark：ZGXSY
• Origin：China
• HS Code：84823000
• Production Capacity：5690000pieces,Year

Basic Info.

Model NO. 6202,6203,6204,6205,6206,6207,6208,6209,6210,6211, Separated Unseparated Precision P0, P6, P5, P4, P2 Transport Package Single Box Packing+Cartons+Pallets Specification 17-140mm Trademark ZGXSY Origin China HS Code 84823000 Production Capacity 5690000pieces/Year

Product Description

Ceramic Hybrid Ball Bearings utilize Silicon Nitride balls with steel inner and outer rings. These hybrids out perform traditional steel bearings in many ways. They eliminate electrical arcing or fluting. Bearing service life is two to five times longer as the ceramic balls exhibit reduced surface and adhesive wear. Running speeds can be up to 50% higher while providing higher upper end temperature limits. The higher modulus of elasticity also improves spindle rigidity which improves vibration characteristics and performance. Recommended applications include: Machine Tools, Electric Motors and Generators, Traction motors, Woodworking machinery, Food Processing, Centrifuges, X Ray tubes and Robotics.







	Item #	Bore Diameter	Outside Diameter
	6203-ZZC3CERHY	17 mm 0.669 in	40 mm 1.575 in	0.472 in 12 mm
	6204-ZZC3CERHY	20 mm 0.787 in	47 mm 1.850 in	14 mm 0.551 in
	6205-ZZC3CERHY	25 mm 0.984 in	52 mm 2.047 in	15 mm 0.591 in
	6206-ZZC3CERHY	30 mm 1.181 in	62 mm 2.441 in	16 mm 0.630 in
	6207-ZZC3CERHY	35 mm 1.378 in	72 mm 2.835 in	17 mm 0.669 in
	6208-ZZC3CERHY	40 mm 1.575 in	80 mm 3.150 in	18 mm 0.709 in
	6209-ZZC3CERHY	45 mm 1.772 in	85 mm 3.346 in	19 mm 0.748 in
	6210-ZZC3CERHY	50 mm 1.969 in	90 mm 3.543 in	20 mm 0.787 in
	6211-ZZC3CERHY	55 mm 2.165 in	100 mm 3.937 in	21 mm 0.827 in
	6212-ZZC3CERHY	60 mm 2.362 in	110 mm 4.331 in	22 mm 0.866 in
	6213-ZZC3CERHY	65 mm 2.559 in	120 mm 4.724 in	23 mm 0.906 in
	6214-ZZC3CERHY	70 mm 2.756 in	125 mm 4.921 in	24 mm 0.945 in
	6215-ZZC3CERHY	75 mm 2.953 in	130 mm 5.118 in	25 mm 0.984 in
	6216-ZZC3CERHY	80 mm 3.150 in	140 mm 5.512 in	26 mm 1.024 in
	6217-ZZC3CERHY	85 mm 3.346 in	150 mm 5.906 in	28 mm 1.102 in
	6218-ZZC3CERHY	90 mm 3.543 in	160 mm 6.299 in	30 mm 1.181 in
	6219-ZZC3CERHY	95 mm 3.740 in	170 mm 6.693 in	32 mm 1.260 in
	6220-ZZC3CERHY	100 mm 3.937 in	180 mm 7.087 in	34 mm 1.339 in
	6221-ZZC3CERHY	105 mm 4.134 in	190 mm 7.480 in	36 mm 1.417 in
	6222-ZZC3CERHY	110 mm 4.331 in	200 mm 7.874 in	38 mm 1.496 in
	6224-ZZC3CERHY	120 mm 4.724 in	215 mm 8.465 in	40 mm 1.575 in
	6226-ZZC3CERHY	130 mm 5.118 in	230 mm 9.055 in	40 mm 1.575 in
	6228-ZZC3CERHY	140 mm 5.512 in	250 mm 9.843 in	42 mm 1.654 in

1.       XSY bearing Co., Ltd. has its own factory. We make sure to offer you the most competitive price with the best products.
2.       XSY bearing Co., Ltd. has a professional R&D team and an after-sale team, so what you buy is top-end, and what you use is quality & service guaranteed.
3.       XSY bearing Co., Ltd. is a bearing manufacturer since 1990. 26 years of rich experience makes us more professional.

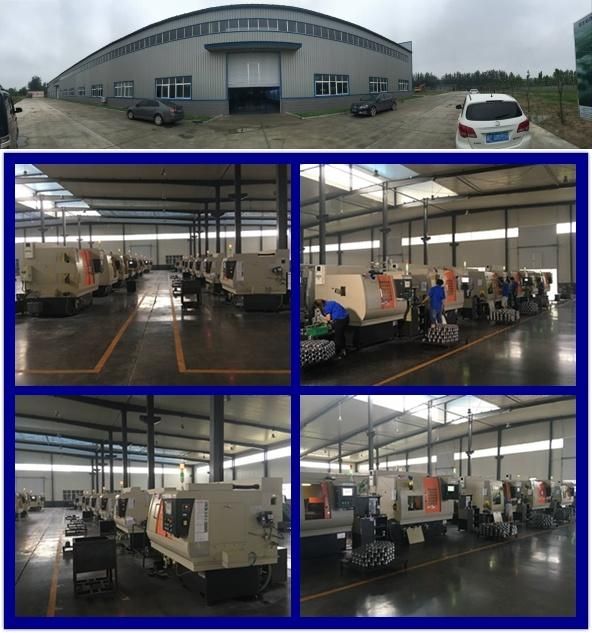

4.       Automated production lines insure the unified quality and low cost and delivery time.
5.       The bearing is long durability, high speed and low noise.
6.       OEM & ODM are available.
7.       All kinds of bearing samples are available.
