• Model NO.：E10 E12 E15 E17 E20
• Origin：China
• HS Code：8482300010
• Production Capacity：50000 Pieces,Month

Basic Info.

Model NO. E10 E12 E15 E17 E20 Origin China HS Code 8482300010 Production Capacity 50000 Pieces/Month

Product Description

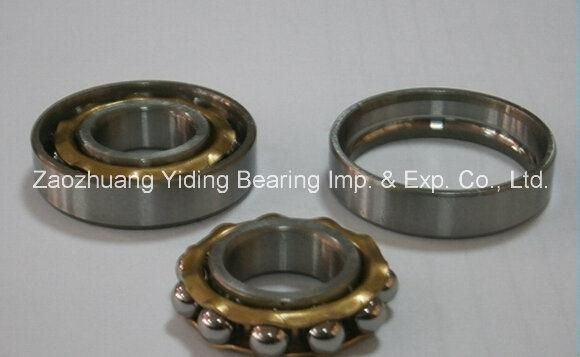

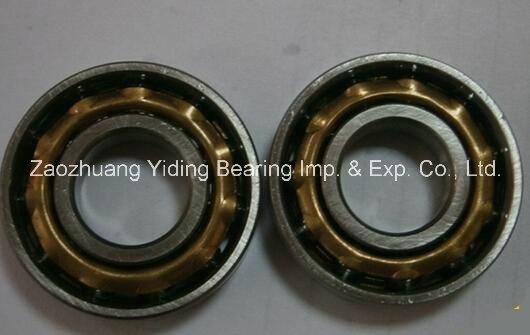

High Quality Copper Paul Magneto Bearings E10 E12 E15 E17 E20

Advantage of E series Magneto Bearings E20 E15 EN15 BO17 for Engraving machine

1, excellent corrosion resistance
2, washable
3, can run on liquid: Due to the materials used, we can run the bearings and bearing in the liquid.
4, if the speed and the load is low, there is no need for lubrication.
5 Health: stainless steel natural clean, non-corrosive.
6, high heat resistance: can run at a higher temperature range of 180 ° F to 1000 ° F.


Model	Bore (mm)	OD(mm)	Width(mm)
E 3	3	16	5
E 4	4	16	5
E 5	5	16	5
E 6	6	21	7
E 7	7	22	7
E 8	8	24	7
E 9	9	28	8
E 10	10	28	8
E 11	11	32	7
E 12	12	32	7
E 13	13	30	7
E 14	14	35	8
E 15	15	35	8
BO 15	15	40	10
E 16	16	38	10
E 17	17	44	11
EA 17	17	44	10

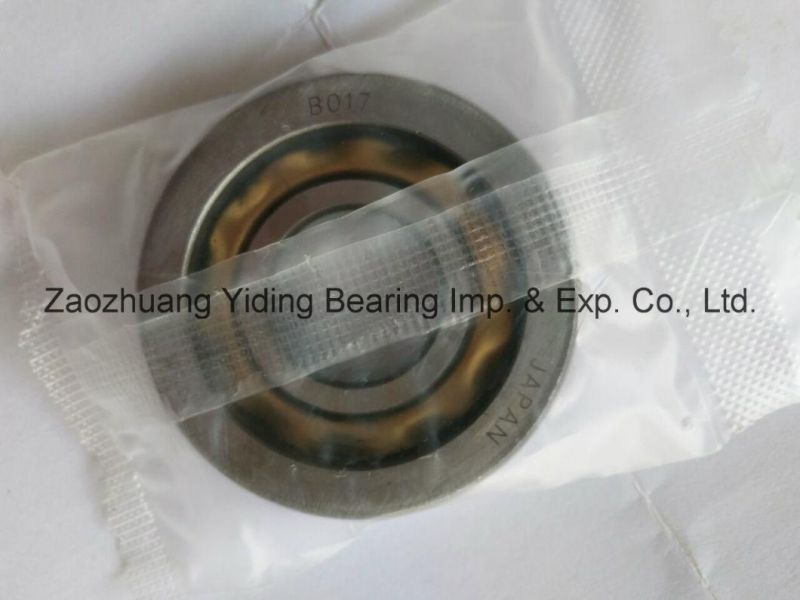

B0 17	17	44	11

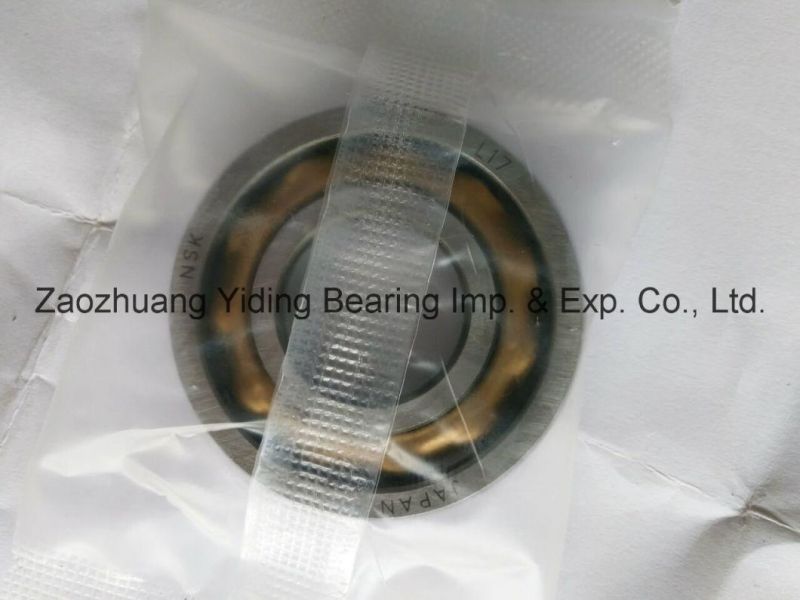

L 17	17	40	10

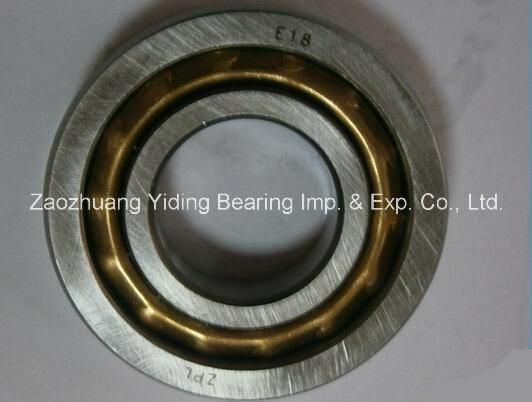

E 18	18	40	9
E 19	19	40	9
E 20	20	47	12
L 20	20	47	14
M 20	20	52	15
L 25	25	52	15
M 25	25	62	17
L 30	30	62	16
