Slewing Bearing Ball Bearing Reduction Construction Machinery
Coresun Drive Equipment Changzhou Co., Ltd.- Standard or Nonstandard：Standard
- Roller Type：Straight Raceway
- Material：42CrMo
- Type：External Gear
- Holding Torque：48kn.M
- Tilting Moment Torque：67.8kn.M
Base Info
- Model NO.：SF14-2
- Output Torque：4.96kn.M
- Gear Ratio：85:1
- Static Axial Load：555kn.M
- Static Radial Laod：222kn.M
- Inner Dia.：295mm
- Outer Dia.：420mm
- Transport Package：Standard Exporting Package
- Specification：SF14-2
- Trademark：Coresun Drive
- Origin：Changzhou
- HS Code：8482109000
- Production Capacity：6000PCS,Month
Description
Model
SF14
Place of Origin
Changzhou,China
Brand
Coresun Drive
Type
Material
42CrMo
Output Torque
15.6KN.m
Tilting Moment Torque
67.8KN.m
Holding Torque
48K N.m
Static Axial Rating
555KN
Static Radial Rating
222KN
Dynamic Axial Rating
114KN
Dynamic Radial Rating
100KN
Gear Ratio
85:1
Ourter Dia.
420mm

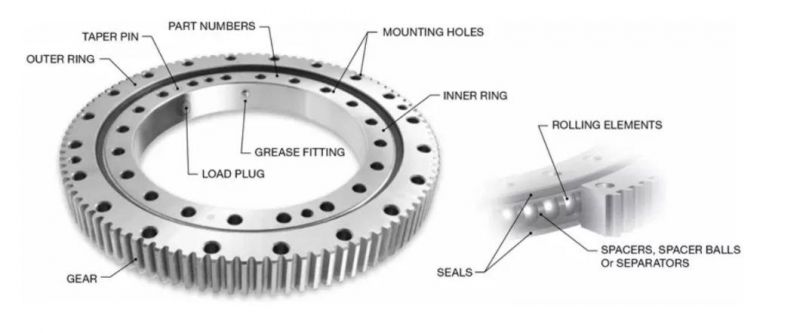

Coresun single-row four point contact ball slewing rings can support high dynamic loads, transmitting axial and radial forces simultaneously as well as the resulting tilting moments. They are composed of two seat rings, compact design and lightweight, steel ball contact with the raceway in four points; it can bear the axial force, radial force and the tilting moment at the same time.We have strict production schedule and keep stock of material for standard models to ensure the delivery time.25-30 days for standard model;45-55 days for customized model.
Description of application effect
1.Raw material from reliable suppliers
2.Production process is in strict accordance with ISO9001 Quality Management System
3.Strict in-process quality control and 100% finished product inspection before delivery
4.Third party product inspections are acceptable upon customer request
5.Adoption of standardized product design process and APQP, PPAP, FEMA for application analysis

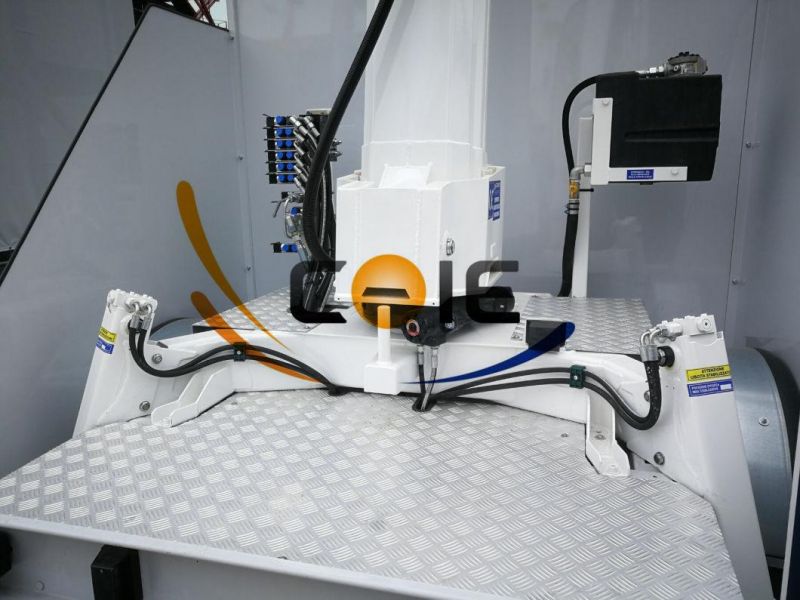

Production Photo and Application
Coresun Drive makes the tilting moment torque testing to ensure the quality and safety factor on slewing bearing bearing.
Quality is the foundation of enterprise development.
