• Model NO.：UL28-0007871
• Separated：Unseparated
• Using：Textile Machine
• Transport Package：According to Per Client′s Requirements
• Specification：bearing steel GCR15
• Trademark：Netural
• Origin：China
• HS Code：8482400000
• Production Capacity：50000 Pieces,Month

Basic Info.

Model NO. UL28-0007871 Separated Unseparated Using Textile Machine Transport Package According to Per Client′s Requirements Specification bearing steel GCR15 Trademark Netural Origin China HS Code 8482400000 Production Capacity 50000 Pieces/Month

Product Description

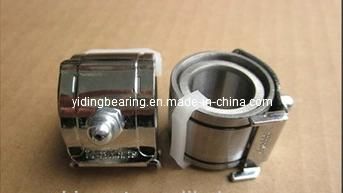

textile machine bearing UL28-0007871

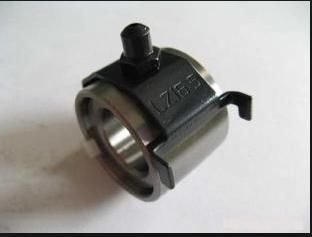

Bottom Roller Bearing: - Used for supporting bottom roller in ring spinning frames & speed frames of textile industries. Every bearing is ground to strict quality norms which ensures accurate running of the bearing. With 'm'section nylon cage.
The rollers of these bearings are of spherical shape, and the spherical raceway surface of the housing washer is selfaligned. These bearings are featured by the extremely big anxial load carrying capacity and meanwhile they can also take certain radial load. Oil lubrication is commonly used while working. Applications of these bearings can be found in hydroelectric generators, vertical motors, propeller axle of vessels, tower cranes and squeezing presses
Bottom roller bearings are needle roller bearings that support the bottom rollers(fluted rollers) on fine spinning machines, roving frames or drawing frames.
Needle Roller Bearing for Textile Machine Part spindle Bolster.
Series: LZ16.5A, LZ16.5B, LZ2822, LZ3200, LZ3224, LZ3624, LZ3626, LZ22, LZZ5, LZ2610.
LZ2800    LZ2822    LZ3200    LZ3224    LZ3226    LZ3600    LZ3624    LZ3626     LZ4000     LZ4024,
LZ16.5    LZ19      LZ19      LZ22      LZ25

Model numbers of bottom roller bearings

Model No	D(mm)	d(mm)	B(mm)	C(mm)	Weight(KG)
LZ2800	28	16.5	19	22	0.06
LZ2822	28	16.5	19	22	0.06
LZ2822E	28	16.5	19	23	0.061
LZ3200	32	19	20	23	0.082
LZ3224	32	19	20	23	0.082
LZ3224E	32	19	20	24	0.082
LZ3226	32	19	20	23	0.082
LZ3600	36	21	22	25	0.119
LZ3624	36	21	22	25	0.119
LZ3626	36	21	22	25	0.119
LZ4000	40	23	23.5	27	0.160
LZ4024	40	23	23.5	27	0.160
LZ16.5	30	16.5	19	23	0.170
LZ19	36	19	22	26	0.116
LZ22	42	22	23	27	0.160
LZ25	47	25	25	29	0.218

Bearing Direction: Radial

LZ2822	TEXZ205
LZ16.5	TEXZ232
LZ3224	19169
LZ3624	14782
LZ4024	2B-18-3S
LZ22	2B-19-3S
LZ25	417
LZ19	2610
LZ3200G	21106
LZ2340	LZ1932
LZ1936	3224
LZ1940	3624
421	22
422	25
ZZ2-70	7871
28421	2822
