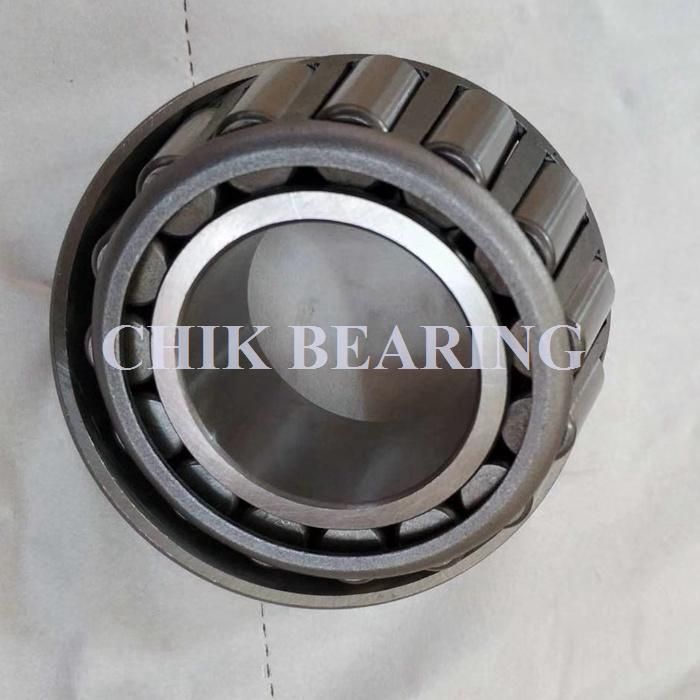

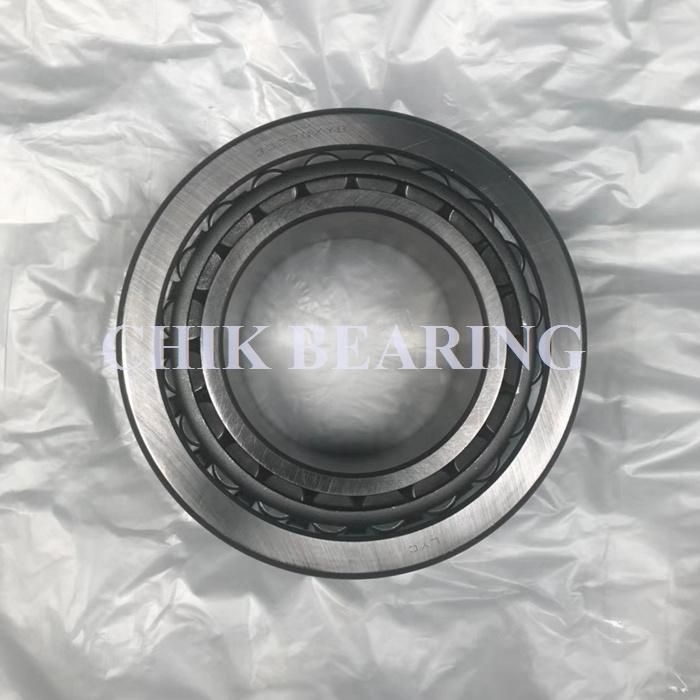

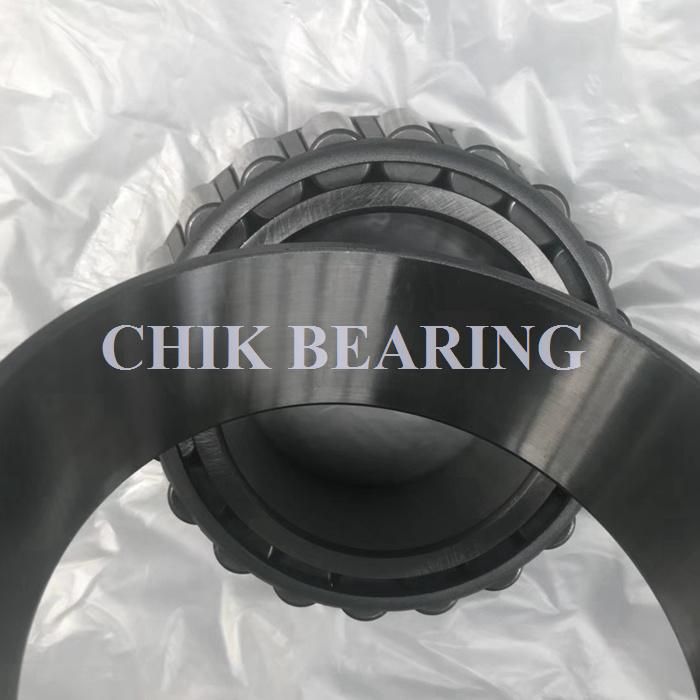

Good Performance Spare Parts of Taper Roller Bearing 32309 Bearing

Shandong Chik Bearing Co., Ltd.
  • Contact Angle：1
  • Aligning：Non-Aligning Bearing
  • Separated：Unseparated
  • Rows Number：Single
  • Load Direction：Radial Bearing
  • Material：Bearing Steel

Base Info

  • Model NO.：32309
  • Structure：Taper Roller Bearing
  • Precision Grade：P0, P2, P5, P6, P4
  • Hardness：58-62HRC
  • Vibration Level：Z1V1, Z2V2, Z3V3
  • Packing：Pallet, Wooden Case
  • Transport Package：Industrial Package; Single Box Package
  • Specification：45*100*36mm
  • Trademark：SKF NTN NACHI NSK KOYO CHIK OEM
  • Origin：China
  • HS Code：8482200000
  • Production Capacity：100, 000 ,Month, 1000000PCS,Year

Description

1BrandCHIK or OEM2Bearing nameGood performance spare parts of Taper roller bearing 32309 bearing 3SizeInner size:10-400mm; Outer size 30-500mm4Weight0.1-40kgs1MaterialGCr15 steel,carbon steel,stainless steel etc.2Hardness58-62HRC /60-64HRC3TypeSingle row,double rows,four rows tapered roller bearing 4Precision gradeP0,P6,P5,P4 /ABEC-1,ABEC-3,ABEC-5,ABEC-75Vibration levelV1 V2 V36ClearanceC0,C2,C3,C4,C5 7Cage typeSteel, Brass, Nylon etc.8Packing:Pallet,wooden case,commercial packaging or as customers' requirement.9Roller Bearings FeatureLong-life with high quality;
Low-nosie with strict controlling the quality of deep groove ball bearing;
High-load by the advanced high-technical design;
Competitive price, which has the most valuable;
OEM service offered, to meet the customers'requirements.10ApplicationWidely used in general machinery ,Cars, Trucks ,Railways ,Ships ,Mines,Metals,Power ,Agricultural machinery and so on 11Payment termsFOB,CFR,CIF,EXW12Delivery timeShip out within 3 days after receive the payment (Small QTY); Ship out within 20days after receive the payment (20"GP)13CertificateCE ISO9001
Good Performance Spare Parts of Taper Roller Bearing 32309 Bearing
Good Performance Spare Parts of Taper Roller Bearing 32309 Bearing
Good Performance Spare Parts of Taper Roller Bearing 32309 Bearing

Taper roller bearing are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made. Taper roller bearing are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings.

Taper roller bearing are designed to carry both thrust and radial loads and consist of four components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer.
Taper roller bearing mainly carry radial, axial combined load with radial load in the main. The capacity of axial load carrying depends on the contact angle of outer ring's raceway. The bigger the contact angle is, the greater the capacity will be.

Taper roller bearing the angle between the outer raceway generatrix and line, the bearing can bearing heavy load and other Tappered Roller Bearings, it mainly bears joint load based on one way axial load,but not only radial load.

Taper roller bearings have tapered inner and outer ring raceways, The tapered roller is in the middle of the two raceways. This kind of bearings is usually separatable, namely the retainer, inner ring and outer ring can be installed apart. They can withstand immense radial direction load and certain axial load. They are designed in different sizes and styles to meet all kinds of functions.

OTHER MODLES

1.Single-row tapered roller bearings
2.Double-row tapered roller bearings
3.Four-row tapered roller bearings
4.Double, four-row tapered roller bearings with multi-seal

PACKAGING & SHIPPING
1) Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2) Small sizes:Plastic Tube + Carton
3) Big sizes:Wooden Case
1)Less than 45 KGS, we will send by express. (Door to Door, Convenient)
2)Between 45 - 200 KGS, we will send by air transport. (Fastest and safest, but ?expensive )
3)More than 200 KGS, we will send by sea. (Cheapest and usual)
Our service
1. Manufacturer,the most competive price and good quality;
2. Perfect group of technical engineers give you the best support;
3.Well-trained group of international sales provide the best service;
4.OEM brand aviliable;
5.Rich stock and quick delivery.
FAQ

Q: Could I customize this kind of product from your factory?
A: Of course. We can offer OEM service to our clients. Please provide us some technical data such
as dimension and marking.

Q: What is the best way to maintain my bearings?
A: 1) Soak your bearings in mineral spirits or paint thinner to remove any grease or particulates.
2) Blow bearing out with compressed air.
3) Place a light drop of oil on the bearing.
4) Give the bearing a spin.

Q: Could you give me a discount?
A: Since we are a factory, our policy is that the bigger order quantity, the lower quotation will be.So we will give you a discount according to the size of order.

Q: Could you send sample for inspect the quality?
A: Of course we can if you can carry the freight charges.
KINDLY REMIND:
In order to guarantee the bearing working life,please carefully install and maintenance.
1.open the package only before install to protect the bearing from rust.
2.must guarantee the working area of bearing is very clean.
3.strictly follow the carry capacity,temperature,working time of bearing.
