• Model NO.：24156 CC W33 24156CA W33 24156E
• Separated：Unseparated
• Transport Package：Industrial Package; Single Box Package
• Specification：180*300*118mm
• Trademark：CHIK
• Origin：China
• HS Code：8482200000
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. 24156 CC W33 24156CA W33 24156E Separated Unseparated Transport Package Industrial Package; Single Box Package Specification 180*300*118mm Trademark CHIK Origin China HS Code 8482200000 Production Capacity 10000PCS/Month

Product Description

PRODUCT INFO.

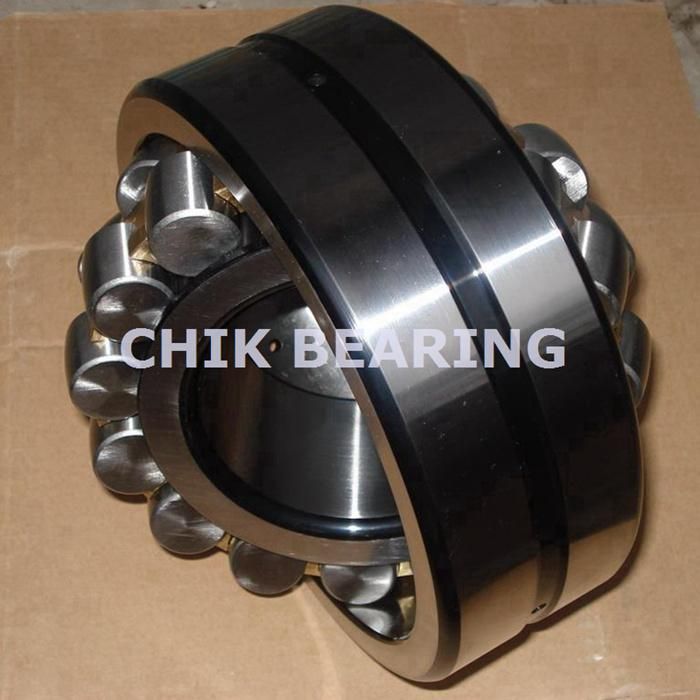

Spherical roller bearings 24156 CC W33 24156CA W33 24156E

Self-aligning roller bearing is designed to adapt to the circumstance of heavy load. It has two rows of symmetric spherical rollers.The rollers may freely adjust position in the outer spherical raceway,which may compensate the shaft deformation and non-alignment error
of bearing seat.
The quantity,length and diameter of roller in self-aligning roller bearing are the max.value that the structure allows.The close contact between the roller and raceway ensures the uniform stress distribution and enables the high bearing capacity of bearing.printing presses, paper mills or coaters in high precision execution very arduous operating conditions, e. g.continuous casters
high temperature applications mounting with loose fit on roll necks railway vehicles Spherical roller bearings with two rollers, mainly bear radial load, but also can withstand axial load in either direction. A high radial load capacity, especially suitable for heavy loads
or vibration, but can not bear the pure axial load. This kind of bearing outer ring raceway is spherical shape, so the good performance of its self-aligning, can compensate concentricity error.
There are two symmetrical spherical roller, there is a common spherical outer ring raceway,the bearing inner ring with two axis tilt Angle of raceway, aligning with good performance, when the axis force bent or install a different heart is still bearing the normal use, transfer concentric with the bearing size range varies,generally aligning allowed 1 to 2.5 degree angle load bearing capacity of the larger
type, in addition to radial loads but also under way outside the role of bearing axial load, with good impact resistance, in general, self-aligning roller bearings allowed working speed than the low.

C(J),EC(J).CA,ECA,CAF,CAFA, and so on.

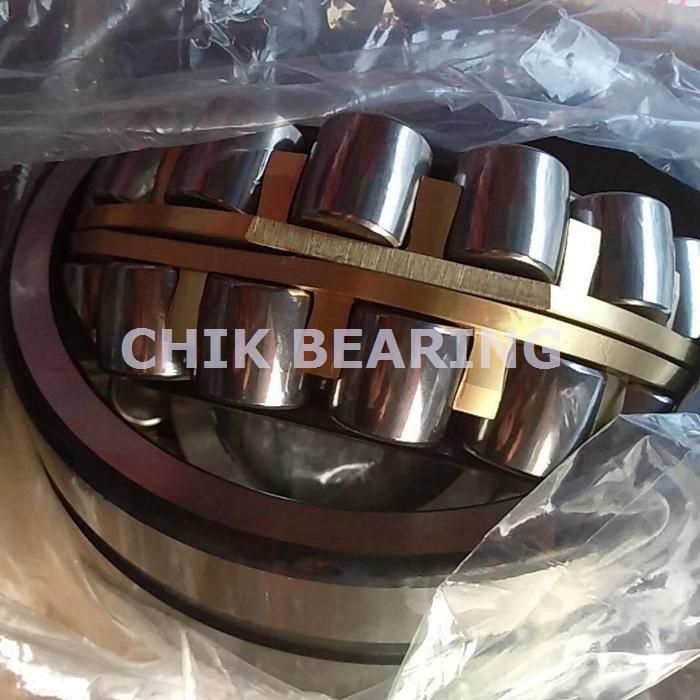

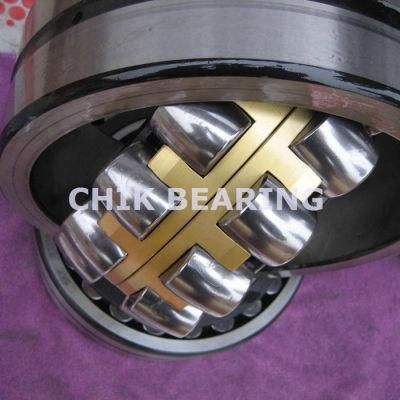

1.CA: Integral brass cage, double row symmetrical rollers,inner ring ride
2.MA: Integral brass cage, double row symmetrical rollers ,outer ring ride
3.MB: Two piece brass cage,double row asymmetrical rollers, inner ring ride

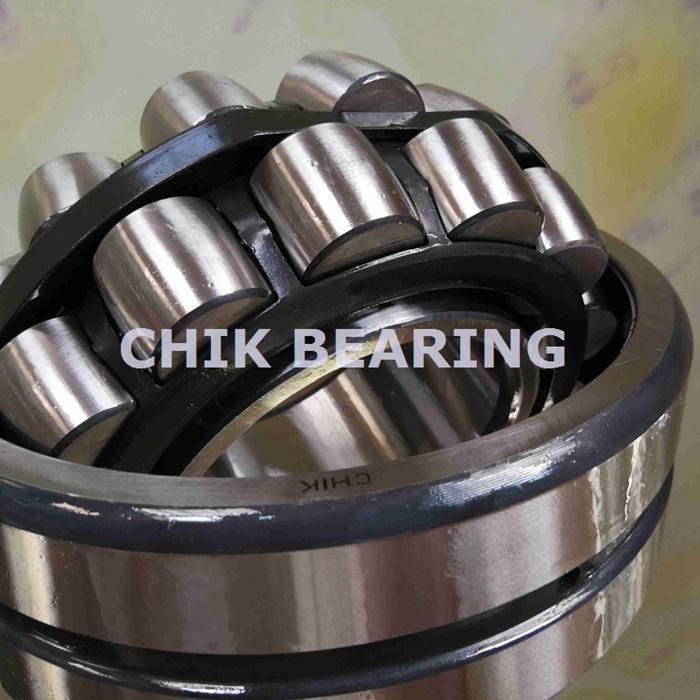

4.CC: Two piece steel cage, double row symmetrical rollers,inner ring ride
5.CTN1: Double row symmetrical rollers ,nylon cage
6.K: Tapered bore bearing, the taper is 1:12
7.K30: Tapered bore bearing,the taper is 1:3

Feature:
Spherical roller bearings have two rows of rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis .The centre point of the sphere in the outer ring raceway is at the bearing axis. Therefore, the bearings are self-aligning and insensitive to misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. Spherical roller bearings are designed to accommodate heavy radial loads, as well as heavy axial loads in both directions.

SHIPPING
1.By courier, like DHL,UPS,FEDEX ETC. It's door to door. Usually,5-7 days arriving.
2.By air to the air port, 3-4 days arriving .
3.By sea to sea port ,Usually,15-30 days arriving .
If your order is very urgent , we suggst you choose by courier or by air ;
Not very urgent order , pls try the ocean shipping , which will be very cheap .
OTHER MODELS WE CAN OFFER

24120CA W33	24120MB W33	24120CC W33
24122CA W33	24122MB W33	24122CC W33
24124CA W33	24124MB W33	24124CC W33
24126CA W33	24126MB W33	24126CC W33
24128CA W33	24128MB W33	24128CC W33
24130CA W33	24130MB W33	24130CC W33
24132CA W33	24132MB W33	24132CC W33
24134CA W33	24134MB W33	24134CC W33
24136CA W33	24136MB W33	24136CC W33
24138CA W33	24138MB W33	24138CC W33
24140CA W33	24140MB W33	24140CC W33
24144CA W33	24144MB W33	24144CC W33
24148CA W33	24148MB W33	24148CC W33
24152CA W33	24152MB W33	24152CC W33
24156CA W33	24156MB W33	24156CC W33
24160CA W33	24160MB W33	24160CC W33
24164CA W33	24164MB W33	24164CC W33
24168CA W33	24168MB W33	24168CC W33
24172CA W33	24172MB W33	24172CC W33
24176CA W33	24176MB W33	24176CC W33
24180CA W33	24180MB W33	24180CC W33
24184CA W33	24184MB W33	24184CC W33
24188CA W33	24188MB W33	24188CC W33
24192CA W33	24192MB W33	24192CC W33
24196CA W33	24196MB W33	24196CC W33
