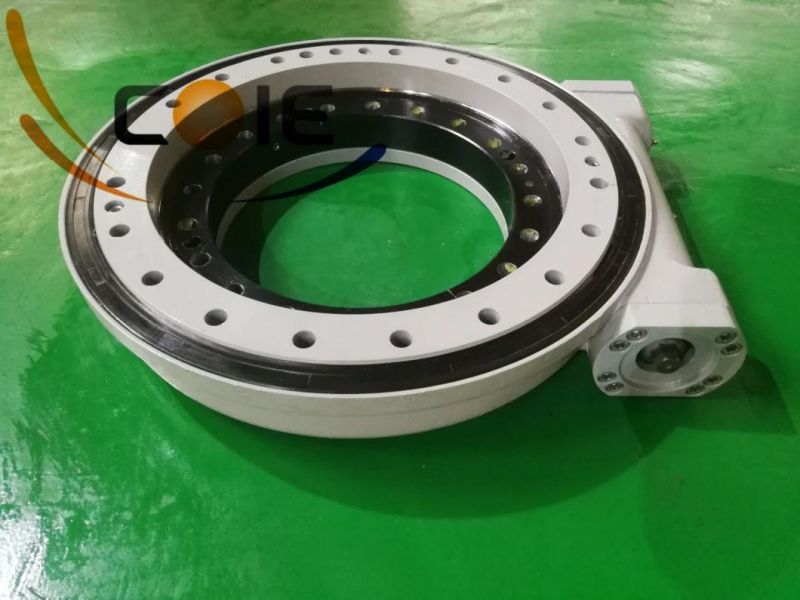

Slewing Gear Reduction Mounted Truck Crane Drilling Rig

Coresun Drive Equipment Changzhou Co., Ltd.
  • Material：42CrMo
  • Holding Torque：105.8kn.M
  • Tilting Moment Torque：203kn.M
  • Output Torque：15kn.M
  • Output Speed：1.2rpm
  • Gear Ratio：125:1

Base Info

  • Model NO.：SC21-125-RH-250A
  • IP Class：IP65
  • Static Axial Load：1598kn
  • Static Radial Laod：640kn
  • Outer Dia.M：584mm
  • Inner Dia.M：465mm
  • Transport Package：Standard Wooden Case
  • Specification：SC21-125-25RH-250A
  • Trademark：Coresun Drive
  • Origin：Changzhou
  • HS Code：8483409000
  • Production Capacity：3000PCS,Month

Description

Model Slewing BearingSC21BrandCorresun DriveHolding Torque105.8kN.mTilting Moment Torque203kN.mSelf-lockingYesGear Ratio125:1Outer Dia.584mmInner Dia.465mmEfficiency40%Output Torque15kN.mRated Output Speed1.2rpmColarGrey
Slewing Gear Reduction Mounted Truck Crane Drilling Rig


Coresun Drive Slewing Drive Introduction

1. Coresun Slewing Drive is most composed of worm shaft, slewing bearing , casting housing

2. Coresun Slewing Drive have high mechanical efficiency

3. Coresun Slewing Drive is easy to installation and maintenance

4. Coresun Slewing Drive use framework oil sealing, so it has longer using life.

5.Coresun Slewing Drive has Self-locking.

6.Coresun Slewing Drive use 8 bolts on worm shaft, so it is much stronger.

Coresun is your reliable supplier, even more your sincere partner!

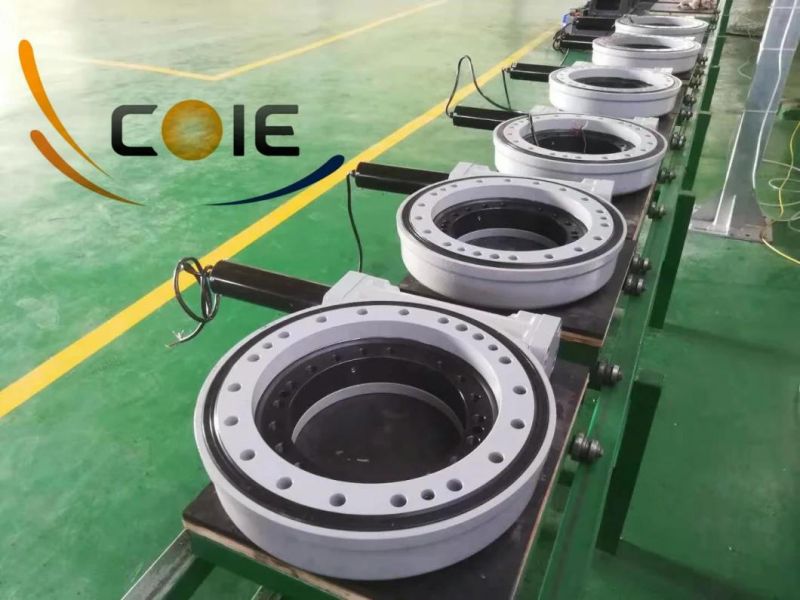

Coresun Drive Slewing Bearing Production Photo

Slewing Gear Reduction Mounted Truck Crane Drilling Rig

Slewing Gear Reduction Mounted Truck Crane Drilling Rig

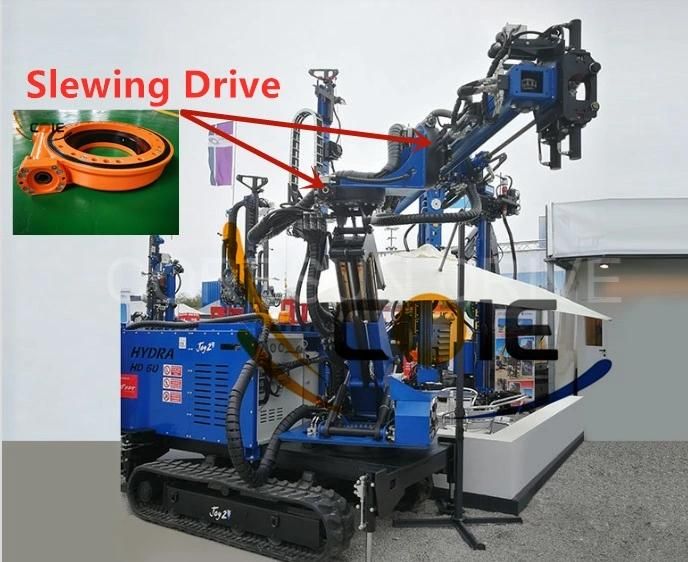

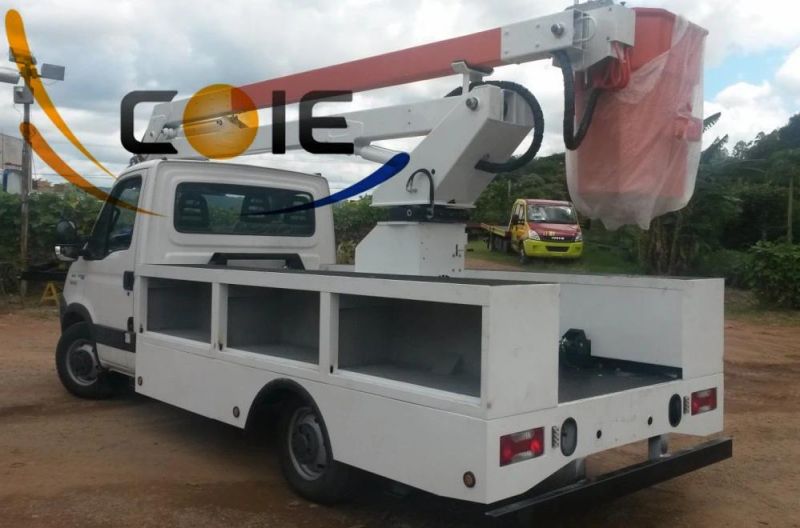

SC21 Slewing Drive Slewing Bearing Worm Gear Application

Slewing Gear Reduction Mounted Truck Crane Drilling Rig
Slewing Gear Reduction Mounted Truck Crane Drilling Rig
