• Model NO.：51256
• Transport Package：Carton Box
• Specification：Customized
• Trademark：HBB
• Origin：Luoyang, China
• Production Capacity：3000000 Yearly

Basic Info.

Model NO. 51256 Transport Package Carton Box Specification Customized Trademark HBB Origin Luoyang, China Production Capacity 3000000 Yearly

Product Description

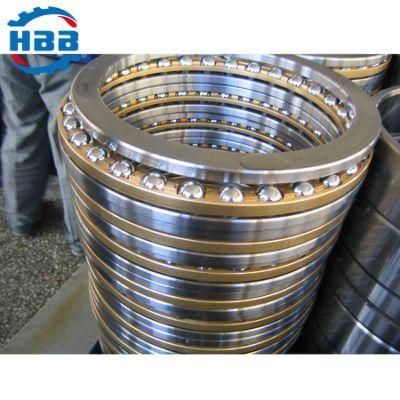

HBB High Precision Thrust Ball Bearing
The thrust ball bearings are classified into two kinds: unidirectional thrust bearing and bidirectional thrust bearing. The former can bear the axial force in one direction and the latter can bear he axial forces in two directions. Both unidirectional and bidirectional thrust ball bearings cannot bear any radial force. Thrust ball bearing can limit axial displacement of shafts or housings in one or two direction, but not radial displacement. Therefore, the bearings are usually used with deep groove ball bearings.

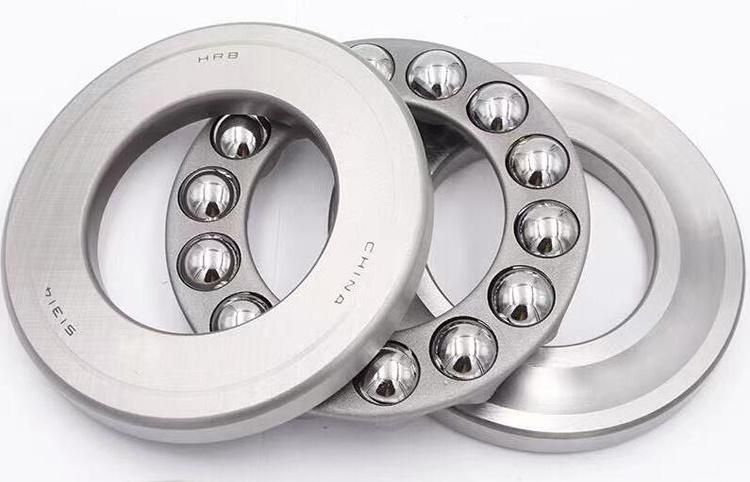

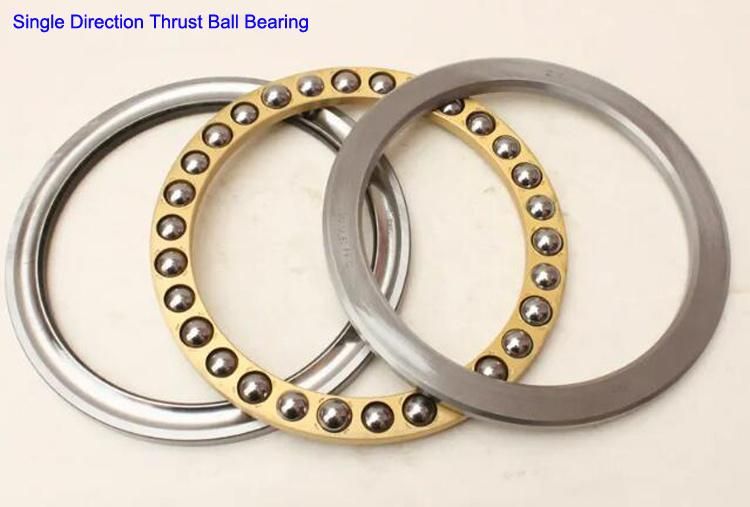

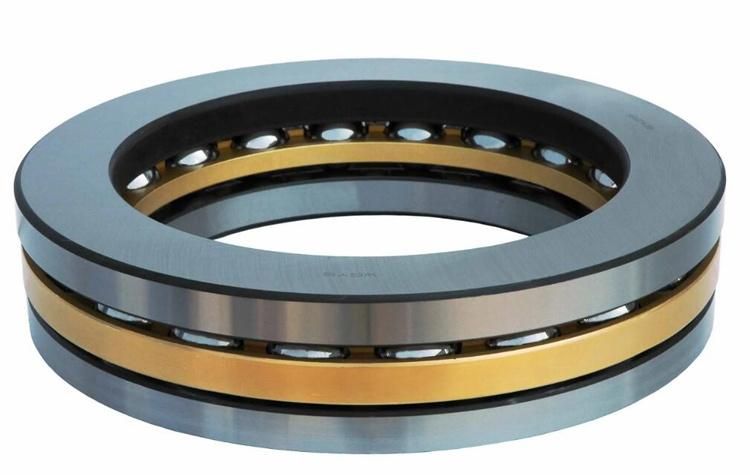

Single direction thrust ball bearing consist of one row of balls ( with cage ), a shaft washer ( close fit with shaft ) and a housing ring ( loose fit with shaft and close fit with bore of bearing block ). They cannot carry radial loads but axial loads in one direction, because the axial loads are well distributed on each ball, the loading capacity is higher, but the temperature is high while working, and their limiting speed is lower.

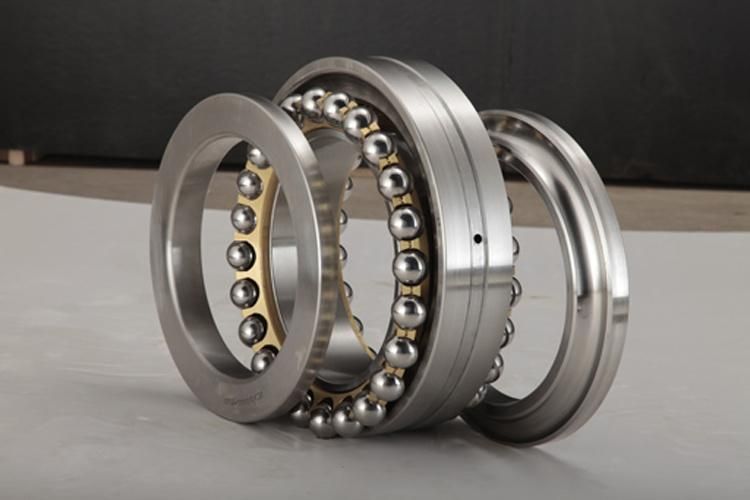

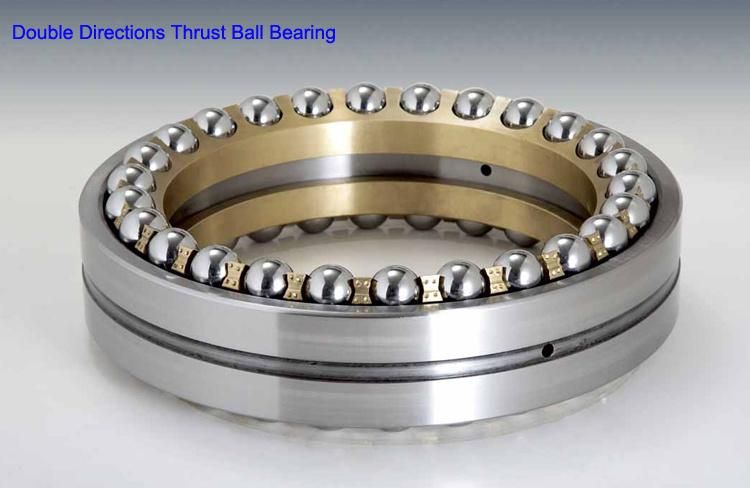

Double direction angular contact thrust ball bearings are high precision bearings which are specially designed for spindles of machine tools. They are able to carry axial loads in two directions, and they have more balls with small diameter. The centrifugal influence can be reduced as their 60° contact angle, so more suitable for high speed application.


It can carry axial loads that dimension series 2344 and 2349 double direction angular contact thrust ball bearings fit with dimension series NN30 and NU49 double row cylindrical roller bearings.
Double direction angular contact thrust ball bearings with class SP whose running accuracy is P4 and dimension accuracy is P5 can produced by us.

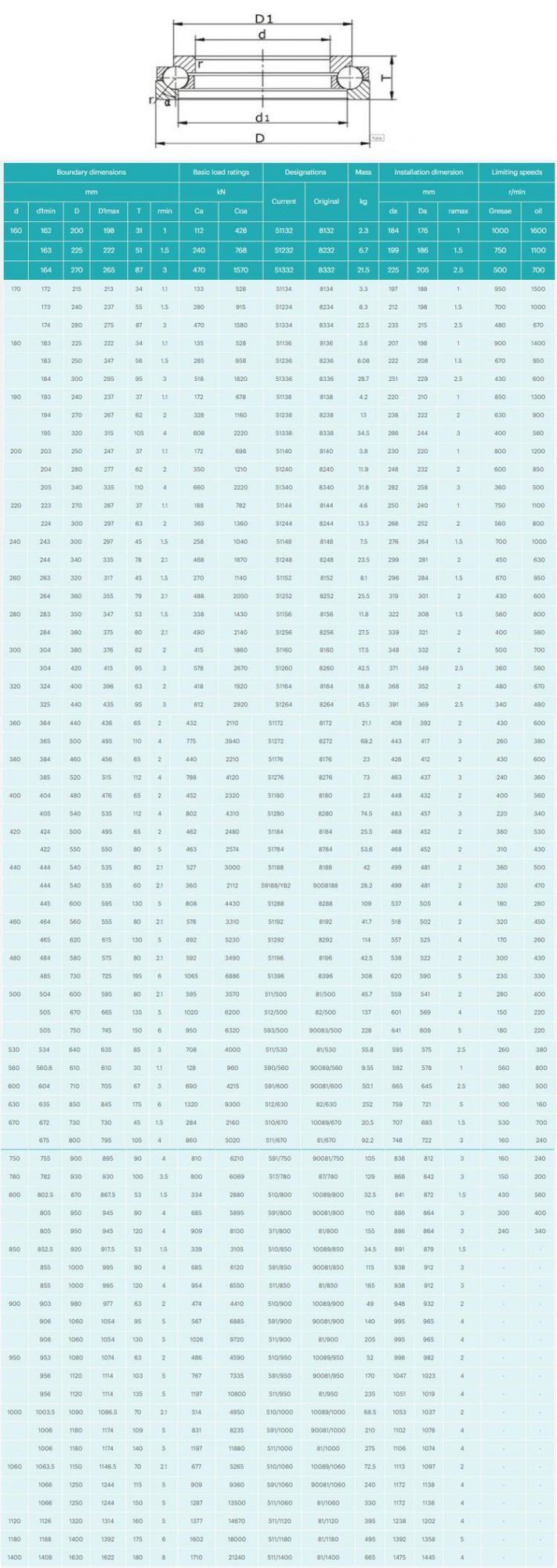

Technical Specifications:

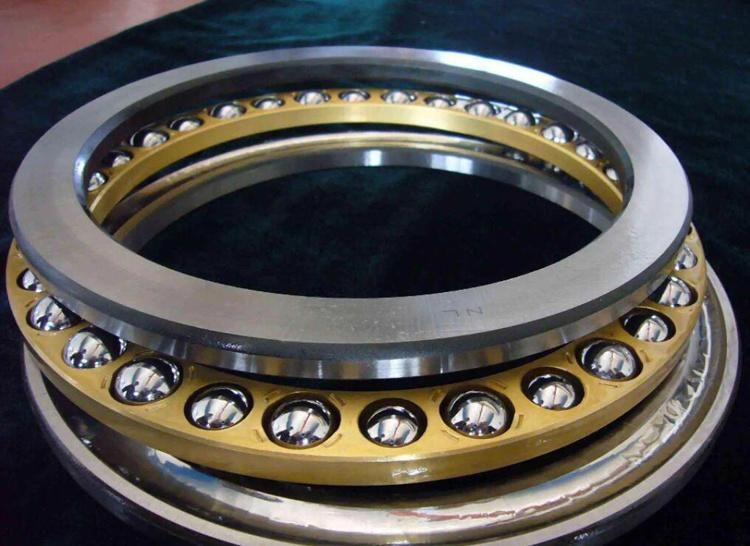

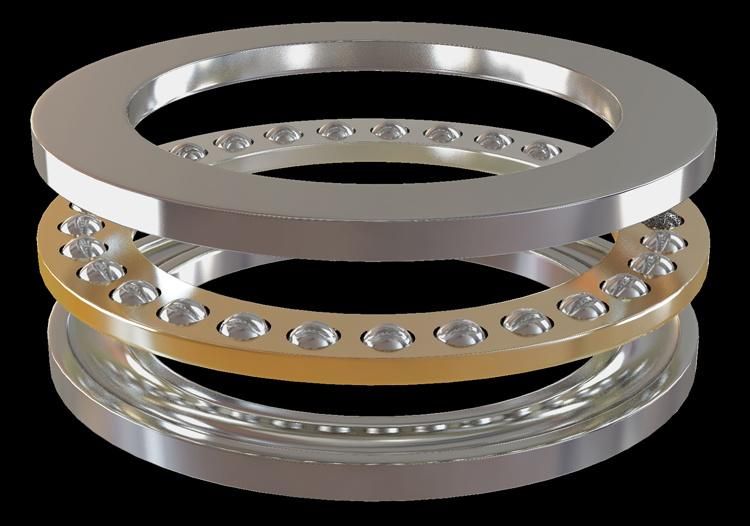

Products Show:

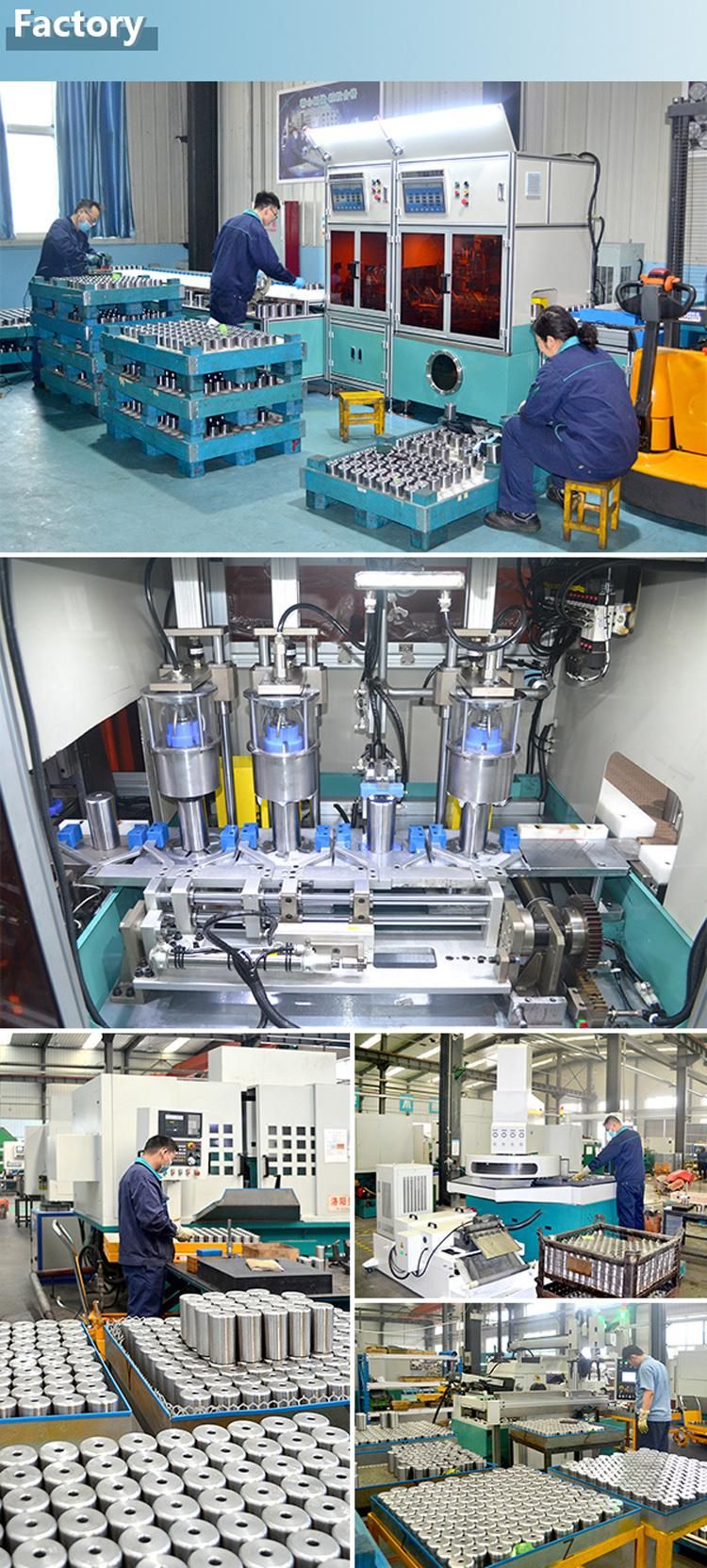

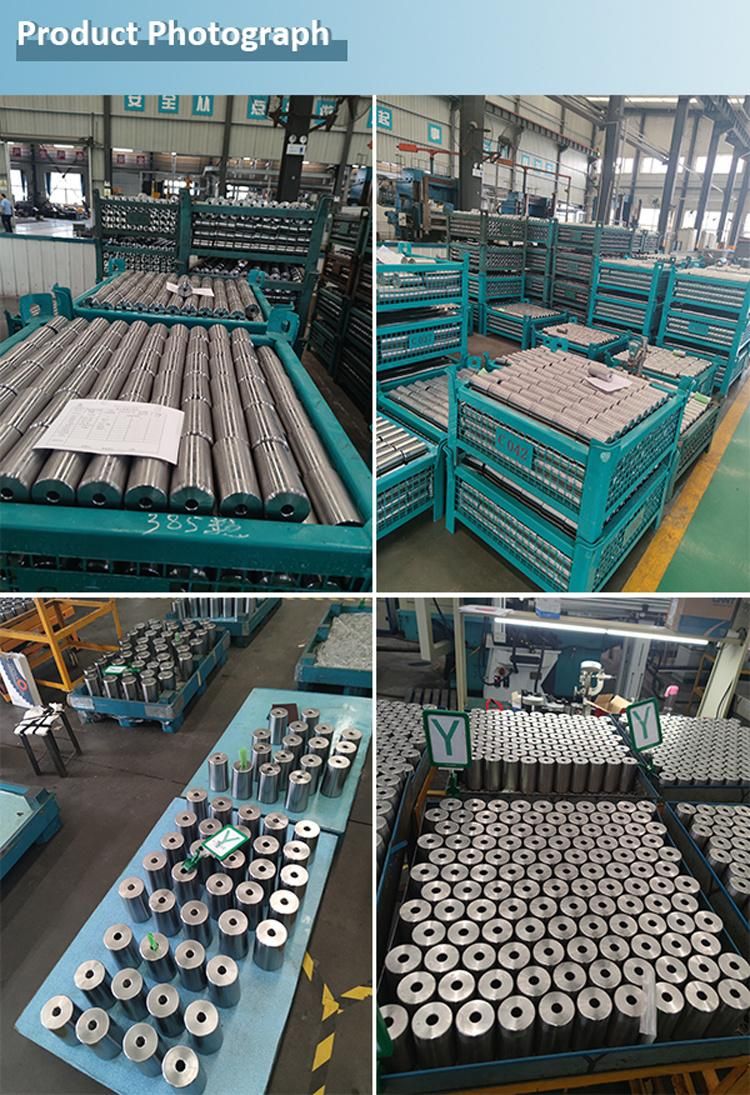

Factory Show:
