Product Description

high speed spin bushing

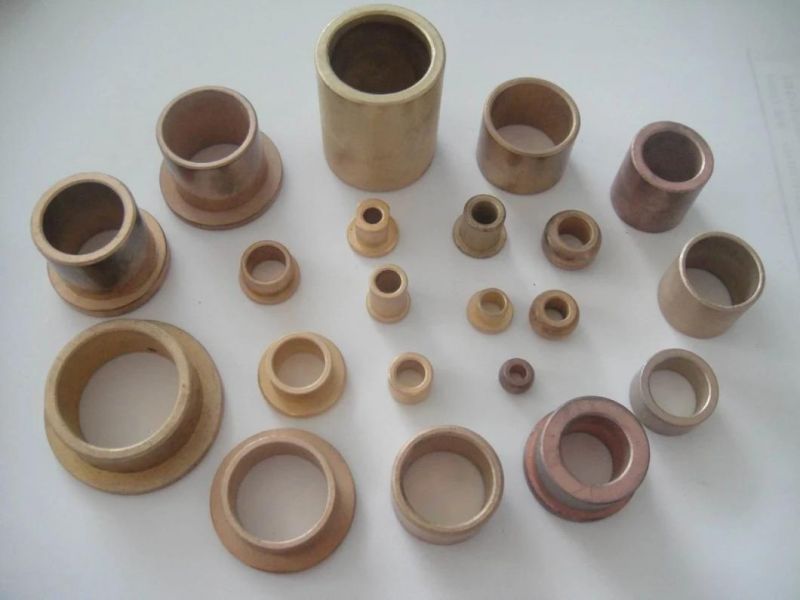

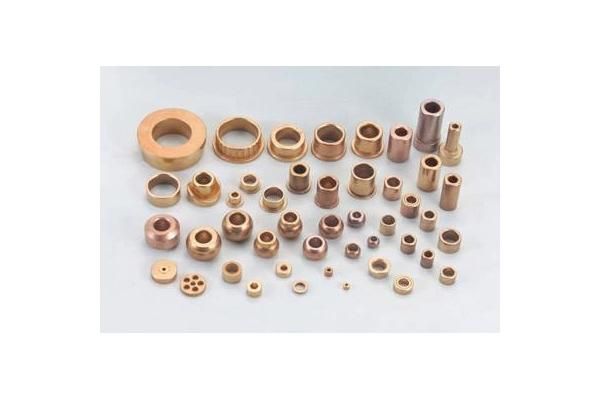

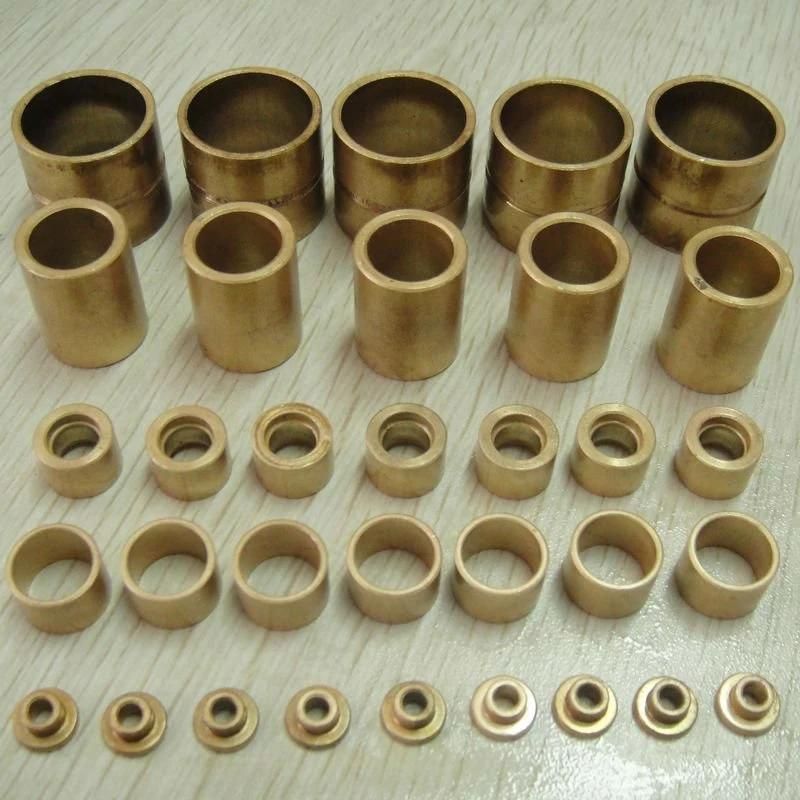

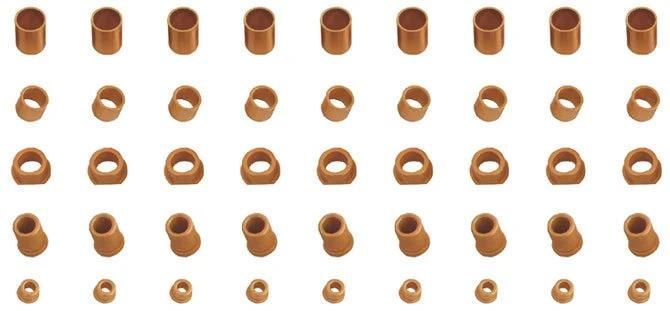

Sintered Bushes Briefing:

-----------------------------------------------------------------------------------------------------

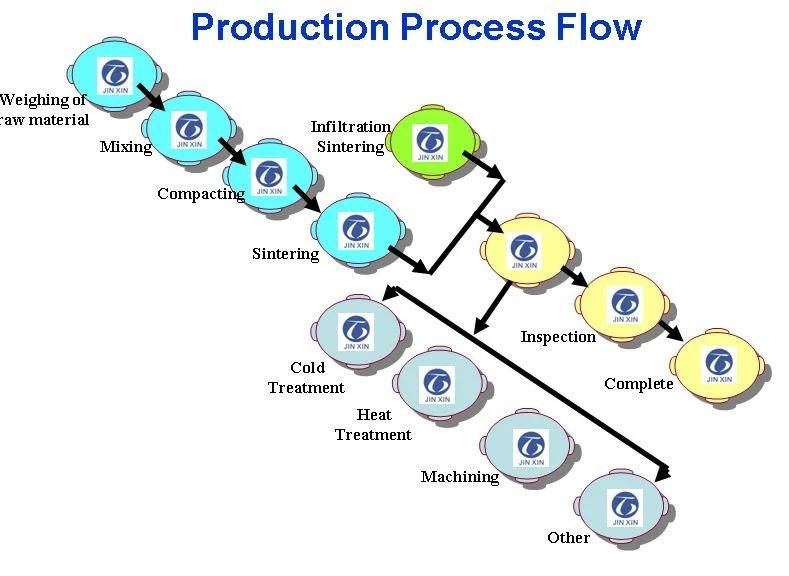

Sintering Part is made by bronze or iron / stainless steel powder, mold pressed under high pressure and then sintered under high temperature, and oil is soaked into the homoeneously spreaded tiny pores of the metal under vacuum. Sintered bushing is widely used for domestic electric equipments, electirc tools, woven machines, chemical engineering machines, automobiles industry,etc.Quality standard based on JIS;DIN;GB;MPIF,etc.



Sintered Bushes Performance:

------------------------------------------------------------------------------------

=>Chemical Composition: CuSn6Zn6Pb3, Cu90Sn10,CuSn6Zn6Pb0,Fe,Cu-Fe
=>Working Temperature: Between -100 with +200
=>Density & Gravity: 6.4-7.5g/cm3
=>Oil Impregnation Rate: 18% - 23%
=>Graphite content Rate: 1% - 3%Max
=>Hardness: HB30-75 for Bronze ; HB 35-150 for Iron



Feature:

1. Low tensile strength.

2. High plasticity and toughnes

3.Good conduction, heat conduction and corrosion resistance.



Material

Material type

Cu %

Sn %

Zn %

Pb %

Fe %

C %

The others %

Cu663

the rest

5~7

5~7

2~4

< 0.5

0.5~2.0

< 1.5

Cu660

the rest

5~7

5~7

< 0.1

< 0.5

0.5~2.0

< 1.5

Cu9010

the rest

8~11





< 0.5

0.5~2.0

< 1

Cu55Fe

the rest

2~2.8

2~2.8

0.8~1.6

48~50









Technical Data



Performance Index

Data

Max Load Capacity

Static Load

120N/mm²

Dynamic Load

40N/mm²

Max Sliding Speed

2.0m/s

Max PV Value Limit

2.8N/mm²·m/s

Friction Coefficient μ

0.08~0.25

Working Temperature

-100~+200°C

Thermal Conductivity

60W/m·k

Coefficient of thermal expansion

15×10^-6/k













Application

The products we produce are widely used in automobile, motorcycle and many other field. like transmission gear, spur gear, bevel gear, helical gear, sleeve, copper sleeve, sleeve bearing, bushing, bush, pulley, timing pulley ,structural parts, nut ,auto parts, rotor and stator, sintered parts, electric  tool part etc.



















Sintered Bushes Advantage:

-----------------------------------------------------------------------------------------------------
1.With lower wear rate and long lifetime.
2.Provides maintenance free operation & Dry working circustmance.
3.Suited for high static and dynamic load.
4.With low and smoothly coefficient of friction and without stick-slip effects.
5.Suitable for dirty, impact and edge load.
6.Better thermal conductivity property.
