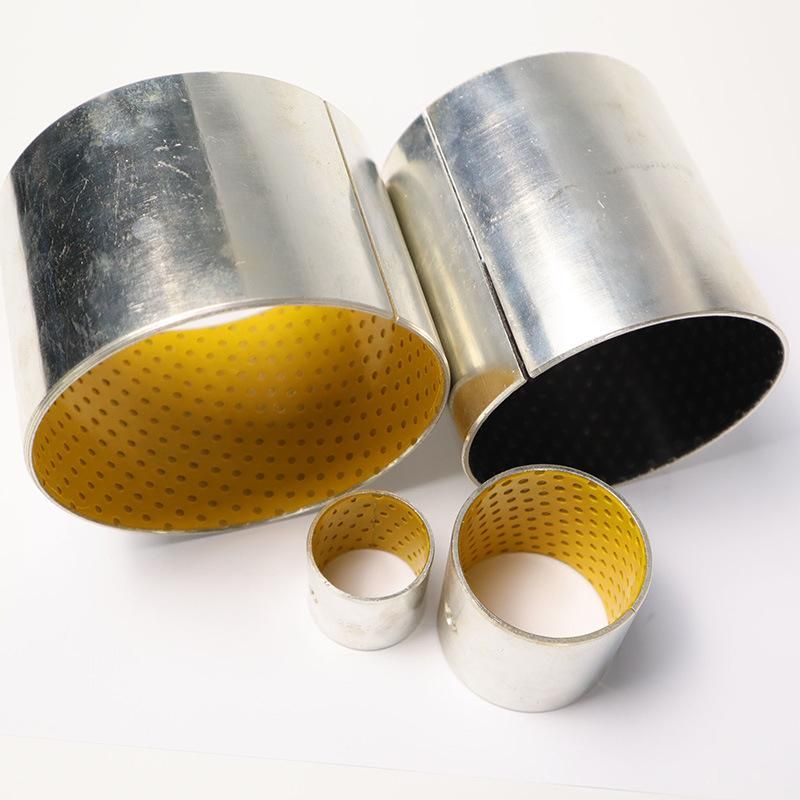

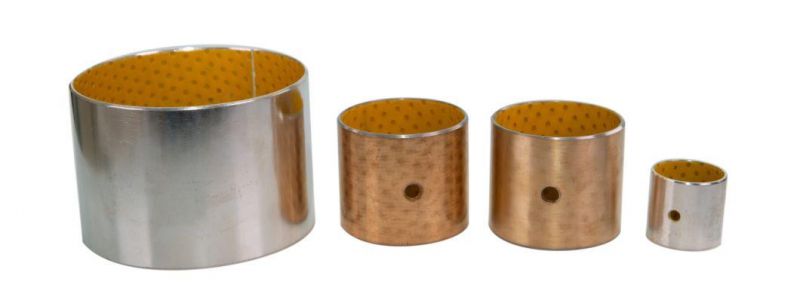

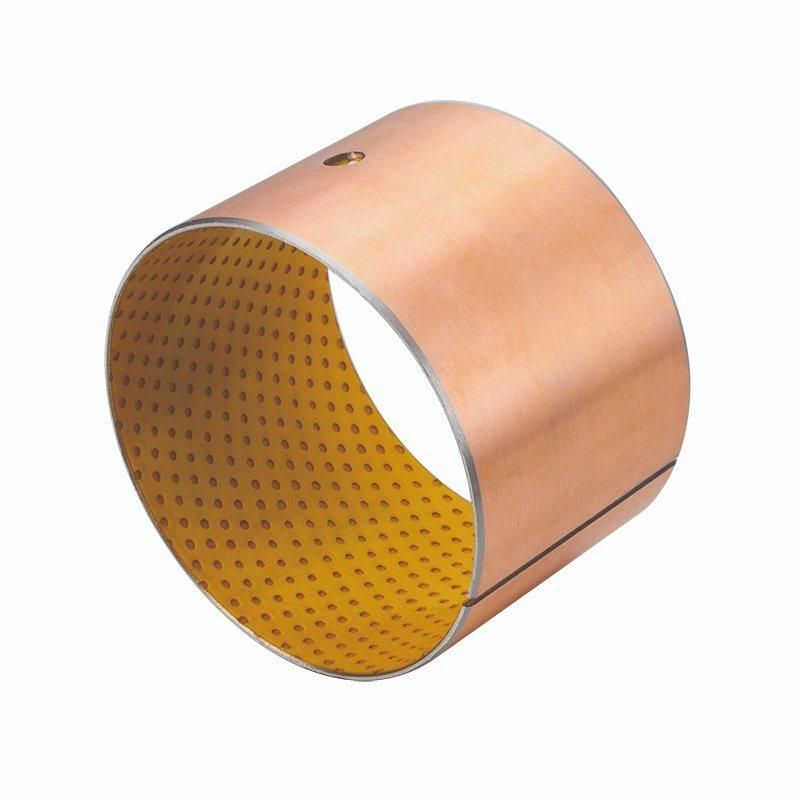

Chinese factory price high quality self-lubricating multilayer composite bushing POM lubricating bushing
CHIZHOU TEHCO PRECISION PARTS CO., LTD.- Customized：Customized
- Certification：ISO, ISO 9001:2015
- Standard Parts：Standard and Non Standard
- Universal：Yes
- Type：Cylinder Bushing
- Material：Steel+Bronze +POM
Base Info

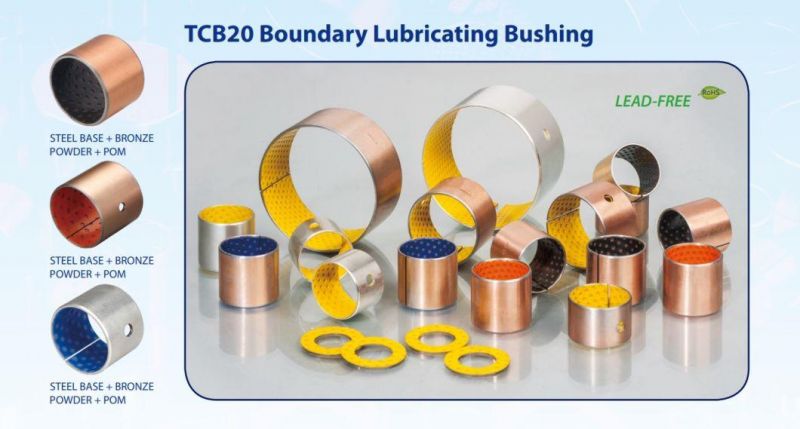

- Model NO.：TCB201
- Product Name：Oilless DX bushings
- Processing Method：Cold extrusion
- Samples：Available
- MOQ：100PCS
- Appliance：Vehicle chassis, forming machine tools, etc
- Lubricating：POM lubricating
- bushing type：sleeve
- other type：frange, washer
- Transport Package：Anti-Rust Paper, Carton, Wood Case or Pallet
- Specification：Customized
- Trademark：TEHCO
- Origin：China
- HS Code：8483300090
- Production Capacity：100000.0 Piece,Pieces Per Month
Description
Performance IndexData Product Name Chinese Manufacturer Metal sleeve DX Slide Bearing Harden Steel Oil Free Bush Oilless Bushing with POM Coated for Machine Tools Max load capacity P Static Load 140N/mm² Dynamic Load 70N/mm² Max line speed V Grease Lubrication 2.5m/s PV value limit 2.8N/mm²·m/s Friction coef u 0.06~0.12 Mating Axis Hardness >270 HB Roughness Ra=0.4~1.25 Material Steel+Bronze+POM Typical application It's used in vehicle chassis, forming machine tools, steel metallurgical machinery, mineral mountain machinery, hydraulic industry and rolling steel industry, etc. Working Temperature -40~+120ºC Thermal conductivity 52W/(m·k) Coefficient of linear expansion 11×10-6/K Outside surface Plating copper/tin Notice: We can also develop according to customers special request while out of this table.

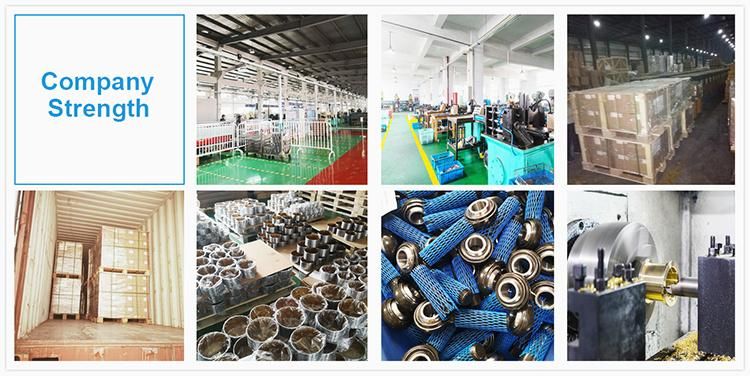

COMPANY PROFILE
EXHIBITION SHOW
PACKING AND DELIVERY 1. Inner PackingFor small products: 100PCS-200PCS per sealed plastic bag.
For bigger products: 2PCS-10PCS per plastic film roller (depends on the product size)
2. Outer Packing&Shipment Packing
8PCS-300PCS per carton (depends on the product size)
3. Shipment Packing18-24 cartons per wood case or pallet, shockproof and safe for transportation.
A: Our management is focused on exporting activities for more than ten years and we have our own bushing factory. TEHCO is always professional and reliable. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products.
Q: Hong long is your delivery time?
A: Generally 10-25 days after order. It depends on the quantity.
Q: Do you produce samples? Is it free or extra?
A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer, but can be returned after the order is placed.
Q: How to ensure the quality?
A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.
Q: Do you like to serve the customers only with small orders?
A: We are always glad to grow up together with all our customers whatever big or small.We hope our customers become stronger and stronger to be with us.
COMPANY PROFILE EXHIBITION SHOWPACKING AND DELIVERY 1. Inner PackingFor small products: 100PCS-200PCS per sealed plastic bag.
For bigger products: 2PCS-10PCS per plastic film roller (depends on the product size)
2. Outer Packing&Shipment Packing
8PCS-300PCS per carton (depends on the product size)
3. Shipment Packing18-24 cartons per wood case or pallet, shockproof and safe for transportation.
FAQ
Q: Are you trading company or manufacturer?A: Our management is focused on exporting activities for more than ten years and we have our own bushing factory. TEHCO is always professional and reliable. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products.
Q: Hong long is your delivery time?
A: Generally 10-25 days after order. It depends on the quantity.
Q: Do you produce samples? Is it free or extra?
A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer, but can be returned after the order is placed.
Q: How to ensure the quality?
A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.
Q: Do you like to serve the customers only with small orders?
A: We are always glad to grow up together with all our customers whatever big or small.We hope our customers become stronger and stronger to be with us.
