Ball Bearing Slewing Ring Bearing Without Gear Teeth Bearing Turntable Bearing Rotary Bearing (RKS. 25.1204)

Luoyang Huayang Special Heavy-Duty and Large Bearing Manufacturing Co., Ltd.
  • Rolling Body：Ball Bearings
  • The Number of Rows：Single
  • Outer Dimension：200-6000mm
  • Material：Bearing Steel
  • Spherical：Non-Aligning Bearings
  • Load Direction：Axial, Radial, Tilting Moment

Base Info

  • Model NO.：RKS. 25.1204
  • Separated：Unseparated
  • Outer Diameter：1289
  • Inner Diameter：1119
  • Weight：120
  • Gear：Ungeared
  • Production Time：15-25 Days
  • Warranty Period：18 Months
  • Transport Package：Wooden Box
  • Specification：ISO 9001: 2008
  • Trademark：LYHY
  • Origin：China
  • HS Code：84821090
  • Production Capacity：3400 PCS Per Year

Description

Medium size four-point contact ball slewing bearings without a gearSlewing bearing No.OD/mmID/mmWeightRKS.060.20.041448634229RKS.060.20.054461647237RKS.060.20.064471657244RKS.060.20.074481667252RKS.060.20.084491677260RKS.060.20.0944101687267RKS.060.20.10941166102277Medium size four-point contact ball slewing bearings without a gearSlewing bearing No.OD/mmID/mmWeightRKS.060.25.120412891119120RKS.060.25.131413991229132RKS.060.25.142415091339155RKS.060.25.153416191449155RKS.060.25.164417521536210RKS.060.25.175418621646222RKS.060.25.190420121796240
Ball Bearing Slewing Ring Bearing Without Gear Teeth Bearing Turntable Bearing Rotary Bearing (RKS. 25.1204)

Slewing Bearing
1. Introduction of LYHY slewing ring bearings

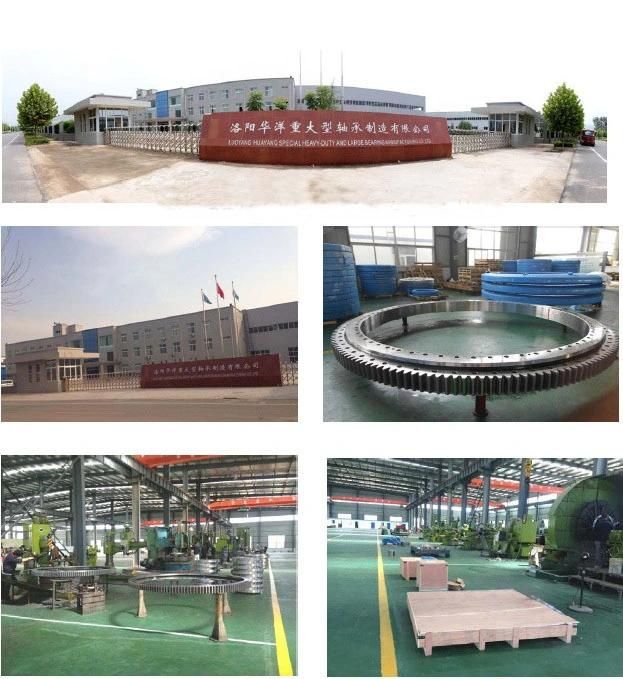

LYHY is a professional manufacturer in slewing ring bearings since 1993. We can also design and make other standard and non-standard ball slewing ring bearings, roller slewing bearings and precision slewing ring bearings as per customer's different technical requirements.
Slewing ring bearing is also called slewing ring, slewing bearing, turntable bearing, and rotary bearing.
Slewing ring bearing is a bearing that able to bear axial load, radial load and overturning torque. Under normal circumstances, slewing ring bearings have their own mounting holes, lubricant holes and seal holes, to meet the different needs of the various host working under the various conditions;
On the other hand, slewing ring bearing itself has characteristics of compact structure, guide rotating convenient, easy to install and maintaining easily.

Ball Bearing Slewing Ring Bearing Without Gear Teeth Bearing Turntable Bearing Rotary Bearing (RKS. 25.1204)
2. Structure

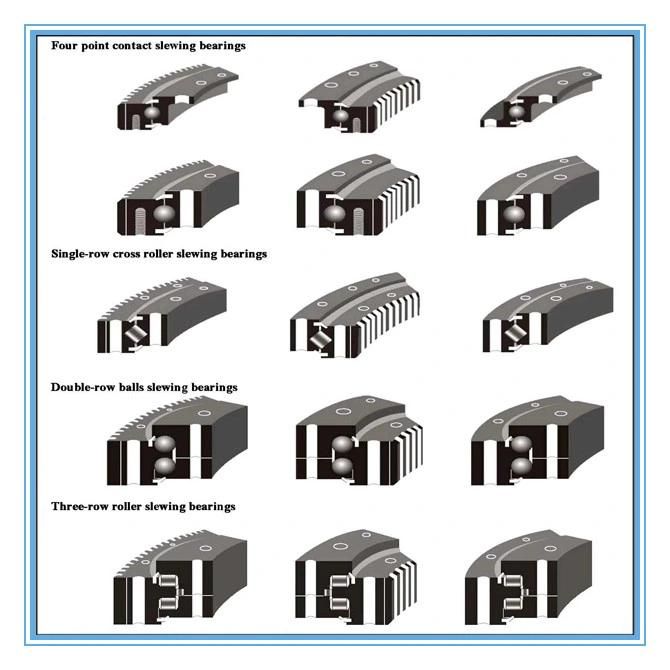

2.1 Slewing ring bearings have different types as per different structures, here below is what we offering now:
Single row ball slewing ring bearings
Double row ball slewing ring bearings
Crossed roller slewing ring bearings
Triple row roller slewing ring bearings
Flange slewing ring bearings
2.2 The above slewing ring bearings can also be divided into three different types as per different transmissions:
Slewing ring bearings with no gear
Slewing ring bearings with external gear
Slewing ring bearings with internal gear

Ball Bearing Slewing Ring Bearing Without Gear Teeth Bearing Turntable Bearing Rotary Bearing (RKS. 25.1204)


3. Features:
Slewing ring bearings have more features: compact structure, reliable guide, simple installation, and easily maintenance

4. Application:
Slewing ring bearings can be widely used in lifting & transport machinery, mining machinery, construction machinery, port hoisting machinery, port oil transfer equipment, onshore and offshore crane, excavator, concrete machine, paper machine, plastic and rubber machine, weave machine, steel plant, electronic power plant, wind power generator, other construction and industry machines or equipments and other large rotary device.

 Ball Bearing Slewing Ring Bearing Without Gear Teeth Bearing Turntable Bearing Rotary Bearing (RKS. 25.1204)

RKS. 061.20.0414RKS. 061.20.0544RKS. 061.20.0644RKS. 061.20.0744RKS. 061.20.0844RKS. 061.20.0944
RKS. 061.20.1094RKS. 061.20.1094RKS. 061.25.1314RKS. 061.25.1424RKS. 061.25.1534RKS. 061.25.1644
RKS. 061.25.1754RKS. 061.25.1754RKS. 062.20.0414RKS. 062.20.0544RKS. 062.20.0644RKS. 062.20.0744
RKS. 062.20.0844RKS. 062.20.0944RKS. 062.20.1094RKS. 062.25.1204RKS. 062.25.1314RKS. 062.25.1424
RKS. 062.25.1534RKS. 062.25.1644RKS. 062.25.1754RKS. 062.30.1904RKS. 060.20.0414RKS. 060.20.0544
RKS. 060.20.0644RKS. 060.20.0744RKS. 060.20.0844RKS. 060.20.0944RKS. 060.20.1094RKS. 060.25.1204
RKS. 060.25.1314RKS. 060.25.1424RKS. 060.25.1534RKS. 060.25.1644RKS. 060.25.1754RKS. 060.30.1904
RKS. 161.14.0414RKS. 161.14.0544RKS. 161.14.0644RKS. 161.14.0744RKS. 161.14.0844RKS. 161.14.0944
RKS. 161.14.1094RKS. 161.16.1204RKS. 161.16.1314RKS. 161.16.1424RKS. 161.16.1534RKS. 161.16.1644
RKS. 161.16.1754RKS. 161.20.1904RKS. 162.14.0414RKS. 162.14.0544RKS. 162.14.0644RKS. 162.14.0744
RKS. 162.14.0744RKS. 162.14.0944RKS. 162.14.1094RKS. 162.16.1204RKS. 162.16.1314RKS. 162.16.1424
RKS. 162.16.1534RKS. 162.16.1644RKS. 162.16.1754RKS. 162.20.1904RKS. 160.14.0414RKS. 160.14.0544
RKS. 160.14.0644RKS. 160.14.0744RKS. 160.14.0844RKS. 160.14.0944RKS. 160.14.1094RKS. 160.16.1204
RKS. 160.16.1314RKS. 160.16.1424RKS. 160.16.1534RKS. 160.16.1644RKS. 160.16.1754RKS. 160.20.1904
RKS. 21 0411RKS. 21 0541RKS. 21 0641RKS. 21 0741RKS. 21 0841RKS. 21 0941
RKS. 21 1091RKS. 23 0411RKS. 23 0541RKS. 23 0641RKS. 23 0741RKS. 23 0841
RKS. 23 0941RKS. 23 1091RKS. 22 0411RKS. 22 0541RKS. 22 0741RKS. 22 0641
RKS. 22 0841RKS. 22 0941RKS. 22 1091

Ball Bearing Slewing Ring Bearing Without Gear Teeth Bearing Turntable Bearing Rotary Bearing (RKS. 25.1204)

RKS. 204040101001RKS. 302070202001RKS. 900155101001RKS. 951145101001
RKS. 901175101001RKS. 921150303001RKS. 121400101002RKS. 121390101002
RKS. 122290101002RKS. 221310101001RKS. 222500101001 RKS. 222600101001
RKS. 324012324001RKS. 322300101001RKS. 425060101001RKS. 425060201001
RKS. 425062621001RKS. 427020101001RKS. 427050403001RKS. 111280101002
RKS. 212140106001RKS. 211430101001RKS. 211440101001RKS. 212600101001
RKS. 312410101001RKS. 312410102001RKS. 312290202001RKS. 313500404001
RKS. 314310101001RKS. 413290203001RKS. 512080101001RKS. 921155203001
RKS. 121405101002RKS. 121395101002RKS. 122295101002RKS. 223475101001
RKS. 222605101001RKS. 221300101001
