• Model NO.：TCB902
• Product name：Wrapped bronze bushing
• Lubrication：Oilless, self lubricating
• Standard：As ISO3547,DIN1494
• Features：Good anti-fatigue, anti-erosion and load capacity,
• Processing methods：Cold-extrusion
• Samples：Avaliable
• Service：OEM services
• Application：Hoisting machinery, construction machinery, etc
• Transport Package：Anti-Rust Paper, Carton, Wood Case or Pallet
• Specification：Customized
• Trademark：TCB
• Origin：China
• HS Code：8483300090
• Production Capacity：100000 Pieces Per Month

Basic Info.

Model NO. TCB902 Product name Wrapped bronze bushing Lubrication Oilless, self lubricating Standard As ISO3547/DIN1494 Features Good anti-fatigue, anti-erosion and load capacity, Processing methods Cold-extrusion Samples Avaliable Service OEM services Application Hoisting machinery, construction machinery, etc Transport Package Anti-Rust Paper, Carton, Wood Case or Pallet Specification Customized Trademark TCB Origin China HS Code 8483300090 Production Capacity 100000 Pieces Per Month

Product Description

FB092 WB702 Wrapped Bronze Bushing Bronze Tube

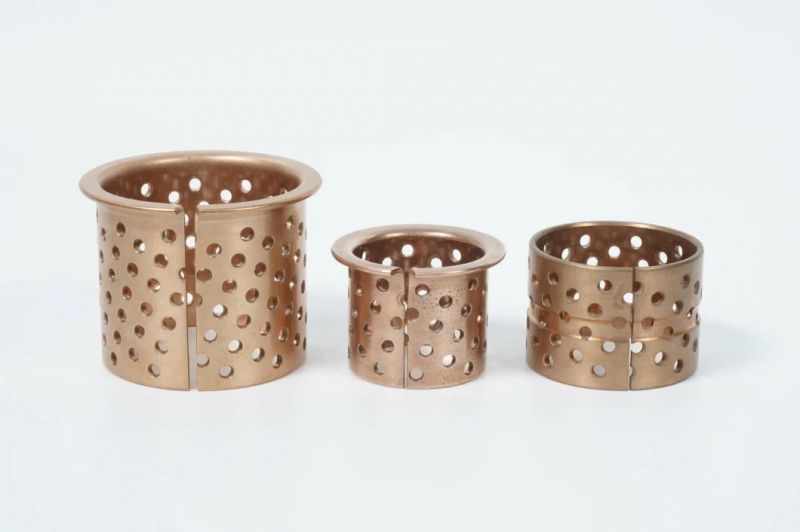

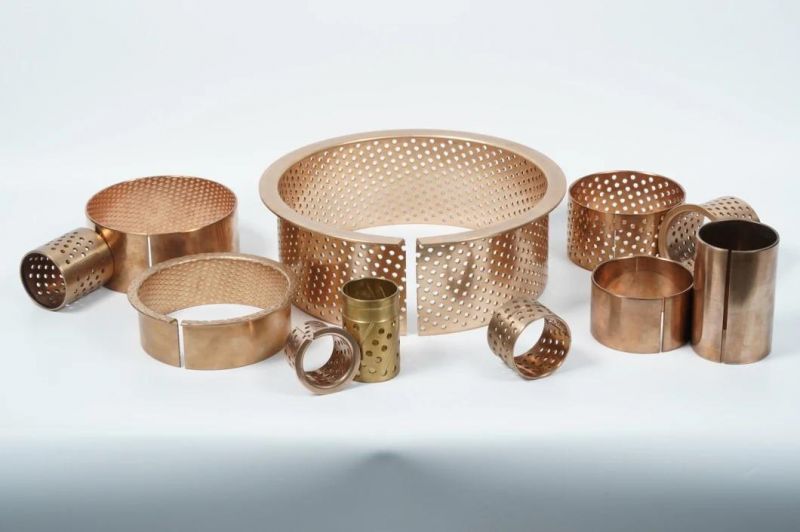

PRODUCT DESCRIPTION    Split Wrapped Bronze Bushing (FB092)(1)  is made of tin-bronze CuSn8P.
(2) the surface of TCB900 is punched with diamond oil sockets which are preserved for oil saving.

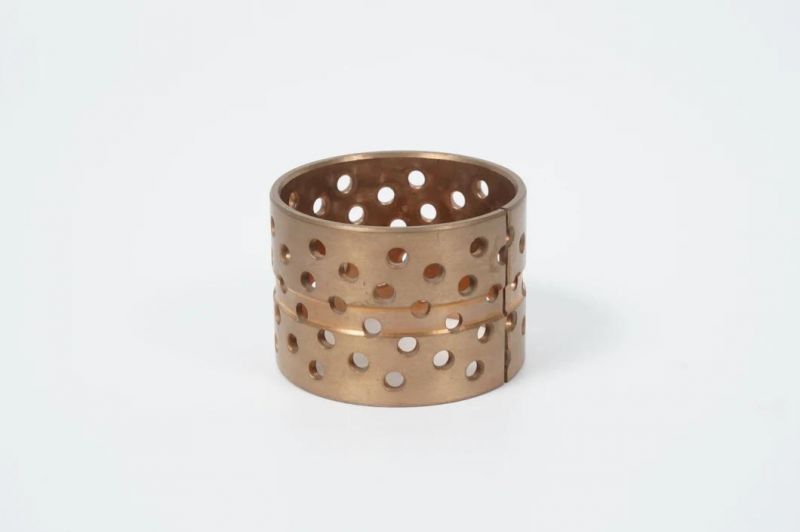

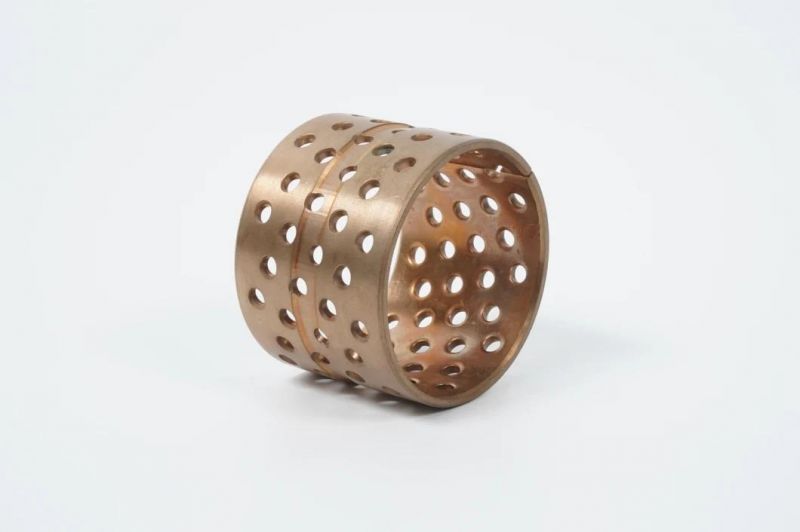

(3) the surface of TCB902 is punched with oil apertures by certain angle and density; therefore it's easier to form an oil film when the bushing works.
(4) the products have good anti-fatigue, anti-erosion, anti-abrasion and load capacity.
(5) the products are widely applied in conditions of heavy load but low running velocity, such as on agricultural, building and engineering machines.


Product Name	Wrapped Bronze Bearing Bushing
Size	Customized
Material	CuSn8P, Customized
Color	Natural
Certification	ISO9001, TS16949
Density	8.8g/cm3
Hardness	90-150HB
Working Temperature Limit	-40~150ºC
Max. Dynamic Load	100N/mm²
Max Linear Velocity(Grease)	2m/s
Max PV value Grease	2.8N/mm2·m/s
Friction Coefficient	0.06~0.15
Pressure  strength	>460N/mm²
Yield Strength	>280 N/mm2
Mating Axis	Hardness≥50, Roughness 0.4~1.0
Coefficient of heat conduction	58W/m·K
Linear Expansion Coefficient	18.5×10-6/K
Application	Hoisting, mining machinery,forest machinery, agricultural machinery

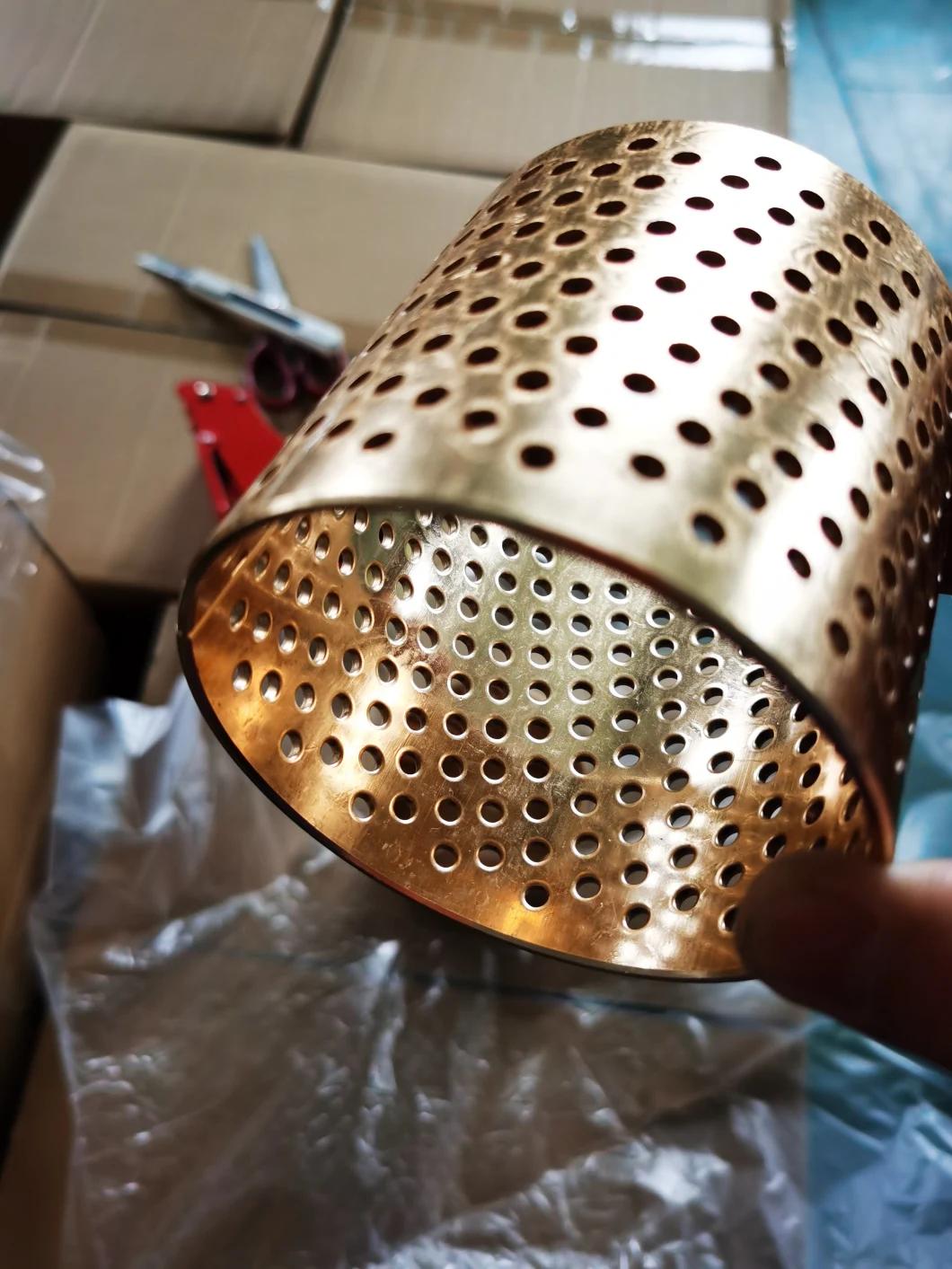

DETAILED IMAGES




COMPANY PROFILEPACKING AND DELIVERY

1. Inner Packing
For small products: 100PCS-200PCS per sealed plastic bag.
For bigger products: 2PCS-10PCS per plastic film roller (depends on the product size)

2. Outer Packing&Shipment Packing
8PCS-300PCS per carton (depends on the product size)

3. Shipment Packing
18-24 cartons per wood case or pallet, shockproof and safe for transportation.
