Ball and Roller Combined Slewing Bearing Roller Bearing (121.32.3550.990.41.1502)
Luoyang Huayang Special Heavy-Duty and Large Bearing Manufacturing Co., Ltd.- Contact Angle：45°
- Aligning：Non-Aligning Bearing
- Separated：Unseparated
- Rows Number：Single
- Load Direction：Axial
- Material：50mn, 42CrMo
Base Info
- Model NO.：121.32.3550.990.41.1502
- Company History：Since 1993
- Brand：Lyhy
- Custom Design：Available
- Rolling Body：Ball Bearings
- The Number of Rows：Single
- Outer Dimension：200-6000mm
- Transport Package：Wooden Box
- Specification：ISO2001: 9008
- Trademark：LYHY
- Origin：China
- HS Code：848210900
- Production Capacity：600PCS Per Year
Description
Slewing bearing with external gearModel OD ID Height Weight 121.32.3550.990.41.1502 3772.8 3358 159 2028 121.32.3750.990.41.1502 3980.8 3558 159 2186 121.32.4000.990.41.1502 4220.8 3808 159 2278 121.32.4250.990.41.1502 4476.8 4058 159 2455 121.36.4000.990.41.1502 4244.4 3792 175 2792 121.36.4250.990.41.1502 4496.4 4042 175 2981 121.36.4500.990.41.1502 4748.4 4292 175 3173 121.36.4750.990.41.1502 5000.4 4542 175 3363 121.40.4500.990.41.1502 4776 4276 183 3673 121.40.4750.990.41.1502 5016 4526 183 3796 121.40.5000.990.41.1502 5276 4776 183 4082 121.40.5300.990.41.1502 5576 5076 183 4329 121.45.5000.990.41.1502 5297.6 4747 203 5201 121.45.5300.990.41.1502 5605.6 5047 203 5602 121.45.5600.990.41.1502 5891.6 5347 203 5764 121.45.6000.990.41.1502 6287.6 5747 203 6129 121.50.5600.990.41.1502 5923.2 5342 221 6397 121.50.6000.990.41.1502 6307.2 5742 221 6663 121.50.6700.990.41.1502 7027.2 6442 221 7708
About LYHY bearings

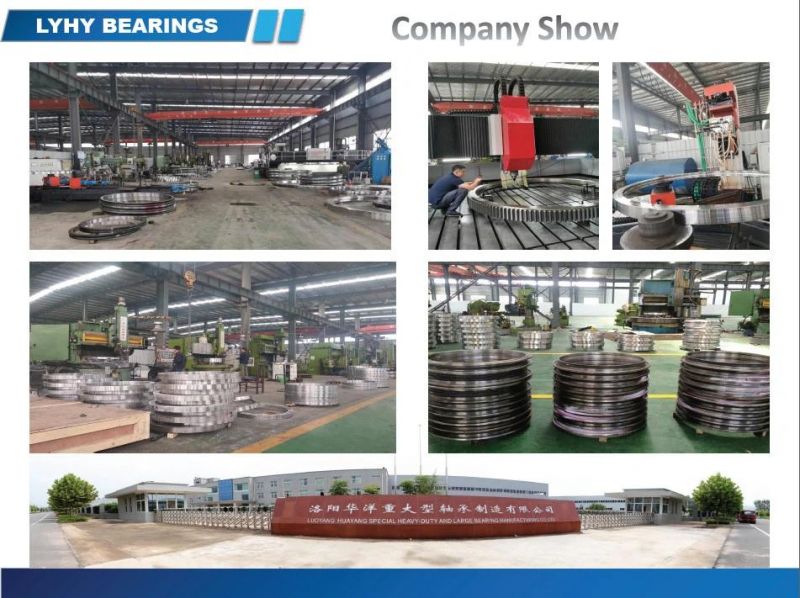

1.introduction:we are a manufacturer of slewing bearing since 1993, our factory occupies a area of 30000square meters with 4 workshop and 1 office building.
2. Featured products: slewing bearing and slewing drive
3. Capital: Current is 1 million RMB, but we are increasing the capital to 10 million RMB
4. Workers: 40
5. Certificate: ISO9001:2008, 3.1 certificate, CCS certificate, Science and Technology Progress Award
6. Annual Exportation: 8million USD
7. Exported countries: (39)
Asia: India, Pakistan, Iran, Signore, Georgia, Malaysia, Vietnam, Thailand, Philippines, Israel, Korea, UAE, Sri Lanka, Saudi Arabia,
Europe: Turkey, Russia, Spain, Czech Republic, Italy, Poland, Slovakia, Bosnia and Herzegovina, Austria, France, Germany, Switzerland, Finland, Ukraine, UK
America: USA, Canada, Mexico, Brazil, Puerto Rico, Peru, Chile
Africa: South Africa, Egypt
Oceania: Australia
Introduction of LYHY slewing bearings
LYHY is a professional manufacturer in slewing ring bearings since 1993. We can also design and make other standard and non-standard ball bearings, roller bearings and precision bearings as per customer's different technical requirements.
Slewing bearing is also called slewing ring, slewing ring bearing, turntable bearing, and rotary bearing.
Slewing ring bearing is a bearing that able to bear axial load, radial load and overturning torque. Under normal circumstances, slewing rings have their own mounting holes, lubricant holes and seal holes, to meet the different needs of the various host working under the various conditions;
On the other hand, slewing bearing itself has characteristics of compact structure, guide rotating convenient, easy to install and maintaining easily.
LYHY slewing ring bearings are usually used for low revolution while shaking and strained with an enormous axial force, moment and in some parts with radial force simultaneously.
Consequently the requirements for loading are stricter than ordinary bearings. If the selection of the slewing ring bearing has been wrong it will cause a great damage. Hence it is necessary to evaluate the exact forces acting on the slewing ring bearing and to select the suitable slewing ring bearings.
2. Structure

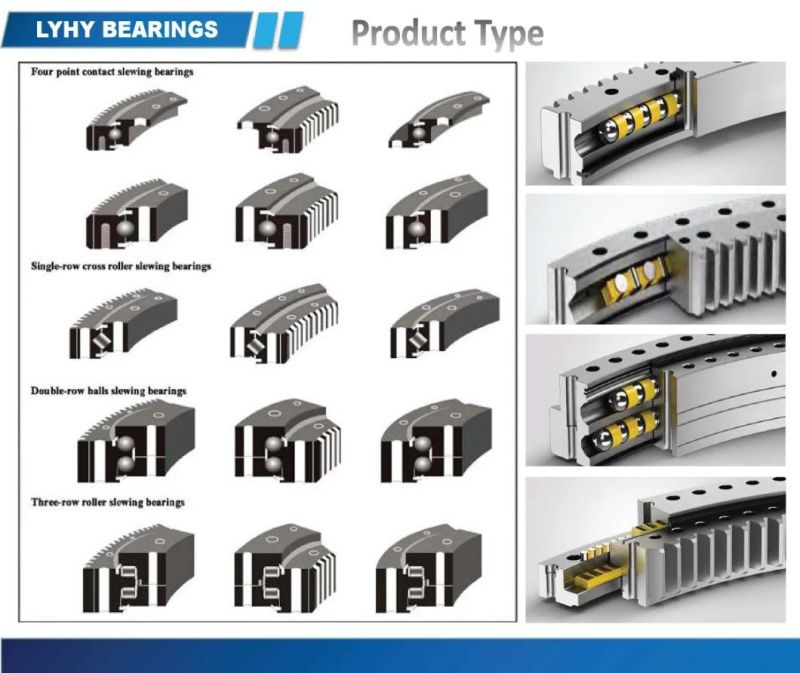

2.1 Slewing ring bearings have different types as per different structures:
Single row ball slewing bearings
Double row ball slewing bearings
Crossed roller slewing bearings
Triple row roller slewing bearings
Flange slewing bearings
2.2 The above slewing ring bearings can also be divided into three different types as per different transmissions:
Slewing ring bearings with no gear
Slewing ring bearings with external gear
Slewing ring bearings with internal gear
Features:
Slewing ring bearings have more features: Compact structure, reliable guide, simple installation, and easily maintenance

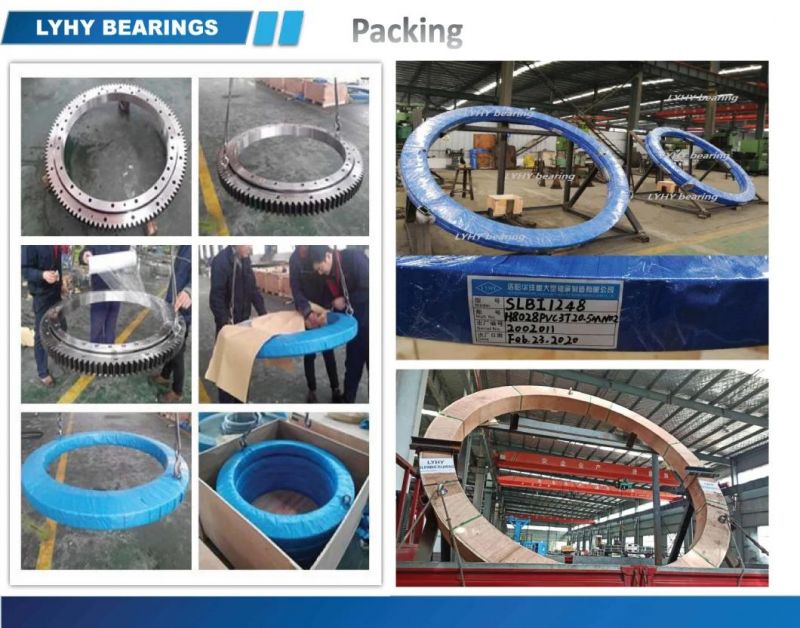

LYHY Slewing Bearing Packing
Bearing surface is covered with the anti-rust oil first; and then wrapped with the plastic film;
And then packed with kraft paper and professional belts;
At last, with wooden box totally at the outer packing to invoid the rust or the moist;
We can depend on the customers demand to be packed;

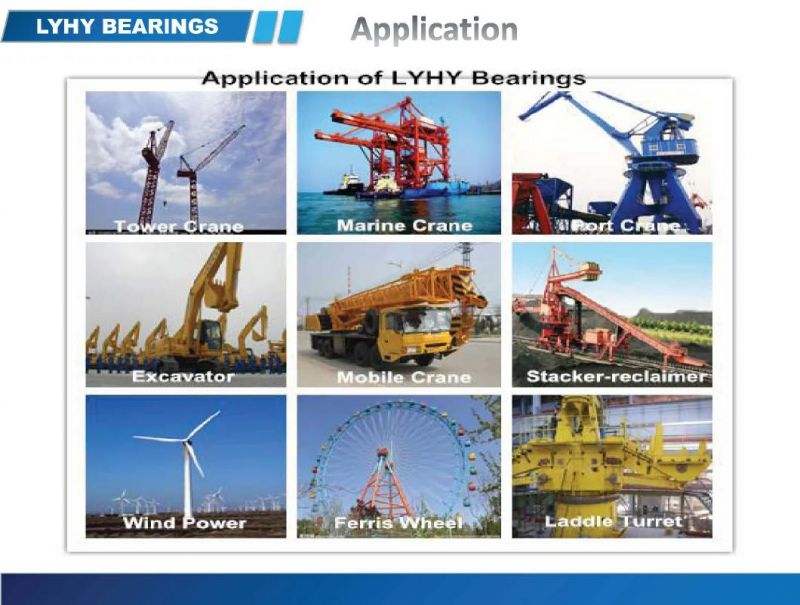

Application:
Slewing ring bearings can be widely used in lifting & transport machinery, mining machinery, construction machinery, port hoisting machinery, port oil transfer equipment, onshore and offshore crane, excavator, concrete machine, paper machine, plastic and rubber machine, weave machine, steel plant, electronic power plant, wind power generator, other construction and industry machines or equipments and other large rotary device.
FAQ:
Q: Are LYHY BEARINGS trading company or manufacturer?
A: LYHY BEARINGS is a professional manufacturer for slewing bearings, thin section bearings, ball bearings and rolling bearings
Q: How do LYHY BEARINGS control quality of their bearing?
A: LYHY BEARINGS has established strict quality control systems, all the products and services has passed ISO9001-2008 Quality Certificate and third party such as CCS, LR,ABS,BV
Q: What is the MOQ?
A: MOQ is 1pc, pls message us for detailed information.
Q: How about the package for LYHY bearings?
A: Standard Industrial packing in general condition (Plastic tube+ professional plastic belts+ plywood case). Accept design package when OEM.
Q: How long is the production time?
A: It takes about 7-40 days, depends on the model and quantity.
Q: How about the shipping?
A: We can arrange the shipment or you may have your own forwarder.
Q: Is sample available?
A: Yes, sample order is acceptable.
Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable for LYHY BEARINGS. We can design as per your requirements and use your own LOGO and package design.
