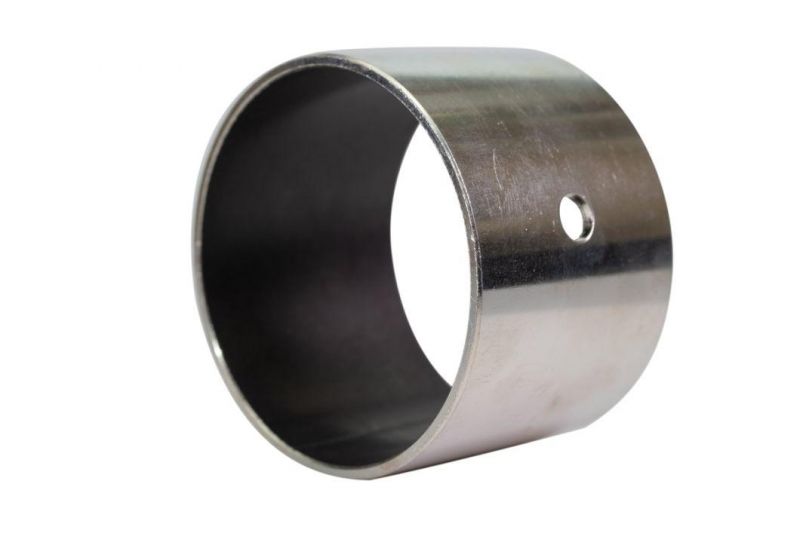

PAP10 Steel Backing with PTFE Polymes Imbedded Self-lubricating Bushing with Lower Friction Coefficient for Gymnastic Equipment.
CHIZHOU TEHCO PRECISION PARTS CO., LTD.- Customized：Customized
- Certification：ISO, ISO 9001:2015
- Standard Parts：Standard or non standard
- Universal：Yes
- Type：Bushing
- Material：Steel Base+ Bronze Powder+ PTFE
Base Info
- Model NO.：TCB100
- Product name：DU bushings
- Sizes：Customized sizes
- Processing method：Cold-extrusion
- Outside surface plating：Cooper plating, tin plating, zinc plating
- Structure：Split wrapped
- Features：Self lubricating, maintenance free, oilless
- Standard：ISO3547,DIN1494
- Samples：Free samples
- MOQ：100PCS
- Applicable Industries：Printing, woven, totacco and gymnastic machinery
- Transport Package：Anti-Rust Paper, Carton, Wood Case or Pallet
- Specification：Customized
- Trademark：TEHCO
- Origin：China
- HS Code：8483300090
- Production Capacity：100000.0 Piece,Pieces Per Month
Description
Data Product Name PAP10 Steel Backing with PTFE Polymes Imbedded Self-lubricating Bushing with Lower Friction Coefficient for Gymnastic Equipment Load capacity P (Dry friction) Static Load 250N/mm² Dynamic Load 140N/mm² Oscoillation Load 60N/mm² Max line speed V Dry Lubrication 2.5m/s Oil Lubrication >5m/s PV value limit Grease Lubrication 1.8N/mm²· m/s Oil Lubrication 3.6N/mm²· m/s Friction coef u Dry Lubrication 0.08~0.20 Oil Lubrication 0.02~0.12 Mating Axis Hardness >220 HB Roughness Ra=0.4~1.25 Material Steel+Bronze+(PTFE+Filler) Typical application The printing, woven, tobacco and gymnastic machinery, etc. Working Temperature -200~+280ºC Thermal conductivity 40W/(m·K) Coefficient of linear expansion 11×10-6/K Outside surface Plating copper/tin Notice: We can also develop according to customers special request while out of this table
