• Model NO.：FCD70100380
• HS Code：8482500001
• Production Capacity：10000 Pieces Per Month

Basic Info.

Model NO. FCD70100380 HS Code 8482500001 Production Capacity 10000 Pieces Per Month

Product Description

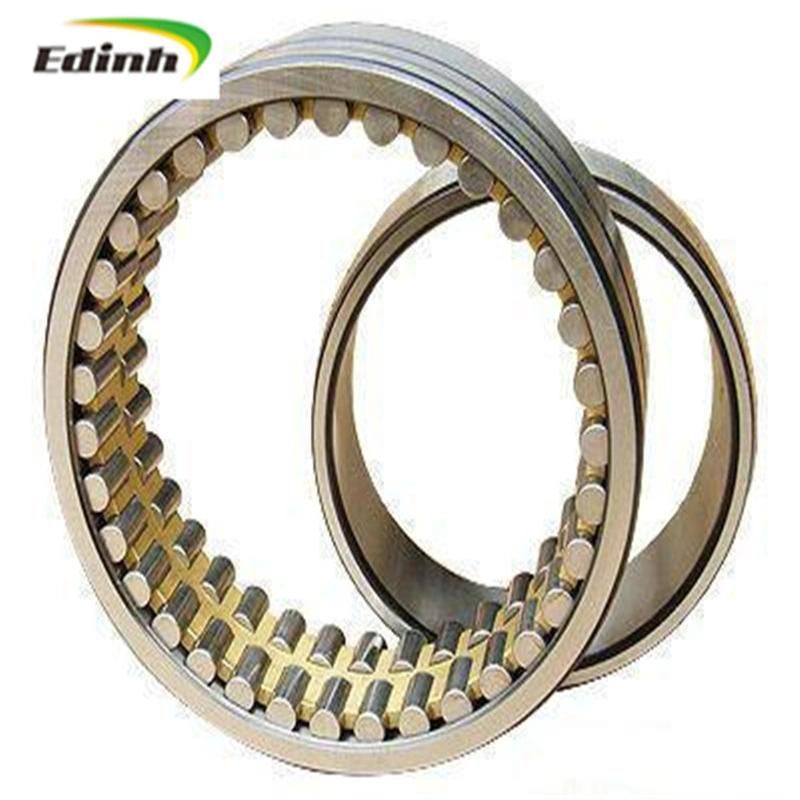

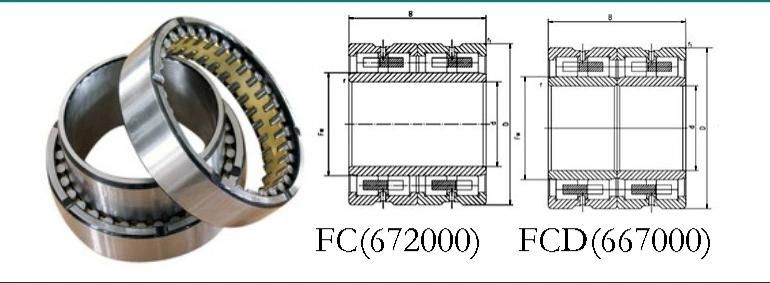

four row cylindrical roller rolling mill bearing FCD70100380 from China manufacture

Product Features

•  cylindrical roller bearing with a removable outer ring suitable for high radial loads
• CN (normal) radial clearance for applications where thermal expansion is not a factor
• Single row roller bearing for high radial loads with low friction
• Removable outer ring in open bearing allows for lubrication in place
•

•


model	d	D	B	FW	r
FCD6692340	330	460	340	365	4	4180	9940	870	1000	182
FC6890250	340	450	250	370	4	2335	6768	800	1000	110.8
FCD6890250	340	450	250	370	4	2335	6768	800	1000	114
FCD6892260	340	460	260	374	4	2420	6920	800	1000	128.2
FCD6896350	340	480	350	378	4	4570	10800	750	950	207
FCD70100380	350	500	380	390	5	3800	11400	700	900	242.3
FCD70104300	350	520	300	401	5	3300	9000	700	900	220
FCD72102370	360	510	370	400	4	3756	10500	700	900	242
FCD72104380	360	520	380	405	4	4090	11175	700	900	273
FCD74104380	370	520	380	410	4	3645	10750	700	850	263
FCD74108380	370	540	380	416	4	3970	11240	670	830	322
FCD76108380	380	540	380	422	4	3766	10930	660	815	290
FCD76108400	380	540	400	422	4	4100	12000	660	815	297.3
FCDP78108320	390	540	320	431	2	4062	12200	660	815	230
FCDP78110310	390	550	310	430	4	3938	11200	660	815	240
FCDP80112410	400	560	410	445	2	4441	12810	600	750	313
FCD80118440	400	590	440	450	5	5570	16600	600	750	415
FCDP82112400	410	560	400	450	2	4954	16000	600	700	300
FCDP82120440	410	600	440	460	2	5885	17300	550	700	425
FCD84116260	420	580	260	468	4	2877	9650	550	700	210
FCD84116320	420	580	320	463	4	3600	10800	550	700	250
FCDP84120440	420	600	440	470	2	5546	17600	550	700	400
FCD84124400	420	620	400	473	4	5330	15600	550	650	410
FCDP88124450	440	620	450	487	5	6000	19,600	500	650	429.6
FCD88126450	430	630	450	490	5	6557	19725	500	650	455.47
FCDP88130355	440	650	355	494	4	5162	14000	500	650	420
FCDP90118300	450	590	300	490	4	3000	12000	500	650	245
