• Model NO.：24164CA,C3,W33
• Separated：Unseparated
• Bore：C - Cylindrical Bore
• Lubrication Enhancement：W33 - Lubrication Groove and 3 Holes
• Seal：No Seal
• Cage Type：M - Brass Cage
• Radial Internal Play：C3 Internal Play (Higher Than Cn)
• Precision：Standard Precision
• Heat Stabilization：Temperatures up to 120°
• Transport Package：Industrial Package; Single Box Package
• Specification：320*540*218mm
• Trademark：CHIK
• Origin：China
• HS Code：8482300000
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. 24164CA/C3/W33 Separated Unseparated Bore C - Cylindrical Bore Lubrication Enhancement W33 - Lubrication Groove and 3 Holes Seal No Seal Cage Type M - Brass Cage Radial Internal Play C3 Internal Play (Higher Than Cn) Precision Standard Precision Heat Stabilization Temperatures up to 120° Transport Package Industrial Package; Single Box Package Specification 320*540*218mm Trademark CHIK Origin China HS Code 8482300000 Production Capacity 10000PCS/Month

Product Description

PRODUCT INFO.
CHIK main models for Spherical Roller Bearings CA/CC/MB/F3/K/K30include: 239**, 230**,
240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**
and special series include 26** i.e 2638 (3738), 2644 (3844) and so on.
We have most variety of Spherical Roller Bearings in big quantity in our stock,and we are
ore professional in big bearings.

24136CA/W33 Bearing Description.

Bore Dia	180mm (7.0866 inch)
Bore Configuration	Cylindrical
Series	24100
Cage	CA - 1 pc Brass
Radial Clearance	Normal
Angular Misalignment	2.5°

Weight Unit of Measure:	EA
Weight:	74.52
Sale Qty Multiple:	1
Packaged Length:	12.6
Packaged Width:	12.6
Packaged Height:	5.12
No. Links/Ft.:	0
Bore Dia:	180mm (7.0866 inch)
Bore Configuration:	Cylindrical
Series:	24100
Cage:	CA - 1 pc Brass
Radial Clearance:	Normal
Angular Misalignment:	2.5°

Feature:

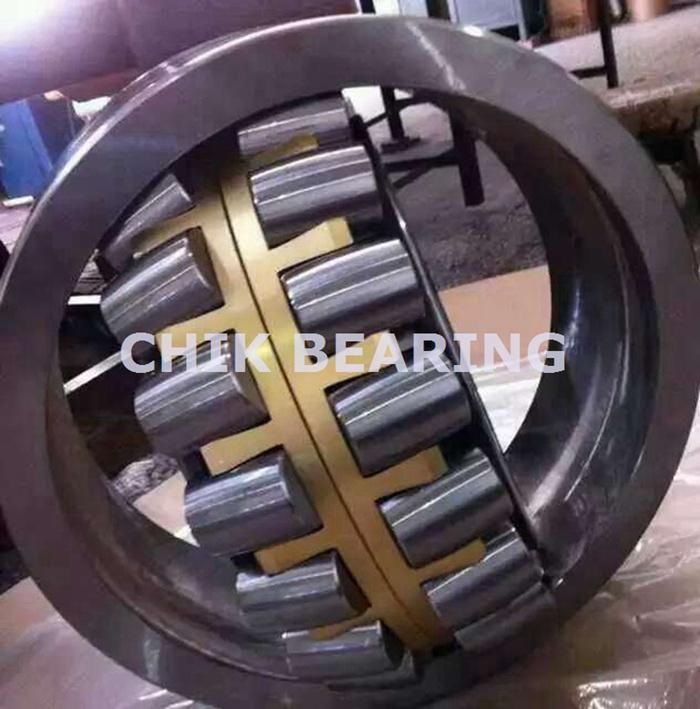

Spherical roller bearings have two rows of rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis .The centre point of the sphere in the outer ring raceway is at the bearing axis. Therefore, the bearings are self-aligning and insensitive to misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. Spherical roller bearings are designed to accommodate heavy radial loads, as well as heavy axial loads in both directions.

SHIPPING
1.By courier, like DHL,UPS,FEDEX ETC. It's door to door. Usually,5-7 days arriving.
2.By air to the air port, 3-4 days arriving .
3.By sea to sea port ,Usually,15-30 days arriving .
If your order is very urgent , we suggst you choose by courier or by air ;
Not very urgent order , pls try the ocean shipping , which will be very cheap .
OTHER MODELS WE CAN OFFER

24120CA W33	24120MB W33	24120CC W33
24122CA W33	24122MB W33	24122CC W33
24124CA W33	24124MB W33	24124CC W33
24126CA W33	24126MB W33	24126CC W33
24128CA W33	24128MB W33	24128CC W33
24130CA W33	24130MB W33	24130CC W33
24132CA W33	24132MB W33	24132CC W33
24134CA W33	24134MB W33	24134CC W33
24136CA W33	24136MB W33	24136CC W33
24138CA W33	24138MB W33	24138CC W33
24140CA W33	24140MB W33	24140CC W33
24144CA W33	24144MB W33	24144CC W33
24148CA W33	24148MB W33	24148CC W33
24152CA W33	24152MB W33	24152CC W33
24156CA W33	24156MB W33	24156CC W33
24160CA W33	24160MB W33	24160CC W33
24164CA W33	24164MB W33	24164CC W33
24168CA W33	24168MB W33	24168CC W33
24172CA W33	24172MB W33	24172CC W33
24176CA W33	24176MB W33	24176CC W33
24180CA W33	24180MB W33	24180CC W33
24184CA W33	24184MB W33	24184CC W33
24188CA W33	24188MB W33	24188CC W33
24192CA W33	24192MB W33	24192CC W33
24196CA W33	24196MB W33	24196CC W33

FAQ
Q 1. What is your after-service warranty?
A: We promise to bear the following responsibility when defective product was found:
   a: 12 months warranty from the first day of receiving goods
   b: Replacements would be sent with goods of the next order
   c: Refound for defective products if customer required
Q 2. Do you provide free samples?
A: Yes, we provide free sample to distributor and wholesalers, howerver, cutomer should bear freight and we do not provide free sample to end user.
Q 3. What is your terms of payments?
A: a: 30% deposit 70% balance after see the photos before delivery for large orders
   b: 100% payment before delivery for small orders
Q 4. How long is the lead time?
A: The lead time for sample order is 3-5 days, for bulk order is 5-15 days.
Q 5. How to place orders?
A: a: Send inquiry to us in Alibaba directly.
   b: Send messages to us through Trademanager
   c: Send email to us
   d: Place order directly on Tradeassurance
