• Model NO.：ZKLDF100 ZKLDF120 ZKLDF150 ZKLDF200 ZKLDF260 ZKLDF
• Separated：Unseparated
• Precision：P4 P2
• Transport Package：Wooden Case
• Specification：100-600MM
• Trademark：AUTO
• Origin：China
• HS Code：8482500090
• Production Capacity：1000000PCS,Year

Basic Info.

Model NO. ZKLDF100 ZKLDF120 ZKLDF150 ZKLDF200 ZKLDF260 ZKLDF Separated Unseparated Precision P4 P2 Transport Package Wooden Case Specification 100-600MM Trademark AUTO Origin China HS Code 8482500090 Production Capacity 1000000PCS/Year

Product Description

Product description

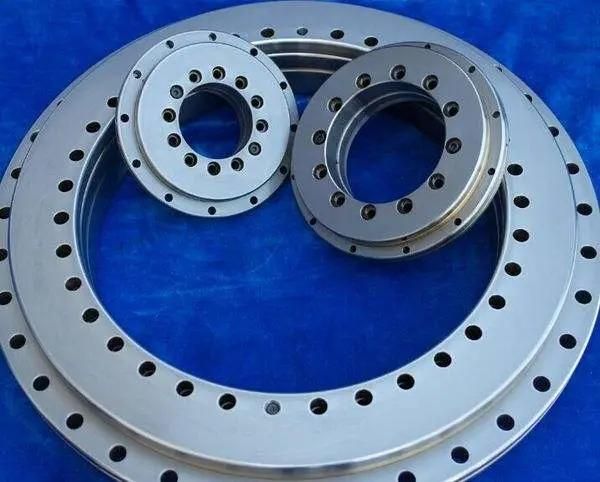

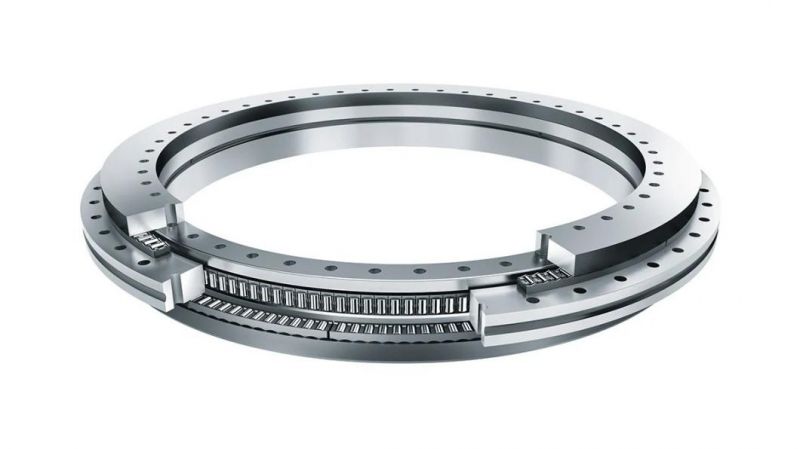

ZKLDF series thrust angular contact ball bearings include an integral outer ring, two inner rings and two sets of steel balls and cage components, with a contact angle of 60 degrees. The outer ring and inner ring are equipped with mounting holes to facilitate the installation and fixation of the bearing through the connecting bolts. The bearing itself is fixed by connecting bolts to ensure installation, transportation and handling. ZKLDF thrust angular contact ball series rotary table bearings have sealing covers on both sides to prevent the entry of external dirt and impurities and the leakage of internal grease. ZKLDF thrust angular contact ball series turntable bearings are lubricated with compound barium-based grease, and can also be relubricated through the oil hole on the outer ring. The ZKLDF thrust angular contact ball series turntable bearing adopts a two-way 60 degree contact angle and a double-row ball structure design, so it can bear radial load, two-way axial load and overturning moment; the special structure of the brass cage design makes it have higher strength , Low motor torque; therefore, this series of bearings are suitable for ultra-high speed, long-term operation and occasions with high requirements for rigidity and precision.

ZKLDF has low friction, high rotation accuracy, high limit speed, etc., can withstand high axial and radial loads and has high tilt rigidity. This kind of bearing is especially suitable for the field of complex load and precision, and is widely used in machine tool rotary tables, grinding heads and various test equipment.

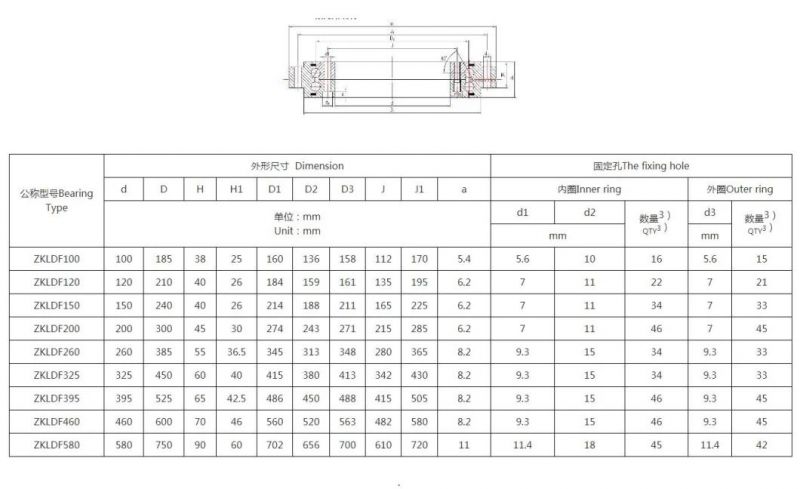

ZKLDF series thrust angular contact ball bearings

Company

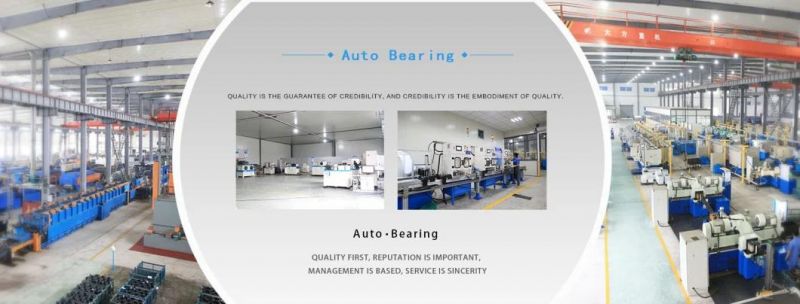

Luoyang Auto Bearing Co., Ltd. is located in the industrial park of Luoyang,which is one of the four great ancient capitals of China.Our company is the member of China Bearing Industry Association,cooperating with State Quality Supervision and Testing Center for bearing.Our company is a professional bearing manufacturer which integrated with research ,development and marketing services.


Our major products include deep groove ball bearing, spherical roller bearing, slewing ring, crossed roller bearing and other all kinds of high precision bearings.Our products are widely applied to motor industry,mining metallurgy,wind power generation,petroleum drilling,automobile and motorcycle etc..
Our company not only possesses advanced bearing manufacturing equipments and international first-class measuring instruments, but also has strong strength of manufacturing, inspecting and testing the high precision and reliability bearings.Each process is in strict accordance with the ISO9001 quality management system,which effectively guarantees the precise of products and stability of the performance. AUTO bearings are mainly exported to the United states,South Korea,Europe,etc., which have reached the high level of foreign similar products.
The soul of our business culture is [Detail makes competitive, innovation makes first-class".We believe the production and management philosophy of [quality wins ,casting competitive products".The company adheres to the zero-defect quality management for meeting customer requirements.

Packing

A. plastic box & outer carton & pallets
B. plastic bag & box & carton & pallet
C. tube package & middle box & carton & pallet
D. Depends on your needs

Delivery

A. Most orders will be shipped within 3-5 days of payment being received.
B. Samples will be shipped by cov2urier as FedEx,UPS,DHL,etc.

Thank you very much for taking time to view our company's website. If you are interested in this product, please feel free to contact us. We are always here.
