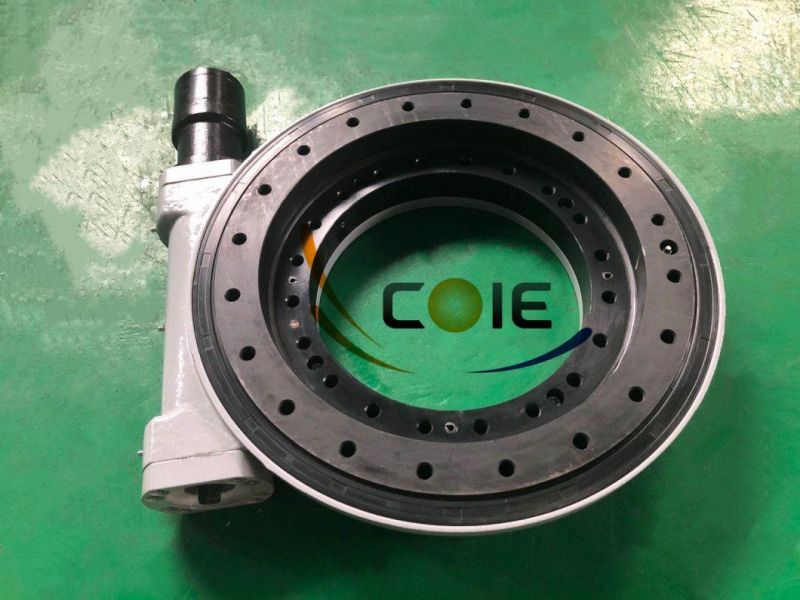

Sc17 Slewing Drive for Aerial Working Platform Turntable Slewing Bearing
Coresun Drive Equipment Changzhou Co., Ltd.- Material：42CrMo
- Holding Torque：72.3kn.M
- Tilting Moment Torque：135.6kn.M
- Output Torque：12.24kn.M
- Output Speed：1.47rpm
- Gear Ratio：102:1
Base Info
- Model NO.：SC17-102-25RH
- IP Class：IP65
- Static Axial Load：970kn
- Static Radial Laod：390kn
- Transport Package：Wooden Case
- Trademark：Coresun Drive
- Origin：Changzhou
- HS Code：8483409000
- Production Capacity：5000PCS,Month
Description
Slewing drive is consist of slewing bearing, worm shaft, housing, bearing, motor and so on. Motor drive the worm shaft, the outer ring of slewing bearing will rotate, the outer ring output the torque through flange while the inner ring of slewing bearing is fixed in housing.
Coresun Drive Slewing Drive Advantage:
1. Coresun Drive Slewing drive designed with hourglass worm shaft which provides more tooth contact and higher torque.
2. High transmission efficiency and accurate tracking
3. Easy installation and maintenance
4. Customized solution
5.Special heat treatment,corrosion resistance
Coresun is your reliable supplier, even more your sincere partner!

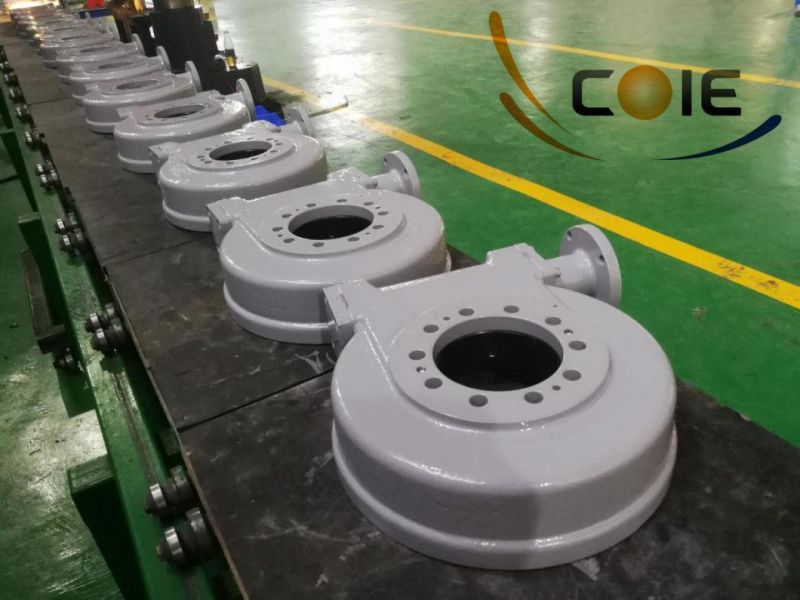

Coresun Drive Slewing Bearing Production Photo:

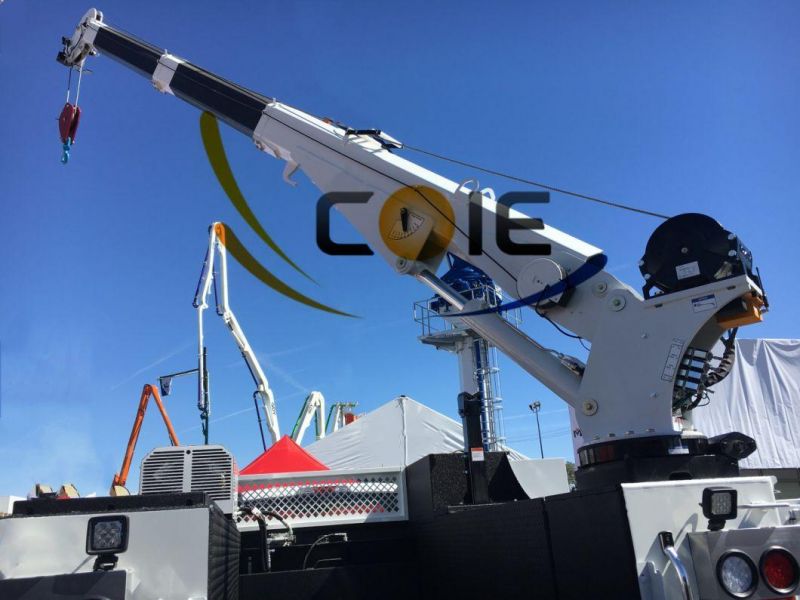

SC17 Slewing Drive Slewing Bearing Worm Gear Application:
