• Model NO.：Yrt460
• Type：No Gear
• Application 1：Machine Tool Turntable
• Application 2：Grinding Head
• Application 3：Testing Device
• Dimension Range：50-1030mm
• Limiting Speed：440-35r,Min
• Dynamic Rated Load：38-1080kn
• Static Rated Load：265-1860kn
• Transport Package：Cases and Pallets or as Customer′s Requirment
• Specification：customized
• Trademark：ZYS
• Origin：Luoyang, Henan, China
• HS Code：8482102000
• Production Capacity：200,Month

Overview Product Description

ZYS can offer YRT series, YRTS series, ZKLDF series, YRTM series, YRTSM series rotary table bearings. About the performance comparison of YRT, YRTS and ZKLDF series bearings with the same size, the limit speed of ZKLDF, YRTS, YRT series bearings decrease in turn while the overturning rigidity of YRTS, YRT and ZKLDF series bearings decrease sequentially. YRTM or YRTSM rotary table bearings add a set of angular displacement monitoring system on the basis of YRT or YRTS series bearings, to overcome the defect of open-loop control of diagonal displacement control, and realize closed-loop control of rotary table or indexing plate, greatly improving the positioning accuracy of angular displacement.

Product structure
Thrust / radial cylindrical roller bearings YRT and YRTS series are composed of two thrust roller bearings and one radial cylindrical roller bearing. Due to the special design of the internal structure of YRTS series bearing, higher limit speed can be achieved. Thrust angular contact ball bearings ZKLDF series consist of an integral outer ring, two inner rings and two sets of steel balls and cage assemblies. Its contact angle is 60, and it is especially for the conditions with high requirements on high speed, high axial and radial loads and overturning moment.

Product Features
ZYS turntable bearings are ready-to-install high-precision turntable bearings, suitable for occasions with high precision requirements and combined load. They can withstand radial loads, bidirectional axial loads and overturning moments with negative clearance. ZYS turntable bearings have the characteristics of high precision, high rigidity and high load capacity. In order to facilitate transportation and installation, screw holes are opened on the inner ring and the outer ring, and the entire set of bearings is fastened with positioning screws. The bearings are preloaded at the factory, and there is no need to adjust the clearance for installation.
 Product Parameters

Dimension table of YRT series rotary table bearing:

Detailed Photos



Our Advantages

ZYS was formerly known as Luoyang bearing research institute, which was founded in 1958 and was the only first-class comprehensive research institute in China bearing industry. As it became one member of China National Machinery Industry Corporation in 1999, the former institute was transformed into the science and technology enterprise. Then Luoyang Bearing Science & Technology Co., Ltd. Was established in 2001. It was listed at Shenzhen Stock Exchange with stock code 002046 in 2005.

ZYS Advantage

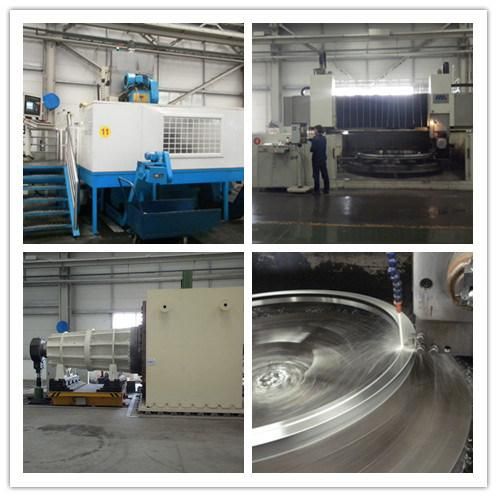

ZYS has a strong strength of manufacturing high-precision and high-reliability bearings and relevant parts. ZYS company not only possesses advanced bearing manufacturing equipments and international first-class measuring instruments, but also has strong strength of manufacturing, inspecting and testing the high-precision and high-reliability bearings and relevant spare parts. In the meantime, it always keeps a leading position in bearing basic theory, lubrication technology, design, material, test, information criterion and other aspects.


Glory
Top 200 most promising companies of China in Forbes
Top 500 in China Machinery Industry
Excellent Enterprise with China Well-know Trademark
High-performance Bearings Laboratory
State Quality Supervision and Testing Center for Bearing
ISO/TC4 China Secretariat
The Research Center for High-speed Precision Bearing Engineering in Machinery Industry...

Our Produts
High precision angular contact ball bearing
Precision spindle bearing
Hybrid ceramic bearing
Slewing bearing
Cylindrical roller bearing
Needle roller bearing
Taper roller bearing
Precision lathe bearing
Bearing measuring instrument
YRT rotary table bearing
High-frequency spindles
Dental drill bearing
Bearing ball
Bearing making machine...

Material: GCr15, 9Cr18, G20CrMo or others
Certificate: GB/T19001-2000(ISO9001: 2000), GJB/Z9001A-2001, GJB9001A-2001
