Best Price China Manufacturer Bearing Spherical Roller Bearing 21306 Cc/W33 with Sizes 30*72*19mm
Luoyang Bearing Research Institute Co., Ltd.- Rolling Body：Roller Bearings
- The Number of Rows：Double
- Outer Dimension：Medium and Large(120-190mm)
- Material：Bearing Steel
- Spherical：Aligning Bearings
- Load Direction：Radial Bearing
Base Info
- Model NO.：21306CC,W33
- Separated：Separated
- Breadth：90mm
- Inner Diameter：170mm
- Rated Load：Cr:865kn Cor:1420kn
- Weight：17.2kg
- Outer Diameter：260mm
- Transport Package：Cases and Pallets or as Customer′s Requirment
- Specification：customized
- Trademark：ZYS
- Origin：Luoyang, Henan, China
Description
ModelBoundary Dimensions (mm) Basic Load Rating (KN) Mass D D B C Co Kg 21307 21307K 21307W33 35 80 21 70.70 73.30 0.547 21308 21308K 21308W33 40 90 23 87.60 92.00 0.751 21309 21309K 21309W33 45 100 25 105.00 112.00 1.010 21310 21310K 21310W33 50 110 27 121.00 129.00 1.300 21311 21311K 21311W33 55 120 29 141.00 152.00 1.660 21312 21312K 21312W33 60 130 31 165.00 175.00 1.990 21313 21313K 21313W33 65 140 33 186.00 197.00 2.450 21314 21314K 21314W33 70 150 35 206.00 223.00 2.980 21315 21315K 21315W33 75 160 37 249.00 270.00 3.630 21316 21316K 21316W33 80 170 39 272.00 306.00 4.290 21317 21317K 21317W33 85 180 41 297.00 351.00 5.190 21318 21318K 21318W33 90 190 43 320.00 387.00 6.090 21319 21319K 21319W33 95 200 45 366.00 500.00 7.150 21320 21320K 21320W33 100 215 47 397.00 546.00 8.810 21322 21322K 21322W33 110 240 50 460.00 634.00 9.460 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min d D B rmin Cr Cor Current Original Kgs Grease Oil 150 225 56 2.1 338 768 23030 3003130 8.91 1700 2200 150 225 56 2.1 338 768 23030/W33 3003130Y 8.85 1700 2200 150 225 75 2.1 564 1040 24030CC/W33 10.5 1300 1700 150 250 100 2.1 890 1600 24130C 4053730 20.4 1000 1400 150 250 100 2.1 890 1600 24130C/W33 4053730Y 20 1000 1400 150 270 73 3 738 1100 22230C 53530 18.9 1600 2000 150 270 96 3 935 1520 23230C/W33 3053230Y 24.3 1100 1500 150 320 108 4 1270 1850 22330CA/W33 53630HY 41.7 1000 1400 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min d D B rmin Cr Cor Current Original Kgs Grease Oil 160 240 60 2.1 376 825 23032 3003132 13.5 1700 2200 160 240 60 2.1 376 825 23032/W33 3003132Y 13.4 1700 2200 160 240 80 2.1 652 1230 24032C 4053132 12.9 1100 1500 160 240 80 2.1 652 1230 24032C/W33 4053132Y 12.8 1100 1500 160 270 109 2.1 1040 1880 24132C 4053732 25.4 950 1300 160 270 109 2.1 1040 1880 24132C/W33 4053732Y 25 950 1300 160 290 80 3 658 1140 22232 3532 22.2 1500 1900 160 290 80 3 658 1140 22232/W33 3532Y 22.1 1500 1900 160 340 114 4 1170 1730 22332/W33 3632Y 49.9 950 1300 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min d D B rmin Cr Cor Current Original Kgs Grease Oil 170 260 67 2.1 450 1010 23034 3003134 14.7 1600 2000 170 260 67 2.1 450 1010 23034/W33 3003134Y 14.6 1600 2000 170 280 109 2.1 700 1200 24134/W33 - 27 1300 1700 170 310 86 4 22234 1300 170 310 86 4 730 1300 22234/W33 3534Y 27.2 1300 1700 170 310 110 4 1160 1835 23234CA 3053234H 37.1 950 1300 170 360 120 4 22334 950 170 360 120 4 1200 2060 22334/W33 3634Y 59.3 950 1300 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min d D B rmin Cr Cor Current Original Kgs Grease Oil 180 280 100 2.1 930 1820 24036 4003136 22.5 950 1300 180 280 100 2.1 930 1820 24036/W33 4003136Y 22.3 950 1300 180 300 96 3 695 1480 23136 3003736 27.1 1100 1500 180 300 96 3 695 1480 23136/W33 3003736Y 26.8 1100 1500 180 300 96 3 695 1480 23136/C9 3003736U 27.1 1100 1500 180 300 96 3 695 1480 23136/W33YA2 3003736KY 26.8 1100 1500 180 300 96 3 695 1480 23136N 3203736 26.4 1100 1500 180 320 86 4 750 1370 22236 3536 28.6 1300 1700 180 320 86 4 750 1370 22236/W33 3536Y 28.3 1300 1700 180 320 112 4 1280 2170 23236CA 3053236H 39.6 900 1200 180 320 112 4 1280 2170 23236CA/W33 3053236HY 39.5 900 1200 180 320 112 4 1280 2170 23236CA/W33YA2 3053236HKY 39.4 900 1200 180 380 126 4 1430 2210 22336 3636 80.7 900 1200 180 380 126 4 1430 2210 22336/W33 3636Y 79.9 900 1200 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min d D B rmin Cr Cor Current Original Kgs Grease Oil 190 280 67 2.5 542 978 2638 3738 13.7 1000 1400 190 290 75 2.1 626 1230 23038 3003138 20.5 1300 1700 190 290 75 2.1 626 1230 23038/W33 3003138Y 20.3 1300 1700 190 320 128 3 1200 2100 24138CA/W33 - 42 850 1100 190 340 92 4 1070 1650 22238CA 53538H 36 1200 1600 190 340 120 4 1410 2490 23238CA 3053238H 51 850 1100 190 400 132 5 1400 2530 22338 3638 80.6 850 1100 190 400 132 5 1400 2530 22338/W33 3638Y 79.7 850 1100 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min d D B rmin Cr Cor Current Original Kgs Grease Oil 200 310 82 2.1 655 1310 23040 3003140 26.2 1200 1600 200 310 82 2.1 655 1310 23040/W33 3003140Y 26 1200 1600 200 310 109 2.1 900 1830 24040CA/W33 - 30.5 1100 1500 200 340 112 3 930 2010 23140 3003740 50.9 950 1300 200 340 112 3 930 2010 23140/W33 3003740Y 50.5 950 1300 200 340 140 3 1530 2950 24140C 4053740 52 800 1000 200 340 140 3 1530 2950 24140C/W33 4053740Y 51.9 800 1000 200 360 98 4 940 1740 22240 3540 44.7 1100 1500 200 360 98 4 940 1740 22240/W33 3540Y 44.2 1100 1500 200 360 128 4 1000 1800 23240/W33 3003240Y 56.5 950 1300 200 420 114 4 1600 2600 22246 3546 69.5 750 950 200 420 138 5 1530 2720 22340 3640 95.3 850 1100 200 420 138 5 1530 2720 22340/W33 3640Y 95 850 1100 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min D B rmin Cr Cor Current Original Kgs Grease Oil 320 76 3 758 1280 2644 3844 21.6 1000 1400 370 120 4 1050 2350 23144 3003744 54 900 1200 370 120 4 1050 2350 23144/W33 3003744Y 53.5 900 1200 400 108 4 1200 2220 22244 3544 57.6 950 1300 400 108 4 1200 2220 22244/W33 3544Y 57.1 950 1300 400 144 4 2070 3620 23244 3003244 94.6 750 950 400 144 4 2070 3620 23244/W33 3003244Y 94.2 750 950 460 145 5 1700 3200 22344 3644 130 750 950 460 145 5 1700 3200 22344/W33 3644Y 129 750 950 mm Chamfer Basic Load Ratings Designation Weight r/min D B rmin Cr Cor Current Original Kgs Grease Oil 420 114 4 1600 2600 22246 3546 69.5 750 950 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min D B rmin Cr Cor Current Original Kgs Grease Oil 360 92 3 820 2060 23048 3003148 37.6 1000 1400 360 92 3 820 2060 23048/W33 3003148Y 37.4 1000 1400 360 118 3 1000 2200 24048CA/W33 - 41.7 900 1200 400 128 4 1200 2850 23148 3003748 77.2 850 1100 400 128 4 1200 2850 23148/W33 3003748Y 75.2 850 1100 400 160 4 2100 3980 24148/W33 4003748Y 81.6 480 600 440 120 4 1870 2890 22248 3548 85 900 1200 440 160 4 2490 4490 23248 3003248 128 670 850 440 160 4 2490 4490 23248/W33 3003248Y 127 670 850 500 155 5 1780 3250 22348 3648 154 670 850 500 155 5 1780 3250 22348/W33 3648Y 153 670 850 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min D B rmin Cr Cor Current Original Kgs Grease Oil 365 87 3 950 1650 2650 3750 32.2 1000 1400 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min D B rmin Cr Cor Current Original Kgs Grease Oil 360 57 2.1 800 1500 23952CA/W33 - 22.5 1000 1400 400 104 4 1000 2450 23052 3003152 51.5 900 1200 400 104 4 1000 2450 23052/W33 3003152Y 51.2 900 1200 400 140 4 1300 3000 24052CA/W33 - 64.4 850 1100 440 144 4 1450 3320 23152 3003752 96 800 1000 440 180 4 2660 5180 24152C/W33 4053752Y 113 800 1000 480 130 5 2160 3400 22252CA 53552H 105 850 1100 480 174 5 2800 4550 23252C/W33 3053252Y 140 630 800 480 174 5 2800 4550 23252CA 3053252H 151 630 800 480 174 5 2800 4550 23252CA/W33 3053252HY 151 630 800 490 153 4 2070 3650 2652 3752 140 670 850 540 165 6 2250 4190 22352 3652 193 630 800 540 165 6 2250 4190 22352/W33 3652Y 192 630 800 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min D B rmin Cr Cor Current Original Kgs Grease Oil 380 75 2.1 800 1500 23956CA/W33 3113956Y 24.5 900 1200 420 106 4 1100 2680 23056 3003156 62 850 1100 420 106 4 1100 2680 23056/W33 3003156Y 61.5 850 1100 420 140 4 1200 2800 24056CA/W33 - 67.2 800 1000 460 146 5 1590 3630 23156 3003756 95.5 750 950 460 180 5 2000 4100 24156CA/W33 - 119 750 950 500 130 5 1690 3380 22256 3556 126 800 1000 500 130 5 1690 3380 22256/W33 3556Y 124 800 1000 500 176 5 2880 4900 23256 3003256 153 600 750 500 176 5 2880 4900 23256/W33 3003256Y 152 600 750 580 175 6 3500 5150 22356 3656 238 600 750 580 175 6 3500 5150 22356/W33 3656Y 238 600 750 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min D B rmin Cr Cor Current Original Kgs Grease Oil 460 118 4 1260 3070 23060 3003160 75.2 800 1000 460 118 4 1260 3070 23060/W33 3003160Y 74.6 800 1000 460 160 4 2360 5010 24060C/W33 4053160Y 101 600 750 500 160 5 2670 4800 23160 3003760 134 670 850 500 160 5 2670 4800 23160/W33 3003760Y 133 670 850 500 200 5 3100 5800 24160C 4053760 160 530 670 500 200 5 3100 580 24160C/W33 4053760Y 159 530 670 540 140 5 2610 4250 22260 3560 143 750 950 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min D B rmin Cr Cor Current Original Kgs Grease Oil 440 90 3 1060 2390 23964K 3113964 45.1 900 1200 480 121 4 1380 3260 23064 3003164 81.5 800 1000 480 121 4 1380 3260 23064/W33 3003164Y 80.9 800 1000 480 160 4 2440 5050 24064 4003164 103 560 700 540 218 5 3550 6650 24164 4003764 252 480 600 540 218 5 3550 6650 24164/W33 4003764Y 251 480 600 580 208 5 3900 6900 23264 3003264 260 500 630 580 208 5 3900 6900 23264/W33 3003264Y 259 500 630 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min D B rmin Cr Cor Current Original Kgs Grease Oil 460 90 3 1330 2840 23968 3003968 50.5 900 1200 520 133 5 1580 3810 23068 3003168 109 700 900 520 133 5 1580 3810 23068/W33 3003168Y 109 700 900 520 180 5 2920 6050 24068/W33 4003168Y 160 530 670 580 190 5 3200 6200 23168/W33 300368Y 207 500 630 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min D B rmin Cr Cor Current Original Kgs Grease Oil 480 90 3 1130 2710 23972 3003972 49.1 850 1100 540 134 5 1750 4180 23072 3003172 114 670 850 540 134 5 1750 4180 23072/W33 3003172Y 114 670 850 540 180 5 2930 6100 24072C 4053172 149 500 630 540 180 5 2930 6100 24072C/W33 4053172Y 148 500 630 600 192 5 3800 7100 23172 3003772 222 560 700 600 192 5 3800 7100 23172/W33 3003772Y 221 560 700 600 243 5 4300 8000 24172 4003772 333 430 530 600 243 5 4300 8000 24172CA/W33 4003772HY 338 430 530 750 224 7.5 4180 7500 22372 3672 494 340 430 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min D B rmin Cr Cor Current Original Kgs Grease Oil 520 106 4 1870 4100 23976 3003976 73.5 800 1000 560 135 5 2500 5100 23076 3003176 122 630 800 620 194 5 2680 6240 23176 3003776 244 400 500 620 194 5 2680 6240 23176/W33 3003776Y 243 400 500 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min D B rmin Cr Cor Current Original Kgs Grease Oil 590 142 6 2290 4420 2680 3880 145 400 500 600 148 5 2970 5900 23080 3003180 165 600 750 600 148 5 2970 5900 23080/W33 3003180Y 165 600 750 650 200 6 4150 7900 23180 3003780 239 380 480 650 250 6 4500 8900 24180 - 326 340 430 650 200 6 4150 7900 23180/W33 3003780Y 238 380 480 720 256 6 5800 10400 23280 3003280 530 340 430 720 256 6 5800 10400 23280/W33 3003280Y 530 340 430
About ZYS
Luoyang Bearing Research Institute Co., Ltd. is a high-tech enterprise specializing in the development of "High-end, precise, advanced, unique, Non-standard" bearing products for the key units in various fields of national economic construction. Its predecessor, Luoyang Bearing Research Institute, was established in 1958. It is the only state-level comprehensive research institute in China's bearing industry. In 1999, it entered China National Machinery Industry Group Co., Ltd. and transformed into a science and technology enterprise.
ZYS Precision Bearing Quality Control and Assurance:

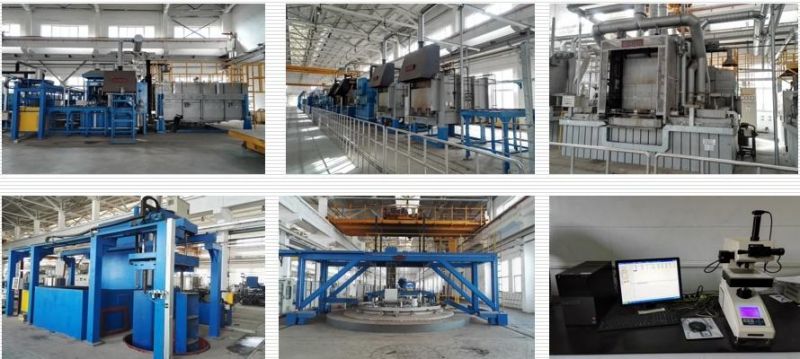

Austrian AICHELIN heat treatment equipment and long-life heat treatment process provide a strong guarantee for the continuous and reliable operation of bearings.

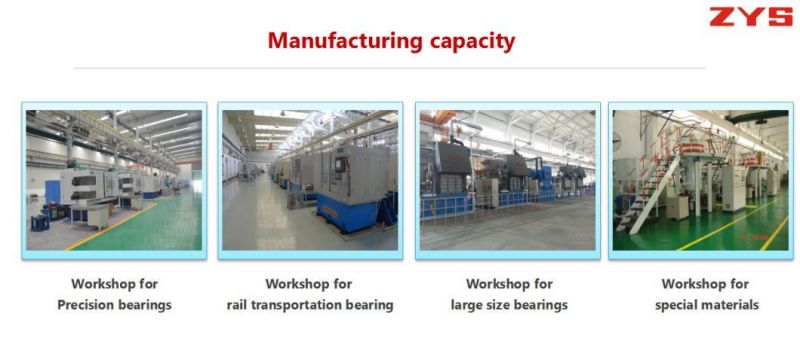

ZYS MANUFACTURING CAPACITY
ZYS Quality assurance

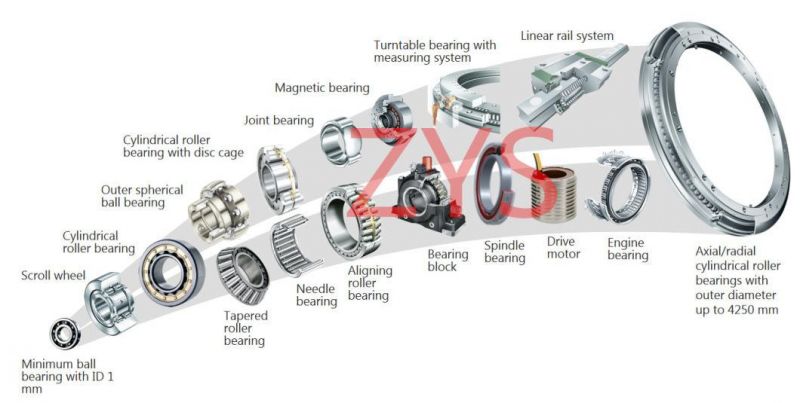

ZYS bearing products
ZYS Packing :
FAQ:
Q: Are you trading company or manufacturer?
A: ZYS is bearing manufacturer, the only first-class comprehensive research institute in China bearing industry.
Q: How do you control quality of bearing?
A: ZYS has established quality control systems for each kind of bearing and spindle. All products and services passed ISO9001-2008 Quality Certificate.
Q: What is the MOQ?
A: It depends on the bearing type. You can send inquiry or send e-mail for more information.
Q: How about the package?
A: Industrial packing in general condition (Plastic tube+ carton+ pallet). Accept design package when OEM.
Q: How long is the delivery time?
A: It will take about 10 to 40 days, depends on the model and quantity.
Q: How about the shipping?
A: We can arrange the shipment or you may have the forwarder.
Q: Is sample avaiable?
A: Yes, sample order is acceptable.
Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable. We can design the bearing with your requirements and use your own LOGO and package design.
