- Model NO.：760202
- Inner Diameter：15mm
- Outer Diameter：35mm
- Dynamic Load：12.5kn
- Static Load：15kn
- Limit Speed ：15000(R,Min)
- Bearing Type：Angular Contact Thrust Bearing
- Features 1：High Precision, High Speed
- Features 2：High Axial Stiffness, Low Friction
- Application 1：Ball Bearing Lead Screw
- Application 2：Precision CNC Machine Tools
- Transport Package：Industrial Package
- Specification：standard
- Trademark：ZYS or neutral
- Origin：China
- HS Code：8482990000
- Production Capacity：50000
Rated load (KN)Limit speed
(r/min) | MAX axial
load (KN) | Preload
(KN) | Friction
torque
(N.mm) | Weight
(kg) | | | d | D | B | rsmin | a | Ca | Coa | Grease | | | | |
| 760201 | 12 | 32 | 10 | 0.6 | 24 | 11.6 | 12.5 | 17000 | 5.2 | 1.4 | 15 | 0.04 |
| 760202 | 15 | 35 | 11 | 0.6 | 27 | 12.5 | 15 | 15000 | 6.3 | 1.4 | 20 | 0.05 |
| 760203 | 17 | 40 | 12 | 0.6 | 31 | 16.6 | 20 | 13000 | 8.5 | 1.7 | 30 | 0.07 |
| 760204 | 20 | 47 | 14 | 1.0 | 36 | 19.3 | 25 | 12000 | 10.6 | 2.3 | 50 | 0.13 |
| 760205 | 25 | 52 | 15 | 1.0 | 41 | 22 | 30.5 | 11000 | 13.2 | 2.5 | 65 | 0.16 |
| 760206 | 30 | 62 | 16 | 1.0 | 48 | 26 | 39 | 9000 | 17.0 | 2.9 | 85 | 0.24 |
| 760207 | 35 | 72 | 17 | 1.1 | 55 | 30 | 50 | 8000 | 21.2 | 3.3 | 115 | 0.34 |
| 760208 | 40 | 80 | 18 | 1.1 | 62 | 37.5 | 64 | 7000 | 28.0 | 4.3 | 170 | 0.44 |
| 760209 | 45 | 85 | 19 | 1.1 | 66 | 38 | 68 | 6700 | 28.0 | 4.5 | 190 | 0.50 |
| 760210 | 50 | 90 | 20 | 1.1 | 71 | 39 | 75 | 6300 | 31.5 | 4.6 | 230 | 0.57 |
| 760211 | 55 | 100 | 21 | 1.5 | 78 | 40.5 | 81.5 | 6000 | 33.5 | 4.9 | 250 | 0.75 |
| 760212 | 60 | 110 | 22 | 1.5 | 86 | 56 | 112 | 5000 | 47.5 | 6.5 | 350 | 0.96 |
| 760213 | 65 | 120 | 23 | 1.5 | 92 | 57 | 122 | 4800 | 50.0 | 7.0 | 410 | 1.20 |
| 760214 | 70 | 125 | 24 | 1.5 | 96 | 65.5 | 137 | 4500 | 56.0 | 7.0 | 440 | 1.32 |
| 760215 | 75 | 130 | 25 | 1.5 | 101 | 67 | 150 | 4300 | 63.0 | 7.6 | 480 | 1.45 |
| 760216 | 80 | 140 | 26 | 2.0 | 108 | 76.5 | 175 | 4000 | 75.0 | 8.9 | 600 | 1.76 |
| 760217 | 85 | 150 | 28 | 2.0 | 116 | 86.5 | 196 | 3800 | 85.0 | 10.5 | 760 | 2.19 |
| 760218 | 90 | 160 | 30 | 2.0 | 123 | 98 | 224 | 3600 | 100 | 11.0 | 790 | 2.69 |
| 760219 | 95 | 170 | 32 | 2.1 | 131 | 110 | 255 | 3400 | 112 | 12.5 | 950 | 3.26 |
| 760220 | 100 | 180 | 34 | 2.1 | 138 | 122 | 285 | 3200 | 125 | 14.0 | 1100 | 3.91 |
| 760222 | 110 | 200 | 38 | 2.1 | 153 | 146 | 355 | 2800 | 153 | 16.4 | 1400 | 5.5 |
| 760224 | 120 | 215 | 40 | 2.1 | 165 | 176 | 425 | 2600 | 185 | 20.6 | 2000 | 6.5 |
| 760226 | 130 | 230 | 40 | 3.0 | 176 | 180 | 455 | 2400 | 200 | 20.6 | 2100 | 7.4 |
| 760304 | 20 | 52 | 15 | 1.1 | 39 | 24.5 | 32 | 11000 | 14.0 | 2.9 | 60 | 0.17 |
| 760305 | 25 | 62 | 17 | 1.1 | 46 | 28.5 | 41.5 | 9000 | 18.0 | 3.3 | 85 | 0.28 |
| 760306 | 30 | 72 | 19 | 1.1 | 53 | 34.5 | 55 | 8000 | 23.6 | 4.3 | 130 | 0.41 |
| 760307 | 35 | 80 | 21 | 1.5 | 60 | 36.5 | 61 | 7000 | 26.5 | 4.8 | 170 | 0.55 |
| 760307X3 | 35 | 90 | 23 | 1.5 | 68 | 50 | 83 | 6300 | 35.5 | 5.6 | 225 | 0.81 |
| 760308 | 40 | 90 | 23 | 1.5 | 68 | 50 | 83 | 6300 | 35.5 | 5.6 | 225 | 0.76 |
| 760309 | 45 | 100 | 25 | 1.5 | 75 | 58.5 | 104 | 5600 | 45.0 | 7.0 | 300 | 1.02 |
| 760309X3 | 45 | 110 | 27 | 2.0 | 83 | 69.5 | 127 | 5000 | 53.0 | 7.6 | 360 | 1.41 |
| 760310 | 50 | 110 | 27 | 2.0 | 83 | 69.5 | 127 | 5000 | 53.0 | 7.6 | 360 | 1.33 |
| 760311 | 55 | 120 | 29 | 2.0 | 90 | 78 | 146 | 4800 | 63.0 | 8.8 | 460 | 1.69 |
| 760312 | 60 | 130 | 31 | 2.1 | 98 | 88 | 166 | 4500 | 75.0 | 10.0 | 540 | 2.12 |
| 760313 | 65 | 140 | 33 | 2.1 | 1.5 | 100 | 196 | 4000 | 90.0 | 12.0 | 700 | 2.60 |
| 760314 | 70 | 150 | 35 | 2.1 | 113 | 110 | 220 | 3800 | 95.0 | 12.0 | 760 | 3.16 |
| 760315 | 75 | 160 | 37 | 2.1 | 120 | 125 | 255 | 3600 | 118.0 | 14.5 | 920 | 3.79 |
| 760319 | 80 | 170 | 39 | 2.1 | 128 | 137 | 285 | 3400 | 132.0 | 16.0 | 1100 | 4.50 |
| 760320 | 100 | 215 | 47 | 3.0 | 160 | 193 | 430 | 2600 | 212.0 | 21.5 | 1700 | 8.73 |
| 760322 | 110 | 240 | 50 | 3.0 | 176 | 250 | 560 | 2400 | 265.0 | 29.3 | 2500 | 11.8 |
| 760324 | 120 | 260 | 55 | 3.0 | 192 | 265 | 620 | 2200 | 280.0 | 31.3 | 2750 | 14.6 |
| 760326 | 130 | 280 | 58 | 3.0 | 206 | 290 | 695 | 2000 | 305.0 | 33.7 | 3100 | 18.7 |
| Aviation Cargo Systems | Industrial Mixers & Shakers |
| Aerospace Wing Actuators | Intrusion Detection Systems |
| Anemometer | Material Handling Rollers |
| ATMs & Card Readers | Medical Actuator |
| Bicycles | Medical Diagnostic Equipment |
| Commercial Blenders | Medical Imaging Equipment |
| Dental Hand Tools | Medical Laser Surgery |
| Electrical Motors | Medical Surgical Tools |
| Engines | Off Highway Cranes |
| Escalators and Elevators | Optical Encoders |
| Fishing Reels | Plastic Card Printers |
| Flight Support Systems | Power Hand Tools |
| Flow Meters | Printing Rollers |
| Galvanometers | Roller Doors |
| Gas Engine Pull Start Assembly | Scissor & Platform Lifts |
| Gas Meters | Sensors & Potentiometers |
| Gas Powered Motors | Solar Panels Actuators |

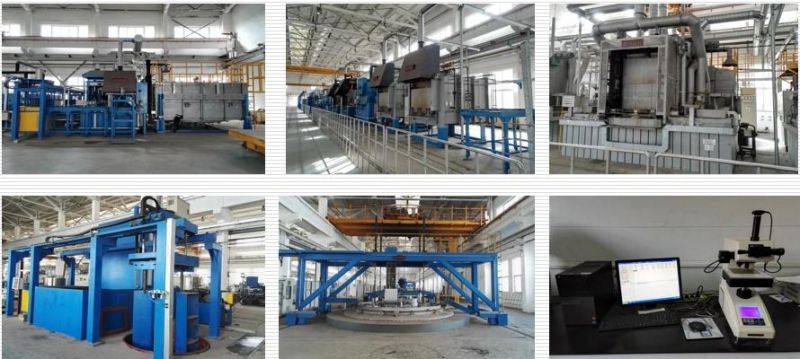

ZYS Precision Bearing Quality Control and Assurance:
Austrian AICHELIN heat treatment equipment and long-life heat treatment process provide a strong guarantee for the continuous and reliable operation of bearings.
ZYS Quality assurance
FAQ:
Q: Are you trading company or manufacturer?
A: ZYS is bearing manufacturer, the only first-class comprehensive research institute in China bearing industry.
Q: How do you control quality of bearing?
A: ZYS has established quality control systems for each kind of bearing and spindle. All products and services passed ISO9001-2008 Quality Certificate.
Q: What is the MOQ?
A: It depends on the bearing type. You can send inquiry or send e-mail for more information.
Q: How about the package?
A: Industrial packing in general condition (Plastic tube+ carton+ pallet). Accept design package when OEM.
Q: How long is the delivery time?
A: It will take about 10 to 40 days, depends on the model and quantity.
Q: How about the shipping?
A: We can arrange the shipment or you may have the forwarder.
Q: Is sample avaiable?
A: Yes, sample order is acceptable.
Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable. We can design the bearing with your requirements and use your own LOGO and package design.
