• Model NO.：UCP211-32
• Company Scale：70000 Sqm
• Size：mm,Inch
• Steel Ball Grade：G10
• Sealling：Dual Seal,Triple Seal,F Seal
• Transport Package：Single Color Box Packing
• Specification：ABEC-1, P0
• Trademark：FKD HHB
• Origin：Hebei China.
• HS Code：84832000
• Production Capacity：30000PCS,Day

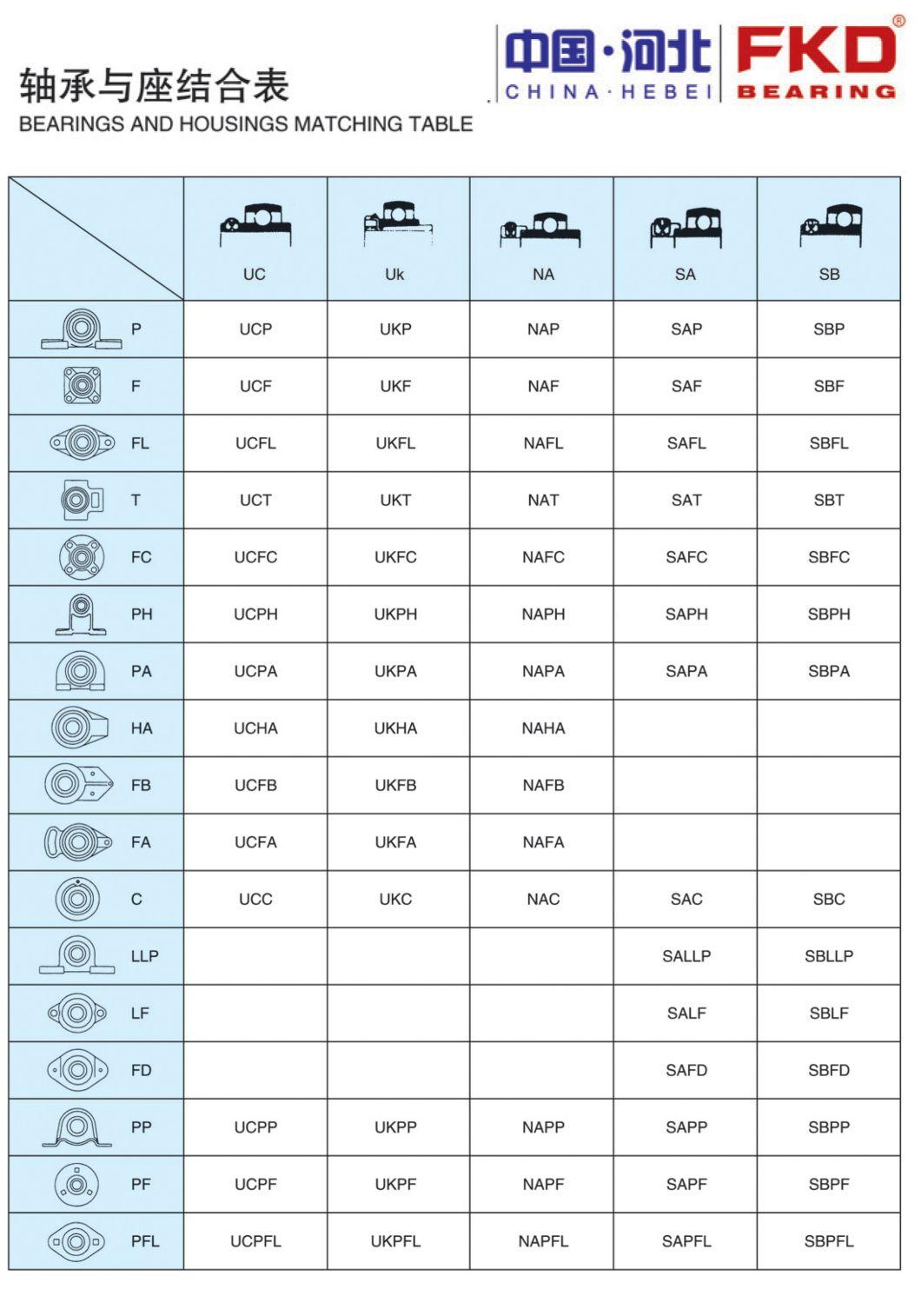

CAST IRON & PRESSED STEEL PILLOW BLOCKS       UCP Pillow Blocks - Reinforced Ears Set Screw Locking UCP UCPA Metric Tap Base Pillow Block Set Screw Locking UCPA HCPA Metric Tap Base Pillow Block Eccentric Collar Lock HCPA       4 Bolt Square UCF Flange, Wide Inner Ring Insert Bearings Set Screw Locking UCF 4 Bolt Square SBF Flange, Narrow Inner Ring Insert Bearings Set Screw Locking SBF 4 Bolt Square SAF Flange, Narrow Inner Ring Insert Bearings Eccentric Collar Lock SAF 4 Bolt Square FS Flange, Wide Inner Ring Insert Bearings Eccentric Collar Lock                Set Screw Pressed Steel Pillow Block    Eccentric Collar Pressed Steel Pillow Block          4 Bolt Round UCFCS Flange, Wide Inner Ring Insert Bearings Set Screw Locking    4 Bolt Round UCFC Flange, Wide Inner Ring Insert Bearings Set Screw Locking    4 Bolt Round HCFC Flange, Wide Inner Ring Insert Bearings Eccentric Collar Lock          2 Bolt Diamond SBFD Flange, Narrow Inner Ring Insert Bearings Set Screw Locking SBFD 2 Bolt Diamond SAFD Flange, Narrow Inner Ring Insert Bearings Eccentric Collar Lock SAFD                   2 Bolt Diamond SBLF Flange, Narrow Inner Ring Insert Bearings Set Screw Locking SBLF 2 Bolt Diamond SALF Flange, Narrow Inner Ring Insert Bearings Eccentric Collar Lock SALF 2 Bolt Diamond UCFL Flange, Wide Inner Ring Insert Bearings Set Screw Locking UCFL 2 Bolt Diamond SBFL Flange, Narrow Inner Ring Insert Bearings Set Screw Locking SBFL 2 Bolt Diamond SAFL Flange, Narrow Inner Ring Insert Bearings Eccentric Collar Lock SAFL             Wide Slot Take-Up UCST, Wide Inner Ring Insert Bearing Set Screw Locking UCST Wide Slot Take-Up HCST, Wide Inner Ring Insert Bearing Eccentric Collar Lock HCST Wide Slot Take-Up SAST, Narrow Inner Ring Insert Bearing Eccentric Collar Lock SAST       Metric Slot Take-Up UCT, Wide Inner Ring Insert Bearing Set Screw Locking UCT Metric Slot Take-Up HCT, Wide Inner Ring Insert Bearing Eccentric Collar Lock HCT Metric Slot Take-Up SAT, Narrow Inner Ring Insert Bearing Eccentric Collar Lock SAT       3 Bolt Flange Bracket UCFB, Wide Inner Ring Bearing Set Screw Locking UCFB Cast Iron Hanger Ball Bearing Units UCHA Set Screw Locking UCHA Cast Iron Adjustable Flange Units UCFA Set Screw Locking UCFA       3 Bolt Round SBPF Pressed Steel Flangette Set Screw Locking SBPF 3 Bolt Round SAPF Pressed Steel Flangette Eccentric Collar Lock SAPF 4 Bolt Round SBPF Pressed Steel Flangette Set Screw Locking SBPF 4 Bolt Round SAPF Pressed Steel Flangette Eccentric Collar Lock SAPF 2 Bolt Diamond SBPFL Pressed Steel Flangette Set Screw Locking SBPFL 2 Bolt Diamond SAPFL Pressed Steel Flangette Eccentric Collar Lock SAPFL 3 Bolt Triangle SBPFT Pressed Steel Flangette Set Screw Locking SBPFT 3 Bolt Triangle SAPFT Pressed Steel Flangette Eccentric Collar Lock SAPFT       UC Normal Duty Wide Inner Ring Set Screw Insert Bearing UC HC Normal Duty Wide Inner Ring Eccentric Insert Bearing HC SB Light Duty Narrow Inner Ring Set Screw Insert Bearing SB SA Light Duty Narrow Inner Ring Eccentric Insert Bearing SA       SSUC Normal Duty Wide Inner Ring Set Screw Insert Bearing SSUC SSSB Light Duty Narrow Inner Ring Set Screw Insert Bearing SSSB       SER Cylindrical OD Wide Inner Ring Set Screw Insert Bearing SER CSB Light Duty Narrow Inner Ring Set Screw Insert Bearing CSB CSA Light Duty Narrow Inner Ring Eccentric Insert Bearing CSA Design

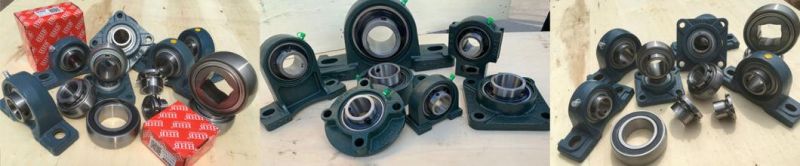

Cast Iron Mounted Bearing Units
FKD Cast Iron Mounted Bearing Units are manufactured UNDER ISO9001 certified facilities.FKD Mounted Bearing Unit housings are made from high strength cast iron. The housings are designed with normal/solid base construction and reinforced bolt hole areas. FKD Mounted Bearing Unit product line is available in many different housing styles with various attachment methods and positions.
The insert bearings' inner ring, outer ring and balls are produced using vacuum degassed 52100 bearing steel. These components are heat treat hardened to produce a durable wear surface on the balls and ball tracks. FKD uses cold rolled steel for ball retainers and shields.
The insert bearing features a labyrinth sealing system that is comprised of a metal backed nit rile rubber excluder seal that is designed to keep grease in and contaminants out. The seal is protected by steel flinger installed in front of the seal contact surface with the inner ring. This flinger, due to centrifugal force during bearing rotation, effectively slings moisture and contaminants away from the seal area. The seal is designed to allow used grease to purge past the seal into the channel between the seal and the flinger when new lubricant is carefully replenished.
All FKD Mounted Bearing Units are factory lubricated using GREAT WALL grease with about 30-40% grease fill.

Relubrication
Lubrication
Insert bearings in FKD Cast Iron Mounted Bearing Units have sufficient high-grade grease installed after assembly. There is no need for replenishment during initial operation in new installations. FKD bearing units normal grease content is about one third to one half of the internal space inside the bearing.
Re-greasing
The performance of a bearing is greatly influenced by the quality and quantity of the grease. FKD recommends GREAT WALL/ SHELL grease. In order to avoid over filling, it is advisable to replenish the grease in small amounts. A hand grease gun should only require a few pumps per bearing for most sizes and conditions. Over lubrication is a major cause of bearing failure. Over filling can increase heat build-up in the bearing during operation which can lead to premature failure. Over filling can dislodge seals and flingers from their mounting position thereby interfering with the rotation of the bearing or destroying the integrity of the seal.
FKD bearings are lubricated with GREAT WALL from the factory. The grease used for replenishment should be checked for compatibility before application.
Lubrication Intervals
Bearing units are generally relubricatable from the factory. Depending on the operating conditions, relubrication on the bearings is not always necessary where environments are clean and temperatures are low. It is normal to see a small amount of grease at the edge of the flinger during and after operation. Grease deteriorates overtime and should be replenished. Lubrication intervals are a function of the environmental conditions coupled with the operating temperature. General lubrication intervals are shown in THE ACCOMPANYING CHART. There is no substitution for recommendations by the equipment manufacturer and/or observation by operators to determine the appropriate lubrication cycles.

Company Profile

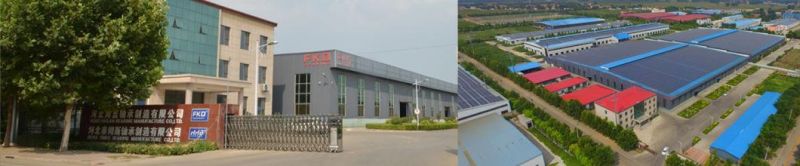

Hebei Hailan Bearing Manufacture Co., Ltd( was originally founded in 1988 as Xingtai Honghai Bearing Manufacture Co., Ltd)  is the most professional manufactuer of Pillow Block Bearings in the north of China.It is located in  LinXi county, HeBei Province, China, the hometown of bearing.

The company mainly produces UC, HC, UK, SER, SA, SB, AGRI-BEARING and various of bearings, and all kinds of bearing housings P, F,  FC, FL, T , CC, pH, PA, FA, FB, HA, LF,ect.

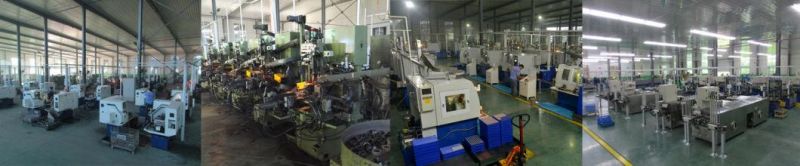

Advanced CNC, grinding and assembly equipment ensures the precision .
Professional testing laboratory strickly test and control the quality of raw materials and finished products.

FKD Bearings constantly promote the quality, expand the market.
Products have exported to North Amercia, South Amercia, Eastern Europe, Southeast Asia, Africa, Middle East, Eastern Asia, Western Europe more than 40 countries and regions.
