• Model NO.：HS7019
• Loading Rating(Kn)：Cr:35.5-37.6 Cor:40.6-43.0
• Limiting Speed(R/Min)：Grease:10000-11000 Oil:15000-18000
• Weight：1.40kg
• Breadth：24mm
• Rolling Body：Ball Bearings
• The Number of Rows：Single
• Outer Dimension：Medium and Large(120-190mm)
• Transport Package：Cases and Pallets or as Customer′s Requirment
• Trademark：ZYS
• Origin：Luoyang, Henan, China

Basic Info.

Model NO. HS7019 Loading Rating(Kn) Cr:35.5-37.6 Cor:40.6-43.0 Limiting Speed(R/Min) Grease:10000-11000 Oil:15000-18000 Weight 1.40kg Breadth 24mm Rolling Body Ball Bearings The Number of Rows Single Outer Dimension Medium and Large(120-190mm) Transport Package Cases and Pallets or as Customer′s Requirment Trademark ZYS Origin Luoyang, Henan, China

Product Description

Bearing dimensions and technical parameters

       The ZYS precision angular contact ball bearings for spindles, have four size series,718,719,70 and 72. Withthe same inner diameter, the outer diameters and the widths of 718,719,70 and 72 series increase in turn.
     ZYS precision angular contact ball bearing with 15 ° (C) and 25 ° (AC) contact angles. As for the angular contact ball bearings, the bigger the contact angle is, the greater the axial load capacity is, but the lower the limited speed of bearings becomes. Therefore ,the spindle, with high speed and small axial load ,should adopt the 15 ° angular contact ball bearings,whereas the 25 ° angular contact ball bearing should be adopted.

 Types and performances of angular contact ball bearings

     ZYS precision angular contact ball bearings with high-speed angular contact bearings (standard series), super-speed angular contact ball bearings, high-speed sealed angular contact ball bearings and high-speed spindle bearings.

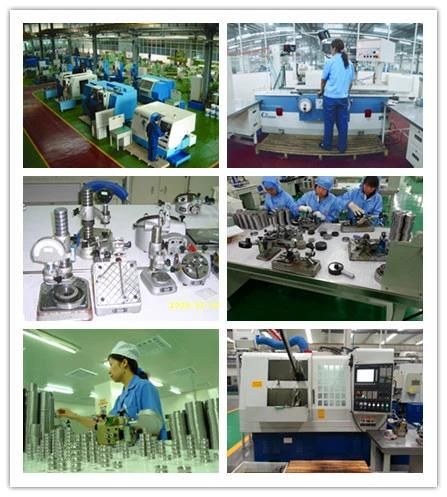

Precision ball bearing workshop

ZYS Luoyang Bearing Science And Technology Co.,ltd.

ZYS Tenet: To lead the science and technology development of bearing industry and to improve the world'sequipment level.ZYS Spirit: To keep continuous improvement, to pursue brilliance.ZYS Core values: Integrity, rigor, innovation, mutual benefit.

      ZYS was formerly known as Luoyang bearing research institute, which was founded in 1958 and was the only first-class comprehensive research institute in China bearing industry. As it became one member of China National Machinery Industry Corporation in 1999, the former institute was transformed into the science and technology enterprise. Then Luoyang Bearing Science & Technology Co., Ltd. was established in 2001. It was listed at Shenzhen Stock Exchange with stock code 002046 in 2005.


   ZYS Advantage         ZYS has a strong strength of manufacturing high-precision and high-reliability bearings and relevant parts. ZYS company not only possesses advanced bearing manufacturing equipments and international first-class measuring instruments,but also has strong strength of manufacturing,inspecting and testing the high-precision and high-reliability bearings and relevant spare parts.In the meantime,it always keeps a leading position in bearing basic theory,lubrication technology,design,material,test,information criterion and other aspects.   Glory

Top 200 most promising companies of China in Forbes

Top 500 in China Machinery Industry

Excellent Enterprise with China Well-know Trademark

High-performance Bearings Laboratory

State Quality Supervision and Testing Center for Bearing

ISO/TC4 China Secretariat

The Research Center for High-speed Precision Bearing Engineering in Machinery Industry

......


      We would like to and ready to do business with any company from all over the world.If any of ZYS products interests you or if you have interests in ZYS company,please don't hesitate to contact with us,we would like to give you ZYS best quality service any day any time !



  Contact us



Address: No.1 Jilin Road, Luoyang City, Henan, Province, China.

Zip Code:471039

Website:chinazys.en.made-in-china.com



OTHER HOT SALE PRODUCTS

High precision angular contact ball bearing                   Precision spindle bearing

Hybrid ceramic bearing                                                       Slewing bearing

Cylindrical roller bearing                                                      Needle roller bearing

Taper roller bearing                                                              Precision lathe bearing

Bearing measuring instrument                                          YRT rotary table bearing

High-frequency spindles                                                     Dental drill bearing

Bearing ball                                                                           Bearing making machine

etc.

Material:   GCr15,9Cr18,G20CrMo or others

Certificate:  GB/T19001-2000(ISO9001:2000),  GJB/Z9001A-2001,  GJB9001A-2001
