• Model NO.：6302
• Structure：Deep Groove
• Type：Ball
• Bore Size：17 - 17.001 mm mm
• Feature：Rolling Smoothly,Quiet,Long Time Sustainable Worki
• Lubrication：Oil Grease
• Application：Automotive.Tractor.Construction Machinery.Rolling
• Transport Package：Plastic Bag + Single Box Packing + Carton Box + PA
• Specification：many specifications
• Trademark：CITICTIC
• Origin：Luoyang, China
• HS Code：8482102000
• Production Capacity：300000 Pieces,Year

Basic Info.

Model NO. 6302 Structure Deep Groove Type Ball Bore Size 17 - 17.001 mm mm Feature Rolling Smoothly,Quiet,Long Time Sustainable Worki Lubrication Oil Grease Application Automotive.Tractor.Construction Machinery.Rolling Transport Package Plastic Bag + Single Box Packing + Carton Box + PA Specification many specifications Trademark CITICTIC Origin Luoyang, China HS Code 8482102000 Production Capacity 300000 Pieces/Year

Product Description

High Precision Deep Groove Ball Bearing


Deep groove ball bearing are the most widely used type. It is characterized by low frictional resistance and high speed. The basic deep groove ball bearing consists of an outer ring, an inner ring, a set of steel balls and a set of cages. The deep groove ball structure is divided into two types: sealed and open. Deep groove ball bearing type code is 6(6000,6200,6300,6400,6700,6800,6900.)
 6300 Series ball bearings


model number	d(mm)	D(mm)	B(mm)	W(kg)
6300	10	35	11	0.0524
6301	12	37	12	0.0586
6302	15	42	13	0.082
6303	17	47	14	0.109
6304	20	52	15	0.142
6305	25	62	17	0.23
6306	30	72	19	0.34
6307	35	80	21	0.453
6308	40	90	23	0.636
6309	45	100	25	0.825
6310	50	110	27	1.05
6311	55	120	29	1.36
6312	60	130	31	1.67
6313	65	140	33	2.08
6314	70	150	35	2.55
6315	75	160	37	3.02
6316	80	170	39	3.6
6317	85	180	41	4.22
6318	90	190	43	4.91

Range Of Application
Deep groove ball bearings are widely used in automobiles, machine tools, motors, instrumentation, construction machinery, railway vehicles, agricultural machinery and various equipment industry machinery.

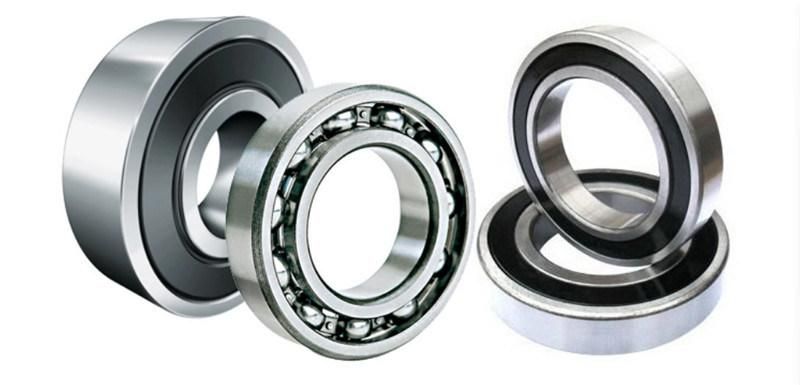

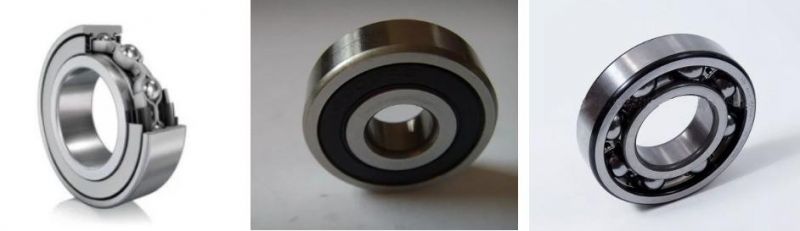

Details Images



Product description:

Bearings	Deep groove ball bearing 6203 ZZ 2RS size 17x40x12
Quality Grade	P0,P6,P5,P4,P2
Feature	High Precision, High Speed and Rust Proof
Model No	6203ZZ/2RS
Dimension(mm)	17x40x12mm
Material	GCR-15
Sealed Type	ZZ,2RS,N,NR,M
Clearance	C0,C2,C3,C4,C5
Vibration	Z1,Z2,Z3
Noise	V1,V2,V3
Application	Deep groove ball bearings widely used all kinds of industries.

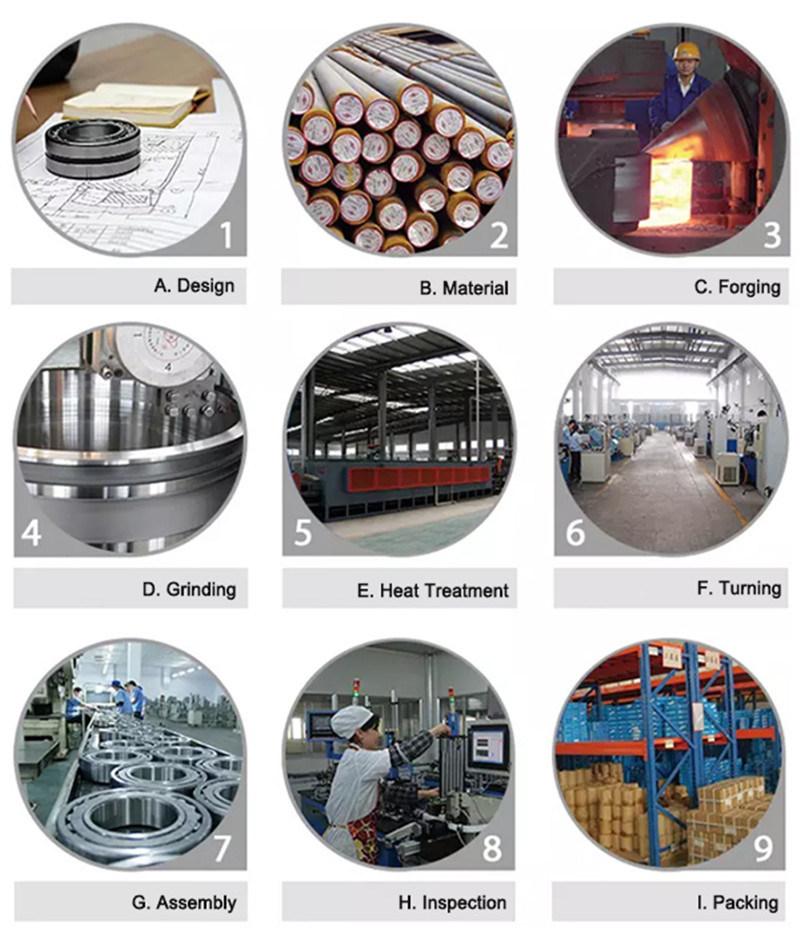

Production Process

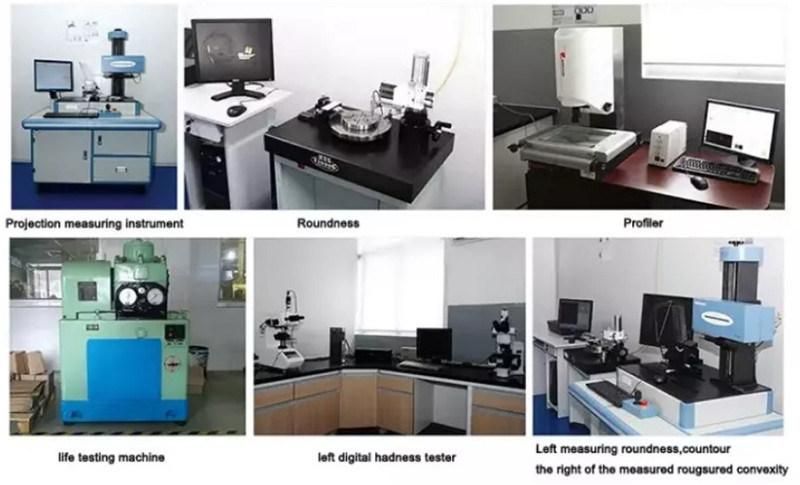

Detection



Product packaging
1.industrial packing+industrial cartons+pallets
2.single brand box+brand cartons+pallets
3.follow customer's requests
A.Plastic Tubes or Single Boxes ( Usually 10pcs in one plastic tube for steel bearings);
B.Cartons ( No more than 30kg for one carton );
C. Pallet ( Usually more than 400kg totally will use pallet )
D. Delivery time :7-35 days ( by sea or by air )
Generally, We will choose the most suitable packing method for products. If you have any special requirements for packing, please contact us in advance.

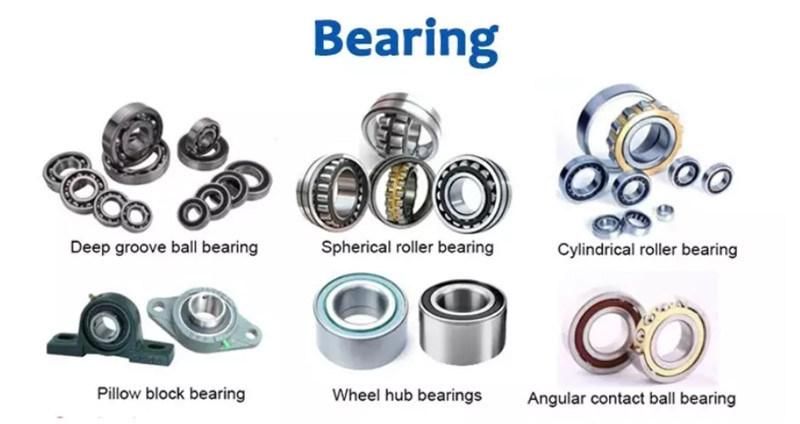

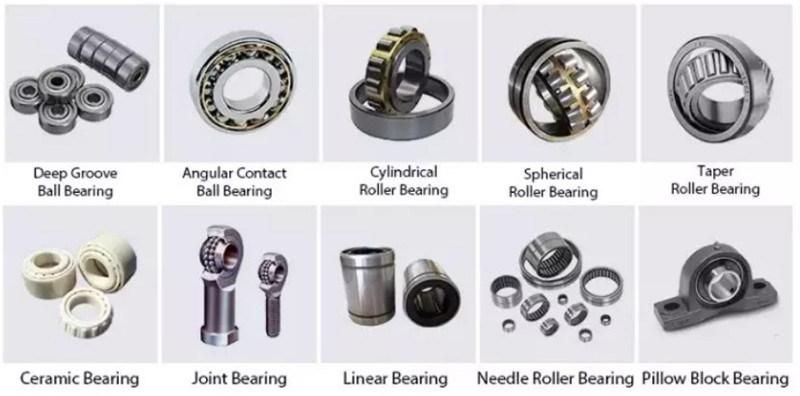

Our Products
