• Model NO.：71802AC-2RZP4
• Cage Material：Phenolic Resin
• Application：High Speed
• Accuracy：P5 or ABEC-5
• Transport Package：Single Package
• Specification：15*28*7mm
• Trademark：ZYS
• Origin：China
• HS Code：8482103000
• Production Capacity：50000 PCS,Year

Basic Info.

Model NO. 71802AC-2RZP4 Cage Material Phenolic Resin Application High Speed Accuracy P5 or ABEC-5 Transport Package Single Package Specification 15*28*7mm Trademark ZYS Origin China HS Code 8482103000 Production Capacity 50000 PCS/Year

Product Description

Precision angular contact ball bearing

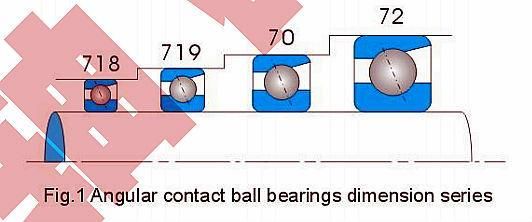

The ZYS precision angular contact ball bearings for spindles, have four size series,718,719,70 and 72. With the same inner diameter, the outer diameters and the widths of 718,719,70 and 72 series increase in turn.
.

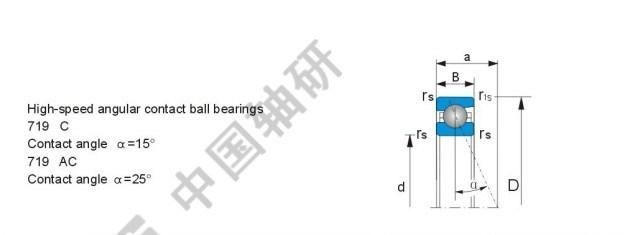

ZYS precision angular contact ball bearing with 15 ° (C) and 25 ° (AC) contact angles. As for the angular contact ball bearings, the bigger the contact angle is, the greater the axial load capacity is, but the lower the limited speed of bearings becomes. Therefore ,the spindle, with high speed and small axial load ,should adopt the 15 ° angular contact ball bearings,whereas the 25 ° angular contact ball bearing should be adopted.
ZYS precision angular contact ball bearings with high-speed angular contact bearings (standard series), super-speed angular contact ball bearings, high-speed sealed angular contact ball bearings and high-speed spindle bearings.

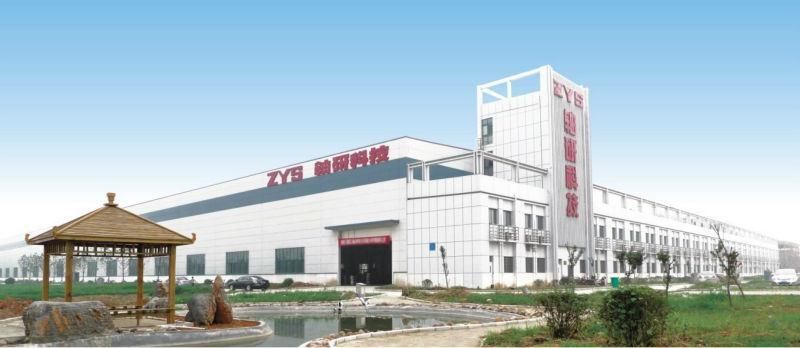

ZYS was formerly known as Luoyang bearing research institute, which was founded in 1958 and was the only first-class comprehensive research institute in China bearing industry. As it became one member of China National Machinery Industry Corporation in 1999, the former institute was transformed into the science and technology enterprise. Then Luoyang Bearing Science & Technology Co., Ltd. Was established in 2001. It was listed at Shenzhen Stock Exchange with stock code 002046 in 2005.


ZYS Advantage
ZYS has a strong strength of manufacturing high-precision and high-reliability bearings and relevant parts. ZYS company not only possesses advanced bearing manufacturing equipments and international first-class measuring instruments, but also has strong strength of manufacturing, inspecting and testing the high-precision and high-reliability bearings and relevant spare parts. In the meantime, it always keeps a leading position in bearing basic theory, lubrication technology, design, material, test, information criterion and other aspects.


Glory
Top 200 most promising companies of China in Forbes
Top 500 in China Machinery Industry
Excellent Enterprise with China Well-know Trademark
High-performance Bearings Laboratory
State Quality Supervision and Testing Center for Bearing
ISO/TC4 China Secretariat
The Research Center for High-speed Precision Bearing Engineering in Machinery Industry...


We would like to and ready to do business with any company from all over the world. If any of ZYS products interests you or if you have interests in ZYS company, please don't hesitate to contact with us, we would like to give you ZYS best quality service any day any time!
