Bearing

Light Series Flange Type Swing Bearing Slewing Ring Bearing 282.30.1275.013

Luoyang Huayang Special Heavy-Duty and Large Bearing Manufacturing Co., Ltd.
  • Contact Angle:45°
  • Aligning:Non-Aligning Bearing
  • Separated:Separated
  • Rows Number:Single
  • Load Direction:Radial Bearing
  • Material:50mn or 42CrMo4

Base Info

  • Model NO.:282.30.1275.013
  • Brand:Lyhy
  • Custom Design:Available
  • Company History:Since Year 1993
  • Delivery Time:25-30days
  • Testing:in House or Third Party
  • Warranty:1year
  • Forging Hardness:Hb229-269
  • Transport Package:Wooden Box
  • Specification:ISO2001: 9008
  • Trademark:LYHY
  • Origin:China
  • HS Code:848210900
  • Production Capacity:6000PCS Per Year

Description

Flanged Slewing Bearing with internal gear232.20.0400.013 (Type 21/520.2)232.20.0400.503 (Type 21/520.2)232.21.0475.013  (Type 21/520.2)282.30.0900.013 (Type 110/1100.2)282.30.0975.013 (Type 110/1100.2)232.20.0500.013 (Type 21/650.2)232.20.0500.503 (Type 21/650.2)232.21.0575.013  (Type 21/650.2)282.30.1000.013 (Type 110/1200.2)282.30.1075.013 (Type 110/1200.2)232.20.0600.013 (Type 21/750.2)232.20.0600.503 (Type 21/750.2)232.21.0675.013  (Type 21/750.2)282.30.1100.013 (Type 110/1300.2)282.30.1175.013 (Type 110/1300.2)232.20.0700.013 (Type 21/850.2)232.20.0700.503 (Type 21/850.2), 232.21.0775.013  (Type 21/850.2)282.30.1200.013 (Type 110/1400.2)282.30.1275.013 (Type 110/1400.2)232.20.0800.013 (Type 21/950.2)232.20.0800.503 (Type 21/950.2)232.21.0875.013  (Type 21/950.2)282.30.1300.013 (Type 110/1500.2)282.30.1375.013 (Type 110/1500.2)232.20.0900.013 (Type 21/1050.2)232.20.0900.503 (Type 21/1050.2)232.21.0975.013  (Type 21/1050.2)282.30.1400.013 (Type 110/1600.2)282.30.1475.013 (Type 110/1600.2)232.20.1000.013 (Type 21/1200.2)232.20.1000.503 (Type 21/1200.2)232.21.1075.013  (Type 21/1200.2)  Why choose LYHY slewing bearings
A pioneer in slewing bearing field, rich experience, can do design, produce, mounting guide
Small order accepted
ISO certified company
Variorum models
7*24hours hotline to help you with your cranes
Strict quality control system to ensure quality for slewing bearing

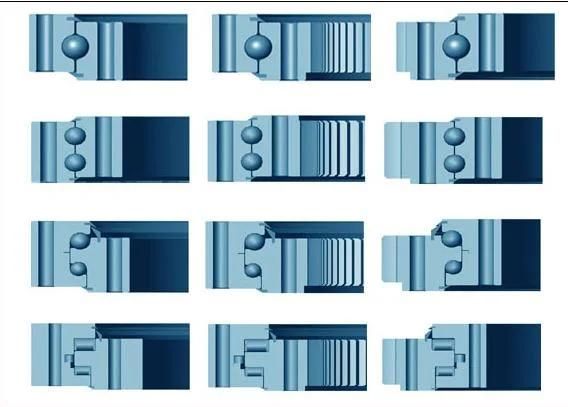

LYHY Slewing Bearing Types
LYHY slewing bearings can be divided into the following types as per  their structures:
single row four point contact ball slewing bearing,
single row cross roller slewing bearing,
double row different ball diameter slewing bearing,
three row cylindrical roller slewing bearing and roller/ball combination slewing bearing.
And all these types of slewing bearings can be further divided into bearings without gears, bearings with external gears and bearings with internal gears.
Light Series Flange Type Swing Bearing Slewing Ring Bearing 282.30.1275.013



Detailed description of these types slewing bearings

Single row four point contact ball slewing bearings
     This kind of slewing bearings can support high dynamic loads, transmitting axial and radial forces simultaneously as well as the resulting tilting moments. Applications of this kind of bearings are hoisting, mechanical handling and general mechanical engineering etc.
Single row cross roller slewing bearings
     This kind of bearings can support combinations of large radial force, medium axial force and tilting moment with small or zero clearance. Main applications of this kind of bearings are hoisting and mechanical handling and general mechanical engineering etc.
Double row different ball diameter slewing bearings
     This kind of bearings can support high static loads with simple structures. They are mainly used in situations with variation load position and direction and continuously rotating. Main applications of this kind of bearings are deck hoisting, mining and material handling etc.
Triple row cylindrical roller slewing bearings
     This kind of bearings has high load carrying capacity. Under same loads, this kind of bearings has much smaller diameters which can make the installation much compact, as different kinds of loads are supported by different races and rollers. Main applications of this kind of bearings are hoisting, mechanical handling, mining and materials handling, offshore technology and general mechanical engineering etc.
Roller/ball combination slewing bearings
     This kind of bearings can support high axial load and low tilting moments. Usually they are large diameter slewing bearings. Applications of this kind of bearings are mining and materials handling etc.

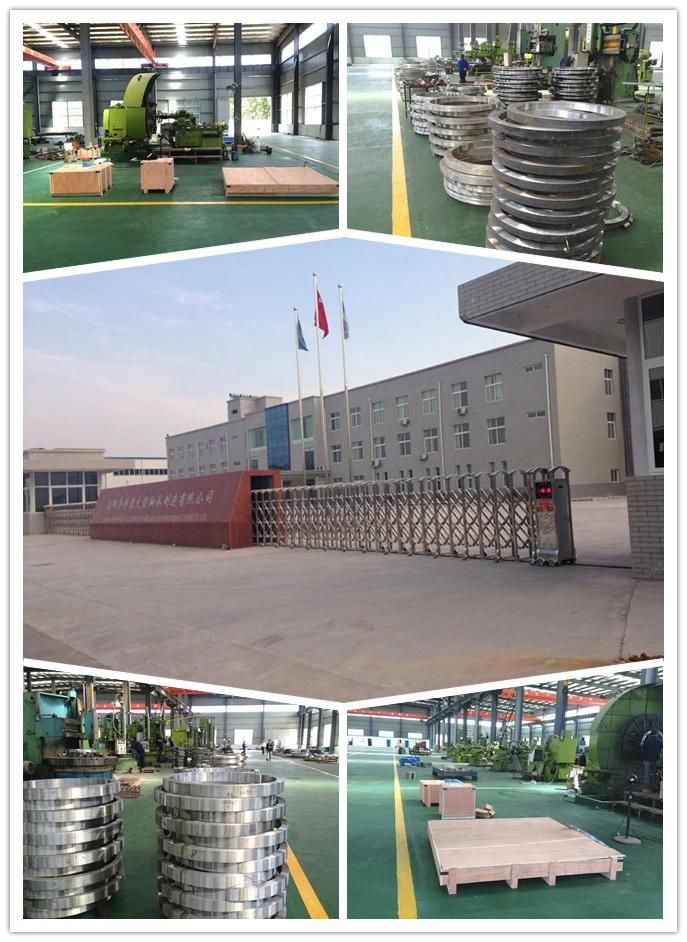

About LYHY bearings
1.introduction:we are a manufacturer of slewing bearing since 1993, our factory occupies a area of 30000square meters with 4 workshop and 1 office building.
2. Featured products: slewing bearing and slewing drive
3. Capital: Current is 1 million RMB, but we are increasing the capital to 10 million RMB
4. Workers: 40
5. Certificate: ISO9001:2008, 3.1 certificate, CCS certificate, Science and Technology Progress Award
6. Annual Exportation: 8million USD
7. Exported countries: (39)
Asia: India, Pakistan, Iran, Signore, Georgia, Malaysia, Vietnam, Thailand, Philippines, Israel, Korea, UAE, Sri Lanka, Saudi Arabia,
Europe: Turkey, Russia, Spain, Czech Republic, Italy, Poland, Slovakia, Bosnia and Herzegovina, Austria, France, Germany, Switzerland, Finland, Ukraine, UK
America: USA, Canada, Mexico, Brazil, Puerto Rico, Peru, Chile
Africa: South Africa, Egypt
Oceania: Australia

Light Series Flange Type Swing Bearing Slewing Ring Bearing 282.30.1275.013

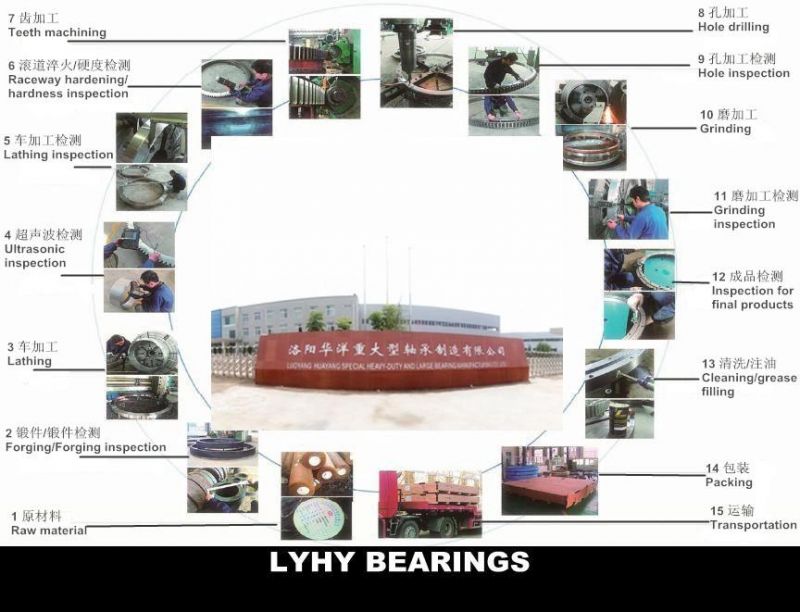

Production Process of LYHY slewing bearings
Light Series Flange Type Swing Bearing Slewing Ring Bearing 282.30.1275.013

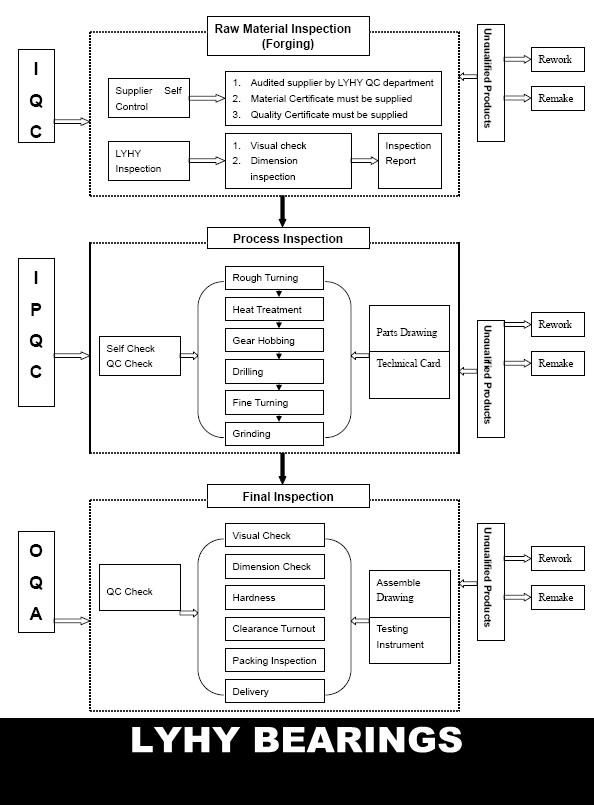

Quality Control Process of LYHY slewing bearings
Light Series Flange Type Swing Bearing Slewing Ring Bearing 282.30.1275.013

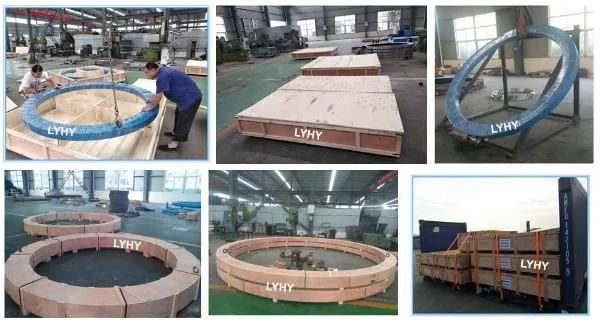

LYHY Slewing Bearing Packing
Bearing surface is covered with the anti-rust oil first; and then wrapped with the plastic film;
And then packed with kraft paper and professional belts;
At last, with wooden box totally at the outer packing to invoid the rust or the moist;
We can depend on the customers  demand to be packed;
Light Series Flange Type Swing Bearing Slewing Ring Bearing 282.30.1275.013


Transportation:
All LYHY slewing ring bearings can be usually delivered timely, usual production time is 15-50 days based on different slew bearings diameters, sometimes slew rings will be in stock.
Slewing bearings can be offered different delivery terms, such as EXW, FOB, CIF, DDU and so on.
Also, slewing rings can be transported by different transport ways, by express (such as DHL, TNT, UPS, FEDEX and so on), by air, by sea, by truck, by railway and so on.

Light Series Flange Type Swing Bearing Slewing Ring Bearing 282.30.1275.013

Slewing Ring Bearings------Applications:
Slewing ring bearings are widely used in industry and known as "the machine joints" Here under is the specific slewing bearing applications
1. Construction machinery (e.g. cranes, excavators, loader, scraper)
2. Metallurgical machinery (e.g. for steel plant)
3. Heavy machinery equipment (e.g. mining machinery, concrete machinery)
4. Marine machinery equipment (e.g. vessel, port hoisting machine, port oil transfer equipment, onshore and offshore crane)
5. Light machinery equipment (e.g. paper machine, plastic, rubber machine, weave machine)
6. Wind power generator
7. Military products (e.g. aerospace machinery)
8. Packing machinery

Light Series Flange Type Swing Bearing Slewing Ring Bearing 282.30.1275.013




FAQ:

Q: Are LYHY BEARINGS trading company or manufacturer?
A: LYHY BEARINGS is a professional manufacturer for slewing bearings, thin section bearings, ball bearings and rolling bearings


Q: How do LYHY BEARINGS control quality of their bearing?
A: LYHY BEARINGS has established strict quality control systems, all the products and services has passed ISO9001-2008 Quality Certificate and third party such as CCS, LR,ABS,BV


Q: What is the MOQ?
A: MOQ is 1pc, pls message us for detailed information.

Q: How about the package for LYHY bearings?
A: Standard Industrial packing in general condition (Plastic tube+ professional plastic beltsplywood case). Accept design package when OEM.

Q: How long is the production time?
A: It takes about 7-40 days, depends on the model and quantity.

Q: How about the shipping?
A: We can arrange the shipment or you may have your own forwarder.

Q: Is sample available?
A: Yes, sample order is acceptable.

Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable for LYHY BEARINGS. We can design as per your requirements and use your own LOGO and package design.
