Bearing

Home > Product > Ball Bearing

Slewing Bearing with Phosphorization Surface Treatment

Luoyang Huayang Special Heavy-Duty and Large Bearing Manufacturing Co., Ltd.
  • Contact Angle：45°
  • Aligning：Non-Aligning Bearing
  • Separated：Unseparated
  • Rows Number：Single
  • Load Direction：Radial Bearing
  • Material：50mn

Base Info

  • Model NO.：010.30.560
  • Brand：Lyhy
  • Custom Design：Available
  • Company History：Since 1993
  • Testing：in House
  • Gear Hardness：HRC50-55
  • Rolling Body：Roller Bearings
  • The Number of Rows：Multi-Column
  • Spherical：Non-Aligning Bearings
  • Outer Dimension：200-6500mm
  • Transport Package：Wooden Box
  • Specification：need to be discussed
  • Trademark：LYHY
  • Origin：Luoyang City, China
  • HS Code：848210900
  • Production Capacity：10PCS,Month

Description

M42012.50.4500014.50.4500
Why choose LYHY slewing bearings
A pioneer in slewing bearing field, rich experience, can do design, produce, mounting guide
Small order accepted
SO certified company
Variorum models
7*24hours hotline to help you with your cranes
Strict quality control system to ensure quality for slewing bearing

LYHY Slewing Bearing Types
LYHY slewing bearings can be divided into the following types as per  their structures:
single row four point contact ball slewing bearing,
single row cross roller slewing bearing,
double row different ball diameter slewing bearing,
three row cylindrical roller slewing bearing and roller/ball combination slewing bearing.
And all these types of slewing bearings can be further divided into bearings without gears, bearings with external gears and bearings with internal gears.

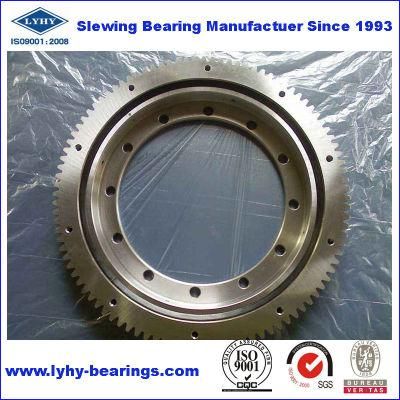

Slewing Bearing with Phosphorization Surface Treatment
Detailed description of these types slewing bearings

Single row four point contact ball slewing bearings
     This kind of slewing bearings can support high dynamic loads, transmitting axial and radial forces simultaneously as well as the resulting tilting moments. Applications of this kind of bearings are hoisting, mechanical handling and general mechanical engineering etc.
Single row cross roller slewing bearings
     This kind of bearings can support combinations of large radial force, medium axial force and tilting moment with small or zero clearance. Main applications of this kind of bearings are hoisting and mechanical handling and general mechanical engineering etc.
Double row different ball diameter slewing bearings
     This kind of bearings can support high static loads with simple structures. They are mainly used in situations with variation load position and direction and continuously rotating. Main applications of this kind of bearings are deck hoisting, mining and material handling etc.
Triple row cylindrical roller slewing bearings
     This kind of bearings has high load carrying capacity. Under same loads, this kind of bearings has much smaller diameters which can make the installation much compact, as different kinds of loads are supported by different races and rollers. Main applications of this kind of bearings are hoisting, mechanical handling, mining and materials handling, offshore technology and general mechanical engineering etc.
Roller/ball combination slewing bearings
     This kind of bearings can support high axial load and low tilting moments. Usually they are large diameter slewing bearings. Applications of this kind of bearings are mining and materials handling etc.

About LYHY bearings
1.introduction:we are a manufacturer of slewing bearing since 1993, our factory occupies a area of 30000square meters with 4 workshop and 1 office building.
2. Featured products: slewing bearing and slewing drive
3. Capital: Current is 1 million RMB, but we are increasing the capital to 10 million RMB
4. Workers: 40
5. Certificate: ISO9001:2008, 3.1 certificate, CCS certificate, Science and Technology Progress Award
6. Annual Exportation: 8million USD
7. Exported countries: (39)
Asia: India, Pakistan, Iran, Signore, Georgia, Malaysia, Vietnam, Thailand, Philippines, Israel, Korea, UAE, Sri Lanka, Saudi Arabia,
Europe: Turkey, Russia, Spain, Czech Republic, Italy, Poland, Slovakia, Bosnia and Herzegovina, Austria, France, Germany, Switzerland, Finland, Ukraine, UK
America: USA, Canada, Mexico, Brazil, Puerto Rico, Peru, Chile
Africa: South Africa, Egypt
Oceania: Australia
Slewing Bearing with Phosphorization Surface Treatment

Production Process of LYHY slewing bearings
Slewing Bearing with Phosphorization Surface Treatment

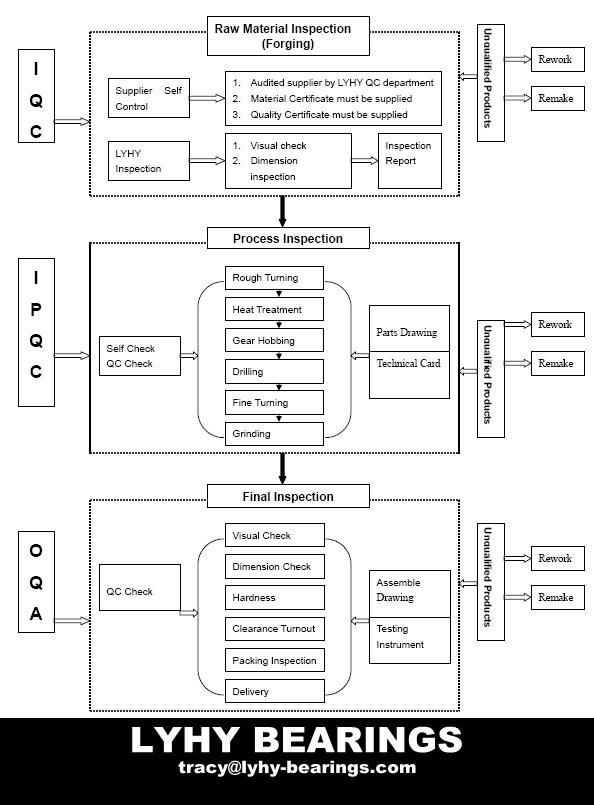

Quality Control Process of LYHY slewing bearings

Slewing Bearing with Phosphorization Surface Treatment
