Zys Csk20PP Sprag Clutch One Way Bearing with Keyways From Ball Bearing Supplier

Luoyang Bearing Research Institute Co., Ltd.
  • Contact Angle:15°
  • Aligning:Non-Aligning Bearing
  • Separated:Separated
  • Rows Number:Single
  • Load Direction:Radial Bearing
  • Material:Bearing Steel

Base Info

  • Model NO.:CSK20PP
  • Accuracy Class:P2,P5,P6
  • Sealing Type:Sealed or Not
  • Clearance:C0, C2, C3
  • Developing Ability:Customer′s Drawing or Samples Accepted
  • Feature:Low Noise High Speed Long Life Durable
  • Transport Package:Cases and Pallets or as Customer′s Requirment
  • Specification:customized
  • Trademark:ZYS
  • Origin:Luoyang, Henan, China
  • HS Code:848360009
  • Production Capacity:50000PCS Per Month

Description

Overview Product Description

ZYS One Way Bearings are divided into open type and sealed type. The keyway can be machined on the inner ring and outer ring.

ZYS freewheel clutch is mainly used in such applications as speed conversion, reversal preventing, intermittent movement and etc. Working principle is to use friction generated by wedge, spring and such compression elements to transmit torque.

Features:
Small size, transmitting high torque, smooth combining, high slip combining, working without noise, etc.
 Product Parameters

Technical parameters of ZYS one way clutches:

Fitted outer raceway diameter: φ 30mm~φ 150mm
Fitted inner raceway diameter: φ 10mm~φ 120mm
Minimum mounting width: 15mm~30mm
Rated torque: 60N. M~4000N. MType  Size Bearing series              Bearing loadsWeight  Drag torque dynamicstaticdTKN1)nmaxDLbtCC0TR[mm][Nm][min-1][mm][mm][mm][mm][kN][kN][kg][Ncm]CSK..P 1262019.3100003210  6.12.770.040.71562021784003511  7.43.420.060.91762033073504012  7.93.80.071.12062045060004714  9.44.460.111.32562058552005215  10.75.460.14230620613842006216  11.76.450.214.435620717536007217  12.67.280.35.840-32530008022  15.5412.250.57CSK..PP 156202178400351120.67.43.420.060.91762033073504012217.93.80.071.1206204506000471431.59.44.460.111.325620585520052156210.75.460.142306206138420062166211.76.450.214.43562071753600721782.512.67.280.35.840-3253000802210315.5412.250.57CSK..P-2RS       12-9.3100003214  6.12.770.05315-1784003516  7.43.420.07417-3073504017  7.93.80.095.620-5060004719  9.44.460.145625-8552005220  10.75.460.175630-13842006221  11.76.450.277.535-17536007222  12.67.280.48.240-32530008027  15.5412.250.610 Detailed PhotosCertifications

ZYS Quality assurance
Zys Csk20PP Sprag Clutch One Way Bearing with Keyways From Ball Bearing Supplier

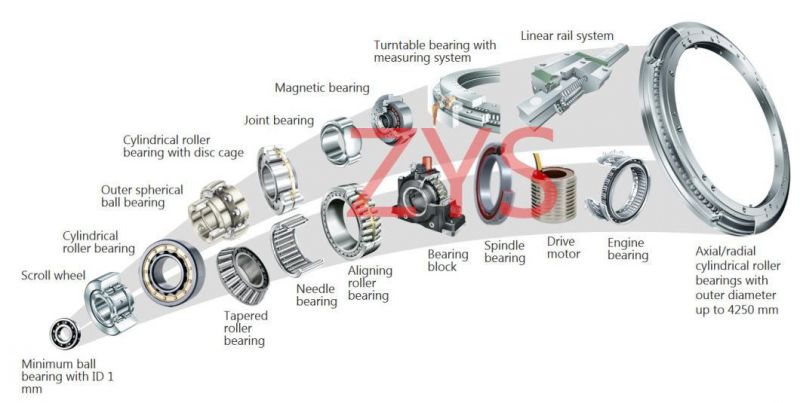

ZYS bearing products
Zys Csk20PP Sprag Clutch One Way Bearing with Keyways From Ball Bearing Supplier

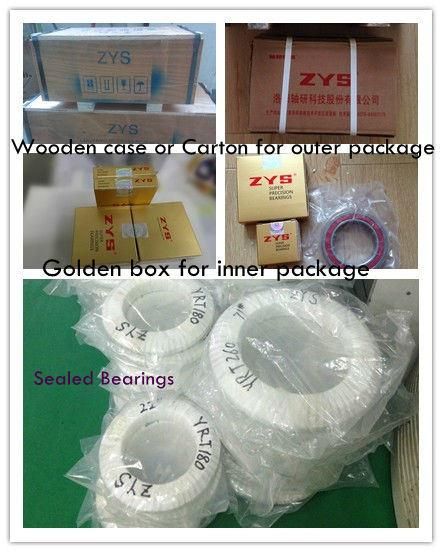

ZYS Packing :







Zys Csk20PP Sprag Clutch One Way Bearing with Keyways From Ball Bearing Supplier

FAQ

Q: Are you trading company or manufacturer?
A: ZYS is bearing manufacturer, the only first-class comprehensive research institute in China bearing industry.

Q: How do you control quality of bearing?
A: ZYS has established quality control systems for each kind of bearing and spindle. All products and services passed ISO9001-2008 Quality Certificate.


Q: What is the MOQ?
A: It depends on the bearing type. You can send inquiry or send e-mail  for more information.

Q: How about the package?
A: Industrial packing in general condition (Plastic tube+ carton+ pallet). Accept design package when OEM.

Q: How long is the delivery time?
A: It will take about 10 to 40 days, depends on the model and quantity.

Q: How about the shipping?
A: We can arrange the shipment or you may have the forwarder.

Q: Is sample avaiable?
A: Yes, sample order is acceptable.

Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable. We can design the bearing with your requirements and use your own LOGO and package design.
