Thin Wall Bearing Precision Bearing Kaydon Replaced Thin Section Ball Bearings Open Type Four Point Contact Ball Bearing (KA100XP0) Slim Bearing
Luoyang Huayang Special Heavy-Duty and Large Bearing Manufacturing Co., Ltd.- Contact Angle：45°
- Aligning：Non-Aligning Bearing
- Separated：Unseparated
- Rows Number：Single
- Load Direction：Radial Bearing
- Material：Bearing Steel
Base Info
- Model NO.：KA100XP0
- Usage：Replacement to The Brand Bearings
- Working Temperature：-30-+120
- Company History：Since 1993
- Precision：P0, P6, P5, P4
- Delivery Time：5-30 Days

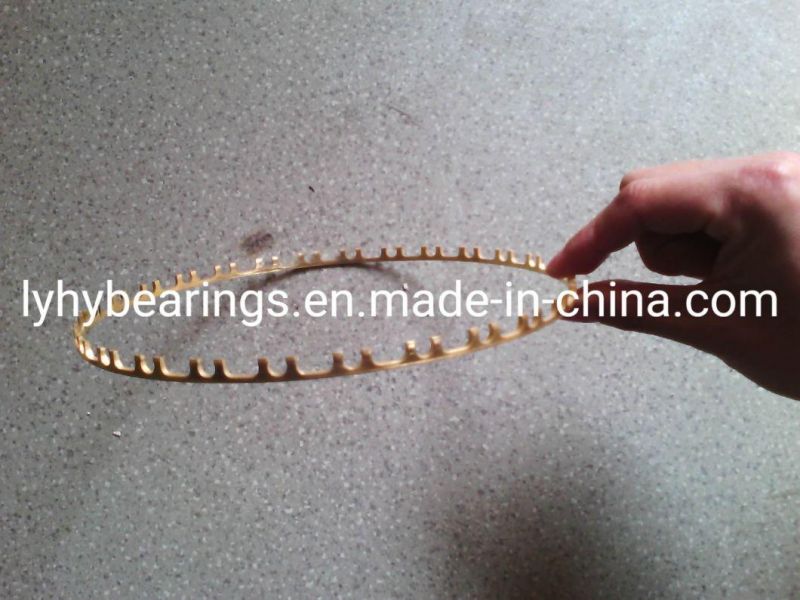

- Cage：Brass Cage
- Sealing：NBR
- Inspection：Lyhy or 3rd Party
- Transport Package：Wooden Box
- Specification：as per the model no.
- Trademark：LYHY
- Origin：China
- HS Code：8482103000
- Production Capacity：100000PCS Per Year
Description
PoundsJA020XP0 2 2.5 0.25 2.15 2.36 3020 1420 7600 3510 0.045 JA025XP0 2.5 3 0.25 2.65 2.86 3690 1600 9290 4050 0.054 JA030XP0 3 3.5 0.25 3.15 3.36 4400 1820 10980 4490 0.064 JA035XP0 3.5 4 0.25 3.65 3.86 5070 2000 12670 4930 0.077 JA040XP0 4 4.5 0.25 4.15 4.36 5730 2130 14310 5380 0.086 JA042XP0 4.25 4.75 0.25 4.4 4.61 6090 2220 15160 5600 0.091 JA045XP0 4.5 5 0.25 4.65 4.86 6400 2310 16000 5820 0.095 JA047XP0 4.75 5.25 0.25 4.9 5.11 6760 2400 16850 6000 0.1 JA050XP0 5 5.5 0.25 5.15 5.33 7070 2490 17690 6220 0.104 JA055XP0 5.5 6 0.25 5.65 5.86 7780 2620 19380 6580 0.113 JA060XP0 6 6.5 0.25 6.15 6.36 8450 2800 21070 6980 0.127 JA065XP0 6.5 7 0.25 6.65 6.86 9110 2930 22760 7330 0.136 JB020XP0 2 2.63 0.31 2.14 2.36 4130 2000 10400 5020 0.068 JB025XP0 2.5 3.13 0.31 2.64 2.86 5070 2310 12620 5730 0.086 JB030XP0 3 3.63 0.31 3.14 3.36 5960 2580 14890 6400 0.1 JB035XP0 3.5 4.13 0.31 3.64 3.86 6850 2800 17160 7070 0.122 JB040XP0 4 4.63 0.31 4.14 4.36 7780 3070 19430 7650 0.136 JB042XP0 4.25 4.88 0.31 4.39 4.66 8130 3160 20310 7910 0.141 JB045XP0 4.5 5.13 0.31 4.64 4.86 8670 3290 21690 8220 0.154 JB047XP0 4.75 5.38 0.31 4.89 5.16 9020 3380 22580 8450 0.159 JB050XP0 5 5.63 0.31 5.14 5.36 9560 3510 23910 8800 0.168 JB055XP0 5.5 6.13 0.31 5.64 5.86 10490 3730 26180 9340 0.181 JB060XP0 6 6.63 0.31 6.14 6.36 11380 3960 28450 9870 0.2 JB065XP0 6.5 7.13 0.31 6.64 6.86 12270 4130 30720 10400 0.213 JG120XP0 12 14 1 12.55 13.6 94860 37830 237140 94590 4.218 JG140XP0 14 16 1 14.55 15.6 109440 41610 273630 152950 4.899 JG160XP0 16 18 1 16.55 17.6 124060 45250 310130 113130 5.579 JG180XP0 18 20 1 18.55 19.6 138640 48720 346620 121840 6.214 JG200XP0 20 22 1 20.55 21.6 153220 52100 383070 130240 7.167 JU040XP0 4 4.75 0.5 4.15 4.55 9340 3910 23380 9820 0.249 JU042XP0 4.25 5 0.5 4.4 4.8 9870 4090 24710 10180 0.263 JU045XP0 4.5 5.25 0.5 4.65 5.05 10400 4220 26050 10580 0.277 JU047XP0 4.75 5.5 0.5 4.9 5.3 10940 4360 27380 10940 0.295 JU050XP0 5 5.75 0.5 5.15 5.55 11510 4490 28720 11290 0.308 JU055XP0 5.5 6.25 0.5 5.56 6.04 12580 4800 31380 11960 0.336 JU060XP0 6 6.75 0.5 6.15 6.54 13650 5070 34050 12620 0.367 JU065XP0 6.5 7.25 0.5 6.65 7.04 14710 5330 36760 13290 0.395 JU070XP0 7 7.75 0.5 7.15 7.54 15780 5560 39430 13910 0.422 JU075XP0 7.5 8.25 0.5 7.65 8.04 16850 5820 42090 14540 0.449 JU080XP0 8 8.75 0.5 8.15 8.54 17910 6050 44760 15160 0.481 JU090XP0 9 9.75 0.5 9.15 9.54 20050 6530 50100 16310 0.535 JU100XP0 10 10.75 0.5 10.15 10.54 22180 6980 55430 17470 0.594 JU110XP0 11 11.75 0.5 11.15 11.54 24310 7420 60810 18580 0.649 JU120XP0 12 12.75 0.5 12.15 12.54 26450 7870 66140 19650 0.708

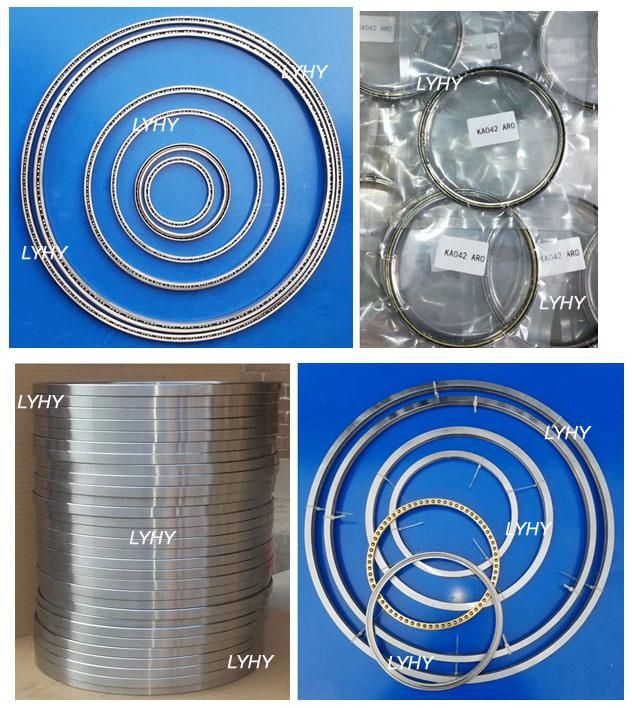

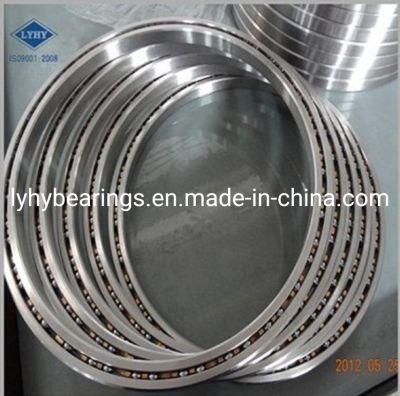

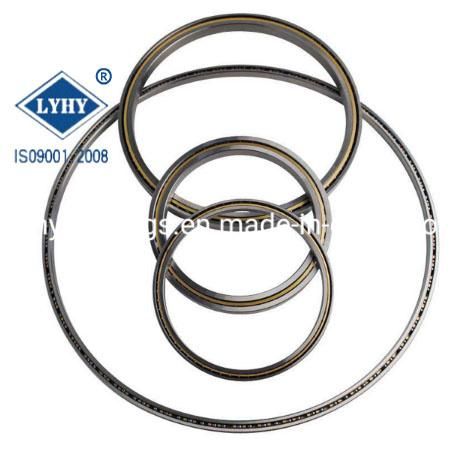

Thin Section Ball Bearing, is also call thin wall bearings, slim ball bearings, were developed for applications where space limitations are of the utmost importance. As the name implies, the difference between the inside and outside diameters of the rings has been minimized or thinned out. Of course this comes at a price by compromising load capacities. However, these bearings can still accommodate a relatively light radial thrust or combined loads.
LYHY is a professional manufacturer of all kinds of ball bearings, roller bearing, and precision bearing since 1993. Our bearings products and design solutions will enhance your product performance; Make your company more competitive, and make your job easier.
Material
Bearing steel Gcr15 or stainless steel
Structure
Open type deep groove ball bearing
Open type angular contact bearing
Open type four point contact bearing
Sealed type deep groove ball bearing
Sealed four point contact ball bearing
Feature
1. Compact structure, light weight, low vibration and friction
2. High precision,
3. Space and cost saving
4. Best quality, long life
Application
Aviation, astronomical instruments, glass manufacturing machinery, medical instrument, optical and scanning instrument, satellite communication devices, textile machinery, large welding equipment, robot, semiconductor manufacturing equipment etc. Print machinery.
Open type - four point contact ball bearing
KA020XP0, KA025XP0, KA030XP0, KA035XP0, KA040XP0, KA042XP0, KA045XP0, KA047XP0, KA050XP0, KA055XP0, KA060XP0, KA065XP0, KA070XP0, KA075XP0, KA080XP0, KA090XP0, KA100XP0, KA110XP0, KA120XP0,
KB020XP0, KB025XP0, KB030XP0, KB035XP0, KB040XP0, KB042XP0, KB045XP0, KB047XP0, KB050XP0, KB055XP0, KB060XP0, KB065XP0, KB070XP0, KB075XP0, KB080XP0, KB090XP0, KB100XP0, KB110XP0, KB120XP0, KB140XP0, KB160XP0, KB180XP0, KB200XP0,
KC040XP0, KC042XP0, KC045XP0, KC047XP0, KC050XP0, KC055XP0, KC060XP0, KC065XP0, KC070XP0, KC075XP0, KC080XP0, KC090XP0, KC100XP0, KC110XP0, KC120XP0, KC140XP0, KC160XP0, KC180XP0, KC200XP0,
KD040XP0, KD042XP0, KD045XP0, KD047XP0, KD050XP0, KD055XP0, KD060XP0, KD065XP0, KD070XP0, KD075XP0, KD080XP0, KD090XP0, KD100XP0, KD110XP0, KD120XP0, KD140XP0, KD160XP0, KD180XP0, KD200XP0,
KF040XP0, KF042XP0, KF045XP0, KF047XP0, KF050XP0, KF055XP0, KF060XP0, KF065XP0, KF070XP0, KF075XP0, KF080XP0, KF090XP0, KF100XP0, KF110XP0, KF120XP0, KF140XP0, KF160XP0, KF180XP0, KF200XP0,
KG040XP0, KG042XP0, KG045XP0, KG047XP0, KG050XP0, KG055XP0, KG060XP0, KG065XP0, KG070XP0, KG075XP0, KG080XP0, KG090XP0, KG100XP0, KG110XP0, KG120XP0, KG140XP0, KG160XP0, KG180XP0, KG200XP0,
Sealed type - four point contact ball bearing
JA020XP0, JA025XP0, JA030XP0, JA035XP0, JA040XP0, JA042XP0, JA045XP0, JA047XP0, JA050XP0, JA055XP0, JA060XP0, JA065XP0,
JB020XP0, JB025XP0, JB030XP0, JB035XP0, JB040XP0, JB042XP0, JB045XP0, JB047XP0, JB050XP0, JB055XP0, JB060XP0, JB065XP0,
JU040XP0, JU042XP0, JU045XP0, JU047XP0, JU050XP0, JU055XP0, JU060XP0, JU065XP0, JU070XP0, JU075XP0, JU080XP0, JU090XP0, JU100XP0, JU110XP0, JU120XP0,
JG120XP0, JG140XP0, JG160XP0, JG180XP0, JG200XP0
Thin Section Ball Bearing, is also call thin wall bearings, slim ball bearings, were developed for applications where space limitations are of the utmost importance. As the name implies, the difference between the inside and outside diameters of the rings has been minimized or thinned out. Of course this comes at a price by compromising load capacities. However, these bearings can still accommodate a relatively light radial thrust or combined loads.
LYHY is a professional manufacturer of all kinds of ball bearings, roller bearing, and precision bearing since 1993. Our bearings products and design solutions will enhance your product performance; Make your company more competitive, and make your job easier.
Material
Bearing steel Gcr15 or stainless steel
Structure
Open type deep groove ball bearing
Open type angular contact bearing
Open type four point contact bearing
Sealed type deep groove ball bearing
Sealed four point contact ball bearing
Feature
1. Compact structure, light weight, low vibration and friction
2. High precision,
3. Space and cost saving
4. Best quality, long life
Application
Aviation, astronomical instruments, glass manufacturing machinery, medical instrument, optical and scanning instrument, satellite communication devices, textile machinery, large welding equipment, robot, semiconductor manufacturing equipment etc. Print machinery.
Open type - four point contact ball bearing
KA020XP0, KA025XP0, KA030XP0, KA035XP0, KA040XP0, KA042XP0, KA045XP0, KA047XP0, KA050XP0, KA055XP0, KA060XP0, KA065XP0, KA070XP0, KA075XP0, KA080XP0, KA090XP0, KA100XP0, KA110XP0, KA120XP0,
KB020XP0, KB025XP0, KB030XP0, KB035XP0, KB040XP0, KB042XP0, KB045XP0, KB047XP0, KB050XP0, KB055XP0, KB060XP0, KB065XP0, KB070XP0, KB075XP0, KB080XP0, KB090XP0, KB100XP0, KB110XP0, KB120XP0, KB140XP0, KB160XP0, KB180XP0, KB200XP0,
KC040XP0, KC042XP0, KC045XP0, KC047XP0, KC050XP0, KC055XP0, KC060XP0, KC065XP0, KC070XP0, KC075XP0, KC080XP0, KC090XP0, KC100XP0, KC110XP0, KC120XP0, KC140XP0, KC160XP0, KC180XP0, KC200XP0,
KD040XP0, KD042XP0, KD045XP0, KD047XP0, KD050XP0, KD055XP0, KD060XP0, KD065XP0, KD070XP0, KD075XP0, KD080XP0, KD090XP0, KD100XP0, KD110XP0, KD120XP0, KD140XP0, KD160XP0, KD180XP0, KD200XP0,
KF040XP0, KF042XP0, KF045XP0, KF047XP0, KF050XP0, KF055XP0, KF060XP0, KF065XP0, KF070XP0, KF075XP0, KF080XP0, KF090XP0, KF100XP0, KF110XP0, KF120XP0, KF140XP0, KF160XP0, KF180XP0, KF200XP0,
KG040XP0, KG042XP0, KG045XP0, KG047XP0, KG050XP0, KG055XP0, KG060XP0, KG065XP0, KG070XP0, KG075XP0, KG080XP0, KG090XP0, KG100XP0, KG110XP0, KG120XP0, KG140XP0, KG160XP0, KG180XP0, KG200XP0,
Sealed type - four point contact ball bearing
JA020XP0, JA025XP0, JA030XP0, JA035XP0, JA040XP0, JA042XP0, JA045XP0, JA047XP0, JA050XP0, JA055XP0, JA060XP0, JA065XP0,
JB020XP0, JB025XP0, JB030XP0, JB035XP0, JB040XP0, JB042XP0, JB045XP0, JB047XP0, JB050XP0, JB055XP0, JB060XP0, JB065XP0,
JU040XP0, JU042XP0, JU045XP0, JU047XP0, JU050XP0, JU055XP0, JU060XP0, JU065XP0, JU070XP0, JU075XP0, JU080XP0, JU090XP0, JU100XP0, JU110XP0, JU120XP0,
JG120XP0, JG140XP0, JG160XP0, JG180XP0, JG200XP0
